PR electronics 9410 Series Manual de usuario
9410
Power Control Unit
No. 9410V102-UK
Product version: 9410-001
1511
PR electronics A/S tilbyder et bredt program af analoge og digitale
signalbehandlingsmoduler til industriel automation. Programmet
består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere,
Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv
barske miljøer med elektrisk støj, vibrationer og temperaturudsving,
og alle produkter opfylder de strengeste internationale standarder.
Vores motto »Signals the Best« er indbegrebet af denne filosofi – og
din garanti for kvalitet.
PR electronics A/S oers a wide range of analog and digital
signal conditioning devices for industrial automation. The product
range includes Isolators, Displays, Ex Interfaces, Temperature
Transmitters, and Universal Devices. You can trust our products in
the most extreme environments with electrical noise, vibrations and
temperature fluctuations, and all products comply with the most
exacting international standards. »Signals the Best« is the epitome
of our philosophy – and your guarantee for quality.
PR electronics A/S ore une large gamme de produits pour le
traitement des signaux analogiques et numériques dans tous
les domaines industriels. La gamme de produits s’étend des
transmetteurs de température aux acheurs, des isolateurs aux
interfaces SI, jusqu’aux modules universels. Vous pouvez compter
sur nos produits même dans les conditions d’utilisation sévères,
p.ex. bruit électrique, vibrations et fluctuations de température.
Tous nos produits sont conformes aux normes internationales les
plus strictes. Notre devise »SIGNALS the BEST« c’est notre ligne
de conduite - et pour vous l’assurance de la meilleure qualité.
PR electronics A/S verfügt über ein breites Produktprogramm
an analogen und digitalen Signalverarbeitungsgeräte für die in-
dustrielle Automatisierung. Dieses Programm umfasst Displays,
Temperaturtransmitter, Ex- und galvanische Signaltrenner, und
Universalgeräte. Sie können unsere Geräte auch unter extremen
Einsatzbedingungen wie elektrisches Rauschen, Erschütterungen
und Temperaturschwingungen vertrauen, und alle Produkte von
PR electronics werden in Übereinstimmung mit den strengsten
internationalen Normen produziert. »Signals the Best« ist Ihre
Garantie für Qualität!
DK
UK
FR
DE
9410 - Product Version 9410-001 1
POWER CONTROL UNIT
9410
CONTENTS
Warning....................................................................................................... 2
Symbol identification............................................................................ 2
Safety instructions................................................................................. 2
How to dismantle system 9000....................................................... 4
Application and advanced features................................................. 5
Technical characteristics...................................................................... 5
Order ............................................................................................................ 7
Electrical specifications........................................................................ 7
Connections .............................................................................................. 9
Block diagram........................................................................................... 10
Appendix.................................................................................................... 11
IECEx Installation Drawing............................................................. 12
ATEX Installation Drawing ............................................................. 15
FM Installation Drawing.................................................................. 18
INMETRO Installation Drawing..................................................... 21
2 9410 - Product Version 9410-001
SYMBOL IDENTIFICATION
Triangle with an exclamation mark: Read the manual before installation
and commissioning of the device in order to avoid incidents that could lead
to personal injury or mechanical damage.
The CE mark proves the compliance of the device with the essential
requirements of the directives.
The double insulation symbol shows that the device is protected by dou-
ble or reinforced insulation.
Ex devices have been approved according to the ATEX directive for use in
connection with installations in explosive areas.
SAFETY INSTRUCTIONS
DEFINITIONS:
Hazardous voltages have been defined as the ranges: 75...1500 Volt DC, and
50...1000 Volt AC.
Technicians are qualified persons educated or trained to mount, operate, and also
troubleshoot technically correct and in accordance with safety regulations.
Operators, being familiar with the contents of this manual, adjust and operate
the knobs or potentiometers during normal operation.
RECEIPT AND UNPACKING:
Unpack the device without damaging it and check whether the device type
corresponds to the one ordered. The packing should always follow the device
until this has been permanently mounted.
WARNING
The following operations should only be carried out on a discon-
nected device and under ESD-safe conditions:
General mounting, connection and disconnection of wires.
Troubleshooting the device.
Repair of the device and replacement of circuit breakers must
be done by PR electronics A/S only.
9410 - Product Version 9410-001 3
ENVIRONMENT:
Avoid direct sunlight, dust, high temperatures, mechanical vibrations and shock,
as well as rain and heavy moisture. If necessary, heating in excess of the stated
limits for ambient temperatures should be avoided by way of ventilation.
The device must be installed in pollution degree 2 or better.
The device is designed to be safe at least under an altitude up to 2 000 m.
MOUNTING:
Only technicians who are familiar with the technical terms, warnings, and instruc-
tions in the manual and who are able to follow these should connect the device.
Should there be any doubt as to the correct handling of the device, please contact
your local distributor or, alternatively,
PR electronics A/S
www.prelectronics.com
Mounting and connection of the device should comply with national legislation
for mounting of electric materials, i.a. wire cross section, protective fuse, and
location.
The use of stranded wires is not permitted for mains wiring except when wires
are fitted with cable ends.
Descriptions of input / output and supply connections are shown in the block
diagram and on the side label.
The device is provided with field wiring terminals and shall be supplied from
a Power Supply having double / reinforced insulation. A power switch shall be
easily accessible and close to the device. The power switch shall be marked as
the disconnecting device for the device.
Year of manufacture can be taken from the first two digits in the serial number.
CALIBRATION AND ADJUSTMENT:
During calibration and adjustment, the measuring and connection of external
voltages must be carried out according to the specifications of this manual. The
technician must use tools and instruments that are safe to use.
NORMAL OPERATION:
Operators are only allowed to adjust and operate devices that are safely fixed in
panels, etc., thus avoiding the danger of personal injury and damage. This means
there is no electrical shock hazard, and the device is easily accessible.
4 9410 - Product Version 9410-001
CLEANING:
When disconnected, the device may be cleaned with a cloth moistened with
distilled water.
LIABILITY:
To the extent the instructions in this manual are not strictly observed, the
customer cannot advance a demand against PR electronics A/S that would
otherwise exist according to the concluded sales agreement.
HOW TO DISMANTLE SYSTEM 9000

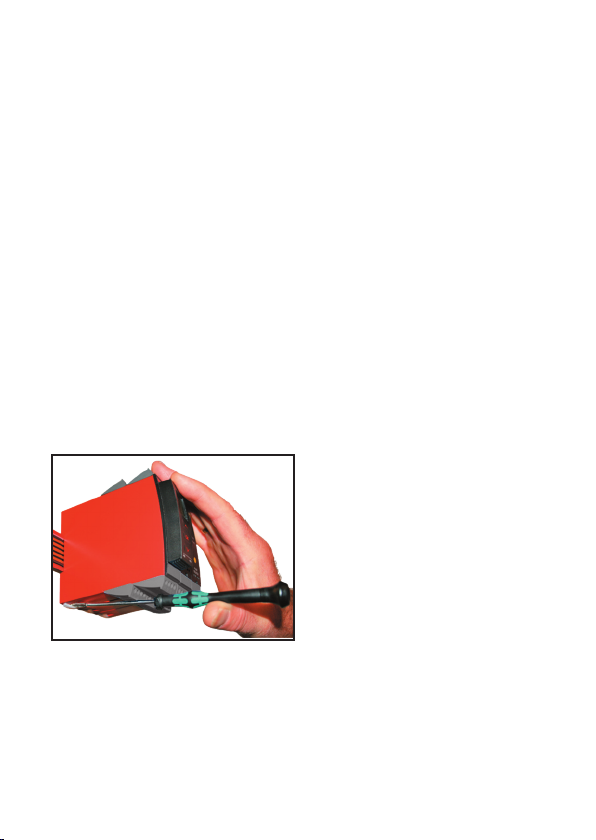

Picture 1:
By lifting the bottom lock, the device
is detached from the DIN rail.
9410 - Product Version 9410-001 5
POWER CONTROL UNIT
9410
• Distributes supply voltage to the power rail
• Optional connection of backup supply
• Approved for installation in Ex zone 2 / Div. 2
• Optional redundant supply for the power rail
• Must be installed on power rail, PR type 9400
Application and advanced features
• Thepowercontrolunitdetectserrorsfromanyofthedevicesmountedon
the power rail and transmits a collective alarm to the control system via the
internal status relay.
• Optionalconnectionoftwopowersupplies-aprimarysupplyandabackup
supply.
• Redundantsupplyforthepowerrailcanbeobtainedbymountingtwo9410
devices connected to 2 separate power supplies (e.g. PR 9420).
Technical characteristics
• Thestatusrelaywillbeenergised(pins11&12)whenthefollowingthree
conditions are met:
1. Supply voltage is present on pins 31 and 32.
2. Backup supply voltage is present on pins 34 and 33. (If the backup supply
is not in use, a jumper must be placed between pins 32 and 33 -
the jumper is delivered with the device).
3. There are no error signals from the devices connected to the power rail.
• Whenacollectivealarmisactivatedviathepowerrail,thestatusrelayinthe
9410willbede-energised(pins13&12).
• TwogreenfrontLEDsindicateconnectionofsupplyandbackup.
• AredLEDindicateserrorstatus.
11
12
13
14
31
32
33
34
N.C.
N.O.
6 9410 - Product Version 9410-001
Supply, +24 VDC
Supply backup, +24 VDC
Supply backup, Gnd
Supply, Gnd
Device status relay from power rail
Applications
Power connection
Zone 2 / FM Cl. 1, div. 2 or safe area
If no backup supply:
Place a jumper between
pin 32 and 33
Rail, +24 VDC
Rail, Gnd.
Power rail
Status relay signal
9410 - Product Version 9410-001 7
ORDER
9410 = Power Control Unit
Electrical specifications
Environmental conditions
Specifications range............................................... -20...+60°C
Storage temperature .............................................. -20...+85°C
Relative humidity..................................................... < 95% RH (non-cond.)
Protection degree.................................................... IP20
Installation in............................................................. Pollutiondegree2&measurement/
overvoltage category II
Mechanical specifications:
Dimensions (HxBxD)............................................... 109 x 23.5 x 104 mm
Weight .......................................................................... 140 g
Wire size (min. / max.)............................................ 0.13...2.08 mm2/ AWG 26...14
stranded wire
Screw terminal torque........................................... 0.5 Nm
Vibration...................................................................... IEC 60068-2-6 : 2007
2...13.2 Hz ............................................................. ±1 mm
13.2...100 Hz........................................................ ±0.7
Common specifications:
Max. consumption.................................................... 96 W
Efficiency .................................................................... > 97,9%
Max. internal consumption................................... 2 W
Input:
Supply voltage,
double / reinforced isolation............................... 21.6...26.4 VDC
Backup supply........................................................... 21.6...26.4 VDC
Trig levels for voltage surveillance.................. Error < 21 VDC
Output:
Output voltage @ 4 A............................................ Input voltage - 0.5 VDC
Output power, max. ................................................ 96 W
Output current, max. .............................................. 4 A
Output ripple ............................................................. Samme as input ripple
8 9410 - Product Version 9410-001
Status relay in safe area:
Max. voltage .............................................................. 250 VAC / 30 VDC
Max. current............................................................... 2 AAC / 2 ADC
Max. AC power .......................................................... 500 VA / 60 W
Approvals:
EMC 2004/108/EC .................................................. EN 61326-1
LVD 2006/95/EC...................................................... EN 61010-1
c UL us, Standard for Safety................................ UL 61010-1
EAC TR-CU 020/2011............................................ EN 61326-1
Metrological Pattern Approval............................ DK.C.34.004.A No. 47954
Marine:
DetNorskeVeritas,Ships&Offshore ............. Stand. f. Certific. No. 2.4
I.S. / Ex:
ATEX 94/9/EC............................................................ KEMA 07ATEX0152 X
IECEx............................................................................. IECEx KEM 08.0025X
c FM us......................................................................... 3034431-C
INMETRO ..................................................................... NCC 12.1308 X
Otros manuales para 9410 Series
3
Tabla de contenidos
Otros manuales de Unidad de control de PR electronics
Manuales populares de Unidad de control de otras marcas
Festo
Festo Compact Performance CP-FB6-E Manual de lista de piezas
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manual de usuario
JS Automation
JS Automation MPC3034A Manual de usuario
JAUDT
JAUDT SW GII 6406 Series Guía rápida
Spektrum
Spektrum Air Module System Manual de usuario
BOC Edwards
BOC Edwards Q Series Manual de usuario
