PR Elecronics 5333 Manual de usuario

5333

CCOE

2-Wire Programmable

Transmitter

No. 5333V113-UK

From ser. no.:

132094001 - 132094630

141115001 

1707

Revision Notes

The following list provides notes concerning revisions of this document.

Rev. ID Date Notes

111 13/45 IECEx and INMETRO approvals added

112 15/14 PESO/CCOE approval added

GOST approval replaced with

EAC approval

113 17/07 FM installation drawing updated

INMETRO installation drawings updated

5333V113-UK 1

2-WIRE

PROGRAMMABLE TRANSMITTER

5333

Contents

Application................................................................................................. 2

Technical characteristics...................................................................... 2

Mounting / installation ......................................................................... 2

Applications............................................................................................... 3

Order: 5333............................................................................................... 4

Electrical specifications........................................................................ 4

Connections .............................................................................................. 7

Block diagram........................................................................................... 8

Programming ............................................................................................ 9

Mechanical specifications ................................................................... 10

Mounting of sensor wires ................................................................... 10

Appendix .................................................................................................... 11

ATEX Installation Drawing - 5333A ............................................ 12

ATEX Installation Drawing - 5333D ............................................ 13

IECEx Installation Drawing - 5333A............................................ 15

IECEx Installation Drawing - 5333D............................................ 16

FM Installation Drawing - 5333D................................................. 18

CSA Installation Drawing - 5333D............................................... 20

INMETRO Instruções de Segurança - 5333A........................... 21

INMETRO Instruções de Segurança - 5333D........................... 22

2 5333V113-UK

2-WIRE PROGRAMMABLE TRANSMITTER

5333

• RTD or Ohm input

• High measurement accuracy

• 3-wire connection

• Programmable sensor error value

• For DIN form B sensor head mounting

Application

• Linearised temperature measurement with Pt100...Pt1000 or Ni100...Ni1000

sensor.

• Conversion of linear resistance variation to a standard analogue current

signal, for instance from valves or Ohmic level sensors.

Technical characteristics

• Within a few seconds the user can program PR5333 to measure temperatures

within all RTD ranges defined by the norms.

• The RTD and resistance inputs have cable compensation for 3-wire

connection.

Mounting / installation

• For DIN form B sensor head mounting. In non-hazardous areas the 5333 can be

mounted on a DIN rail with a special fitting.

5333V113-UK 3

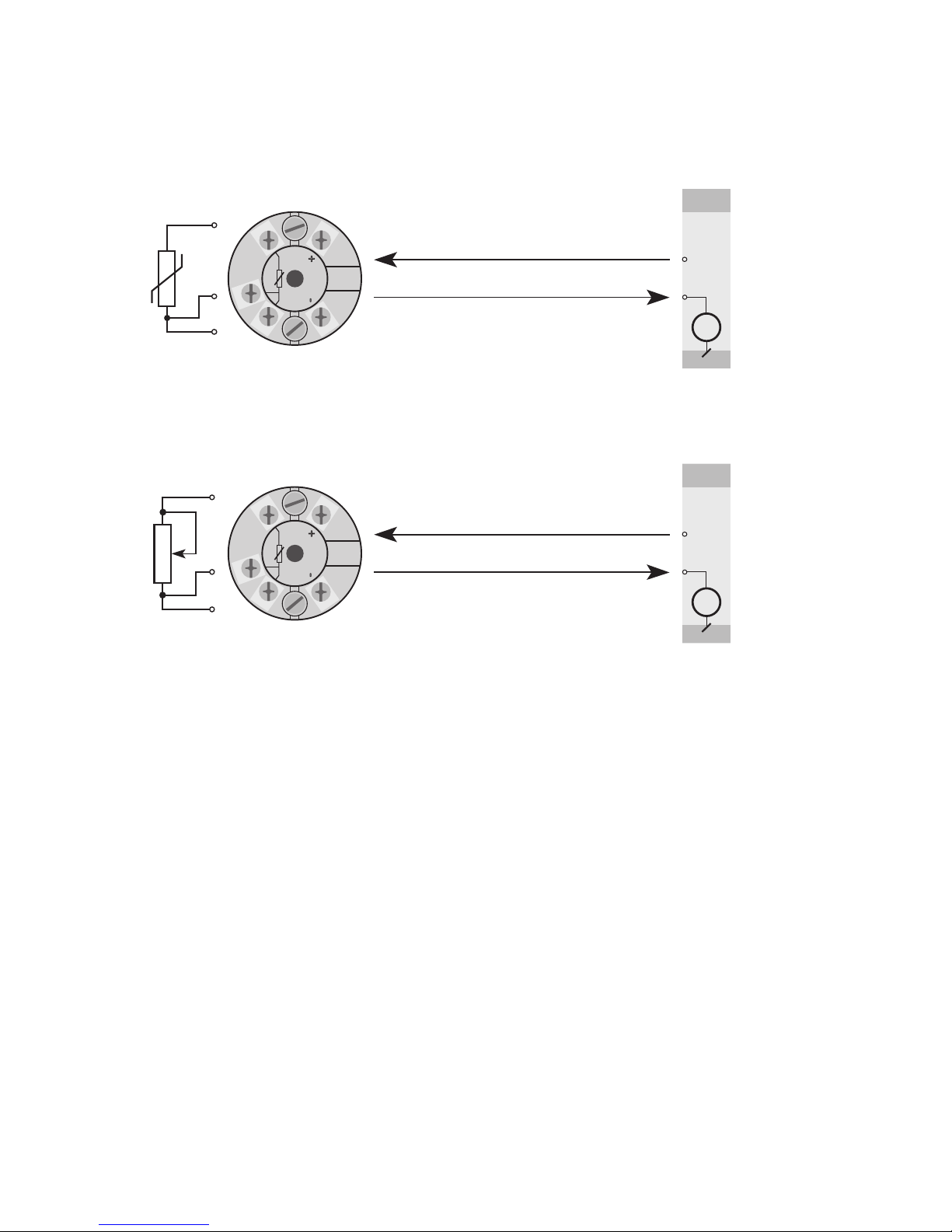

APPLICATIONS

V+

RTD to 4...20 mA

2-wire installation

in control room

Resistance to 4...20 mA

2-wire installation

in control room

4 5333V113-UK

Electrical specifications

Specifications range:

-40°C to +85°C

Common specifications:

Supply voltage, DC

Standard.................................................................. 8...35 V

CSA, FM, ATEX, IECEx & INMETRO................ 8...30 V

Internal power dissipation

Standard.................................................................. 25 mW...0.8 W

CSA, FM, ATEX, IECEx & INMETRO................ 25 mW...0.7 W

Voltage drop .............................................................. 8 VDC

Warm-up time............................................................ 5 min.

Communications interface ................................... Loop Link

Signal / noise ratio .................................................. Min. 60 dB

Response time (programmable)......................... 0.33...60 s

Signal dynamics, input........................................... 19 bit

Signal dynamics, output ....................................... 16 bit

Calibration temperature ........................................ 20...28°C

Order: 5333

Type Version

5333 Standard : A

CSA, FM, ATEX, IECEx & INMETRO : D

5333V113-UK 5

General values

Input type

Absolute

accuracy

Temperature

coefficient

All ≤±0.1% of span ≤ ±0.01% of span / °C

Basic values

Input type

Basic

accuracy

Temperature

coefficient

RTD ≤±0.3°C ≤±0.01°C/°C

Lin. R ≤±0.2 Ω ≤ ±20 mΩ/ °C

EMC immunity influence........................................... < ±0.5% of span

Accuracy, the greater of general and basic values:

Effect of supply voltage variation.................... ≤0,005% of span / VDC

Vibration...................................................................... IEC 60068-2-6 : 2007

2...25 Hz.................................................................. ±1.6 mm

25...100 Hz ...................................................... ±4 g

Max. wire size............................................................ 1 x 1.5 mm2stranded wire

Humidity...................................................................... < 95% RH (non-cond.)

Dimensions................................................................. Ø 44 x 20.2 mm

Protection degree (enclosure / terminal)....... IP68 / IP00

Weight .......................................................................... 50 g

Electrical specifications, input:

RTD and linear resistance input:

Max. offset ................................................................. 50% of selec. max. value

Cable resistance per wire (max.) ....................... 10 Ω

Sensor current........................................................... > 0.2 mA, < 0.4 mA

Effect of sensor cable resistance

(3-wire) ........................................................................ < 0.002 Ω / Ω

Sensor error detection........................................... Yes

RTD

type

Min.

value

Max.

value

Min.

span

Standard

Pt100

Ni100

Lin. R

-200°C

-60°C

0 Ω

+850°C

+250°C

10000 Ω

25°C

30 Ω

IEC 60751

DIN 43760

-----

6 5333V113-UK

Output:

Current output:

Signal range ............................................................... 4...20 mA

Min. signal range...................................................... 16 mA

Updating time ........................................................... 135 ms

Load resistance......................................................... ≤(Vsupply- 8) / 0.023 [Ω]

Load stability............................................................. < ±0.01% of span / 100 Ω

Sensor error detection:

Programmable ........................................................... 3.5...23 mA

NAMUR NE43 Upscale........................................... 23 mA

NAMUR NE43 Downscale..................................... 3.5 mA

Of span = Of the presently selected range

Approvals:

EMC................................................................................ 2014/30/EU

CCOE .............................................................................. P337392/3

RoHS ............................................................................. 2011/65/EU

EAC................................................................................. TR-CU 020/2011

Marine approval:

DNV-GL, Ships & Offshore.................................... Standard for Certification No. 2.4

Ex / I.S.:

ATEX 2014/34/EU

5333A...................................................................... KEMA 10ATEX0003 X

5333D...................................................................... KEMA 03ATEX1535 X

FM certificate ............................................................ FM17US0013X

CSA certificate .......................................................... 1125003

IECEx............................................................................. DEK 13.0036 X

INMETRO ..................................................................... DEKRA 16.0014 X

CCOE .............................................................................. P337392/4

EAC Ex TR-CU 012/2011 ..................................... RU C-DK.GB08.V.00410

5333V113-UK 7

CONNECTIONS

1 2

mA -

3463 46 3 463 46

Output:

2-wire installation

Input:

RTD, 2-wire RTD, 3-wire Resistance, 2-wire Resistance, 3-wire

8 5333V113-UK

BLOCK DIAGRAM

0...16

2mA

M UX

4 mA

5333

PGA

D /A

A /D

C PU

EEPRO M

Supply -

4...20 mA

Input +

Input -

Supply +

8...35 VDC

Comp. +

RTD

Lin.R

Comm.
