INSTRUCTION MANUAL

EN 21"80V Cordless Lawn Mower

FR 21" 80V Une tondeuse à gazon sans fil

ES 21" 80V Cortacésped inalámbrico

Model # DB2821

Have product questions or need technical support? Please feel free to contact us!

Website: www.powersmartusa.com

Toll free: 1-800-791-9458, 1-888-293-0024 (Mon-Fri 9-5 EST)

Email: support@amerisuninc.com

support@powersmartusa.com

Website

CONTENTS

Contents................................................................................................................. 3

Techinical data........................................................................................................ 3

Safety information .................................................................................................. 4

Symbols ............................................................................................................... 10

Know your lawn mower......................................................................................... 12

Assembly.............................................................................................................. 13

Operation ............................................................................................................. 17

Maintenance......................................................................................................... 22

Service............................................................................................................23

Environmentally safe battery disposal................................................................... 24

Troubleshooting.................................................................................................... 25

Exploded View ..................................................................................................... 26

Parts List....................................................................................................................27

Warranty............................................................................................................... 29

TECHNICAL DATA

21" 80V CORDLESS LAWN MOWER Model # DB2821

Battery type: 80V Lithium-ion

Charger time: 90mins

No-load speed: 3000 RPM

Cutting width: 21 inch

Height adjustments: 6 Position

Grass catcher capacity: 15.8 Gallon

Wheel: Front: 7 inch / Rear: 8 inch

Package dimensions (L x W x H): 32.9 x 22.6 x 16.5 inches

Weight: 67.2lbs

SAFETY INFORMATION

GENERAL SAFETY RULES

WARNING: when using electric lawn mowers, basic safety precautions should always

be followed to reduce the risk of fire, electric shock, and personal injury, including the

following:

READ ALL INSTRUCTIONS CAREFULLY

WARNING:This symbol indicates important safety instructions. If these instructions

are not followed, it could endanger the personal safety and/or property of the operator

and others. Read and understand all instructions in this manual before attempting to

operate the mower. Failure to comply with these instructions may result in personal

injury.

DANGER

This mower was built to be operated according to the rules for safe operation that are

contained in this manual. As with any type of power equipment, carelessness or error

on the part of the operator can result in serious injury. This mower is capable of

amputating body parts and throwing objects. Failure to observe the following safety

rules could result in serious injury or death.

WARNING: Basic safety precautions should always be followed when using electric

lawn mowers, in order to

reduce the risk of fire, electric shock, and personal injury.

WARNING: Use of this mower should be restricted to individuals who have read and

understoood and will follow the warnings and instructions that are printed in this

manual and on the mower.

• Carefully read all instructions on the mower and in the manual before attempting to

assemble and operate the mower. Keep this manual in a safe place for future

reference, and consult it regularly.

• Become familiar with all controls and their proper operation. Know how to stop the

mower and how to disengage the power in an emergency.

• In order to avoid contact with the blade or injury caused by a thrown object, stay in

the operating zone behind the handles, and keep children and bystanders at least

100’ (30 m) away from the mower while it is in operation. Stop the motor

immediately if someone enters the mowing area.

• Thoroughly inspect the area where the mower is to be used. Remove all stones,

sticks, wire, bones, toys, and other objects that could be tripped over or thrown by

the blade. Thrown objects can cause serious personal injury.

• Plan your mowing pattern in such a way as to avoid discharging material toward

roads, sidewalks, bystanders, etc. Do not discharge material against a wall or

obstruction. Doing so may cause the discharged material to ricochet back toward the

operator.

• Always wear proper eye protection that complies with ANSI Z87.1 in order to

protect your eyes while operating or performing any adjustment or repair. Thrown

objects that ricochet can cause serious eye injury.

• Always wear a face mask or a dust mask when operating the mower in a dusty

environment.

• Dress properly. Do not wear loose clothing or jewelry that can get caught in moving

parts. The wearing of protective gloves and safety footwear is recommended.

• Many injuries occur as a result of the mower being pulled over the operator’s foot

during a fall caused by slipping or tripping. Do not operate this mower in bare feet,

or while wearing sandals or lightweight (e.g., canvas) shoes. Do not hold on to the

mower if you are falling. Release the handle immediately.

• Never pull the mower back toward you while you are walking. If you must back the

mower away from a wall or an obstruction, first look down and behind in order to

avoid tripping, and then follow these steps:

• Step back from the mower in order to fully extend your arms.

• Be sure that you are well balanced.

• Pull the mower back slowly.

• Do not use the mower for any job except that for which it is intended. Do not force the

mower.

• Do not operate the mower while under the influence of alcohol or drugs.

• Stay Alert: Do not operate the mower when you are tired. Pay attention to what you

are doing. Use common sense.

• Do not put hands or feet near rotating parts or under the cutting deck. Contact with

the blade can amputate hands and feet.

• Do not attempt to adjust the wheels or the cutting height while the motor is running.

• Avoid dangerous environments. Do not operate the mower in the rain or in wet or

damp grass.

• Mow only in daylight or in good artificial light. Do not rush a mowing job.

• Stop the blade when crossing gravel driveways, walkways, or roads.

• If the mower starts to vibrate excessively, stop the motor , remove the battery and

check for the cause immediately. Vibration is generally a sign that the mower is not

working properly or needs repair.

• Stop the motor and wait until the blade comes to a complete stop before removing

the grass catcher or unclogging the chute. The cutting blade will continue to rotate

for a few seconds after the motor is shut off. Do not place any part of your body in

the blade area until you are sure that the blade has stopped rotating.

• Never operate mower without a proper trail shield, discharge cover, grass catcher,

switch control, or other safety device in place and in working order. Do not operate

the mower with damaged safety devices. Doing so can result in injury.

• Don’t force lawn mower. It will do the job better and safer at the rate for which it was

designed.

• Store idle lawn mower indoors. When not in use, lawn mower should be stored in an

indoor dry and look-up place, out of reach of children.

• Maintain lawn mower. Keep cutting edges sharp and clean to ensure the best

performance and safety.

• If lawn mower strikes a foreign objects follow these steps:

• Stop lawn mower, release the switch.

• Remove the battery.

• Inspect for damage.

• Repair any damage before restarting and operating the lawn mower.

• Do not charge lawn mower in the rain or in a wet location.

• Remove or disconnect battery before servicing, cleaning or removing material from

lawn mower.

• Inspect lawn mower cord periodically and if damaged, have it repaired by an

authorized service facility.

• Use identical replacement blades only.

• Store indoors, and do not expose to rain or water, avoid direct sunshine.

CHILD SAFETY

Tragic accidents can occur if the operator is not aware of the presence of children.

• Keep children out of the mowing area and under the watchful care of a responsible

adult.

• Do not allow children under the age of 14 to operate this mower. Children who are

14 years of age and older must read and understand the operating instructions

and safety rules in this manual, and must be trained and supervised by a parent.

• Stay alert, and turn the mower off if a child or any other person enters the mowing

area.

• Look behind and down for small children before and while moving backwards.

• Use extreme care when approaching blind corners, doorways, shrubs, trees, or other

objects that may obscure your view of a child who may run into the path of the

mower.

BATTERY & CHARGER

CAUTION:USE ONLY POWERSMART APPROVED REPLACEMENT BATTERIES,

OTHER BATTERIES MAY CAUSE INJURY OR DAMAGE TO THE MOWER. Use

with POWERSMART 80V battery.

BATTERY SAFETY RULES

• Battery tools do not have to be plugged into an electrical outlet; therefore, they are

always in operating condition. Be aware of possible hazards when not using your

battery tool or when changing accessories. Following this rule will reduce the risk of

electric shock, fire, or serious personal injury.

• Do not place battery tools or their batteries near fire or heat. This will reduce the

risk of explosion and injury.

• Do not crush, drop or damage battery pack. Do not use a battery pack or charger

that has been dropped or received a sharp blow. A damaged battery is subject to

explosion. Properly dispose of a dropped or damaged battery immediately.

• Batteries can explode in the presence of a source of ignition, such as a pilot light. To

reduce the risk of serious personal injury, never use any cordless product in the

presence of open flame. An exploded battery can propel debris and chemicals. If

exposed, flush with water immediately. Do not charge battery tool in a damp or wet

location. Following this rule will reduce the risk of electric shock.

• For best results, your battery tool should be charged in a location where the

temperature is more than 45°F but less than 104°F. To reduce the risk of serious

personal injury, do not store outside or in vehicles.

• Under extreme usage or temperature conditions, battery leakage may occur. If liquid

comes in contact with your skin, wash immediately with soap and water. If liquid gets

into your eyes, flush them with clean water for at least 10 minutes, then seek

immediate medical attention. Following this rule will reduce the risk of serious

personal injury.

• When battery pack is not in use, keep it away from other metal objects like: paper

clips, coins, keys, nails, screws, or other small metal objects that can make a

connection from one terminal to another. Shorting the battery terminals together may

cause sparks, burns, or a fire.

• Always remove battery pack from your tool when you are assembling parts,

making adjustments, cleaning, or when not in use. Removing battery pack will

prevent accidental starting that could cause serious personal injury.

• Always remove battery pack before storing the device. When battery becomes fully

charged, unplug the charger from the power supply and remove the battery pack

from the charger.

• Always wear eye protection with side shields marked to comply with ANSI Z87.1,

along with hearing protection. Failure to do so could result in objects being thrown

into your eyes and other possible serious injuries.

• Keep battery pack dry, clean, and free from oil and grease. Always use a clean cloth

when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any

solvents to clean battery pack.

• Do not open or mutilate the battery. Released electrolyte is corrosive and

may cause damage to the eyes or skin. It may be toxic if swallowed.

PROPER CARE FOR BATTERY

Off-season storage

To obtain the longest possible battery life, we suggest the following:

• Remove the battery pack from the charger once it is fully charged and ready

for use. For battery pack storage longer than 30 days:

• Store the battery pack where the temperature is below 80°F and away from moisture.

• Store battery packs in a 30%-50% charged condition.

• Every two months of storage, charge the pack as normal.

CHARGER SAFETY RULES

• Charge the mower battery in a dry area that is protected from the weather. Do not

expose the mower or the charger to rain. Do not charge the battery in a wet location.

Operate the battery charger in temperatures between 45° and 104°F. In order to

reduce the risk of electric shock, use only the charger that is provided by the

manufacturer to charge the battery.

• DO NOT ABUSE THE CHARGE CORD. Never carry the charger by the cord. Do

not disconnect the charger from the outlet or from the mower by pulling the charger

cord.

• Do not use a damaged charger. Replace the charger cords or the charger

immediately.

• Keep the mower and the charger away from water, heat sources (radiators, heaters,

stoves,etc.), flames, and chemicals.

• Make sure the battery pack is secured in the charger before beginning operation.

• The battery pack will become slightly warm to the touch while charging. This is

normal and does not indicate a problem.

• Do not place the charger and battery pack in an area of extreme heat or cold. They

will work best at normal room temperature.

• When batteries become fully charged, unplug the charger from the power supply and

remove the battery pack.

WARNING: When transporting or servicing unit, always remove the battery.

WARNING: Some dust created by power sanding, sawing, grinding, drilling and

other construction activities contains chemicals known to the state of California to

cause cancer, birth defects or other reproductive harm. Some examples of these

chemicals are:

• Lead from lead-based paints,

• Crystalline silica from bricks and cement and other masonry products, and

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of

work. To reduce your exposure to these chemical: work in a well ventilated area, and

work with approved safety equipment, such as those dust masks that are specially

designed to filter out microscopic particles.

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their

meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

SYMBOL

NAME

DESIGNATIONS

Volts

Voltage

Amperes

Current

Hertz

Frequency (cycles per second)

Watts

Power

min

Minutes

Time

Direct Current Type or a characteristic of current

No Load Speed

Rational speed, at no load

/min Per Minute Revolutions, strokes, surface speed,

orbits etc., per minute

Safety Alert Indicates a potential personal injury hazard.

Wet Conditions Alert Cutting/dismemberment hazard of hand.

Keep hands away from the rotating blade.

WARNING To reduce the risk of injury, user must

read instruction manual.

Eye Protection Wear eye and hearing protection. For

protection against injury, wear ear

defenders and safety goggles.

Keep Hands and Feet

Away

Keep hands and feet away from blade and

cutting area.

No Reach

Severing of toes or fingers by rotary mower

blade.

Slip on slope hazard Slip on slope hazard – Use extra caution

when mowing on slopes to prevent slip and

fall accidents.

Keep Bystanders Away Keep all bystanders at least 100 ft. away.

CAUTION Objects picked up and thrown by the rotating

blade can cause severe injury.

Tabla de contenidos

Idiomas:

Otros manuales de Cortacésped de Powersmart

Powersmart

Powersmart PSM2020 Manual de usuario

Powersmart

Powersmart DB2321P Manual de usuario

Powersmart

Powersmart PSM2521PR Manual de usuario

Powersmart

Powersmart DB2321C Manual de usuario

Powersmart

Powersmart DB8621P Manual de usuario

Powersmart

Powersmart DB8621SH Manual de usuario

Powersmart

Powersmart PS76822SRB Manual de usuario

Powersmart

Powersmart PSM2322SR Manual de usuario

Powersmart

Powersmart DB2321SH Manual de usuario

Powersmart

Powersmart DB2194SH Manual de usuario

Powersmart

Powersmart DB8621SH Manual de usuario

Powersmart

Powersmart PSM2521SH Manual de usuario

Powersmart

Powersmart DB2194PH Manual de usuario

Powersmart

Powersmart DB8621C Manual de usuario

Powersmart

Powersmart PS76821 Manual de usuario

Powersmart

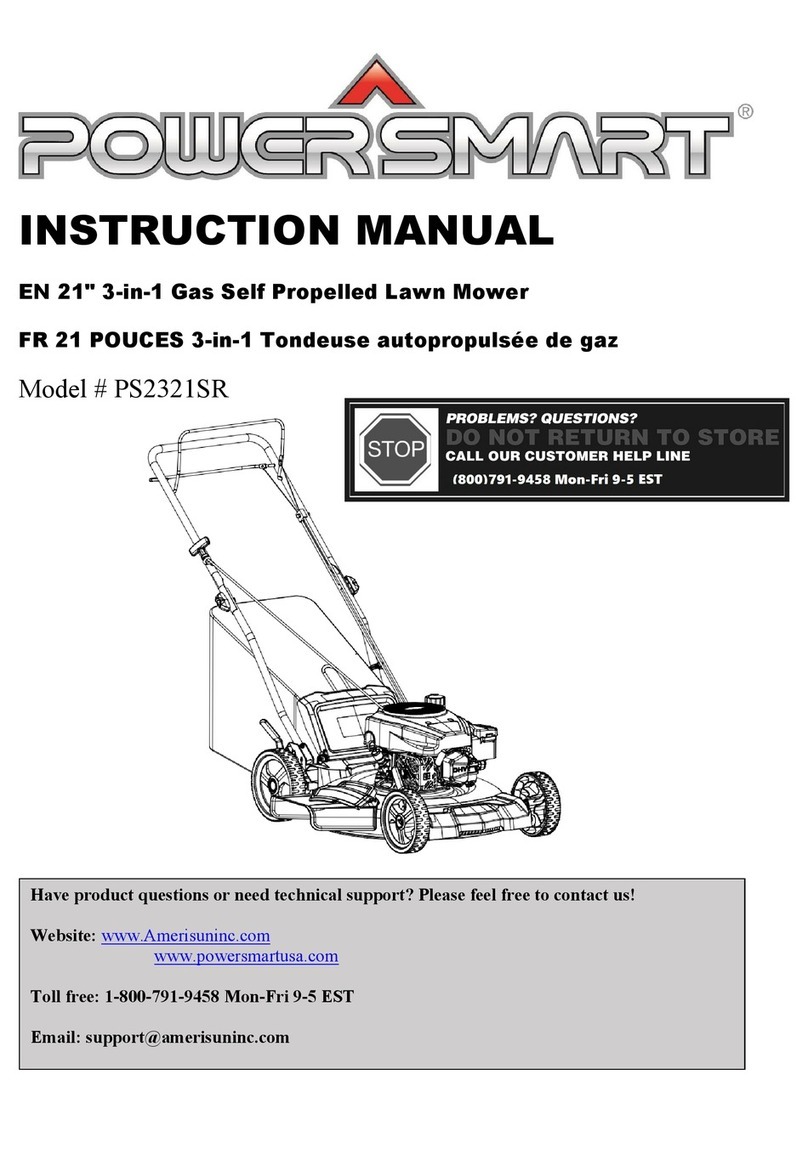

Powersmart PS2321SR Manual de usuario

Powersmart

Powersmart DB8621PR Manual de usuario

Powersmart

Powersmart DB9422S Manual de usuario

Powersmart

Powersmart DB8621PR Manual de usuario

Powersmart

Powersmart DB2321SH Manual de usuario

Powersmart

Powersmart PSM2521PH Manual de usuario

Powersmart

Powersmart DB2194C Manual de usuario

Powersmart

Powersmart DB2321PR Manual de usuario

Powersmart

Powersmart DB6701 Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
