INSTRUCTION MANUAL

EN 21" 3-in-1 GAS PUSH LAWN MOWER

FR 21" 3-in-1 TONDEUSEA A GAZON A PROPULSION DE GAZ

ES 21" 3-en-1 CORTACÉSPED DE EMPUJE DE GAS

Model # DB2194PR

Have product questions or need technical support? Please feel free to contact us!

Website: www.Amerisuninc.com

www.powersmartusa.com

Toll free: 1-800-791-9458 Mon-Fri 9-5 EST

Email: support@amerisuninc.com

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

All manuals and user guides at all-guidesbox.com

CONTENTS

Technical data…...………………………………………………………... 3

Introduction………………………………………………………………. 4

Safety information…….………………………………………………... 4

General safety procedures ……....……………………………………… 5

Important safety instructions……………………………………………. 6

Warning label instructions…………………………………….…………….8

Knowing your lawn mower……………………….……………………… 10

Lawn mower preparation………………………………………………... 11

Operation……………………....………………………………………… 14

Maintenance……………………………………………………………... 18

Storage……………………………………………………………………. 21

Troubleshooting…………………………………………………………. 21

Exploded view & parts list……………………………………………… 22

Warranty………………………………………………………………… 26

TECHNICAL DATA

21" 3-in-1 Push Lawn Mower Model # DB2194PR

Engine type: 4 Stroke, OHV, single cylinder with forced air-cooling system

Displacement: 170 cc

Fuel tank capacity: 0.21 Gallon

Oil capacity: 16.9 fl.oz

Cutting width: 20.5 inch

Cutting height: 1.18 –3 inch

Height adjustment: 5 Position

Drive type: Push

Grass catcher capacity: 1.4 Bushels

Wheel: Front: 7 inch / Rear: 8 inch

Package dimensions (L x W x H): 33.3 x 22.6 x 16 inches

Weight: 60 lb.

All manuals and user guides at all-guidesbox.com

INTRODUCTION

Thank You for Purchasing a PowerSmart®Product. This manual provides information regarding the

safe operation and maintenance of this product. Every effort has been made to ensure the accuracy of

the information in this manual. PowerSmart®reserves the right to change this product and

specifications at any time without prior notice.

Please keep this manual available to all users during the entire life of the lawn mower.

This manual contains special messages to bring attention to potential safety concerns,

lawn mower damage as well as helpful operating and servicing information. Please read

all the information carefully to avoid injury and machine damage.

QUESTIONS? PROBLEMS?

Please contact our Customer Service Dept. with any questions and/or comments, either by Email:

support@amerisuninc.com, or Toll Free at (800) 791-9458. We are available Mon-Fri 9am-5pm EST

to help solve any issues that you might encounter.

NOTICE REGARDING EMISSIONS

Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small Off Road

Equipment), are certified to operate on regular unleaded gasoline, and may include the following

emission control systems: (EM) Engine Modifications and (TWC) Three-Way Catalyst (if so

equipped).

SAFETY INFORMATION

Before operating this lawn mower, read and observe all warnings, cautions, and instructions on the

lawn mower and in this Owner’s Manual.

NOTE: The following safety information is not meant to cover all possible conditions and situations

that may occur. Read the entire Owner’s Manual for safety and operating instructions. Failure to

follow instructions and safety information could result in serious injury or death.

This safety alert symbol is used to identify safety information about hazards that can result in personal

injury.

A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to

indicate the likelihood and the potential severity of injury. In addition, a hazard symbol

may be used to represent the type of hazard.

DANGER indicates a hazard, which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard, which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard, which, if not avoided, might result in minor or moderate injury.

CAUTION when used without the alert symbol, indicates a situation that could result in damage to

the engine.

All manuals and user guides at all-guidesbox.com

GENERAL SAFETY PROCEDURES

For any questions regarding the hazard and safety notices listed in this manual or on the product,

please call (800) 791-9458 Mon-Fri 9-5 EST before using the engine.

DANGER: CARBON MONOXIDE

Using an engine indoors CAN KILL YOU IN MINUTES. Engine exhaust contains carbon

monoxide (CO). This is a poison gas you cannot see or smell. If you can smell the engine exhaust, you

are breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.

NEVER use an engine inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly

levels of carbon monoxide can build up in these areas. Using a fan, or opening windows and/or doors

will NOT properly vent CO nor supply adequate fresh air. ONLY use an engine outside and far away

from windows, doors, and vents. These openings can pull in engine exhaust.

Even if you use an engine correctly, CO may leak into the home. ALWAYS use a battery-powered or

battery-backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the engine has

been running, move to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide

poisoning.

WARNING: The exhaust from this product contains chemicals known to the State of California to

cause cancer, birth defects, or other reproductive harm.

WARNING: This engine may emit highly flammable and explosive gasoline vapors, which can

cause severe burns or even death if ignited. A nearby open flame can lead to explosion even if it isn’t

directly in contact with gasoline.

•Do not operate near an open flame.

•Do not smoke near the engine.

•Always operate on a firm, level surface.

•Always turn engine off before refueling. Allow engine to cool for at least 2 minutes before

removing fuel cap. Loosen cap slowly to relieve pressure in tank.

•Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the

tank. Allow for expansion.

•Always check for spilled fuel before operating.

•Empty fuel tank and carburetor bowl before storing or transporting the engine.

WARNING: This engine produces heat when running. Temperatures near exhaust can exceed 1500F

(650C).

Do not touch hot surfaces. Pay attention to warning labels on the engine identifying hot parts of the

machine.

Allow engine to cool down after use before touching engine or areas of the engine that become hot

during use.

CAUTION: Misuse of this engine can damage it or shorten its life.

Only use engine for its intended purposes.

All manuals and user guides at all-guidesbox.com

IMPORTANT SAFETY INSTRUCTIONS

This machine is capable of amputating hands and feet and throwing objects. Failure to observe the

following safety instructions could result in serious injury or death.

I.General Operation

1. Read, understand, and follow instructions and warnings in this manual and on the machine, engine

and attachments.

2. Only allow operators, who are responsible, trained, familiar with the instructions, and physically

capable to operate the machine.

3. Do not carry passengers and keep bystanders away.

4. Do not operate the machine while under the influence of alcohol or drugs.

5. Follow the manufacturer’s recommendation for wheel weights or counterweights.

II. PREPARATION BEFORE OPERATING

1. Clear the operating area of any objects which could be thrown by or interfere with operation of the

machine

2. Keep the area of operation clear of all bystanders, particularly small children. Stop the machine

and attachment(s) if anyone enters the area.

3. Do not operate the machine without the entire grass catcher, discharge chute, or other safety

devices in place and functioning properly. Check frequently for signs of wear or deterioration and

replace as needed.

4. Wear appropriate personal protective equipment such as safety glasses, hearing protection, and

footwear.

III. OPERATING

1. Only operate the engine in well ventilated areas. Exhaust gases contain carbon monoxide, a

deadly poison.

2. Only operate the machine in daylight or good artificial light.

3. Avoid holes, ruts, bumps, rocks, or other hidden hazards. Uneven terrain could overturn the

machine, or cause operator to lose their balance or footing.

4. Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge

opening at all times.

5. Do not direct discharge material toward anyone. Avoid discharging material against a wall or

obstruction. Material may ricochet back toward the operator. Stop the blade(s) when crossing

gravel surfaces.

6. Do not leave a running machine unattended. Always park on level ground, disengage the

attachment, set parking brake, and stop engine.

7. Do not mow in reverse unless absolutely necessary. Always look down and behind before and

while backing.

IV. CHILDREN SPECIFIC

1. Tragic accidents can occur if the operator is not alert to the presence of children. Children are

often attracted to the machine and the mowing activity. Never assume that children will remain

where you last saw them.

2. Keep children out of the operating area and under the watchful care of a responsible adult other

than the operator.

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

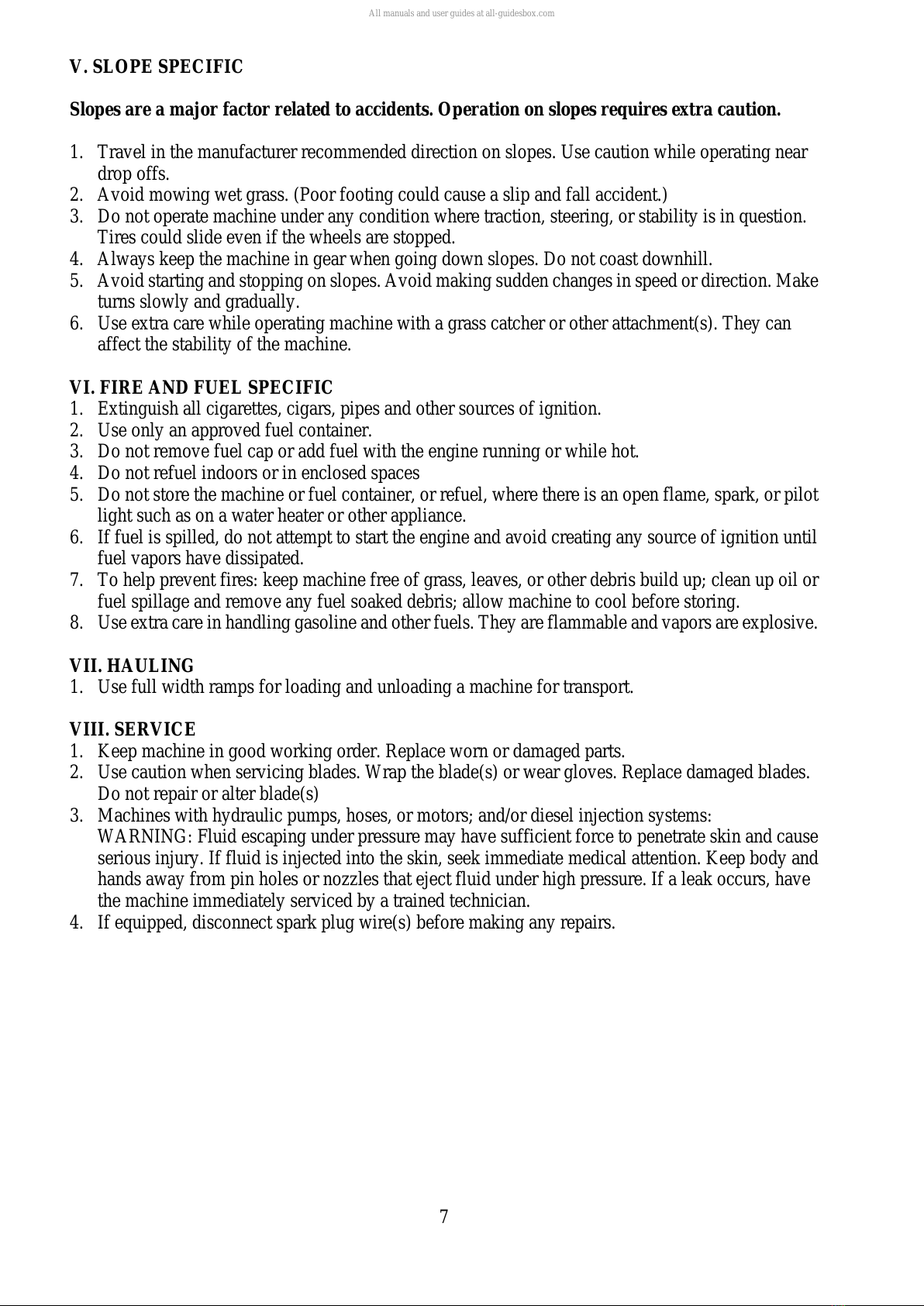

V. SLOPE SPECIFIC

Slopes are a major factor related to accidents. Operation on slopes requires extra caution.

1. Travel in the manufacturer recommended direction on slopes. Use caution while operating near

drop offs.

2. Avoid mowing wet grass. (Poor footing could cause a slip and fall accident.)

3. Do not operate machine under any condition where traction, steering, or stability is in question.

Tires could slide even if the wheels are stopped.

4. Always keep the machine in gear when going down slopes. Do not coast downhill.

5. Avoid starting and stopping on slopes. Avoid making sudden changes in speed or direction. Make

turns slowly and gradually.

6. Use extra care while operating machine with a grass catcher or other attachment(s). They can

affect the stability of the machine.

VI. FIRE AND FUEL SPECIFIC

1. Extinguish all cigarettes, cigars, pipes and other sources of ignition.

2. Use only an approved fuel container.

3. Do not remove fuel cap or add fuel with the engine running or while hot.

4. Do not refuel indoors or in enclosed spaces

5. Do not store the machine or fuel container, or refuel, where there is an open flame, spark, or pilot

light such as on a water heater or other appliance.

6. If fuel is spilled, do not attempt to start the engine and avoid creating any source of ignition until

fuel vapors have dissipated.

7. To help prevent fires: keep machine free of grass, leaves, or other debris build up; clean up oil or

fuel spillage and remove any fuel soaked debris; allow machine to cool before storing.

8. Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.

VII. HAULING

1. Use full width ramps for loading and unloading a machine for transport.

VIII. SERVICE

1. Keep machine in good working order. Replace worn or damaged parts.

2. Use caution when servicing blades. Wrap the blade(s) or wear gloves. Replace damaged blades.

Do not repair or alter blade(s)

3. Machines with hydraulic pumps, hoses, or motors; and/or diesel injection systems:

WARNING: Fluid escaping under pressure may have sufficient force to penetrate skin and cause

serious injury. If fluid is injected into the skin, seek immediate medical attention. Keep body and

hands away from pin holes or nozzles that eject fluid under high pressure. If a leak occurs, have

the machine immediately serviced by a trained technician.

4. If equipped, disconnect spark plug wire(s) before making any repairs.

All manuals and user guides at all-guidesbox.com

WARNING LABLE INSTRUCTIONS

Read carefully the manual before use.

Danger-flying objects;

keep safe distance from the machine as long as the engine is running.

Do not open or remove safety shields while engine is running.

Pay more attention to the operator’s hands and feet to avoid injury

Do not open or remove safety shields while engine is running.

Fuel is flammable,keep fire away.

Never fill up the fuel tank while the engine is running.

Emission of toxic gas, do not use the mower in a close area or not well ventilated.

All manuals and user guides at all-guidesbox.com

Look behind while backing

Steep slope hazard

When repairing, please pull off the spark plug boot, then repair it according to the

operational manual

Hot surfaces

When mowing,please wear the glasses ad ear plugs to defend the operator himself

Keep bystanders away.

Safety label found on the lawn mower:

KEEP HANDS AND FEET AWAY.

Warning: Keep the safety signs clear and visible on the equipment.Replace the safety signs if they

are missing or illegible.

All manuals and user guides at all-guidesbox.com

KNOWING YOUR LAWN MOWER

Please use the illustration below to familiarize yourself with the location and function of the

components that control of your lawn mower.

Recoil starter handle

Cutting height adjustment lever

Grass catcher

Primer bulb

Cutting height adjustment lever

Gas tank cap

Rear wheel

Rear discharge door

Side discharge chute

Lower handle

Oil dipstick

Front wheel

Upper handle

Engine start/stop control

14 13 12

5 6 7 8

All manuals and user guides at all-guidesbox.com

Tabla de contenidos

Idiomas:

Otros manuales de Cortacésped de Powersmart

Powersmart

Powersmart DB8621SH Manual de usuario

Powersmart

Powersmart PS76215A Manual de usuario

Powersmart

Powersmart PS76417AP Manual de usuario

Powersmart

Powersmart DB2321CR Manual de usuario

Powersmart

Powersmart DB2317 Manual de usuario

Powersmart

Powersmart DB8621C Manual de usuario

Powersmart

Powersmart DB2194CR Manual de usuario

Powersmart

Powersmart DB8617P Manual de usuario

Powersmart

Powersmart PSM2521SH Manual de usuario

Powersmart

Powersmart PSM2521PH Manual de usuario

Powersmart

Powersmart DB2194C Manual de usuario

Powersmart

Powersmart DB2194P Manual de usuario

Powersmart

Powersmart DB2321S Manual de usuario

Powersmart

Powersmart PS76821 Manual de usuario

Powersmart

Powersmart DB2194SH Manual de usuario

Powersmart

Powersmart DB2321PR Manual de usuario

Powersmart

Powersmart DB2321SH Manual de usuario

Powersmart

Powersmart DB8621PRX Manual de usuario

Powersmart

Powersmart DB8621CR Manual de usuario

Powersmart

Powersmart PSM2521SH Manual de usuario

Powersmart

Powersmart DB2321PR Manual de usuario

Powersmart

Powersmart DB2321CR Manual de usuario

Powersmart

Powersmart DB8605 Manual de usuario

Powersmart

Powersmart PS76826 Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
