Powerline PLM70 Manual de usuario
INSTRUCTION MANUAL

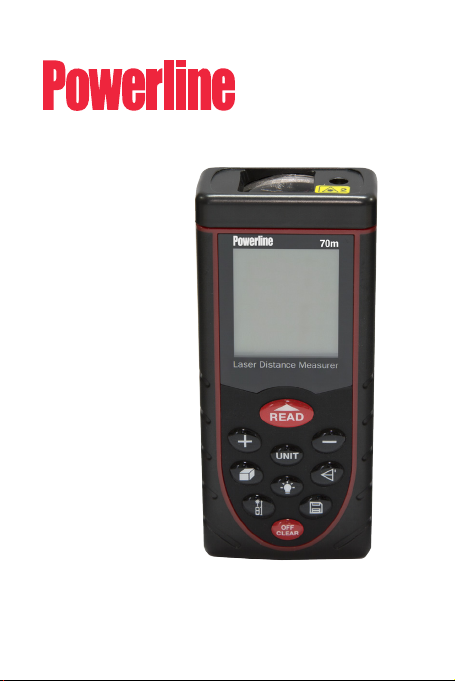

PLM70 70m Laser Distance Measurer
2
Please read this instruction manual before operating
this product. Please store this instruction manual in the
carry case for future reference.
CAUTION: Class 2 Laser Product
Do not stare directly into the laser beam from apertures.
Keep out of reach of children.
Due to the electromagnetic radiation interference
to other equipment and devices please do not use
the laser distance measurer in an airplane or around
medical equipment.
Do not use in a ammable, explosive environment.
Discarded batteries or devices shall not be processed
with household garbage. Please follow related laws
and regulations.
Do not disassemble the instrument or attempt to
perform any internal servicing as this will void your
warranty. No user serviceable parts included.
Only approved and authorised service technicians can
carry out warranty repairs.
SAFETY
3
Please ensure the following items are included with your
laser distance measurer.
If anything is missing please contact your retailer.
Powerline PLM70
Carry strap Batteries
Carry case
ITEM CHECKLIST
READ
UNIT
OFF
CLEAR
4
READ
UNIT
OFF
CLEAR
PRODUCT OVERVIEW
LCD screen
Laser emitter
Control panel
5
READ
UNIT
OFF
CLEA R
Plus
Area / volume
Benchmark
Power off / clear
Read (laser emission on)
Minus
Unit reset
Data storage
Pythagoras
Backlight
CONTROL PANEL
6
DISPLAY SCREEN
ft
im
ft
im
ft
im
ft
im
Min
Max
Maximum display
Minimum display
Measurement mode
Measurement
Measurement unit
Auxiliary display
Lord measurement display
Laser emission on Battery level
Data storage
7
USING YOUR DISTANCE MEASURER
Power Supply
‣The Powerline PLM70 is supplied with three AAA
alkaline batteries.
‣To replace batteries remove the battery door at the back
of the device. Place batteries according to polarity and
replace battery door.
‣For infrequent use please take out the battery to avoid
corrosion to the body of the device.
‣To turn the measurer on, press the read button.
The instrument and laser will start simultaneously
and begin measurement.
‣To turn o press and hold the off / clear button for 3 seconds.
‣The device will shut o automatically after 150 seconds
without use.
Unit Setting
To reset the current unit of measurement press the unit
button. The unit default is 0.000m.
Operation
Length Area Volume
0.000m 0.000m20.000m3
0.00m 0.00m20.00m3
0.0in0 0.00ft20.00ft3
0.00ft0 0.00ft20.00ft3
Optional units as below:
8
Backlight Setting
Press and hold the backlight button to turn
the backlight on or off.
Measurement Benchmark Setting
To switch between front and back benchmark press
the benchmark button.
Measurement
Single Measurement
‣Press the read button. The laser will be emitted.
‣Re-press the read button for a single distance measurement.
Results will be displayed on the display screen.
Continuous Measurement
‣Press the and hold the read button. Minimum and
maximum results will be displayed on the display screen.
‣Press the read button to exit continuous measurement.
Area Measurement
‣Press the area / volume button. A rectangle will appear
on the display screen with one edge flashing. Follow the
instructions displayed on the screen as below:
‣Press the read button to measure the first edge (length).
‣Press the read button to measure the second edge (width).
‣Area will be calculated automatically with results shown
on the display screen.
‣Press the off / clear button to clear measurement.
9
Volumetric Measurement
‣Press the area / volume button twice. A cube will appear
on the display screen with one edge flashing. Follow the
instructions displayed on the screen as below:
‣Press the read button to measure the first edge (length).
‣Press the read button to measure the second edge (width).
‣Press the read button to measure the third edge (height).
‣Volume will be calculated automatically with results shown
on the display screen.
‣Press the off / clear button to clear measurement.
Pythagoras Measurement
To calculate the unilateral distance of a triangle pythagorean
mode can be used. When taking measurements of the triangle
ensure the length of the right side is shorter than the length of
the hypotenuse. If not, the instrument will display an error signal.
To ensure the accuracy of measurement, take measurements
from the same starting point of the first order hypotenuse.
Then follow with the measurement of the right side.
Please follow the instructions according to the method
required. (See diagrams on page 10 - 11 to determine the
appropriate method).
10
2. Press the pythagoras button twice to enter pythagorean
mode. A triangle will appear on the display screen with the
vertical side flashing. Follow the instructions displayed on
the screen as follows:
‣Press the read button to measure the length (a) of the side.
‣Press the read button to measure the length (b) of the next side.
‣Length (x) of the hypotenuse will be calculated automatically
with results shown on the display screen.
x
a
b
1. Press the pythagoras button to enter pythagorean mode.
A triangle will appear on the display screen with the
hypotenuse flashing. Follow the instructions displayed
on the screen as below:
‣Press the read button to measure the length (a) of the hypotenuse.
‣Press the read button to measure the length (b) of the side.
‣Length (x) will be calculated automatically with results
shown on the display screen.
x
a
b
