SE900 Static Exciter Module

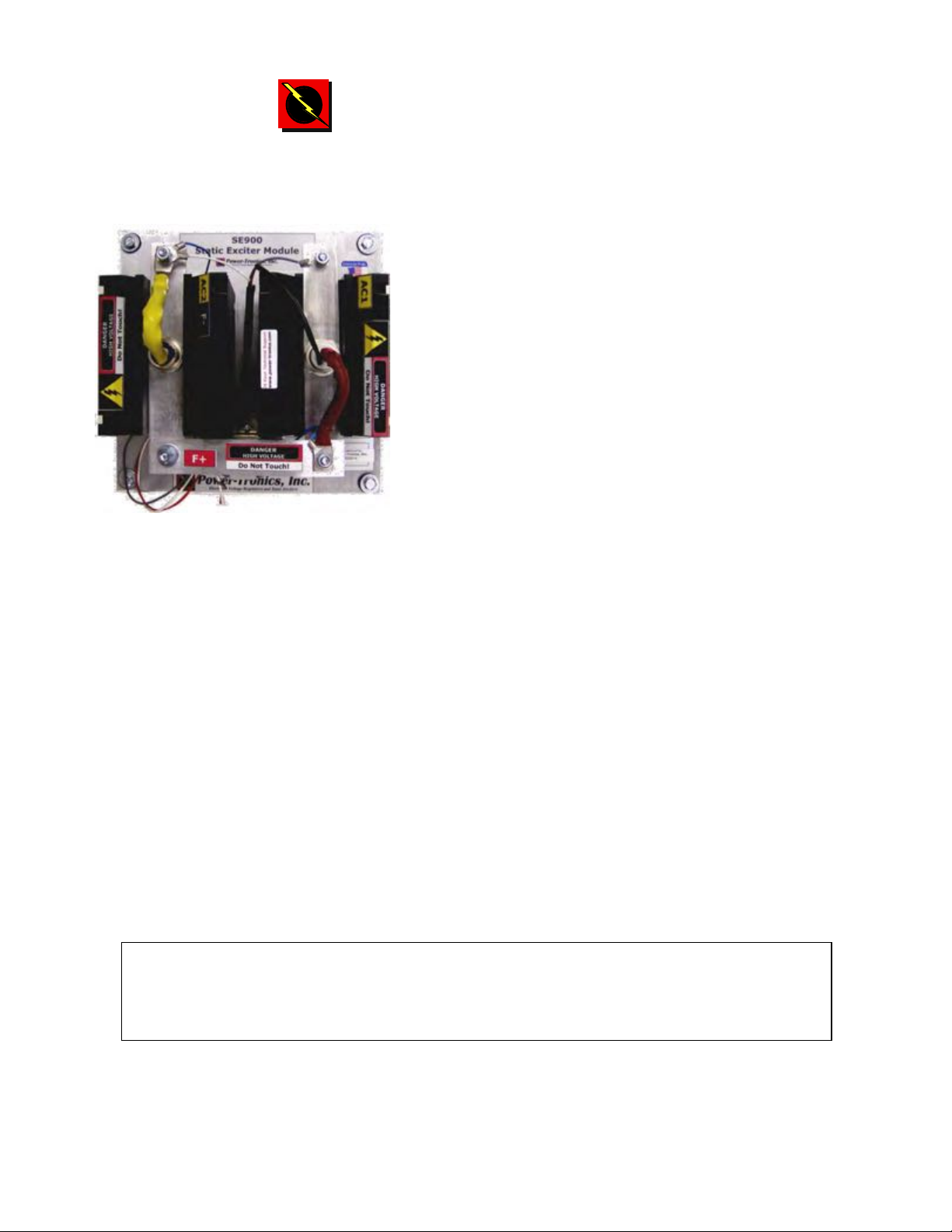

The SE900 static exciter module is an add on device

designed for use with the UVR and XR series universal

voltage regulator. The primary purpose of the SE900 is

to increase the maximum output amperage from a UVR

or XR series voltage regulator from 5adc to 100adc

which allows the regulator to be used as high amperage

static exciter or phase control.

Specifications:

Input Voltage 120/240vac

Maximum Output Voltage 105vdc

Maximum Forcing Amperage 150adc

Maximum Rated Output Amperage 100adc

HZ N/A

Physical Size 10 x 10 x 6in

Total Weight 6lbs

Firing Modules UVR or XR Series Regulator

For the most up to date information on this and any other product we manufacture, please

visit our web site at:

www.power-tronics.com

Power-Tronics, Inc.

Electronic Voltage Regulators and Static Exciters

P.O. Box 291509 Kerrville, Texas 78029

1 2 3 4 5 6 7 8

UVR500/501

SE900

AC1

AC2

F+

F-

Grey

White

Red

Run/idle switch

Installation Instructions:

1. Connect the SE900 up to the voltage regulator as shown below.

2. Turn run/idle switch to the open position (idle)

3. Turn the internal voltage adjustment and stability adjustment on the

voltage regulator fully counter clockwise. (10 to 25 turns or until you

hear a clicking sound).

4. Check slip rings and brushes for good condition before starting up the

generator.

5. Start the prime mover and bring up to design speed.

6. Turn the run/idle switch to the closed position (run).

7. Set up the voltage regulator as per the instructions for the regulator.

Fuse the AC1 and AC2 with a fast blow fuse rated at full load amperage

of the exciter field. Do not fuse above 100 amps! Only use fuses rated

for voltages above 240vac!

Voltage Regulator

Troubleshooting and bench check procedures:

1. Connect up test wiring as shown below and insulate the gray and

white leads coming from the SE900.

2. Input 120vac into the SE900 (the light should be off).

3. Connect the red wire thru a 1000 ohm, half watt resistor to terminal

AC1 on the SE900. (the light should come on)

4. Disconnect the red wire from terminal AC1 of the SE900 (the light

should go off).

5. Check the SCR and Diode for isolation from the mounting housing.

6. If all of the above tests could be performed, the unit is good. If any

of the tests could not be performed, the unit is defective.

resistor,

1000 ohm @

1/2 watt

120 vac

input

fuse, 1 amp

15 to 100

watt 120

vac light

bulb

RED

AC1

AC2

SE900

F+
