Power bass ASA3-200.2 Manual de usuario

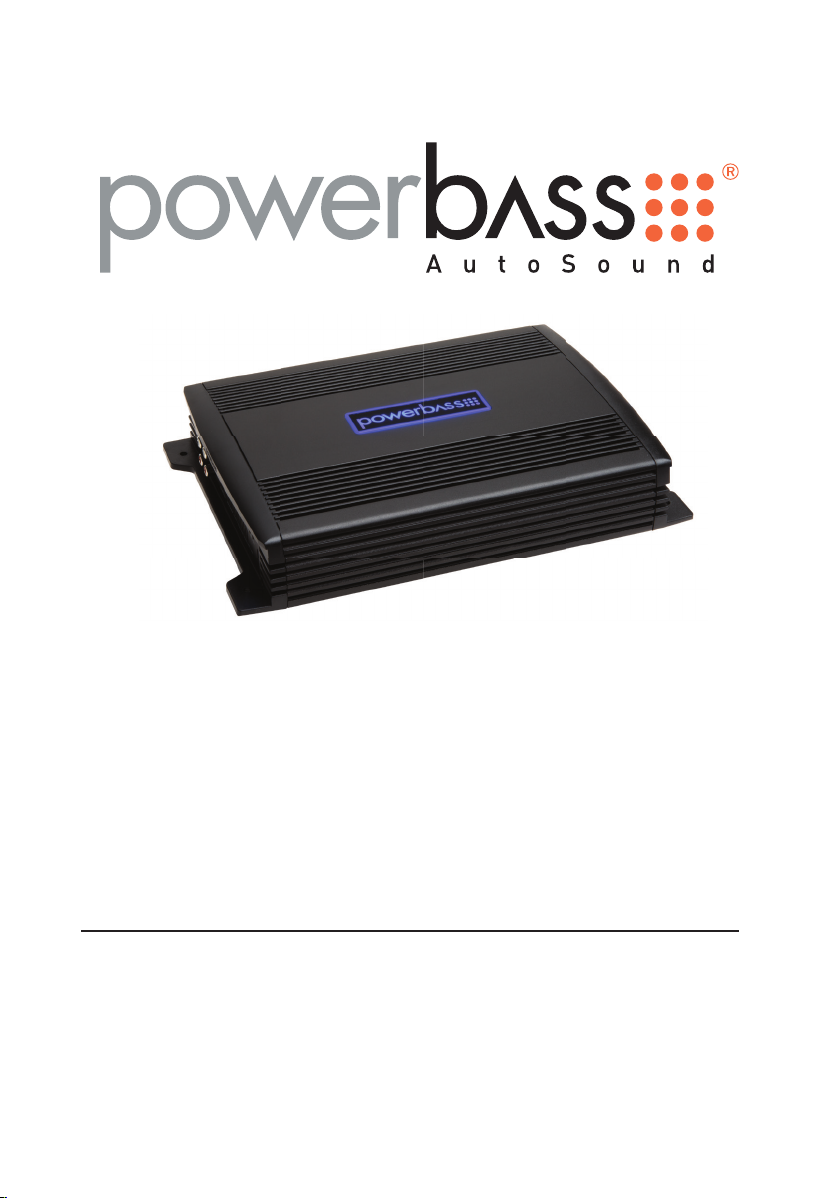

ASA SERIES CLASS A/B AMPLIFIER

Owners Manual

Please read through this manual to familiarize yourself with your new ampliﬁer. Should your PowerBass

AutoSound mobile ampliﬁer ever require service, you will need to have the original dated receipt.

ASA3-200.2

ASA3-300.2

ASA3-400.2

ASA3-600.2

ASA3-800.2

ASA3-1200.2

ASA3-400.4

ASA3-600.4

ASA3-700.5

ASA3-1100.5

Thank you and Congratulations

Thank you for your decision to purchase a PowerBass USA Autosound mobile ampliﬁer! Our Autosound

ampliﬁers are the result of extensive engineering, testing, and bullet proof construction. Their versatility

enables compatibility with optional signal and audio processors. These high quality MOSFET ampliﬁers

may be conﬁgured to allow maximum ﬂexibility in designing different types of speaker systems.

A/B CLASS FULL RANGE AMPLIFIERS

The PowerBass ASA3 Series are high quality MOSFET ampliﬁers that are capable of running a system full

range, or they may be selected only to power subwoofers. It is important that you closely follow the wiring

instructions contained in this Owners Manual so that you get the most from your PowerBass AutoSound

mobile ampliﬁer.

∆Caution ∆

High powered audio systems in a vehicle are capable of generating higher then “Live Concert” levels of sound pressure. Continued

exposure to excessively high volume sound levels will cause hearing loss or damage. Also, operation of a motor vehicle while listening

to audio equipment at high volume levels may impair your ability to hear external sounds such as horns, warning signals, or emergency

vehicles—thus creating a potential trafﬁc hazard. In the interest of safety, PowerBass USA highly recommends listening at lower volume

levels when driving.

TECHNICAL FEATURES

• Low Proﬁle Aluminum Finned Heatsink

• PWM MOSFET Power Supplies for High Power Output and Best Stability into Low Impedance Loads

• Variable High Pass and Low Pass Electronic Crossovers

• Soft Delay Remote Turn On/Off Circuit to Eliminating Pops and Clicks

• Fully Adjustable Bass EQ at 45Hz (18dB)

• Self Diagnostic Multi Protection Circuit with LED Status Indicator for Impedance Over-load, Speaker

Short Circuit, Thermal Overheating, and DC Output.

• 2-ohm Stereo Stable (4-ohm Mono Bridgeable)

• Custom Tooled Speaker and Power Terminal Blocks

• Variable Gain Control

• Level Control Port (for Optional Remote Level Control - model PB-GAIN1 sold separately)

• Low Level Line Inputs and Outputs

INSTALLATION EXPERIENCE

Installation of PowerBass mobile ampliﬁers requires detailed knowledge of electronics wiring and proper

speaker impedance. We strongly recommend installation by an authorized PowerBass dealer. This Own-

ers Manual only provides general installation and operation instructions. If you have any reservations

about your installation skills, please contact your local PowerBass dealer for assistance.

IMPORTANT : This ampliﬁer is designed for operation in vehicles with 12-volt Negative ground

electrical systems only.

PREPARING FOR INSTALLATION

NOTE: The tools listed below may be required for basic installation

• An electric drill with bits

• Philips head and standard screwdrivers

• Wire strippers

• Crimping tool

• VOM (electronic volt ohm meter)

• Heat shrink tubing and heat gun

• Soldering iron

• Electronic (Rosen Core not Acid Core) Solder

INSTALLATION PRECAUTIONS

NOTE: Proceed only if you are a qualiﬁed installer, otherwise; see your Authorized PowerBass

Dealer to professionally install this ampliﬁer. Always wear protective eyewear when using

tools.

• Turn off all electrical devices before you begin.

• Disconnect the negative (-) lead from your vehicles battery.

• Locate all fuel lines, brake lines, oil lines, and electrical cables when planning the install.

• Make sure there is at least 2-inches (5 cm) around the air vents on the ampliﬁer.

• When connecting ground points, make sure all paint is carefully scrapped away from the auto body

and contact is make with bare metal.

• Use a utility knife to trim away fabric from hole locations before drilling or cutting.

• When running power cables through sheet metal, be sure to use grommets to properly insulate the

metal edges from the wire insulation.

• If possible, use tubing through grommets.

To keep your PowerBass Autosound ampliﬁer running at top performance, choosing the proper location

is of utmost importance. For this reason the ampliﬁer should be mounted in a location which will allow

air to circulate freely. A clearance of at least 2-inches (5 cm) to all sides of the ampliﬁer is necessary

not only for proper cooling, but also for gaining access to the inputs and other variable controls. Be sure

that the power and signal cable connections can enter and leave the ampliﬁer in a straight line to avoid

the risk of kinked wires causing malfunction.

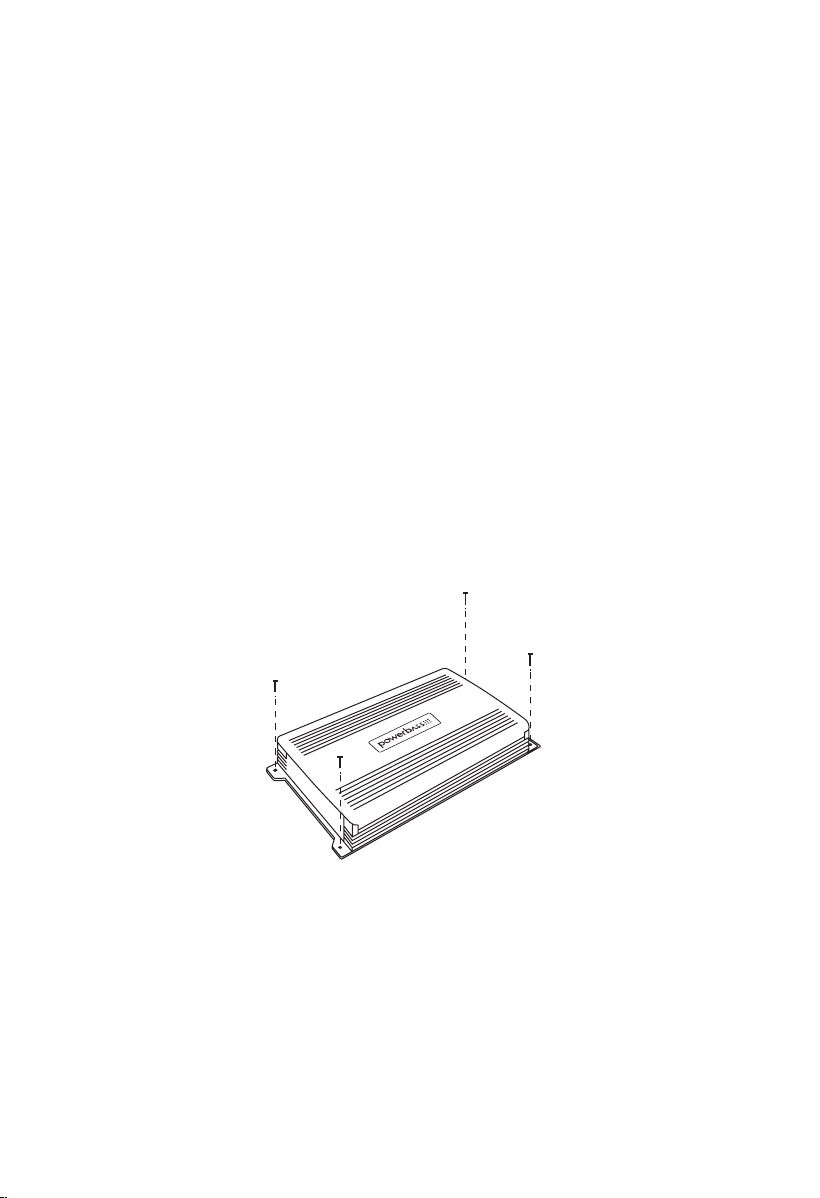

Fig.1 Mounting Ampliﬁer

MOUNTING THE AMPLIFIER

MOUNTING LOCATION

Find a clear and well ventilated area to mount your ampliﬁer that is unobstructed by any objects that will cause

harm or block ventilation. Do not mount under a carpet or in an area with no air circulation. Without proper

airﬂow the ampliﬁer may over heat and go into protection where the thermal overload circuitry will shut down

the ampliﬁer.

You may use the ampliﬁer as a template and mark the four screw locations with a felt tip pen. Set the ampliﬁer

aside before drilling. Use caution to make sure there are no objects behind the installation surface that may

become damaged during drilling.

If mounting under a seat, make sure there is at least 1-inch (2.5 cm) of space above the ampliﬁer’s heatsink

to permit proper cooling.

The ampliﬁer should be protected from exposure to moisture and direct sunlight. The best places to mount

your ampliﬁer are: The ﬂoor of the trunk, under a seat, or on the back of the rear seat. For alternate installation

locations, please consult your authorized PowerBass Dealer.

*** WARNING ***

• Do not install in a place where it could injure the driver or passengers if the vehicle

stops suddenly.

• Upside down mounting will compromise heat dissipation through the heatsink and

could engage the thermal protection circuit.

• Try to avoid mounting the ampliﬁer on a subwoofer enclosure, as extended exposure

to vibration may cause malfunction of the ampliﬁer.

• Don’t mount the ampliﬁer so that the wire connections are unprotected or are sub-

ject to pinching or damage from nearby objects.

• The DC power wire must be fused at the battery positive (+) terminal connection.

Before making or breaking power connections at the ampliﬁer power terminals,

disconnect the DC power wire at the battery end.

• The battery of the car audio system must be disconnected until the entire wiring and

installation is completed.

• Don’t use a power drill to tighten the Power, Ground, Remote or Speaker output

terminals on the ampliﬁer to avoid stripping the terminal screws. It is best to hand

tighten these connections.

NOTE: Do not use a drill with driver bit to mount the ampliﬁer. Excessive force could

cause the plastic mounting feet to crack.

CONTROL PANEL LAYOUT

NOTE: Panel Layout and Controls may differ by model.

1. Line OUTPUT (RCA) Jacks

RCA style pass through output jacks allow for a signal to be sent to other ampliﬁers.

2. Line INPUT (RCA) Jacks

These RCA style input jacks are for use with source units that have RCA line level outputs. A source unit

with a minimum output of 200mV is required for proper operation. However, this input will accept levels up

to 6Vrms.

3. GAIN Control

This control is used to match the input sensitivity of the ampliﬁer to the particular source unit that you are

using.

4. HPF (High Pass Filter) Control

This control is continuously adjustable from 40Hz through 250Hz at 12dB per octave.

Fig.2 Panel Layout

5. X-OVER Switch for FULL/HPF/LPF

Activates the built in electronic crossover network. Works in conjunction with the HPF and LPF adjustable

controls.

6. LPF (Low Pass Filter) Control

This control is continuously adjustable from 40Hz through 250Hz at 12dB per octave.

7. BASS EQ Control

This equalization circuit is used to enhance the low frequency response of the vehicle’s interior. With up to

18dB of boost centered at 45Hz, the BASS EQ can be adjusted to meet your own personal taste.

8. REMOTE LEVEL Port

This is the connector port for the optional Remote Level Control. Now the ampliﬁers secondary gain circuit

can be adjusted from the driver’s seat. (See your local PowerBass dealer and ask for model PB-GAIN1 sold

separately.)

9. BADGE Switch

Controls the lighting of the top mounted PowerBass logo badge.

10. POWER/STATUS Indicator

The BLUE L.E.D. lights up when the power is on. This L.E.D. turns RED constantly or ﬂashes when the built-in

protection circuitry is activated. This indicates a problem with the system in relation to the ampliﬁer (see

Troubleshooting Tips).

11. SPEAKER Output Terminals

As shown in the wiring diagrams, be sure to observe speaker polarity through the system and speaker im-

pedance. This specially tooled solderless terminal is designed to accommodate up to 10 gauge speaker wire.

12. FUSES

For convenience most PowerBass AutoSound ampliﬁers utilize common automotive ATC type fuses. For

continued protection in the event that a fuse blows, replace the fuse only with the same value. (See

speﬁciﬁcation tables)

CAUTION: These power fuses on the ampliﬁer chassis are for protecting the amp against over

current situations. To protect the vehicles electrical system, an additional fuse should be

installed within 18-inches of the battery on the 12V+ cable.

13. BATT+ (Power Input Connection)

This terminal is the main power input for the ampliﬁer and must be connected directly to the positive (+)

terminal of the car battery. (see Power Cable Selection Chart on page 20 for recommended wire gauge for

each model). 7

14. REM (Remote Input Connection)

All PowerBass AutoSound ampliﬁers can be turned on by applying 12 volts to this terminal. This can be

found on the rear of the source unit in the form of an electric antenna output, or a remote output. If this is

not available you can wire to the ACC position on the key. An 18 gauge wire is sufﬁcient to run the REMOTE.

15. GND (Ground Input Connection)

A good quality ground is required for your PowerBass AutoSound ampliﬁer to operate at peak performance.

A short length of cable the same gauge as your power cable should be used to attach the ground terminal

directly to the chassis of the vehicle. Make sure that all of the paint is sanded or scraped away to ensure a

quality ground connection.

*** WARNING ***

Disconnect the negative (-) battery terminal before you start any wiring work! The

battery of your car audio system must be disconnected until the entire wiring installation

is completed.

Your PowerBass Autosound ampliﬁer requires unrestricted current to deliver peak performance, so do not

“starve” your ampliﬁer by using small power cable. Using under sized power cable can result in unnecessary

over-heating of the ampliﬁer, distortion at high volume levels and might even cause the thermal protection

circuitry to shut-off the ampliﬁer. For best results we recommend a PowerBass ampliﬁer install kit, available

at your local PowerBass dealer.

• Use rubber grommets when running cables through any metal or sharp plastic, to prevent accidental

shorting or shearing. Make sure the cables do not interfere with normal operation of the vehicle.

• The audio signal cables (RCA interconnects) should be kept far away from any potential sources of

electrical interference such as electronic vehicle management systems (relays, engine computers etc.),

wiring harnesses, fuel pumps etc.

POWER WIRING AND SIGNAL CONNECTIONS

These ampliﬁers are designed to work within a 9 to 17 volt DC range. Before any wires are connected, the

vehicles electrical system should be checked for correct voltage supply with the help of a voltmeter.

First, check the voltage at the battery with the ignition in the OFF position. The voltmeter should read no

less than 12V. If your vehicles electrical system is not up to these speciﬁcations, we recommend having it

checked by an auto electrician before any further installation. Once the vehicle is checked, make certain the

correct gauge cable is used. We recommend using as large a gauge cable as possible, use the Power Cable

Selection Chart on page 20 to calculate the correct power wire size for your application. Remember Bigger is

Better!

BATT+ (POWER)

This ampliﬁer should be wired directly to the vehicle battery using the appropriate size cable. Start at the

vehicle battery and run the power cable through to the ampliﬁer. Avoid running the power cable over engine

components and near heater cores. The use of an inline fuse or circuit breaker is a must; this will

prevent the risk of a potential ﬁre caused by a short in your power cable. Connect the fuse holder or circuit

breaker as close to the battery positive (+) terminal as possible (no farther then 18” from the battery). This

fuse or circuit breaker should be no greater then the sum of the fuses found on the chassis of your ampliﬁer

(also see speciﬁcations chart). You may now connect the cable to the battery, but remember to leave the fuse

out or circuit breaker “off” until all other cable connections are made.

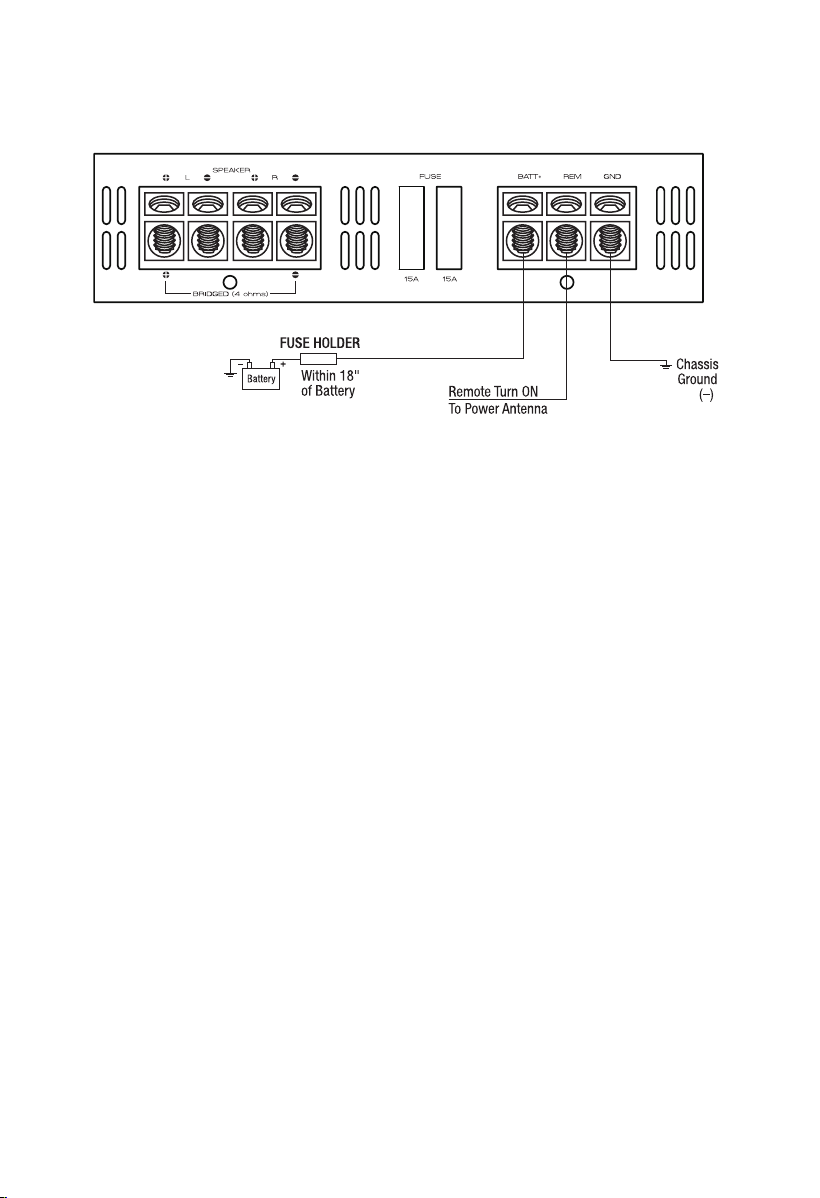

Fig.3 Power Input Connection

GND (Ground)

When grounding your ampliﬁer, locate a metal area close to the ampliﬁer that is good source of ground

(preferable the ﬂoor pan). Once again, investigate the area you wish to use for electrical wires, vacuum lines,

and brake or fuel lines. Use either a wire brush or sandpaper to eliminate unwanted paint for better contact

of the ground.

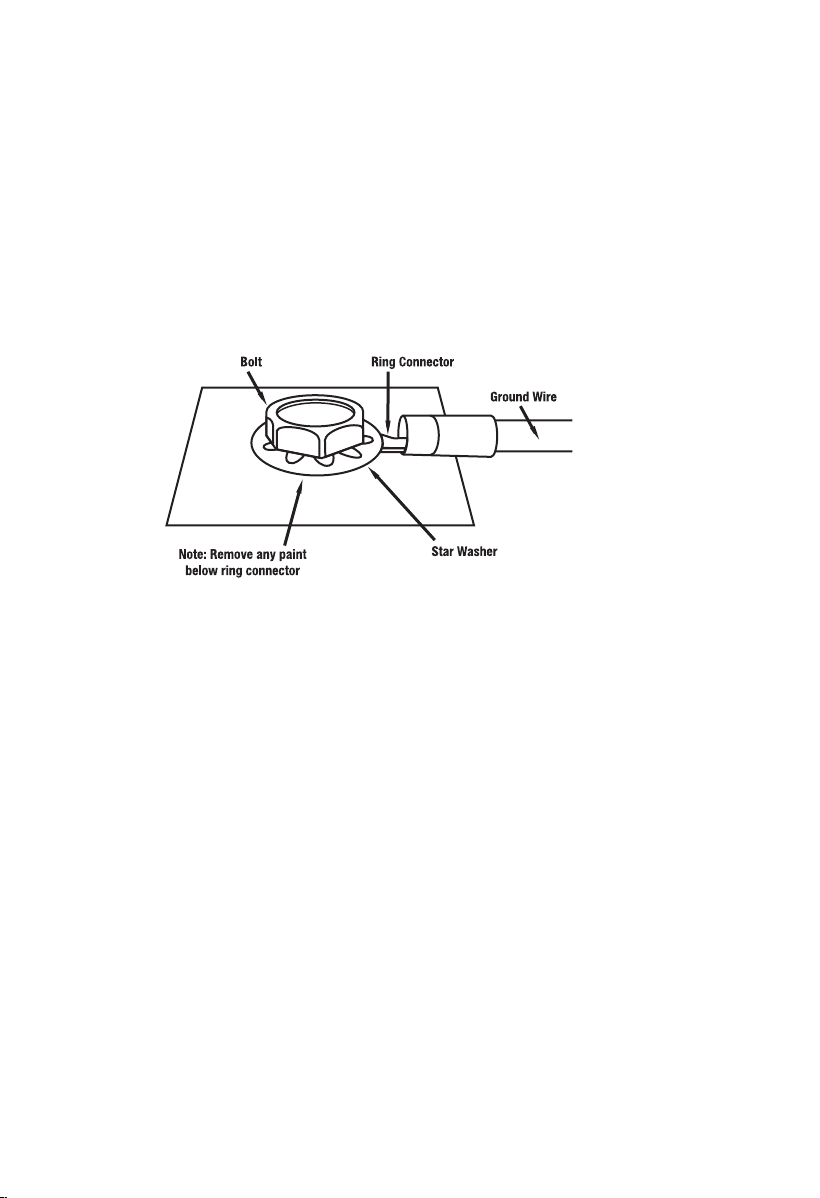

Secure the ground cable to the body using a bolt, star washer and nut. Spread silicon over the screw and

bare metal to prevent rust and possible water leaks.

Now it’s time to connect the power and ground cables to the ampliﬁer. Cut both cables to length.

Strip off 1/2 inch (12mm) of the insulation so that the bare wire ﬁts all the way in the terminal block on the

side panel of the ampliﬁer, seating it ﬁrmly so no bare wire is exposed. Use an Allen wrench to loosen the

BATT+ and the GND connection on the ampliﬁer. Insert the ground ﬁrst, and then the +12V and please make

sure that you place them into the correctly marked terminals. Then tighten the screws down securely - use

care not to over tighten and damage the wire.

REM (Remote Trigger)

This terminal must be connected to a switched +12V source. Typically, remote turn-on leads are provided

at the source unit that will turn on and off the ampliﬁer in correspondence with the source. If the source unit

does not have a remote TURN on lead, then a switched +12V supply must be used, like the ACC, +12V.

Run a minimum of 18 gauge wire from the ampliﬁer location to the source of the switched +12V lead. If

possible, route this wire on the same side of the vehicle as your power cable. Connect the source remote

output to the wire. Go back to the ampliﬁer and cut the wire to length. Loosen the screw terminal marked

REM on the ampliﬁer using an Allen wrench. Insert the stripped (bare) portion of the wire into the terminal

and tighten the screw securely.

Fig.4 A good ground is essential to proper operation

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Amplificador de Power bass

Power bass

Power bass XL-355DM Manual de usuario

Power bass

Power bass ACS-2120 Manual de usuario

Power bass

Power bass XL-2200M Manual de usuario

Power bass

Power bass ASA 1200.2x Manual de usuario

Power bass

Power bass PS-AWB101T Guía del usuario

Power bass

Power bass Xtreme XMA-600D Manual de usuario

Power bass

Power bass ACS-500D Manual de usuario

Power bass

Power bass XL-2305MX Manual de usuario

Power bass

Power bass XMA-2160IR Manual de usuario

Power bass

Power bass ACA-240.2 Manual de usuario

Power bass

Power bass ACA-250.1 Manual de usuario

Power bass

Power bass Xtreme XL-350DM Manual de usuario

Power bass

Power bass XMA MINI Manual de usuario

Power bass

Power bass XL-3515M Manual de usuario

Power bass

Power bass XTA 4000D Manual de usuario

Power bass

Power bass XTA 1000D Manual de usuario

Power bass

Power bass XL-2205M Manual de usuario

Power bass

Power bass ASA SERIES Manual de usuario

Power bass

Power bass XMA-1205D Manual de usuario

Power bass

Power bass XAX 5640FD Manual de usuario

Power bass

Power bass RTA-112 Guía del usuario

Power bass

Power bass PS-AWB101 Guía del usuario

Power bass

Power bass ACA-500.1D Manual de usuario

Power bass

Power bass XMA-2200IR Manual de usuario

Manuales populares de Amplificador de otras marcas

ASTRO

ASTRO HVO V40 P Manual de usuario

Marantz

Marantz SUPERSCOPE BLA-545 Instrucciones de montaje

NAD

NAD CI980 Manual de usuario

Technics

Technics SE-CH770 Manual de usuario

Harman Kardon

Harman Kardon HK6300 Manual de usuario

NAD

NAD T975 Manual de usuario

McIntosh

McIntosh MA6850 Manual de usuario

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manual de usuario

Viatron

Viatron Autrix Manual de usuario

GME

GME GA9800 Manual de usuario

Atlas

Atlas CP700 Manual de usuario

Roland

Roland KC-1000 Manual de usuario

Pyle

Pyle PFMRA350BW Manual de usuario

Advantage

Advantage S-250 Manual de usuario

IRT Electronics

IRT Electronics DVA-3007 Manual de usuario

Dimavery

Dimavery BA-100 Series Manual de usuario

Sony

Sony XM-S400D Manual de usuario

Schertler

Schertler ROY X Manual de usuario
