Potterton Promax SL Range Manual de usuario

User’s Guide and

Important Warranty Information

Promax SL

Range

Please keep these instructions in a safe place.

If you move house, please hand them over to the next occupier.

2© Baxi Heating UK Ltd 2007

Natural Gas

Potterton Promax 12 SL

G.C.No41 591 79

Potterton Promax 15 SL

G.C.No41 591 87

Potterton Promax 18 SL

G.C.No41 591 80

Potterton Promax 24 SL

G.C.No41 591 88

Potterton Promax 30 SL

G.C.No41 591 89

This product has an energy rating (A) on a scale of A to G.

For more information see www.boilers.org.uk. This is a certification mark.

be reproduced or transmitted in any form or by any means, or stored in any

retrieval system of any nature (including in any database), in each case whether

electronic, mechanical, recording or otherwise, without the prior written

permission of the copyright owner, except for permitted fair dealing under

Copyrights, Designs and Patents Act 1988.

Applications for the copyright owner’s permission to reproduce or make other

use of any part of this publication should be made, giving details of the proposed

use, to the following address:

The Company Secretary, Baxi Heating UK Ltd, The Wyvern Business Park,

Stanier Way, Derby, DE21 6BF.

Full acknowledgement of author and source must be given.

WARNING: Any person who does any unauthorised act in relation to a

Baxi Heating UK Ltd is a

BS-EN ISO 9001 Accredited Company

The code of practice for the installation,

commissioning & servicing of central

heating systems.

“Potterton” supports

1.0 Operating the Boiler 3

2.0 Troubleshooting 4

3.0 Clearances 6

4.0 Care of the Boiler 7

5.0 Legislation 8

6.0 Notes 9

7.0 Emergency 11

8.0 Warranty & Service 12

Section Page

Contents

1.0 Operating the Boiler

1.1 In Operation

The Potterton Promax SL is a range of high efficiency

condensing boilers.

In common with other condensing boilers its exceptional

efficiency means the flue gases are cooled to such an extent

that steam is often visible at the outside flue terminal.

The amount produced depends on system design, product use

and outside air temperature but it is not harmful to the

individual or the working of the boiler in any way.

Other Controls

A Potterton Electronic Programmer or other type of clock

should have been fitted in your system, together with heating

and hot water controls. Full instructions on the use of these

controls will have been supplied with them.

1.2 To Light

1. Ensure that the main gas and electricity supplies to the boiler

are ON.

2. The fan will start to run and after a short period the ignition

spark will commence. Sparking will continue until the flame is

established then stop automatically. Check that a flame is

visible through the sight glass.

Sight Glass

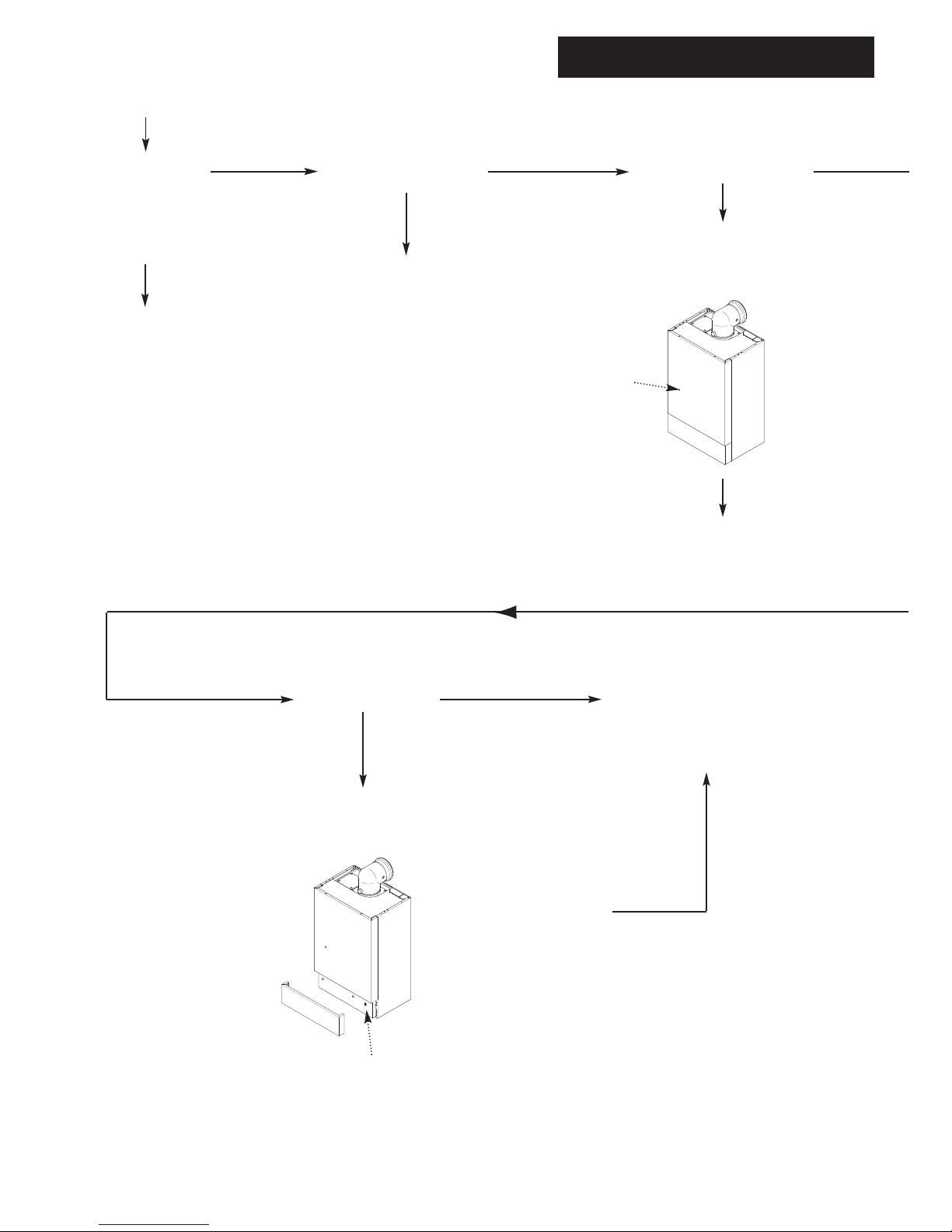

2.0 Troubleshooting

4© Baxi Heating UK Ltd 2007

Boiler not working

START

Make sure the gas

supply is turned ON

and check if other

gas appliances are

operating (e.g. fire,

cooker).

If no gas, consult

your supplier.

Is there electricity to the

boiler ?

Check electrical supply to

boiler is switched on.

YES Ignition Spark will commence

Boiler operating

satisfactorily.

YES

YES Boiler fails to light ?

YES

Press the Reset Button

If boiler will not light.

CONTACT YOUR

INSTALLER OR

SERVICE

ENGINEER.

Boiler flame established

(Check that a flame is visible

through the sight glass)

Sight Glass

YES

Reset Button

2.0 Troubleshooting

Is the Timer ON and

calling for heat ?

Is the Room Thermostat (if

fitted) set high enough ?

Typical

examples of

external timer

Ensure timer is set for Central

Heating ON (see any

instructions supplied with timer)

YES YES

Turn Room Thermostat

to maximum setting

(typical example shown)

If you don’t know what you need to do

to get the boiler to light, or need help

with the system and controls, contact

your installer as soon as possible

CH ON CH OFF

3.0 Clearances

6© Baxi Heating UK Ltd 2007

50mm

600mm

390mm

200mm

5mm Min

5mm

500mm

For Servicing

Purposes

Fig. 1

Fig. 2 In Operation

1.5° to 3°

280mm

3.1 For your Safety

1. This appliance must have been installed in accordance

with the manufacturer’s instructions and the regulations

in force.

2. Any modification that may interfere with the normal

operation of the appliance without express written

permission from the manufacturer or his agent could

invalidate the appliance warranty. In GB this could also

infringe the Gas Safety (Installation and Use) Regulations.

3. Your boiler must not be operated without the casing

correctly fitted.

4. Do not interfere with any sealed components on this

boiler.

5. Take note of any warning labels on your boiler.

6. Your boiler should have the following minimum

clearances for Safety and Maintenance

(Figs. 1 & 2):-

Top - 200mm

Bottom - 50mm

Left side - 5mm

Right Side - 5mm

Front - 5mm (In Operation)

- 500mm (For Servicing)

7. If your boiler is installed in a compartment, do not use

it for storage purposes. Do not obstruct any purpose

provided ventilation openings.

8. Flammable materials must not be stored in close

proximity to your boiler.

9. Avoid skin contact when your boiler is in operation, as

some surfaces may get hot e.g. pipework.

10. Ensure that the flue terminal, outside the house,

does not become damaged or obstructed, particularly

by foliage.

11. It is important that the condensate drain system is

not blocked, modified or damaged in any way as this

would affect the operation of your boiler. Your installer

should have insulated any exposed pipework.

GB - Heating Industry definition meaning England, Scotland,

Wales, Northern Ireland, Isle of Man and the Channel Isles

4.0 Care of the Boiler

4.1 Cleaning the Outercase

The painted panels should be wiped with a damp cloth

and then dried completely. DO NOT USE ABRASIVE

CLEANING AGENTS.

4.2 Frost Protection

1. The boiler does not have integral frost protection. It

is recommended that the installer fits a suitable

protection device to the system controls if required.

For frost protection the boiler must not be switched

off at the isolation switch on the wall.

5.0 Legislation

8© Baxi Heating UK Ltd 2007

5.1 Installation, Commissioning, Service & Repair

1. This appliance must be install in accordance with the

manufacturer’s instructions and the regulations in force.

Read the instructions fully before installing or using the

appliance.

2. In GB, this must be carried out by a competent person

as stated in the Gas Safety (Installation & Use)

Regulations.

3. Definition of competence: A person who works for a

CORGI registered company and holding current

certificates in the relevant ACS modules, is deemed

competent.

4. IN IE (Eire), this must be carried out by a competent

person as stated in I.S. 813 “Domestic Gas Installations”.

Lifting - This product should be lifted and handled by two

people. Stooping should be avoided and protective

equipment worn where necessary. Carrying & lifting

equipment should be used as required, e.g. when installing

in a loft space.

All CORGI registered installers carry a CORGI

identification card (see Fig. 3) and have a registration

number. You can check your installer is registered by

telephoning 0870 4012300 or writing to:-

1 Elmwood,

Chineham Business Park,

Crockford Lane,

Basingstoke. RG24 8WG.

or check online at www.corgi-gas-safety.com

The boiler meets the requirements of Statutory

Instrument “The Boiler (Efficiency) Regulations 1993 No

3083” and is deemed to meet the requirements of

Directive 92/42/EEC on the energy efficiency

requirements for new hot water boilers fired with liquid

or gaseous fuels:-

Type test for purpose of Regulation 5 certified by:

Notified Body 0087.

Product/Production certified by:

Notified Body 0086.

Ref: 86-BL-647

For GB/IE only.

5.2 Benchmark Commissioning Checklist

1. Please ensure that your installer hands you the boiler

Installation & Service Instructions with the “Benchmark

Commissioning Checklist sections completed. The

details in the Checklist will be required in the event of

any warranty work. Keep the instructions in a safe place

and ensure that the Service Interval Record at the back

is completed at each service visit.

Registered

Gas Installer

CARD SERIAL NO. 999999999

NAME:

A.N.Installer

COMPANY:

Newtown Heating

EXPIRES: 31 DECEMBER 2010

PHOTOGRAPH

To confirm validity of this card please contact

CORGI on 0870 401 2300

www.corgi-group.com

CORGI

00000

Fig. 3 CORGI Registration Card

6.0 Notes

10 © Baxi Heating UK Ltd 2007
