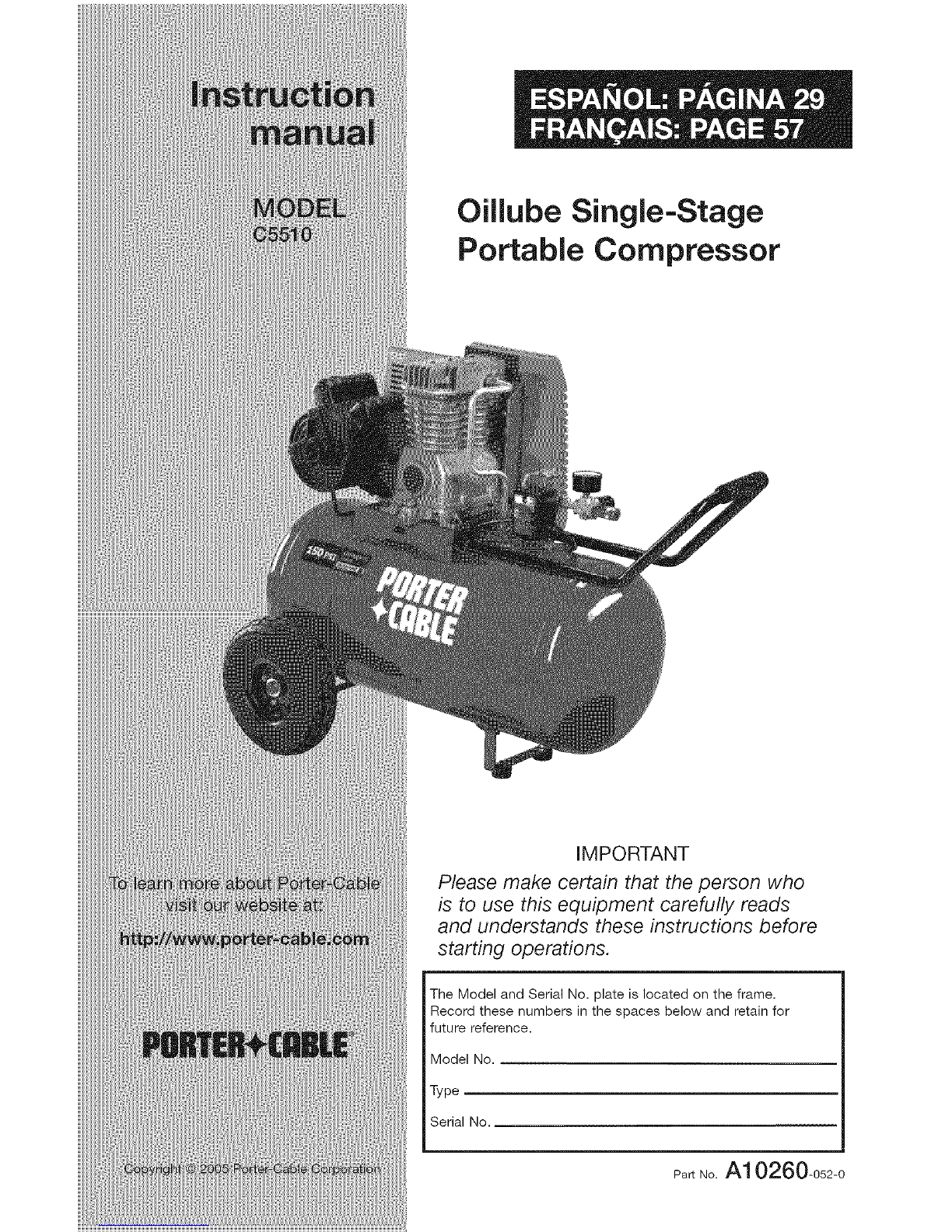

Porter-Cable C5510 Manual de usuario

Oillube Single=Stage

Portable Compressor

IMPORTANT

Please make certain that the person who

is to use this equipment carefully reads

and understands these instructions before

starting operations.

The Model and Serial No. plate is located on the frame.

Record these numbers in the spaces below and retain for

future reference.

Model No.

Type

Serial No.

Part No. A10260-052-0

This manual contains information that is important for you to know and

understand. This information relates to protecting YOUR SAFETY and

PREVENTING EQUIPMENT PROBLEMS. To help you recognize this

information, we use the symbols below. Please read the manual and pay

attention to these symbols.

_ Indicates an

imminently hazardous

situation which, if not avoided, wil_ result

in death or serious in_.

_ ndicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious injury,.

_ ndicates a potentially

hazardous situation

which, if not avoided, _ result in minor

or moderate injury.

Used without the

safety alert symbol

indicates a potentially hazardous situation

which, if not avoided, may result in

property damage.

_Some dust created by power sanding, sawing, grinding,

__ drilling, and other construction activities contains

chemicals known (to the State of California} to cause cancer, birth defects

or other reproductive harm. Some example of these chemicals are:

•lead from lead-based paints

• crystalline silica from bricks and cement and other masonry products

• arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do

this type of work. To reduce your exposure to these chemicals: work in

a well ventilated area, and work with approved safety equipment, always

wear MSHA/NIOSH approved, properly fitting face mask or respirator when

using such tools.

When using air tools, basic safety precautions should always be followed

to reduce the risk of of personal injury.

A10260 2-ENG

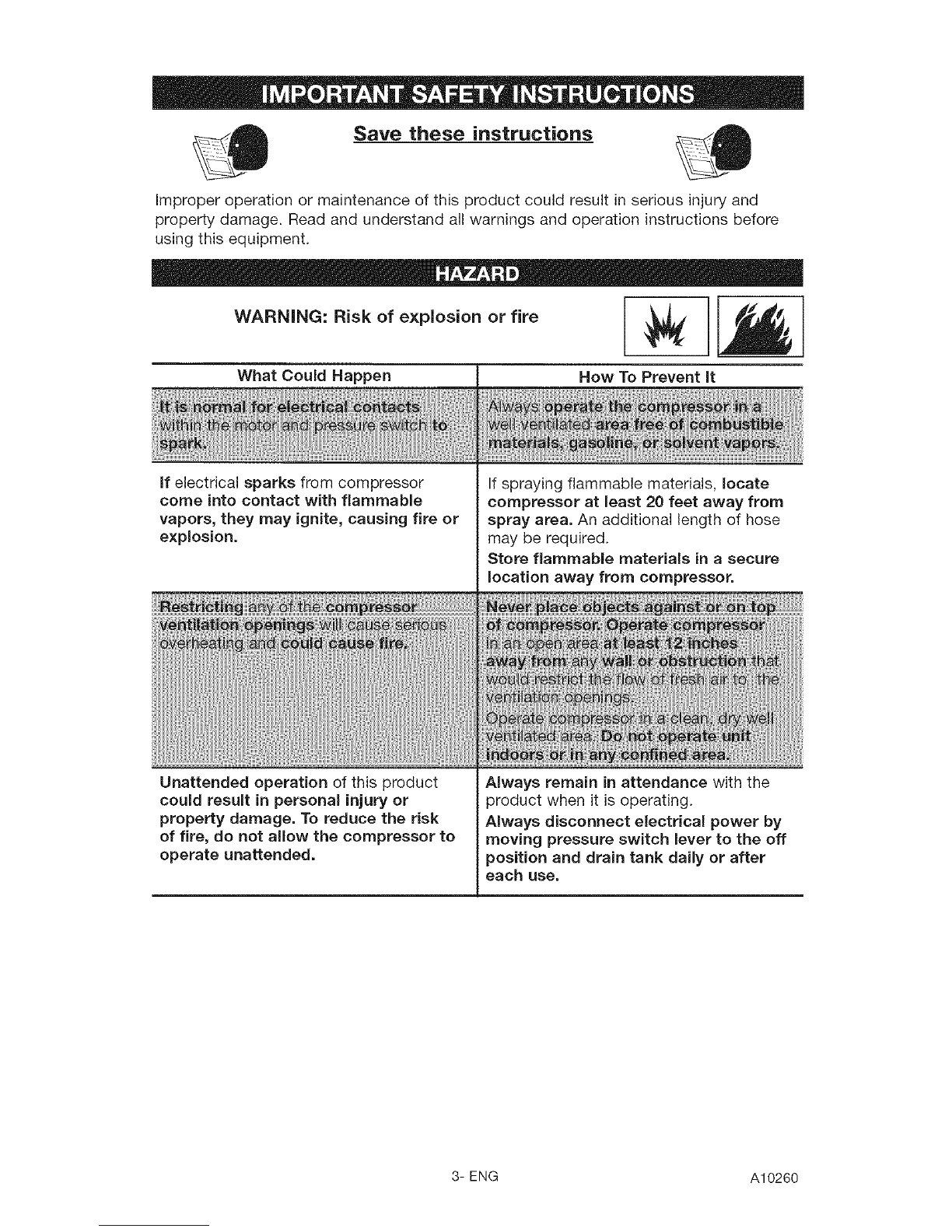

_0 Save these instructions _Q

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

WARNING: Risk of explosion or fire

How To Prevent It

What Could Happen

If electrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire or

explosion.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the risk

of fire, do not allow the compressor to

operate unattended.

If spraying flammable materials, locate

compressor at least 20 feet away from

spray area. An additional length of hose

may be required.

Store flammable materials in a secure

location away from compressor.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by

moving pressure switch lever to the off

position and drain tank daily or after

each use.

3- ENG A10260

WARNING: Risk of Bursting I_1

Air Tank: The following conditions could lead to a weakening of the tank, and result

in aviolent tank explosion and could cause property damage or serious injury.

What Could

Modifications or attempted repairs to

the tank.

Unauthorized modifications to the

unloader valve, safety valve, or any

other components which control tank

3ressure.

ATTACHMENTS & ACCESSORIES:

Exceeding the pressure rating of

air tools, spray guns, air operated

accessories, tires, and other inflatables

can cause them to explode or fly apart,

and could result in serious injury.

'revent It

Never drill into, weld, or make any

modifications to the tank or its

attachments.

For essential control of air pressure,

you must install a pressure regulator

and pressure gauge to the air outlet

(if not equipped) of your compressor.

Follow the equipment manufacturers

recommendation and never exceed the

maximum allowable pressure rating of

attachments. Never use compressor

to inflate small low pressure objects

such as children's toys, footballs,

basketballs, etc.

WARNING: Risk from Flying Objects

What Could Ha Now To Prevent It

A10260 4-ENG

WARNING: Risk of Electrical Shock

What Could Happen How To Prevent it

Your air compressor is powered by

electricity. Like any other electrically

powered device, If it is not used

properly it may cause electric shock.

Electrical Grounding: Failure to provide

adequate grounding to this product

could result in serious injury or death

from electrocution.

See grounding instructions.

Never operate the compressor outdoors

when it is raining or in wet conditions.

Never operate compressor with

protective covers removed or damaged.

Make certain that the electrical circuit

to which the compressor is connected

provides proper electrical grounding,

correct voltage and adequate fuse

protection.

WARNING: Risk to Breathing

What Could Ha

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful

vapors and poisons.

How To Prevent it

Work in an area with good cross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials

you are spraying. Use a NIOSH/MSHA

approved respirator designed for use with

your specific application.

5- ENG A10260

WARNING: Risk of Burns I ,_,,_ I

i .=,==,=,=== i

What Could Hapjoen How To Prevent It

WARNING: Risk from Moving Parts

What Could Happen How To Prevent it

Moving parts such as the pulley, flywheel,

and belt can cause serious injury if

they come into contact with you or your

clothing.

Never operate the compressor with

guards or covers which are damaged or

removed.

WARNING: Risk of Falling

What Could Happen

A portable compressor can fall from

a table, workbench, or roof causing

damage to the compressor and could

result in serious injury or death to the

operator.

How To Prevent it

Always operate compressor in a stable

secure position to prevent accidental

movement of the unit. Never operate

compressor on a roof or other elevated

position. Use additional air hose to

reach high locations.

A10260 6-ENG

WARNING: Risk of Serious injury or Property Damage When

Transporting Compressor

(Fire, Inhalation, Damage to Vehicle Surfaces)

What Could Ha How To Prevent It

WARNING: Risk of Unsafe Operation

What Could Happen

Unsafe operation of your air compressor

could lead to serious injury or death to

you or others.

How To Prevent It

Review and understand all instructions

and warnings in this manual.

Become familiar with the operation and

controls of the air compressor.

Keep operating area clear of all persons,

pets, and obstacles.

Keep children away from the air

compressor at all times.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all times.

Never defeat the safety features of this

product.

Equip area of operation with afire

extinguisher.

Do not operate machine with missing,

broken, or unauthorized parts.

SAVE THESE iNSTRUCTiONS

7- ENG A10260

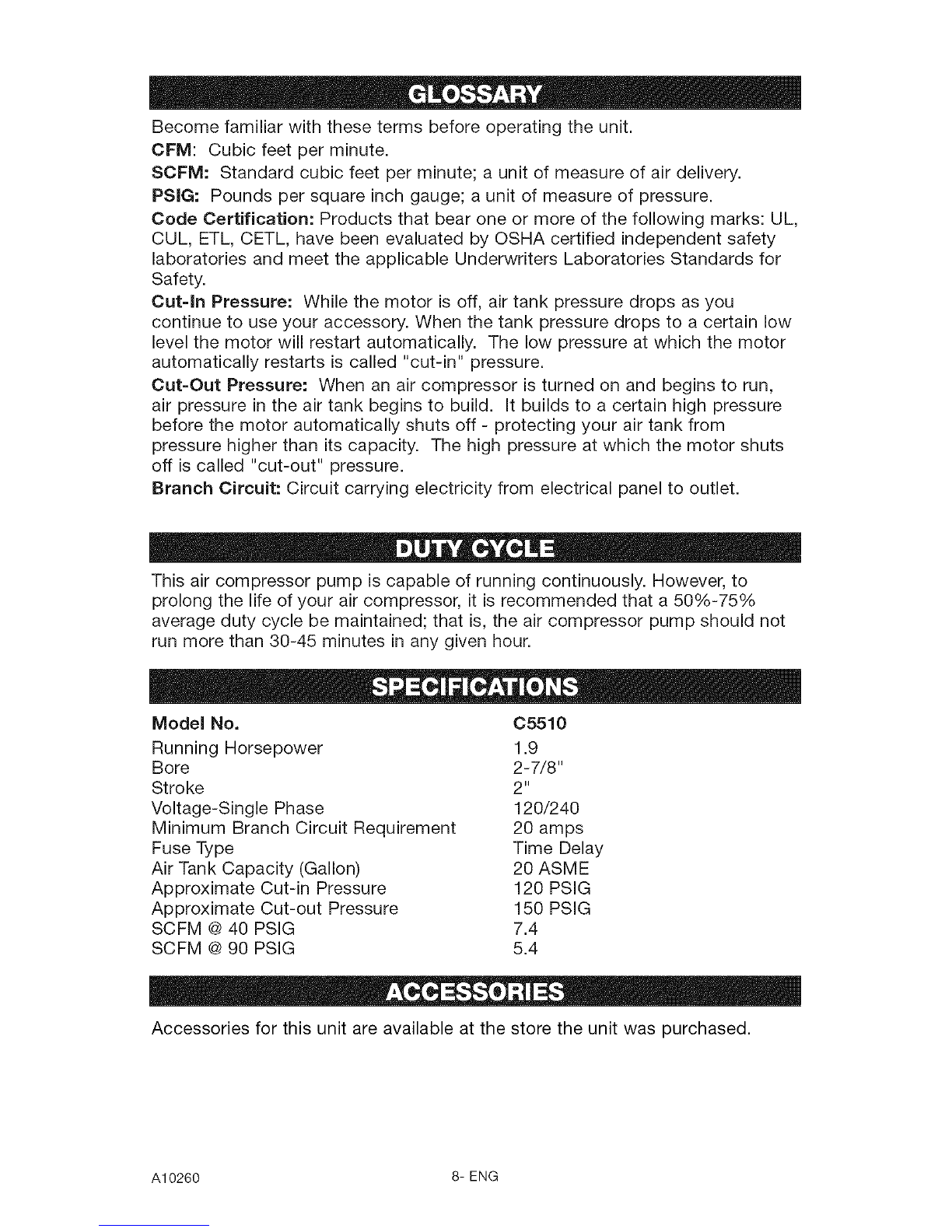

Become familiar with these terms before operating the unit.

CFM: Cubic feet per minute.

SOFM: Standard cubic feet per minute; a unit of measure of air delivery.

PSIG: Pounds per square inch gauge; a unit of measure of pressure.

Code Certification: Products that bear one or more of the following marks: UL,

CUL, ETL, CETL, have been evaluated by OSHA certified independent safety

laboratories and meet the applicable Underwriters Laboratories Standards for

Safety.

Cut-in Pressure: While the motor is off, air tank pressure drops as you

continue to use your accessory. When the tank pressure drops to a certain low

level the motor will restart automatically. The low pressure at which the motor

automatically restarts is called "cut-in" pressure.

Cut-Out Pressure: When an air compressor is turned on and begins to run,

air pressure in the air tank begins to build. It builds to a certain high pressure

before the motor automatically shuts off - protecting your air tank from

pressure higher than its capacity. The high pressure at which the motor shuts

off is called "cut-out" pressure.

Branch Circuit: Circuit carrying electricity from electrical panel to outlet.

This air compressor pump is capable of running continuously. However, to

prolong the life of your air compressor, it is recommended that a 50%-75%

average duty cycle be maintained; that is, the air compressor pump should not

run more than 30-45 minutes in any given hour.

Model No. 05510

Running Horsepower 1.9

Bore 2-7/8"

Stroke 2"

Voltage-Single Phase 120/240

Minimum Branch Circuit Requirement 20 amps

Fuse Type Time Delay

Air Tank Capacity (Gallon) 20 ASME

Approximate Cut-in Pressure 120 PSIG

Approximate Cut-out Pressure 150 PSIG

SCFM @ 40 PSIG 7.4

SCFM @ 90 PSIG 5.4

Accessories for this unit are available at the store the unit was purchased.

A10260 8-ENG

Tools Required for Assembly

1 - 9/16" socket or open end wrench

1 - 1/2" socket or open end wrench

Unpacking

1. Remove unit from carton and discard all packaging. NOTE: Save all parts

bags.

To install Handle

The wheels and handle do not provide adequate

clearance, stability, or support for pulling the unit up and

down stairs or steps. The unit must be lifted or pushed up a ramp. Do not

lift the unit by the manifold assembly, the unit could be damaged.

1. To make installation easier, submerge handle grip into warm soapy water.

Remove handle grip from soapy water and slide onto handle.

2. insert the open end of the handle under the saddle. Before attaching

handle, you may have to pull the open ends of the handle apart so they fit

tightly against the side of the saddle. Looking in from the open end of the

saddle, position the handle toward the two bent tabs, on the inside walls

of the saddle.

3. Slowly push the open ends of the handle onto both tabs at the same time.

Continue pushing the handle into the saddle until the holes on the side of

the saddle and handle are in line.

4. Guide the straight end of each retaining clip through the saddle hole and

both handle holes.

5. Rotate each retaining clip and press down until it snaps into place over the

handle.

Retaining Clip

9- ENG A10260

6. If the handle has excessive movement, it is improperly installed. Check the

following.

A. Are both tabs inside the handle (Step #3)?

B. Does each clip pass through both the saddle and handle (Step #4)?

To Assemble Wheels

lt will be necessary to brace

or support one side of the

unit when installing the wheels because the

compressor will have a tendency to tip.

1. Attach wheels with shoulder bolts and nuts

as shown.

2. Tighten securely. NOTE: The unit will sit

level if the wheels are properly installed.

_The wheels and handle

do not provide adequate

clearance, stability or support for pulling the

unit up and down stairs or steps. The unit

must be lifted, or pushed up a ramp.

Assemble Rubber Feet

1. Attach rubber feet with the screws,

washers, and nuts provided as shown.

2. Tighten securely.

Wheel

Shoulder I_olt

(_=p_- Rubber Foot

_'_ Screw

A10260 10- ENG

Tabla de contenidos

Otros manuales de Compresor de aire de Porter-Cable

Porter-Cable

Porter-Cable CPFC2TV3525VP Manual de usuario

Porter-Cable

Porter-Cable C2025 Manual de usuario

Porter-Cable

Porter-Cable C6001 Manual de usuario

Porter-Cable

Porter-Cable D26126-024-0 Manual de usuario

Porter-Cable

Porter-Cable 888971-992 Manual de usuario

Porter-Cable

Porter-Cable 1000001703 Manual de usuario

Porter-Cable

Porter-Cable PXCMLC3706056 Manual de usuario

Porter-Cable

Porter-Cable C5512 Manual de usuario

Porter-Cable

Porter-Cable 892551-992 Manual de usuario

Porter-Cable

Porter-Cable CPLC7060V Manual de usuario

Porter-Cable

Porter-Cable CPFAC2600P Manual de usuario

Porter-Cable

Porter-Cable PXCM301 Manual de usuario

Porter-Cable

Porter-Cable C2002 Manual de usuario

Porter-Cable

Porter-Cable C5101 Manual de usuario

Porter-Cable

Porter-Cable CPLDC2541S Manual de usuario

Porter-Cable

Porter-Cable C2002-WK Manual de usuario

Porter-Cable

Porter-Cable CPF4515 Manual de usuario

Porter-Cable

Porter-Cable PXCM201 Manual de usuario

Porter-Cable

Porter-Cable N003568 Manual de usuario

Porter-Cable

Porter-Cable 1000002853 Manual de usuario

Porter-Cable

Porter-Cable PXCML224VW Manual de usuario

Porter-Cable

Porter-Cable PXCMF226VW Manual de usuario

Porter-Cable

Porter-Cable JOB BOSS C3550 Manual de usuario

Porter-Cable

Porter-Cable CF1540 Manual de usuario

Manuales populares de Compresor de aire de otras marcas

Sparmax

Sparmax DC-25XR Manual de usuario

KAESER

KAESER M122 Manual de usuario

GMC

GMC GAC1500 Manual de usuario

Briggs & Stratton

Briggs & Stratton Air Compressor Manual de usuario

Fini

Fini F3GST2TK Manual de usuario

Industrial Air

Industrial Air CP1580325 Manual de programación

Campbell Hausfeld

Campbell Hausfeld RP3300 Guía de inicio rápido

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manual de usuario

Hitachi

Hitachi EC99S Manual del operador

Parkside

Parkside PKO 270 A1 Manual de usuario

Sullair

Sullair 185 Manual de usuario

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manual de usuario

Ferm

Ferm CRM1046 Manual de usuario

BE AC153 Manual de usuario

RIDGID

RIDGID OF25150A Manual de usuario

Johnson Controls

Johnson Controls QUANTUM LX Manual

Sears

Sears Craftsman 919.167463 Manual de usuario

Ring Automotive

Ring Automotive RAC700 Manual de usuario
