Porter-Cable CLFCP350 Manual de usuario

Direct Drive

Oil Lube

Portable Air Compressor

Instruction

manual

IMPORTANT

Please make certain that the person who is

to use this equipment carefully reads and

understands these instructions before

starting operations.

Part No. A02212-043-1

ESPAÑOL: PÁGINA 25

FRANÇAIS: PAGE 49

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

The Model and Serial No. plate is located on the frame.

Record these numbers in the spaces below and retain for

future reference.

Model No.

Type

Serial No.

Model

CLFCP350

2- ENG

A02212

SAFETY GUIDELINES - DEFINITIONS

Indicates an imminently

hazardous situation

which, if not avoided, will result in death

or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, may result in

minor or moderate injury.

Used without the safety

alert symbol indicates a

potentially hazardous situation which, if

not avoided, may result in property

damage.

This manual contains information that is important for you to know and

understand. This information relates to protecting YOUR SAFETY and

PREVENTING EQUIPMENT PROBLEMS. To help you recognize this

information, we use the symbols below. Please read the manual and pay

attention to these symbols.

IMPORTANT SAFETY INSTRUCTIONS

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains chemicals

known (to the State of California) to cause cancer, birth defects or other

reproductive harm. Some example of these chemicals are:

●lead from lead-based paints

●crystalline silica from bricks and cement and other masonry products

●arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do this

type of work. To reduce your exposure to these chemicals: work in a well

ventilated area, and work with approved safety equipment, always wear

MSHA/NIOSH approved, properly fitting face mask or respirator when using

such tools.

When using air tools, basic safety precautions should always be followed to

reduce the risk of of personal injury.

3- ENG A02212

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

HAZARD

WARNING: Risk of explosion or fire

How To Prevent It

What Could Happen

It is normal for electrical contacts

within the motor and pressure switch to

spark.

If electrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire or

explosion.

Restricting any of the compressor

ventilation openings will cause serious

overheating and could cause fire.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the risk of

fire, do not allow the compressor to

operate unattended.

Always operate the compressor in a well

ventilated area free of combustible

materials, gasoline, or solvent vapors.

If spraying flammable materials, locate

compressor at least 20 feet away from

spray area. An additional length of hose

may be required.

Store flammable materials in a secure

location away from compressor.

Never place objects against or on top

of compressor. Operate compressor in

an open area at least 12 inches away

from any wall or obstruction that would

restrict the flow of fresh air to the

ventilation openings.

Operate compressor in a clean, dry well

ventilated area. Do not operate unit

indoors or in any confined area.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by

moving pressure switch lever to the off

position and drain tank daily or after

each use.

4- ENG

A02212

WARNING: Risk of Bursting

AIR TANK:The following conditions could lead to a weakening of the tank, and

result in a violent tank explosion and could cause property damage or serious

injury.

How To Prevent It

What Could Happen

WARNING: Risk from Flying Objects

The compressed air stream can cause

soft tissue damage to exposed skin

and can propel dirt, chips, loose

particles, and small objects at high

speed, resulting in property damage or

personal injury.

Always wear ANSI Z87.1 approved safety

glasses with side shields when using the

compressor.

Never point any nozzle or sprayer

toward any part of the body or at other

people or animals.

Always turn the compressor off and

bleed pressure from the air hose and tank

before attempting maintenance, attaching

tools or accessories.

HAZARD

Drain tank daily or after each use. If

tank develops a leak, replace it

immediately with a new tank or replace

the entire compressor.

Failure to properly drain condensed

water from tank, causing rust and

thinning of the steel tank.

Modifications or attempted repairsto

the tank.Unauthorized modifications

to the unloader valve, safety valve,

or any other components which

control tank pressure.

Never drill into, weld, or make any

modifications to the tank or its

attachments.

Excessive vibration can weaken the

air tank and cause rupture or

explosion

The tank is designed to withstand specific

operating pressures. Never make

adjustments or parts substitutions to

alter the factory set operating

pressures.

For essential control of air pressure, you

must install a pressure regulator and

pressure gauge to the air outlet (if not

equipped) of your compressor. Follow the

equipment manufacturers

recommendation and never exceed the

maximum allowable pressure rating of

attachments. Never use compressor to

inflate small low pressure objects such

as children’s toys, footballs,

basketballs, etc.

ATTACHMENTS & ACCESSORIES:

Exceeding the pressure rating of air

tools, spray guns, air operated

accessories, tires, and other inflatables

can cause them to explode or fly apart,

and could result in serious injury.

How To Prevent It

What Could Happen

5- ENG A02212

WARNING: Risk to Breathing

WARNING: Risk of Electrical Shock

HAZARD

Your air compressor is powered by

electricity. Like any other electrically

powered device, if it is not used

properly it may cause electric shock.

Repairs attempted by unqualified

personnel can result in serious injury

or death by electrocution.

Electrical Grounding: Failure to provide

adequate grounding to this product

could result in serious injury or death

from electrocution.

See grounding instructions.

Never operate the compressor outdoors

when it is raining or in wet conditions.

Never operate compressor with

protective covers removed or damaged.

Any electrical wiring or repairs required

on this product should be performed by

authorized service center personnel in

accordance with national and local

electrical codes.

Make certain that the electrical circuit to

which the compressor is connected

provides proper electrical grounding,

correct voltage and adequate fuse

protection.

The compressed air directly from your

compressor is not safe for breathing.

The air stream may contain carbon

monoxide, toxic vapors, or solid

particles from the tank. Breathing these

contaminants can cause serious injury

or death.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful

vapors and poisons.

Air obtained directly from the compressor

should never be used to supply air for

human consumption. In order to use air

produced by this compressor for

breathing, suitable filters and in-line

safety equipment must be properly

installed. In-line filters and safety

equipment used in conjunction with the

compressor must be capable of treating

air to all applicable local and federal

codes prior to human consumption.

Work in an area with good cross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials you

are spraying. Use a NIOSH/ MSHA

approved respirator designed for use with

your specific application.

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

6- ENG

A02212

WARNING: Risk of Burns

Touching exposed metal such as the

compressor head or outlet tubes, can

result in serious burns.

Never touch any exposed metal parts

on compressor during or immediately

after operation. Compressor will remain

hot for several minutes after operation.

Do not reach around protective shrouds

or attempt maintenance until unit has

been allowed to cool.

WARNING: Risk from Moving Parts

Never operate the compressor with

guards or covers which are damaged or

removed.

Moving parts such as the pulley, flywheel,

and belt can cause serious injury if they

come into contact with you or your

clothing.

WARNING: Risk of Falling

A portable compressor can fall from a

table, workbench, or roof causing

damage to the compressor and could

result in serious injury or death to the

operator.

Always operate compressor in a stable

secure position to prevent accidental

movement of the unit. Never operate

compressor on a roof or other elevated

position. Use additional air hose to

reach high locations.

HAZARD

Any repairs required on this product

should be performed by authorized

service center personnel.

Attempting to operate compressor with

damaged or missing parts or attempting

to repair compressor with protective

shrouds removed can expose you to

moving parts and can result in serious

injury.

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

7- ENG A02212

Review and understand all instructions

and warnings in this manual.

Become familiar with the operation and

controls of the air compressor.

Keep operating area clear of all persons,

pets, and obstacles.

Keep children away from the air

compressor at all times.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all times.

Never defeat the safety features of this

product.

Equip area of operation with a fire

extinguisher.

Do not operate machine with missing,

broken, or unauthorized parts.

WARNING: Risk of Unsafe Operation

Unsafe operation of your air compressor

could lead to serious injury or death to

you or others.

HAZARD

WARNING: Risk of Serious Injury or Property Damage When

Transporting Compressor

Oil can leak or spill and could result in

fire or breathing hazard; serious injury or

death can result. Oil leaks will damage

carpet, paint or other surfaces in

vehicles or trailers.

Always place COMPRESSOR on a

protective mat when transporting to

protect against damage to vehicle from

leaks. Remove COMPRESSOR from

vehicle immediately upon arrival at your

destination.

(Fire, Inhalation, Damage to Vehicle Surfaces)

HAZARD

SAVE THESE INSTRUCTIONS

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

8- ENG

A02212

GLOSSARY

Become familiar with these terms before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per minute; a unit of measure of air delivery.

PSIG: Pounds per square inch gauge; a unit of measure of pressure.

Code Certification: Products that bear one or more of the following marks:

UL, CUL, ETL, CETL, have been evaluated by OSHA certified independent

safety laboratories and meet the applicable Underwriters Laboratories

Standards for Safety.

Cut-In Pressure: While the motor is off, air tank pressure drops as you

continue to use your accessory. When the tank pressure drops to a certain low

level the motor will restart automatically. The low pressure at which the motor

automatically restarts is called “cut-in” pressure.

Cut-Out Pressure: When an air compressor is turned on and begins to run,

air pressure in the air tank begins to build. It builds to a certain high pressure

before the motor automatically shuts off - protecting your air tank from

pressure higher than its capacity. The high pressure at which the motor shuts

off is called “cut-out” pressure.

Branch Circuit: Circuit carrying electricity from electrical panel to outlet.

DUTY CYCLE

This air compressor pump is capable of running continuously. However, to

prolong the life of your air compressor, it is recommended that a 50%-75%

average duty cycle be maintained; that is, the air compressor pump should not

run more than 30-45 minutes in any given hour.

SPECIFICATIONS

Model No. CLFCP350

Horsepower Peak 2.5

Bore 2.363”

Stroke .890”

Voltage-Single Phase 120

* * Minimum Branch Circuit Requirement 15 amps

* Fuse Type Time Delay

Air Tank Capacity (Gallon) 4.3

Approximate Cut-in Pressure 150 PSIG

Approximate Cut-out Pressure 180 PSIG

SCFM @ 40 PSIG 5.7

SCFM @ 90 PSIG 4.4

* Risk of Unsafe Operation. These compressors can be

operated on a 15 amp circuit if:

1. Voltage supply to circuit must comply with the National Electrical Code.

2. Circuit is not used to supply any other electrical needs (lights, appliances, etc.).

3. Extension cords comply with specifications in owners manual.

4. Circuit is equipped with 15 amp circuit breaker or 15 amp time delay fuse.

If any of the above conditions cannot be met, or if operation of the compressor repeated-

ly causes interruption of the power it may be necessary to operate it from a 20 amp

circuit. It is not necessary to change the cord set.

* *A circuit breaker is preferred. Use only a fuse or circuit breaker that is the same rating

as the branch circuit on which the air compressor is operated. If compressor is

connected to a circuit protected by fuses, use only time delay fuses. Time delay fuses

should be marked "D" in Canada and "T" in the US.

9- ENG A02212

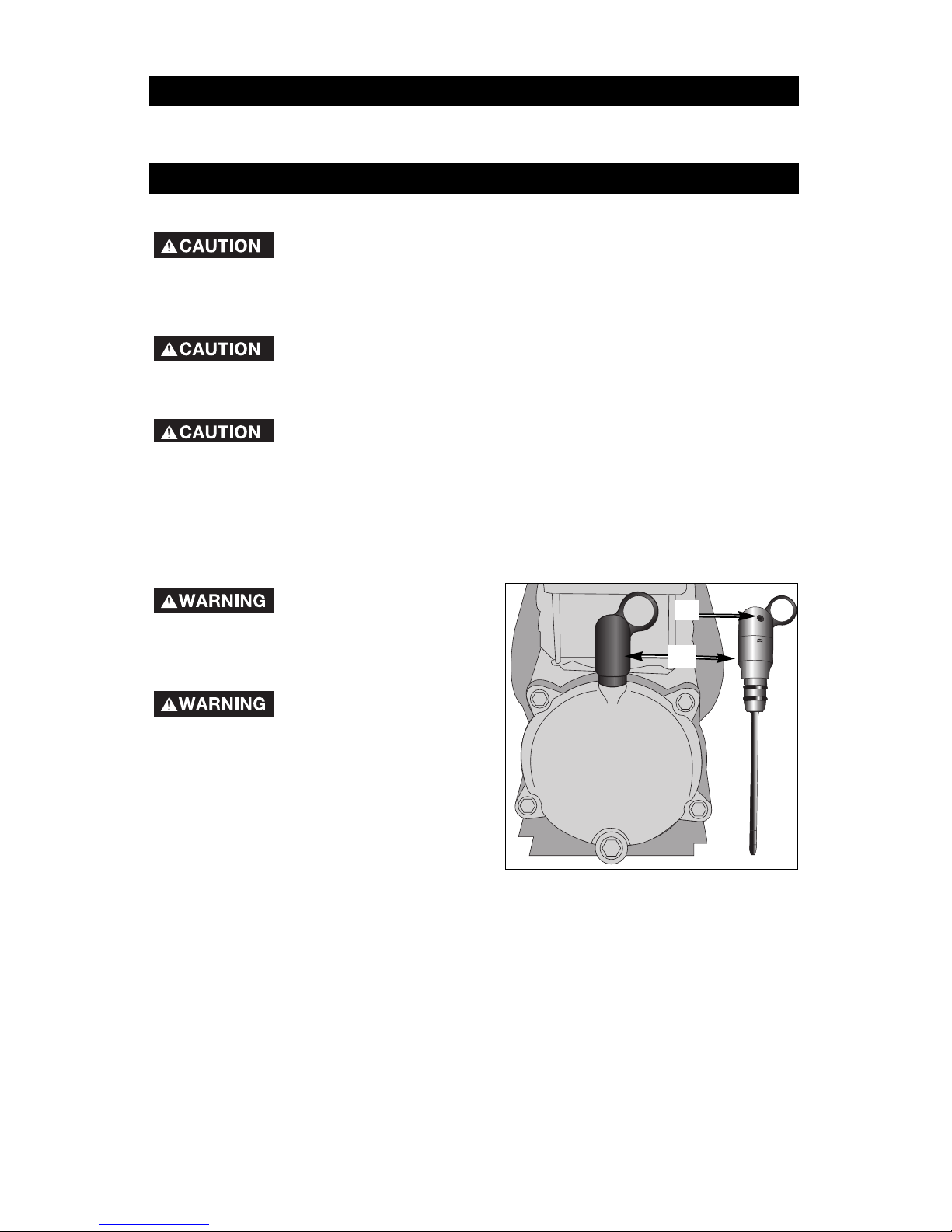

To Add Oil To Pump

Risk of Unsafe Operation. DO NOT ATTEMPT TO

OPERATE THIS AIR COMPRESSOR WITHOUT FIRST

ADDING OIL TO THE CRANKCASE. Serious damage can result from even

limited operation unless filled with oil and broken in correctly. Make sure

to closely follow initial start-up procedures.

Risk of Unsafe Operation. COMPRESSORS ARE SHIPPED

WITHOUT OIL. A small amount of oil may be present in

the pump upon receipt of the air compressor. This is due to plant testing

and does not mean the pump contains oil.

Risk of Unsafe Operation. Multi-Viscosity motor oils, like

10W 30, should not be used in an air compressor. They

leave carbon deposits on critical components, thus reducing performance

and compressor life. Use air compressor oil only.

NOTE: Use an oil specifically formulated for use in an air compressor, such as

Porter-Cable PAS1 air compressor oil. Oil may be found at the store where the

air compressor was purchased.

1. Place unit on a level surface.

Risk from Flying Object.

Drain tank to release air

pressure before removing the dipstick.

See “To Drain Tank” in the Maintenance

section.

Risk from Flying Object.

Make sure air vent (B) in

dipstick is free from debris. If air vent is

blocked pressure can build in crankcase

causing damage to air compressor and

possible personal injury. See

Troubleshooting for correction.

2. Remove dipstick (A) and slowly fill

crankcase with oil. Crankcase

capacity is 6 fluid ounces (177.4 ml). Oil level should be at the + (full) mark

on the dipstick.

NOTE: If the oil is added too quickly, it will overflow and appear to be full.

3. Replace dipstick.

Accessories for this unit are available at the store the unit was purchased.

ACCESSORIES

ASSEMBLY

+ full

- add

10- ENG

A02212

GROUNDING INSTRUCTIONS

Risk of Electrical Shock. In the event of a short circuit,

grounding reduces the risk of shock by providing an

escape wire for the electric current. This air compressor must be properly

grounded.

The portable air compressor is equipped with a cord having a grounding wire

with an appropriate grounding plug (see following illustrations).

1. The cord set and plug with this unit contains a grounding pin. This plug

MUST be used with a grounded outlet.

IMPORTANT: The outlet being used must

be installed and grounded in accordance

with all local codes and ordinances.

2. Make sure the outlet being used has

the same configuration as the

grounded plug. DO NOT USE AN

ADAPTER. See illustration.

3. Inspect the plug and cord before each

use. Do not use if there are signs of

damage.

4. If these grounding instructions are not completely understood, or if in

doubt as to whether the compressor is properly grounded, have the

installation checked by a qualified electrician.

Risk of Electrical Shock. IMPROPER GROUNDING CAN

RESULT IN ELECTRICAL SHOCK.

Do not modify the plug provided. If it does not fit the available outlet, a

correct outlet should be installed by a qualified electrician.

Repairs to the cord set or plug MUST be made by a qualified electrician.

INSTALLATION

Location of the Air Compressor

GLocate the air compressor in a clean, dry, and well ventilated area.

GPlace on a solid surface to prevent rocking or tipping.

GThe air compressor should be located at least 12" away from the wall or

other obstructions that will interfere with the flow of air.

GThe air filter must be kept clear of obstructions which could reduce air flow

to the air compressor.

GThe air compressor requires fresh air flow for proper cooling. DO NOT

ALLOW THE COMPRESSOR TO GET WET.

HOW TO SET UP YOUR UNIT

Grounding Pin

Grounded

Outlets

Plug
