Porter-Cable C5101 Manual de usuario

Single-Stage Oilfree

Compressor

Instruction

manual

The Model and Serial No. plate is located on the main

housing of the tool. Record these numbers in the

spaces below and retain for future reference.

Model No. ______________________________________

Type ___________________________________________

Serial No. ______________________________________

IMPORTANT

Please make certain that the person who

is to use this equipment carefully reads

and understands these instructions before

starting operations.

Part No. A10208-054-0

ESPAÑOL: PÁGINA 23

FRANÇAIS : PAGE 45

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

MODEL

C5101

2- ENG

A10208

SAFETY GUIDELINES - DEFINITIONS

Indicates an imminent-

ly hazardous situation

which, if not avoided, will result in death

or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, may result in minor

or moderate injury.

Used without the

safety alert symbol

indicates a potentially hazardous situation

which, if not avoided, may result in

property damage.

This manual contains information that is important for you to know and under-

stand. This information relates to protecting YOUR SAFETY and PREVENTING

EQUIPMENT PROBLEMS. To help you recognize this information, we use the

symbols below. Please read the manual and pay attention to these symbols.

IMPORTANT SAFETY INSTRUCTIONS

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains chemi-

cals known (to the State of California) to cause cancer, birth defects or

other reproductive harm. Some example of these chemicals are:

• lead from lead-based paints

• crystalline silica from bricks and cement and other masonry products

• arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do

this type of work. To reduce your exposure to these chemicals: work in

a well ventilated area, and work with approved safety equipment, always

wear MSHA/NIOSH approved, properly fitting face mask or respirator when

using such tools.

When using air tools, basic safety precautions should always be followed

to reduce the risk of of personal injury.

3- ENG A10208

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

HAZARD

WARNING: Risk of explosion or fire

How To Prevent It

What Could Happen

It is normal for electrical contacts within

the motor and pressure switch to spark.

If electrical sparks from compressor come

into contact with flammable vapors,

they may ignite, causing fire or explo-

sion.

Restricting any of the compressor

ventilation openings will cause serious

overheating and could cause fire.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the risk

of fire, do not allow the compressor to

operate unattended.

Always operate the compressor in a

well ventilated area free of combustible

materials, gasoline, or solvent vapors.

If spraying flammable materials, locate

compressor at least 20 feet away from

spray area. An additional length of hose

may be required.

Store flammable materials in a secure

location away from compressor.

Never place objects against or on top

of compressor. Operate compressor in

an open area at least 12 inches away

from any wall or obstruction that would

restrict the flow of fresh air to the

ventilation openings.

Operate compressor in a clean, dry well

ventilated area. Do not operate unit

indoors or in any confined area.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by

moving pressure switch lever to the off

position and drain tank daily or after

each use.

4- ENG

A10208

WARNING: Risk of Bursting

Air Tank: The following conditions could lead to a weakening of the tank, and result

in a violent tank explosion and could cause property damage or serious injury.

How To Prevent It

What Could Happen

WARNING: Risk from Flying Objects

The compressed air stream can cause

soft tissue damage to exposed skin and

can propel dirt, chips, loose particles,

and small objects at high speed,

resulting in property damage or personal

injury.

Always wear ANSI Z87.1 approved

safety glasses with side shields when

using the compressor.

Never point any nozzle or sprayer

toward any part of the body or at other

people or animals.

Always turn the compressor off and

bleed pressure from the air hose and tank

before attempting maintenance, attaching

tools or accessories.

HAZARD

Drain tank daily or after each use. If tank

develops a leak, replace it immediately

with a new tank or replace the entire

compressor.

Failure to properly drain condensed

water from tank, causing rust and

thinning of the steel tank.

Modifications or attempted repairs to

the tank.

Unauthorized modifications to the

unloader valve, safety valve, or any

other components which control tank

pressure.

Never drill into, weld, or make any

modifications to the tank or its

attachments.

Excessive vibration can weaken the

air tank and cause rupture or

explosion

The tank is designed to withstand specific

operating pressures. Never make

adjustments or parts substitutions to

alter the factory set operating

pressures.

For essential control of air pressure, you

must install a pressure regulator and

pressure gauge to the air outlet (if not

equipped) of your compressor. Follow the

equipment manufacturers recommendation

and never exceed the maximum allowable

pressure rating of attachments. Never use

compressor to inflate small low

pressure objects such as children’s

toys, footballs, basketballs, etc.

ATTACHMENTS & ACCESSORIES:

Exceeding the pressure rating of air

tools, spray guns, air operated

accessories, tires, and other inflatables

can cause them to explode or fly apart,

and could result in serious injury.

How To Prevent It

What Could Happen

5- ENG A10208

WARNING: Risk to Breathing

WARNING: Risk of Electrical Shock

HAZARD

Your air compressor is powered by

electricity. Like any other electrically

powered device, If it is not used

properly it may cause electric shock.

Repairs attempted by unqualified

personnel can result in serious injury

or death by electrocution.

Electrical Grounding: Failure to provide

adequate grounding to this product

could result in serious injury or death

from electrocution.

See grounding instructions.

Never operate the compressor outdoors

when it is raining or in wet conditions.

Never operate compressor with

protective covers removed or damaged.

Any electrical wiring or repairs required

on this product should be performed by

authorized service center personnel in

accordance with national and local

electrical codes.

Make certain that the electrical circuit

to which the compressor is connected

provides proper electrical grounding,

correct voltage and adequate fuse pro-

tection.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful

vapors and poisons.

Work in an area with good cross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials

you are spraying. Use a NIOSH/MSHA

approved respirator designed for use

with your specific application.

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

The compressed air directly from your

compressor is not safe for breathing.

The air stream may contain carbon

monoxide, toxic vapors, or solid

particles from the tank. Breathing these

contaminants can cause serious injury

or death.

Air obtained directly from the compressor

should never be used to supply air for

human consumption. In order to use air

produced by this compressor for

breathing, suitable filters and in-line

safety equipment must be properly

installed. In-line filters and safety

equipment used in conjunction with the

compressor must be capable of treating

air to all applicable local and federal

codes prior to human consumption.

6- ENG

A10208

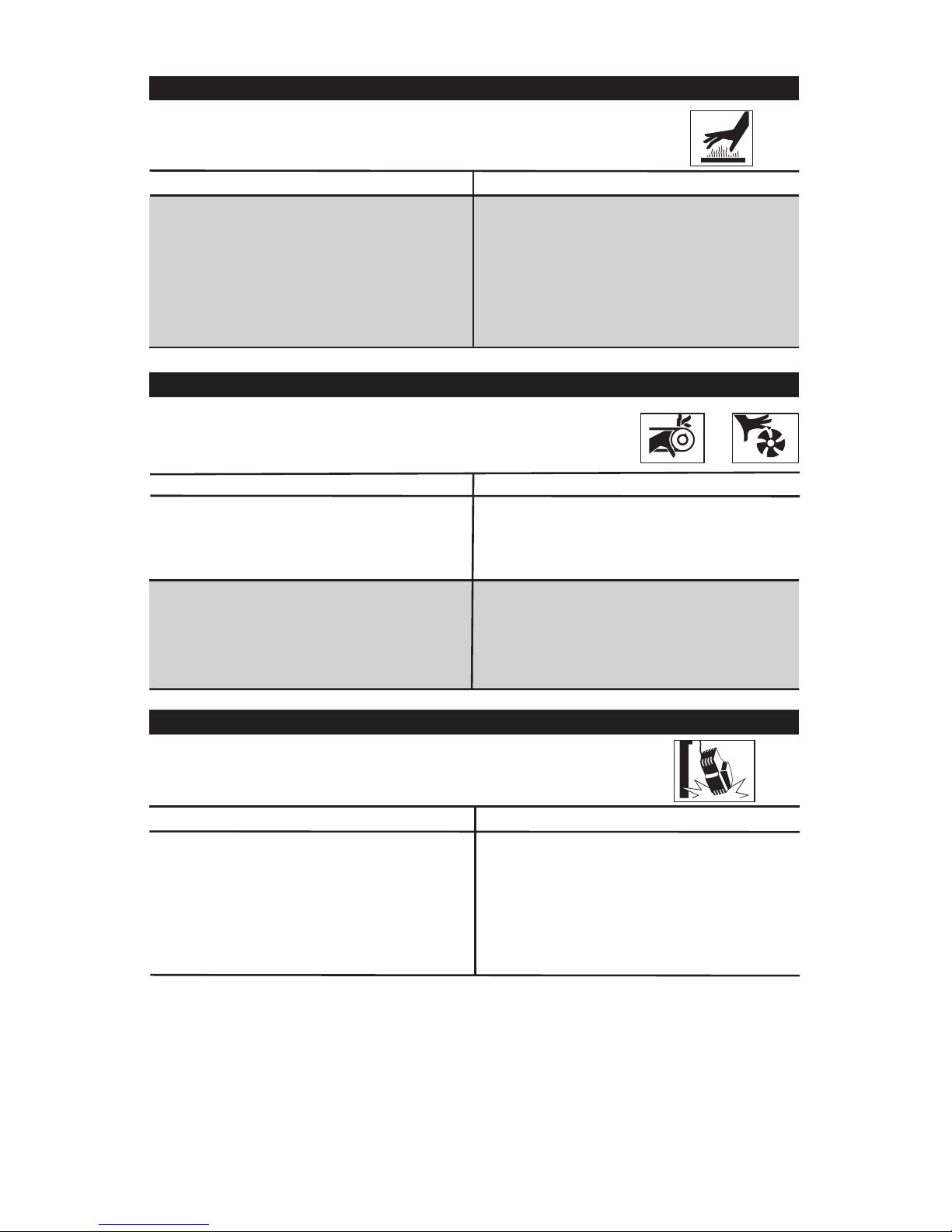

WARNING: Risk of Burns

Touching exposed metal such as the

compressor head or outlet tubes, can

result in serious burns.

Never touch any exposed metal parts

on compressor during or immediately

after operation. Compressor will remain

hot for several minutes after operation.

Do not reach around protective shrouds

or attempt maintenance until unit has

been allowed to cool.

WARNING: Risk from Moving Parts

Never operate the compressor with

guards or covers which are damaged or

removed.

Moving parts such as the pulley,

flywheel, and belt can cause serious

injury if they come into contact with you

or your clothing.

WARNING: Risk of Falling

A portable compressor can fall from

a table, workbench, or roof causing

damage to the compressor and could

result in serious injury or death to the

operator.

Always operate compressor in a stable

secure position to prevent accidental

movement of the unit. Never operate

compressor on a roof or other elevated

position. Use additional air hose to

reach high locations.

HAZARD

Any repairs required on this product

should be performed by authorized

service center personnel.

Attempting to operate compressor with

damaged or missing parts or

attempting to repair compressor with

protective shrouds removed can expose

you to moving parts and can result in

serious injury.

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

How To Prevent ItWhat Could Happen

7- ENG A10208

Review and understand all instructions

and warnings in this manual.

Become familiar with the operation and

controls of the air compressor.

Keep operating area clear of all persons,

pets, and obstacles.

Keep children away from the air

compressor at all times.

Do not operate the product when

fatigued or under the influence of

alcohol or drugs. Stay alert at all times.

Never defeat the safety features of this

product.

Equip area of operation with a fire

extinguisher.

Do not operate machine with missing,

broken, or unauthorized parts.

WARNING: Risk of Unsafe Operation

Unsafe operation of your air compressor

could lead to serious injury or death to

you or others.

HAZARD

WARNING: Risk of Serious Injury or Property Damage

When Transporting Compressor

Oil can leak or spill and could result in

fire or breathing hazard; serious injury or

death can result. oil leaks will damage

carpet, paint or other surfaces in vehicles

or trailers.

Always place COMPRESSOR on a

protective mat when transporting to

protect against damage to vehicle from

leaks. Remove COMPRESSOR from

vehicle immediately upon arrival at your

destination.

(Fire, Inhalation, Damage to Vehicle Surfaces)

HAZARD

SAVE THESE INSTRUCTIONS

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

8- ENG

A10208

GLOSSARY

DUTY CYCLE

This air compressor pump is capable of running continuously. However, to

prolong the life of your air compressor, it is recommended that a 50%-75%

average duty cycle be maintained; that is, the air compressor pump should not

run more than 30-45 minutes in any given hour.

Become familiar with these terms before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per minute; a unit of measure of air delivery.

PSIG: Pounds per square inch gauge; a unit of measure of pressure.

Code Certification: Products that bear one or more of the following marks: UL,

CUL, ETL, CETL, have been evaluated by OSHA certified independent safety

laboratories and meet the applicable Underwriters Laboratories Standards for

Safety.

Cut-In Pressure: While the motor is off, air tank pressure drops as you

continue to use your accessory. When the tank pressure drops to a certain low

level the motor will restart automatically. The low pressure at which the motor

automatically restarts is called "cut-in" pressure.

Cut-Out Pressure: When an air compressor is turned on and begins to run,

air pressure in the air tank begins to build. It builds to a certain high pressure

before the motor automatically shuts off - protecting your air tank from

pressure higher than its capacity. The high pressure at which the motor shuts

off is called "cut-out" pressure.

Branch Circuit: Circuit carrying electricity from electrical panel to outlet.

SPECIFICATIONS

Accessories for this unit are available at the store the unit was purchased.

ACCESSORIES

Model Nos. C5101

Running Horsepower 1.7

Bore 2-3/8"

Stroke 1.35"

Voltage/Hz-Single Phase 60/120

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

Air Tank Capacity (Gallon) 20

Approximate Cut-in Pressure 120 PSIG

Approximate Cut-out Pressure 150 PSIG

SCFM @ 40 PSIG 7.2

SCFM @ 90 PSIG 5.3

9- ENG A10208

ASSEMBLY

Assemble Handle

1. To make installation easier,

submerge handle grip into

warm soapy water. Remove

handle grip from soapy water

and slide onto handle.

2. Insert the handle inside the

compressor saddle and line

up the two bolt holes on each

side.

3. Install the four screws, two on

each side.

4. Tighten securely.

Assemble Wheels

It will be necessary to brace or support one side of the

outfit when installing the wheels because the compressor

will have a tendency to tip.

1. Attach wheels with shoulder bolts and nuts as shown. NOTE: Place the

bolts in the bottom hole of the wheel bracket.

2. Tighten securely. NOTE: The outfit will sit level if the wheels are properly

installed.

The wheels and handle do not provide adequate

clearance, stability or support for pulling the unit up and

down stairs or steps. The unit must be lifted, or pushed up a ramp.

Assemble Rubber Feet

1. Attach rubber feet with the screws provided as shown in previous figure.

2. Tighten securely.

Rubber Feet

Screw

Nut

Wheel

Shoulder Bolt

Handle

Tools Required for Assembly

1 - 9/16" socket or open end wrench

1 - 3/8" socket or open end wrench

1 - 1/2" socket or open end wrench

Unpacking

1. Remove unit from carton and discard all packaging. NOTE: Save all parts

bags.

Screw

Handle Grip

10- ENG

A10208

GROUNDING INSTRUCTIONS

Risk of Electrical Shock. In the event of a short circuit,

grounding reduces the risk of shock by providing an

escape wire for the electric current. This air compressor must be properly

grounded.

The portable air compressor is equipped with a cord having a grounding wire

with an appropriate grounding plug (see following illustrations).

1. The cord set and plug with this unit contains a grounding pin. This plug

MUST be used with a grounded outlet.

IMPORTANT: The outlet being used must be installed and grounded in accor-

dance with all local codes and ordinances.

2. Make sure the outlet being used

has the same configuration as the

grounded plug. DO NOT USE AN

ADAPTER. See illustration.

3. Inspect the plug and cord before

each use. Do not use if there are

signs of damage.

4. If these grounding instructions are

not completely understood, or if in

doubt as to whether the compressor is properly grounded, have the instal-

lation checked by a qualified electrician.

Risk of Electrical Shock. IMPROPER GROUNDING CAN

RESULT IN ELECTRICAL SHOCK.

Do not modify the plug provided. If it does not fit the available outlet, a

correct outlet should be installed by a qualified electrician.

Repairs to the cord set or plug MUST be made by a qualified electrician.

INSTALLATION

HOW TO SET UP YOUR UNIT

Grounding Pin

Grounded

Outlets

Plug

Location of the Air Compressor

• Locate the air compressor in a clean, dry and well ventilated area.

• The air compressor should be located at least 12" away from the wall or

other obstructions that will interfere with the flow of air.

• The air compressor pump and shroud are designed to allow for proper

cooling. The ventilation openings on the compressor are necessary to

maintain proper operating temperature. Do not place rags or other contain-

ers on or near these openings.
