Polygroup TGF0M3P07L02 Manual de usuario

ASSEMBLY INSTRUCTIONS MADE IN CHINA

ASSEMBLY INSTRUCTION SHEET

PARTS LIST

Key Description Qty.

Bottom Cross Frame

Horizontal Extension

(with Caster)

Vertical Connection Tube

Elbow Tube

Top Cross Flame

M5 x 15 mm Screw

M8 x 50 mm Screw

M8 x 15 mm Screw

Eyebolt

Tree section #1

Tree section #2

Tree section #3

Tree section #4

Tree section #5

Tree section #6

Tree section #7

Tree section #8

Tree top

Congratulations onpurchasing your new tree from Polygroup®! Carefully follow the

instructions below on how to quickly and easily set up your new tree.

SET UP INSTRUCTION

(1) Locate all parts as listed in the above chart.

(2) Select a suitable location to the place your Christmas tree. It should be:

• Flat and level;

• Away from any direct heat source or naked fire, such as, fireplace, heater vent, kitchen

range;

• Accessible to a power outlet.

(3) Insert Horizontal Extension 2to Bottom Cross Frame 1.

(4) Fasten 2with screw (M8 x 15 mm Screw) 8.

(5) Repeat step (3) and (4) three time to assemble all Horizontal Connection Frames 2.

(6) Insert the tree trunk Eyebolts 9to Bottom Cross Frame 1.

(7) Assemble 4 pieces of Vertical Connection Tubes 3to the ends of the Horizontal

Extensions 2. Fasten with M8 x 50 mm Screws 7.

(8) Begin to insert the tree sections to the base frame. Start by inserting the Tree section #1

10 to the center tube of the Bottom Cross Frame 1 and tighten the Eyebolts 9.

MODEL #: TGF0M3P07L02

ASSEMBLY INSTRUCTIONS MADE IN CHINA

(9) Continue to insert Tree Sections #2 11 , #3 12 and #4 13 to the lower section.

Connect the light sets connectors as shown in the “Tree Lights Connection Diagram”

when each tree section is added.

(10) Assemble Top Cross Frame 5to the top of the tree section #4 13 .

(11) Assemble 4 pieces of Elbow Tubes 4. Fasten with M8 x 50 mm Screws 7at the Top

Cross Frame 5. Fasten with M5 x15mm Screw 6at the connection with the Vertical

Connection Tubes 3.

(12) Insert the Eyebolts 9to the Top Cross Frame 5.

(13) Insert tree section #5 14 to the Top Cross Frame 5and tighten the Eyebolts 9.

(14) Continue to insert Tree Sections #5 14 , #6 15 , #7 16 , #8 17 and the tree top 18 .

(15) Connect the lights connectors between each tree sections as shown in the “Tree

Lights Connection Diagram”.

ASSEMBLY INSTRUCTIONS MADE IN CHINA

STORAGE INSTRUCTIONS

1. Remove all ornaments and decorations. For pre-lit trees, first unplug extension cord

from the wall outlet and then disconnect light extension cord between each section

of the tree.

2. Disassemble the tree from the top to the bottom. Start with the tree top and gently lift

straight up to remove from section below and fold all branches toward the pole.

3. In case of difficulty separating the tree pole (trunk), apply a small amount of lubricant at

the joint and rotate the upper pole in both directions. Lift up the upper pole again.

4. Continue by gently lifting straight up each section(s) from the section below and fold all

branches toward the pole until the bottom section is removed from the tree stand.

Insert Red Label

Plugs Into Red

Labeled Box

Insert Yellow Label

Plugs Into Yellow

Labeled Box

Insert Blue Label

Plugs Into Blue

Labeled Box

Insert purple Label

Plugs Into purple

Labeled Box

Insert Orange Label

Plugs Into Orange

Labeled Box

Insert Gold Label

Plugs Into Gold

Labeled Box

Insert Pink Label

Plugs Into Pink

Labeled Box

Insert Silver Label

Plugs Into Silver

Labeled Box

Adaptor

To Be Plugged

Into Wall

Outlet

Adaptor

To Be Plugged

Into Wall

Outlet

Insert Green Label

Plug Into Wall Outlet

Insert Green Label

Plug Into Wall Outlet

*Electrical Rating For The Tree

(For Indoor Use Only)

Input:120VAC, 60Hz, 0.38A

Output: 29V DC 0.9A

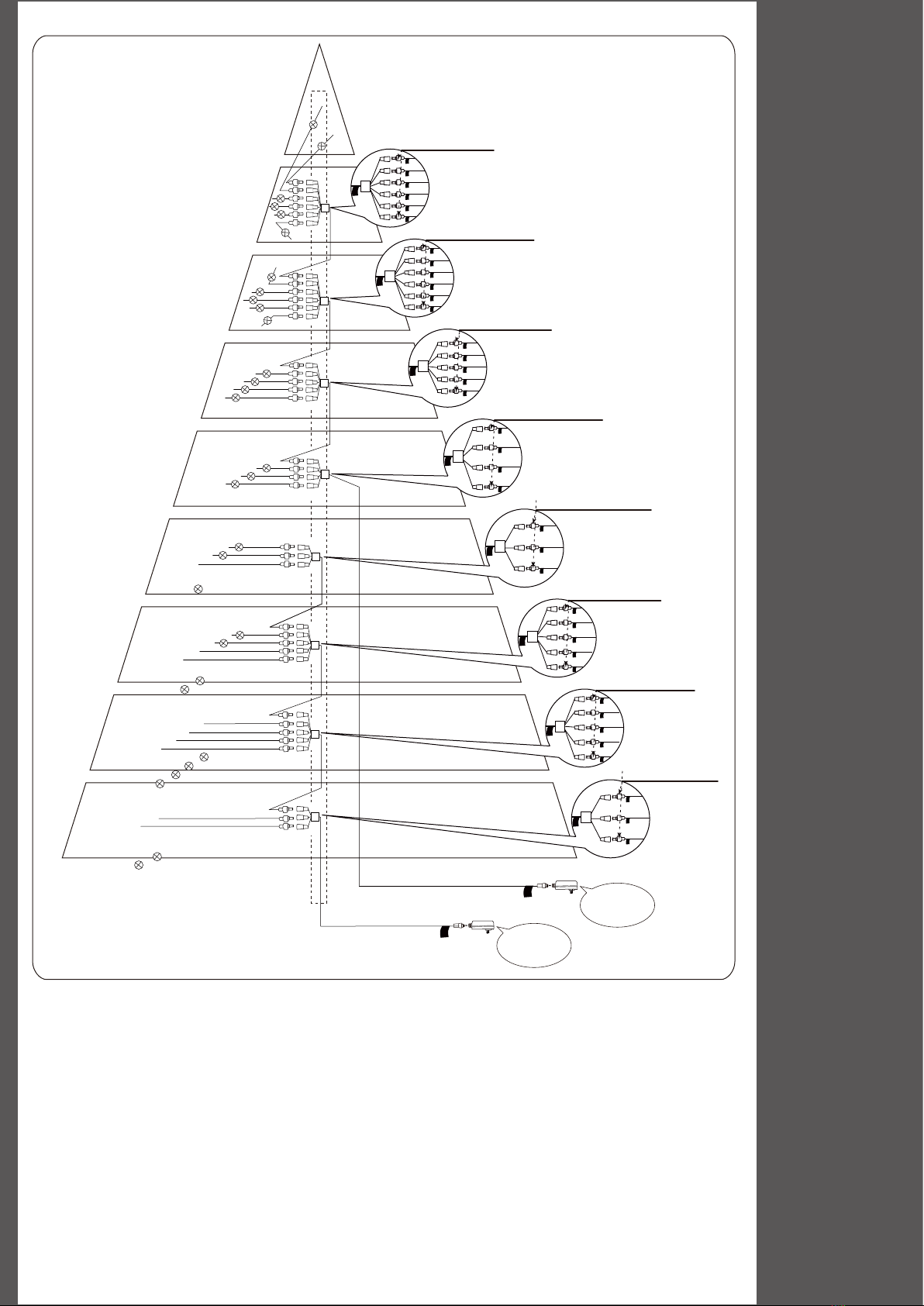

Tree Lights Connection Diagram

ASSEMBLY INSTRUCTIONS MADE IN CHINA

5. Carefully place all tree sections into shipping box and tape it shut.

6. When not in use, please store your tree in a cool, dry place away from sunlight.

Exposing your tree to excessive heat or humidity may damage your tree.

TROUBLE SHOOTING TIPS

SPARE PARTS

For Pre-lit Trees, If The Tree Does Not Illuminate

1. Please check to make sure that all plugs are properly connected according to the

color labels indicated in

Fig.B

and the adaptor is firmly plug to the wall outlet. Refer

to assembly guide for instructions. (If the tree comes with a foot pedal, try stepping on

the on/off button).

2. Check for loose connection between light string plugs and extension cords.

3. Please check for loose, broken or missing light bulbs and replace as needed.

Loose Hinge Pin

1. Extra hinge pins are included for repairing the hinges. Place the branch into the slot

of the bracket.

2. Insert a new hinge pin through the hole and secure using the retainer washer.

(See Fig. A)

Each tree includes hinge pins/washers, and for

pre-lit trees spare bulbs are also included. If

extra parts are needed, please contact our

customer service center.

Fig.A

CUSTOMER SERVICE FOR CHRISTMAS TREES

For any questions, assistance, or missing parts, Do Not Return To Place Of Purchase. Please contact

us at 1-888-919-0070 or visit our website at www.polygroup.com. One of our customer service

representatives will be happy to assist you.

TREE ID# IS LOCATED ON END PANEL OF BOX. TREE ID# IS REQUIRED WHEN REQUESTING REPLACEMENT PARTS.

Customer Name:

Address:(No P.O. Boxes)

City & State:

Zip Code:

Day Phone:

Date Purchased:

Tree ID#:

Tree UPC#:

Store Purchased:

Specify Problem:
