Polygroup TG76P3B17L03 Manual de usuario

ASSEMBLY INSTRUCTIONS MADE IN CHINA

MODEL #: TG76P3B17L03

*Electrical Rating For The Tree

(For Indoor Use Only)

Input: 120V, 60Hz, 0.25A

Output: 29V DC 0.45A

Fig. B - Tree and Light Assembly

1. Before you start to assemble your tree, choose an appropriate location near a wall outlet.

2. Assemble the tree stand and place on a level surface. (See Fig. A)

TREE ASSEMBLY INSTRUCTIONS

Tree top

Section 2

Section 1

Insert Green

Label Extension

Cord into Adaptor

Plug Adaptor

Into Wall

Outlet

Foot Pedal

On/Off Switch

Fig. A - Tree Stand Assembly

Click

1. Pull apart tree stand legs until they

snap and form an ‘X’ shape.

2. To close the stand, press the metal

button and fold the legs together.

Do Not Tamper

Internal Parts

Open the

protective

cap

Do Not Tamper

Internal Parts

Open the

protective

cap

Congratulations on purchasing your new tree from Polygroup®! This tree comes with Quick Set® and

Simple ShapeTM technology-Set up and light up your tree in less than 10 minutes!

Carefully follow the instructions below on how to quickly and easily set up your new tree.

3. Each tree section is numbered with a sticker. Please identify all sections before assembling.

4. Assemble the tree from the bottom to the top. Start with the bottom section and remove protective cap

before inserting into the assembled stand.Make sure the pole is firmly inserted and secured into the stand.

5. Continue by inserting the upper tree section(s) to the lower section(s) until inserting the tree top.

6. Allow branches to fall into place or gently pull up and out.When adjusting branches, be sure that all

wires are free of branch hinges.

7. Just plug the adaptor (connecting with the tree power cord) into the wall outlet (See Fig. B), your

entire tree should now be lit.If some bulbs do not light or flickers, search for any loose plugs and/or

broken, loose or missing bulbs. Replace bulbs promptly in order to maintain the performance and life

expectancy of your pre-lit tree. * The lights will remain lit even if one bulb burns out.

8. Begin to shape the branches and tips working from the bottom to the top. Start with tips farthest from

the pole and fan out one to the right, one to the left and one at the center of the main stem. (see Fig. C)

9. This is a Simple ShapeTM tree. Just slightly upsweep all branch tips for a uniform look. Shift branches

to fill any gaps.Your Christmas tree is now complete and ready to be decorated.

ASSEMBLY INSTRUCTIONS MADE IN CHINA

Fig. D

1. Unplug adaptor from the wall outlet first and then remove all ornaments and decorations.

2. Disassemble the tree from the top to the bottom. Start with the tree top and gently lift straight up to

remove from section below and fold all branches toward the pole.

3. Continue by gently lifting straight up each section(s) from the section

below and fold all branches toward the pole until the bottom section

is removed from the tree stand. Cover the protective cap on the poles

to avoid damaging the internal parts. (See Fig. D)

4. Carefully place all tree sections into shipping box and tape it shut.

5.When not in use, please store your tree in a cool, dry place away from

sunlight. Exposing your tree toexcessive heat or humidity may damage your tree.

STORAGE INSTRUCTIONS

For Pre-lit Trees, If The Tree Does Not Illuminate

1. Please check to make sure the power cord is properly connected with the adaptor and the adaptor is

firmly plug to the wall outlet. (If the tree comes with a foot pedal, try stepping on the on/off button).

2.Turning the poles gently to make sure pole to pole are connected into place.

3. Check for loose connection between light string plugs and extension cords.

4. Please check for loose, broken or missing light bulbs and replace as needed.

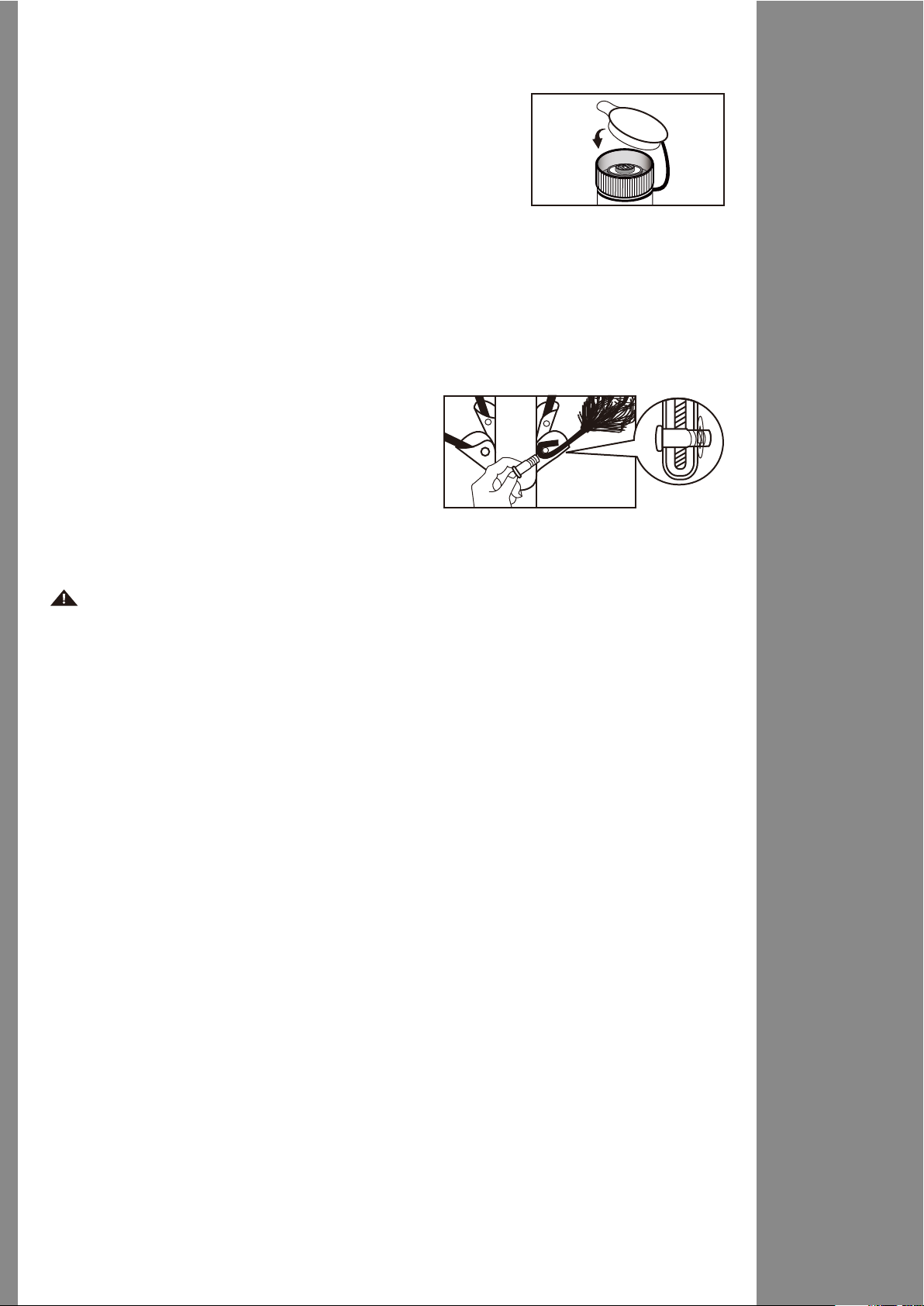

Loose Hinge Pin

1. Extra hinge pins are included for repairing the hinges.

Place the branch into the slot of the bracket.

2. Insert a new hinge pin through the hole and

secure using the retainer washer. (See Fig. E)

TROUBLE SHOOTING TIPS

Each tree includes hinge pins/washers, and for pre-lit trees spare bulbs are also included. If extra parts are

needed, please contact our customer service center.

SPARE PARTS

Fig. E

1. Use only power adaptor supplied with this product, using a different adaptor will damage the lights.

and cause fire, electrical shock hazards.

2. FOR INDOOR USE ONLY.

3. The external flexible cable or cord of this luminaire cannot be replaced; If the cord is damaged,

the luminaire shall be destroyed.

WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using electrical products, basic precautions should always be followed including the following:

a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

b. Do not use seasonal products outdoors unless marked suitable for indoor and outdoor use.When

products are used in outdoor applications, connect the product to a Ground Fault Circuit Interrupting

(GFCI) outlet. If one is not provided, contact a qualified electrician for proper installation.

c.This seasonal use product is not intended for permanent installation or use.

d. Do not mount or place near gas or electric heaters, fireplaces, candles or other similar sources of heat.

e. Do not secure the wiring of the product with staples or nails, or place on sharp hooks or nails.

f. Do not let lamps rest on the supply cord or on any wire.

g. Unplug the product when leaving the house, when retiring for the night, or if left unattended.

h.This is not a toy. For decorative use only! To avoid risk of fire, burns, personal injury and electric shock it

should not be played with or placed where small children can reach it.

i. Do not use this product for other than its intended use.

j. Do not hang ornaments or other objects from cord, wire, or light string.

k. Do not close doors or windows on the product or extension cords as this may damage wire insulation.

l. Do not cover the product with cloth, paper or any material not part of the product when in use.

m.This product is equipped with push-in type lamps. Do not twist lamps.

n. Read and follow all instructions that are on the product or provided with the product.

o. SAVE THESE INSTRUCTIONS

ASSEMBLY INSTRUCTIONS MADE IN CHINA

CUSTOMER SERVICE FOR CHRISTMAS TREES

For any questions, assistance, or missing parts, Do Not Return To Place Of Purchase. Please contact

us at 1-888-919-0070 or visit our website at www.polygroupstore.com.One of our customer service

representatives will be happy to assist you.

TREE ID# IS LOCATED ON END PANEL OF BOX. TREE ID# IS REQUIRED WHEN REQUESTING REPLACEMENT PARTS.

Customer Name:

Address:(No P.O. Boxes)

City & State:

Zip Code:

Day Phone:

Date Purchased:

Tree ID#:

Tree UPC#:

Store Purchased:

Specify Problem:

CAUTION:

1. Risk of fire. Use only the power adapter provided with this product. Do not replace lamps with other than

the spare lamps provided with this product.

2. To reduce the risk of fire and electric shock:a) Do not install on trees having needles, leaves or branch

covering of metal or materials which look like metal, and b)Do not mount or support strings in a manner

that can cut or damage wire insulation.

3. To reduce the risk of fire and electric shock, use only the power supply that was provided with this

product.

Step 1

Grasp the power adapter or power cord plug, and than unplug from the power outlet. Do not pull

the power cord.

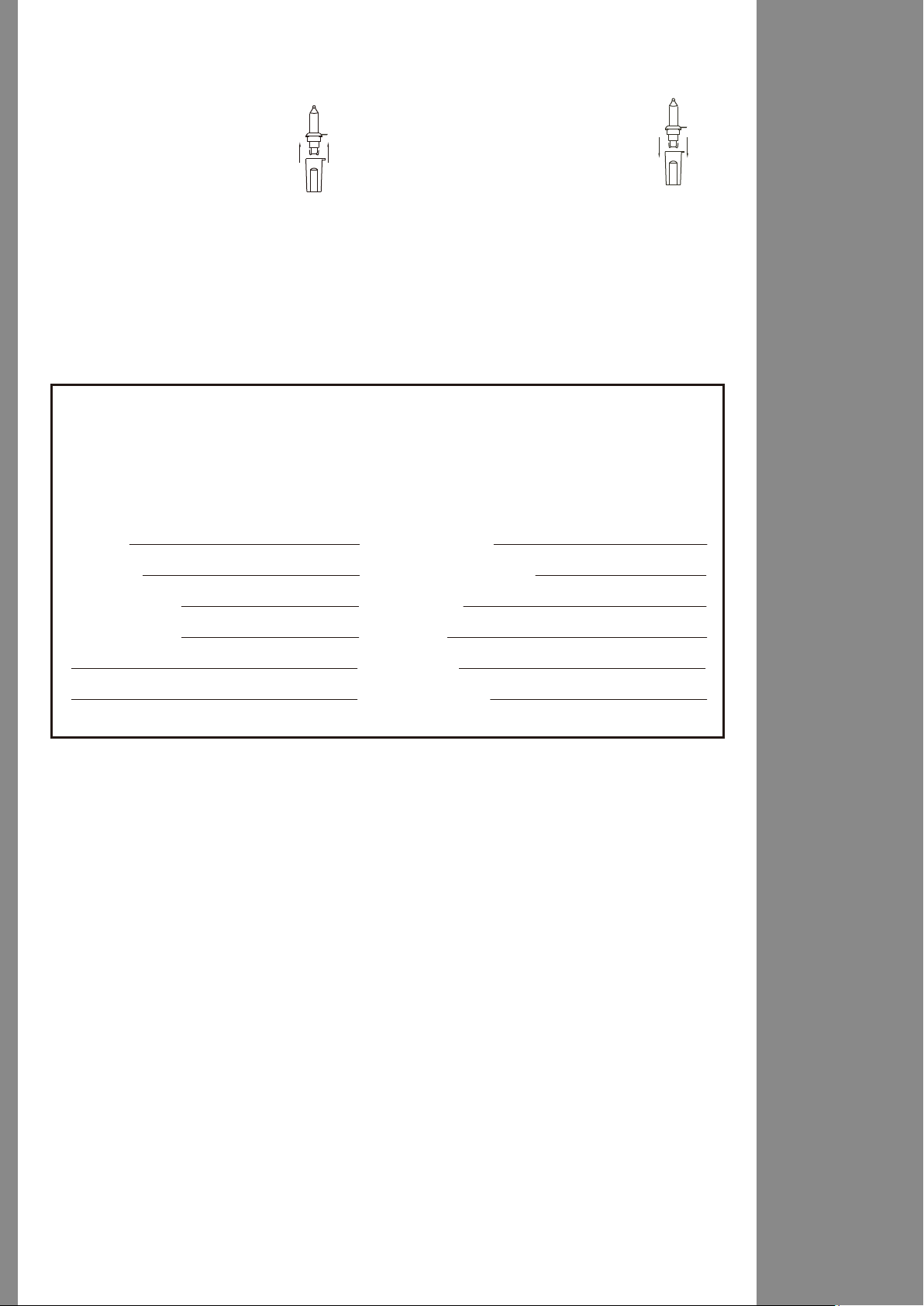

LAMP REPLACEMENT

Step 2

Lift up lamp lock tab, then

pull the lamp and plastic lamp base

straight out of the lamp-holder.

Step 3

Replace with a new

spare lamp provided with this

product.

( Reference figure only)

USER SERVICING INSTRUCTIONS
