Polycom SoundStation Premier Instrucciones de montaje

POLYCOM®

Advanced Teleconferencing Solutions

SoundStationPremier®Satellite

Installation Instructions

and User’s Guide

ENHANCED SOUND SYSTEM

Chapter 1 SoundStation Premier Satellite........................

1-1

Chapter 2 SoundStation Premier Satellite With

Wireless Lavaliere Microphone........................2-1

Chapter 3 Optional Extended Microphones.......................

3-1

Chapter 4 Technical Specification & Warranty..................4-1

Table of Contents

SoundStation Premier Satellite

Chapter 1

Enhanced Sound System Installation Instructions and User’s Guide Addendum

1-1

INTRODUCTION

The SoundStation Premier®systems enhances audio conferencing by expanding speaker and

microphone coverage in conference rooms, and other conference areas.

This chapter covers installation and use of your SoundStation Premier Satellite system .

Please set up the SoundStation Premier base unit first, following the instructions in Chapter 1,

SoundStation Premier. Please note SoundStation Premier console replaces the Wall Module as a

power supply.

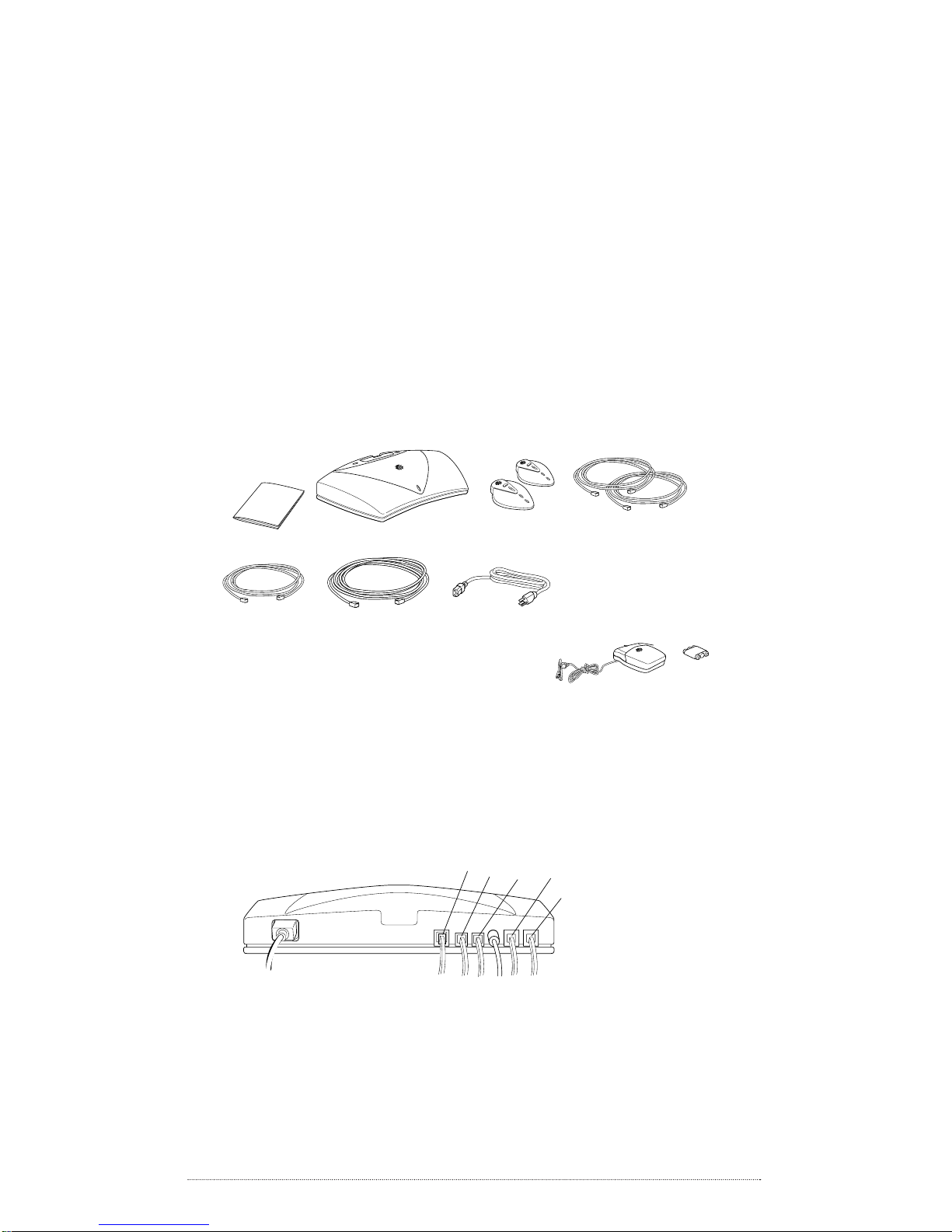

CHECKLIST OF PARTS

Your Polycom®SoundStation Premier Satellite system includes the following items:

If any of the included parts are missing, please contact your sales representative or Polycom

technical support, 1-800-451-0995.

BASIC SET-UP

The SoundStation Premier Satellite provides the following jacks at the rear of the unit:

▼One (1) RJ-11 jack for an external phone.

▼One (1) RJ-11 jack for an incoming telephone line. (10-foot RJ11 cable provided.)

▼One (1) RCA jack for connecting any popular tape recorder to record the conversation.

▼Two (2) external microphone jacks for optional SoundStation Premier external microphones.

▼One (1) RJ-45 jack to the SoundStation Premier console. (25-foot cable provided.)

▼One (1) power cord.

Enhanced Sound System Installation Instructions and User’s Guide Addendum

1-2

SoundStation

Premier ExM1 ExM2 Telephone line

Handset

(not available in some countries)

To power RCA

privacy phone

User Guide

Phone cords RJ-45 cable (25')

SoundStation Premier Satellite

Power cord

Wireless microphone

Battery pack

Optional Extended Microphones and Cables

Optional

1. Position the SoundStation Premier Satellite in the desired location.Avoid objects directly in

front of the unit. For optimum performance the SoundStation Premier Satellite should be placed

10' or farther from the SoundStation Premier console.

2. Plug the power cord into the nearest electrical outlet.

3. Ensure that the green LED on the SoundStation Premier Satellite is lit.

4. Connect the 25-foot connector cable to the jack labeled with the Console icon in the rear of

the SoundStation Premier Satellite unit. Connect the other end to the jack in the SoundStation

Premier unit.You should hear two distinct “bongs” after approximately 5 seconds.

5. Connect the standard telephone line (provided) to the nearest telephone wall jack. Be sure

to plug the telephone line into the jack labeled TEL LINE on the back of the ShowStation Premier

Satellite unit.

(25' Cable)

Enhanced Sound System Installation Instructions and User’s Guide Addendum

1-3

SoundStation

Premier ExM1 ExM2 Telephone line

Handset

(not available in some countries)

To power RCA

privacy phone

Enhanced Sound System Installation Instructions and User’s Guide Addendum

1-4

(25' cable)

RCA connector

Tape recorder

SoundStation Premier Satellite

SoundStation Premier

6. For privacy during a conference call, connect an external telephone (not provided) to the

SoundStation Premier Satellite. Use the RJ11 jack in the rear of the SoundStation Premier

Satellite module. (Not available in some countries)

When the telephone receiver is lifted, all microphones and speakers are disabled. When the

external telephone hangs up, the microphones and speakers are enabled.

7. To record a conversation, connect a standard tape recorder (not provided) to the RCA jack

at the rear of the SoundStation Premier Satellite.

Enhanced Sound System Installation Instructions and User’s Guide Addendum

2-1

SoundStation Premier Satellite

With Wireless Lavaliere Microphone

(Available in U.S. only)

Chapter 2

INTRODUCTION

The SoundStation Premier®systems enhances audio conferencing by expanding speaker and

microphone coverage in conference rooms, and other conference areas.

This chapter covers installation and use of your SoundStation Premier Satellite System with

wireless lavaliere microphone.

Please set up the SoundStation Premier base module first, following the instructions in Chapter 1,

SoundStation Premier. Please note SoundStation Premier console replaces the Wall Module as a

power supply.

▼The wireless microphone allows the speaker to have total freedom when addressing a group.

▼The wireless component of this unit is equipped with a patented security technology,

developed by Polycom, to ensure voice protection. To prevent interference, there are

five (5) available channels (in the 900 MHz band).

CHECKLIST OF PARTS

Your Polycom®SoundStation Premier Satellite system includes the following items:

If any of the included parts are missing, please contact your sales representative or Polycom

technical support, 1-800-451-0995.

BASIC SET-UP

The SoundStation Premier Satellite provides the following jacks at the rear of the unit:

▼One (1) RJ-11 jack for an external phone.

▼One (1) RJ-11 jack for an incoming telephone line. (10-foot RJ11 cable provided.)

▼One (1) RCA jack for connecting any popular tape recorder to record the conversation.

▼Two (2) external microphone jacks for optional SoundStation Premier external microphones.

▼One (1) RJ-45 jack to the SoundStation Premier console. (25-foot cable provided.)

▼One (1) power cord.

Enhanced Sound System Installation Instructions and User’s Guide Addendum

2-2

User Guide

Phone cords RJ-45 cable (25')

SoundStation Premier Satellite

Power cord

Wireless microphone

Battery pack

Optional Extended Microphones and Cables

Optional

SoundStation

Premier ExM1 ExM2 Telephone line

Handset

(not available in some countries)

To power RCA

privacy phone
