Polaroid PDM-0732 Manual de usuario

7” Portable DVD Player

PDM-0732

Operation Manual

20060823

POWER SUPPLY:

Connect the supplied adapter to the side of the DVD player in the slot marked “Power In”.

Plug the two-prong end of the power cord to an AC100-120V outlet. If you have difficulty

inserting the plug, turn it over and reinsert it, if the unit will not the used for a long time,

disconnect the plug from the outlet.

NOTE:

Before plugging the power cord into an AC outlet, make sure that all the connections

have been made.

CAUTION: These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock, do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so.

Refer to service manual for servicing instructions.

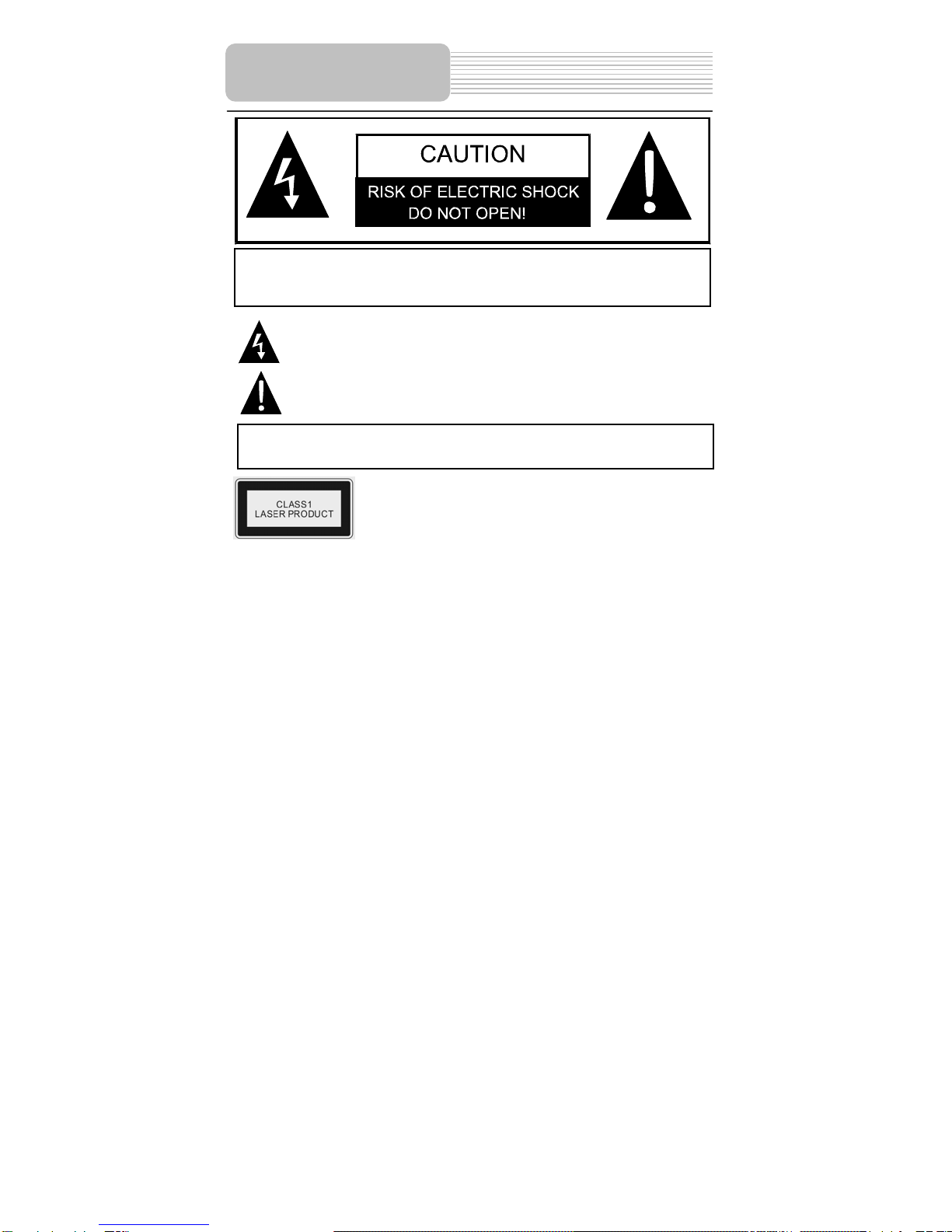

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric to

ersons.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accom

the a

liance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.

CAUTION: Laser radiation when open. Do not stare into beam.

Important Safety

Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Maintain well ventilated conditions around

the product, Do not put product on bed, sofa or anything that blocks ventilation.

Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide blade or the third prong is

provided for your safety. If the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of

time.

14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

Note: Do not touch the color TFT LCD screen by hand directly.

Important Safety

Instructions

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION

EXPOSURE.

This product incorporates copyright protection technology that is protected by U.S.

patents and other intellectual property rights. Use of this copyright protection technology

must be authorized by Macrovision, and is intended for home and other limited viewing

uses only unless otherwise authorized by Macrovision. Reverse engineering or

disassembly is prohibited.

Region code information

DVD players and discs are coded by region. If the region number described on the DVD

disc does not correspond to the region number of this product, this product cannot play

the disc. The region code of this unit is 1.

Important Safety

Instructions

IMPORTANT FOR LASER PRODUCT

1. CLASS 1 LASER PRODUCT

2. DANGER: Visible laser radiation when open and interlock

failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user

serviceable parts inside the unit. Leave all servicing to

qualified service personnel.

High-quality audio and video

Advanced Playing Functions

Other Special Functions

Excellent sound: Dolby Digital Decoder

delivers great sound. AV In: External Audio, Video input can be

connected to most external AV sources.

AV Out: Analog Audio output and video

out

ut.

High Resolution: MPEG-2 decoding

format achieves more than 500 lines of

horizontal resolution.

Power Adapter Switch: Automatically

adapts to voltage requirements in U.S and

other countries.

On-screen Display: You can choose from

English, Spanish, French, German or

Italian for On-screen Display language.

Compatibility: Compatible with DVD,

CD and Picture CD disks.

Particular Performance: Multi-speed,

fast forward, fast backward and slow

forward, slow backward.

Search by Time: Search for a certain

track of a disk by selected time.

Last Memory Playback: Memorize the

stopped playback track and continue playing

disk from this spot on power on status or

without opening the disc tray cover.

Special Functions: Supports screen aspect

ratio changing, zooming in or out pictures,

multi-language caption, multi-angle.

Features

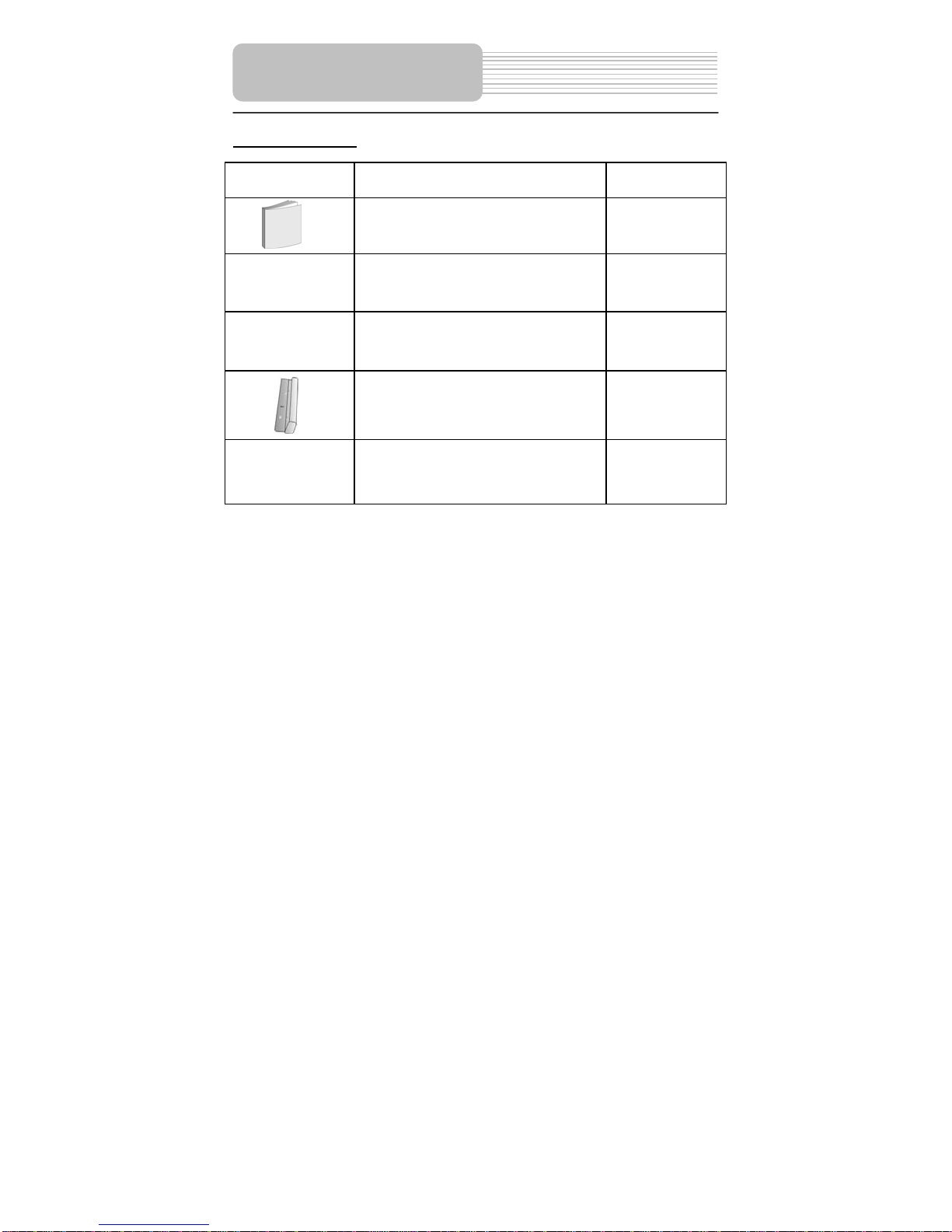

Accessories List

ITEM NAME QTY

Owner’s Manual 1

AC adapter 1

Audio/Video Cable 1

Rechargeable battery pack 1

DC Adapter (Car Adapter) 1

NOTE

Accessories and their parts numbers are subject to modification without prior notice due

to improvements.

Accessories

DVD Playback

CDPlayback

PictureCDPlayback

Contents

…………………………………………..2

…………………………………………...3

…………………………………………...6

…………………………………………...8

………………………………….……….10

…………………………………………..11

…………………………………………..12

…………………………………………..14

…………………………………………..15

…………………………………………..18

…………………………………………..19

…………………………………………..20

…………………………………………..23

……………………………………..24

…………………………………………..26

…………………………………………..32

…………………………………………..33

…………………………………………..35

Important Safety Instructions

Features

Troubleshooting

Specifications

Definitions

System Setup

View of Side Panels

View of Main Unit Bottom

Power Supply Preparation

Rechargeable Battery

Notes on Discs

Playback Operation

System Connections

Accessories

View of Main Unit

Front View

1. TFT LCD

7” color TFT screen presents high resolution picture.

2. Speakers

Two speakers output high quality sound.

3. TITLE button

Press to display the disc title menu if the titles are coded in the disc

4. MENU button

Press to enter to the disc menu

5. /,/button

/:press the direction buttons to select items.

/: press to fast search backward and forward during disc playback.

View of Main Unit

6. /,/button

/: press the direction button to select items.

/: press to play the previous track or the next track.

7. ENT button

Press to confirm your selection.

8. MODE button

Press to change the aspect ratio or change the brightness, contrast and color level.

9. PLAY/PAUSE button

Press to start playback or pause the playback.

10. STOP button

Press to stop playback. Press the button to resume playback.

11. ZOOM button

Press to activate the zoom function to zoom in or out the current image.

12. Main unit Power indicator

Light turns green when the unit is under operation; turns red in standby mode.

13. Battery charge indicator

Light turns red when the battery is in charging; turns green when the battery is fully

charged.

14. SETUP button

Press to access the DVD setup menu.

15. Remote sensor

Receive the signal from the remote control for operation. (Remote control not

included in all models.)

16. A-B button

Press to mark a segment to repeat between A and B.

17. SLOW

Press to activate slow playback.

18. +/- button

Press to increase/decrease the level of the selected item.

19. Disc Tray Cover

20. OPEN button

Press to open disc tray cover.

iew of Main Unit

Right Side View

1. VOLUME Control

For regulating the sound level of Speakers or Headphones.

2. Headphone Jack

When headphones are plugged into the unit, the speakers will automatically turn

off.

3. AUDIO input/output Jack

For connecting to an external amplifier or audio source

4. VIDEO input/output Jack

For connecting to an external monitor or video source

5. DVD/AV IN Switch

Switch to AV IN to input the external AV source; switch to DVD to playback the disc

6. DC 9.5V IN Jack

For connecting to power supply, including Car Adapter.

Left Side View

1. POWER ON/OFF Switch

Switch the power on or off.

View of Side Panels
