Polaroid DPA-07043B Manual de usuario

User’s Manual

20070703

Swivel Screen Portable DVD Player

DPA-07043B

Important Safety Instructions

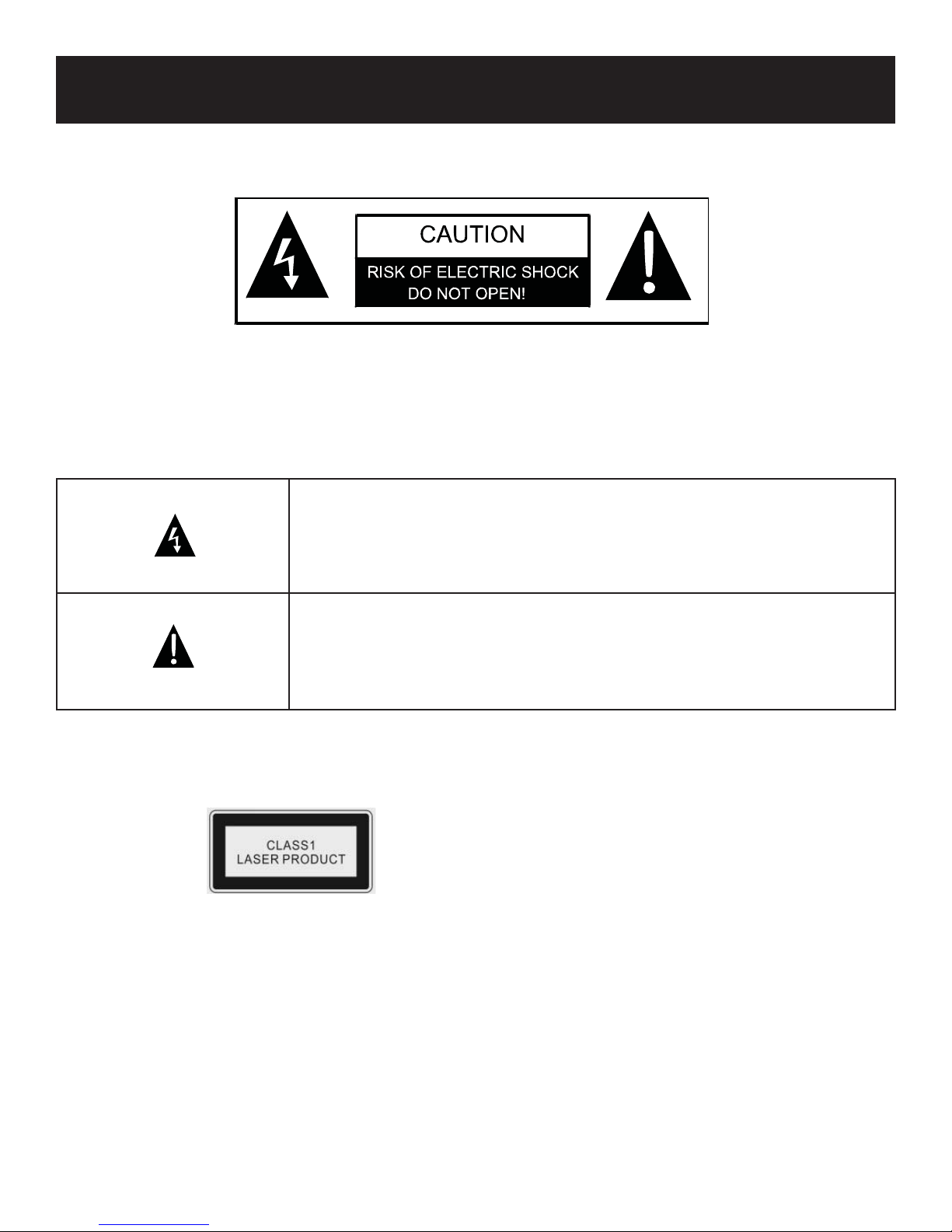

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightening ﬂash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of sufﬁcient magnitude to constitute

a risk of electrical shock.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (servicing) instructions

in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

Caution: Laser radiation when open. Do not stare into beam.

CAUTION: USE OFANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Power Supply:

Connect the supplied power adapter to the side of the DVD player in the slot marked “Power In”. Plug the two-

prong end of the power cord to an AC outlet. If you have difﬁculty inserting the plug, turn it over and reinsert

it; if the player will not be used for a long time, disconnect the power from the outlet.

Note: before plugging in the power cord to an AC outlet, make sure that all the connections have been made.

Important Safety Instructions

CAUTION: These servicing instructions are for use by qualiﬁed service personnel only. To reduce the risk of

electric shock, do not perform any servicing other than that contained in the operating instructions unless you

are qualiﬁed to do so.

Refer to service manual for servicing instructions.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Do not install near any hear sources such as radiators, heat registers, stoves, or other apparatus (including

ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The

wide blade or the third prong is provided for your safety. If the provided plug does not ﬁt in your outlet,

consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

at the point where they exit the apparatus.

Only use attachments/accessories speciﬁed by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer or sold with the

apparatus. When a card is used, use caution when moving the car/apparatus to avoid injury from tip-over.

Unplug this apparatus during lightening storms or when unused for long periods of time.

Refer all servicing to qualiﬁed personnel. Servicing is required when the apparatus has been damages in

any way, which as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been

dropped.

Note: Do not touch the color TFT LCD screen by hand directly.

10.

11.

12.

13.

14.

Important Safety Instructions

This product incorporates copyright protection technology that is protected by U.S. patents and other

intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision,

and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.

Reverse engineering or disassembly is prohibited.

Region Code Information

DVD players and discs are coded by region. If the region number described on the DVD disc does not

correspond to the region number of this product, this product cannot play the disc.

WEEE

IMPORTANT FOR LASER PRODUCTS

CLASS 1 LASER PRODUCT

DANGER: Visible laster radiation when open and interlock failed or

defected. Avoid direct exposure to beam.

CAUTION: Do not open the top cover. There are no user serviceable

parts inside the player. Leave all servicing to qualiﬁed personnel.

This product contains electrical or electronic materials. The presence of these

materials may, if not disposed of properly, have potential adverse effects on the

environment and human health. Presence of this label on the product means it

should not be disposed of as unsorted waste and must be collected separately. As a

consumer, you are responsible for ensuring that this product is disposed of properly.

To ﬁnd out how to properly dispose of this product, please go to www.polaroid.

com and click on “Company“ or call the customer service number for your country

listed in the instruction manual.

Features

High-quality Audio and Video

Excellent Sound: Dolby Digital Decoder delivers great sound.

AV Input: External audio, video can be connected to most external AV sources.

AV Output: Analog audio output can be connected to external ampliﬁer.

Advanced Playing Functions

Compatibility: Compatible with DVD, CD, and JPEG discs, etc.

On-Screen Display: You can choose English, French, Spanish, etc. for the on-screen display language.

Particular Performance: Multi-speed, fast forward, fast backward, slow playback, and repeated

playback.

Search by Time: Search for a certain track of a disc by selected time.

Last Memory Playback: Memorizes the stopped playback track and continues playing the disc from

this spot when the power remains on. (Only available for DVD and CD discs.)

Special Functions: Supports screen multi-angle viewing and zooming functions.

Other Special Functions

High Resolution: MPEG-2 decoding format archieves more than 500 lines of horizontal resolution.

Power Adapter Switch: Automatically adapts to voltage requirements in UK and other countries.

•

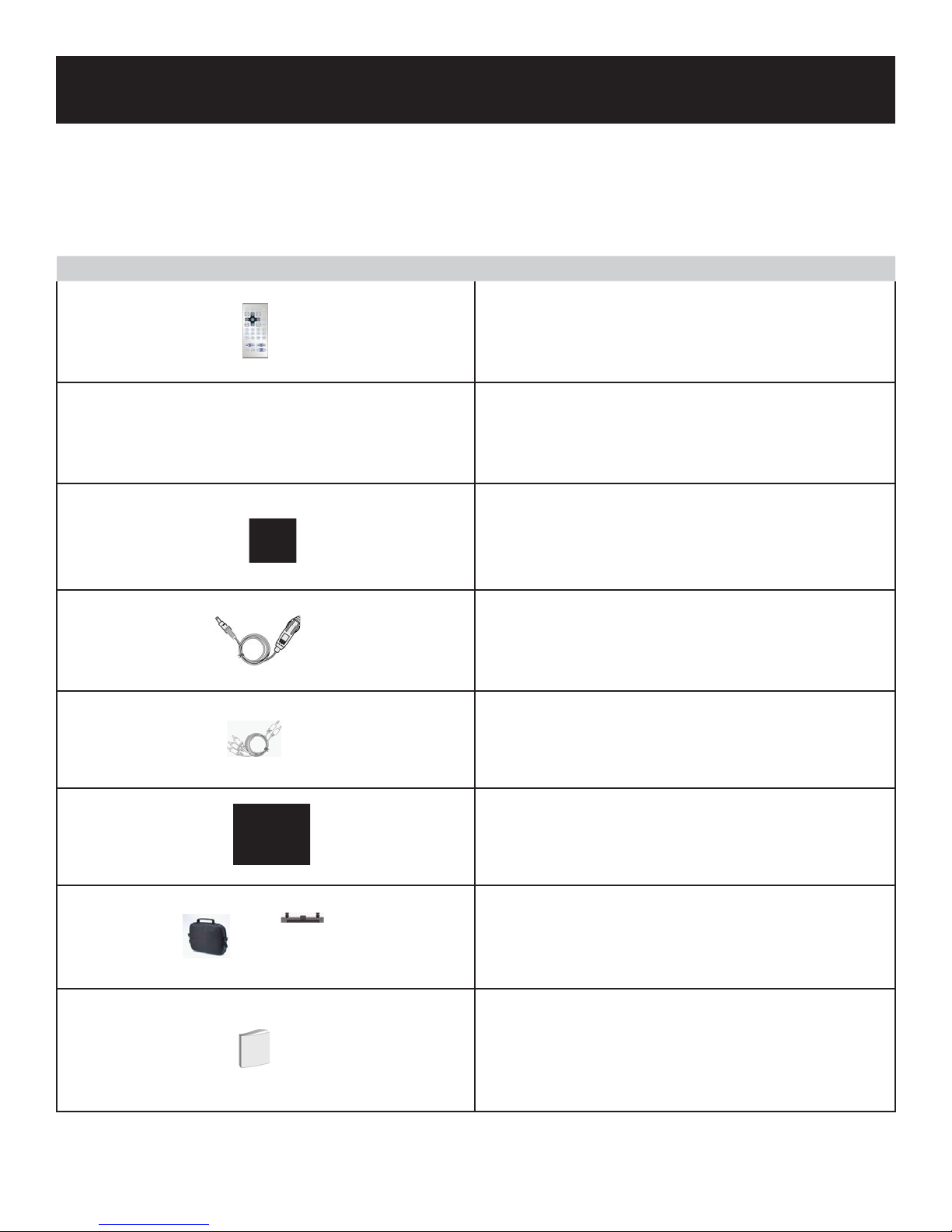

Accessories

ITEM

NAME

Remote Control (with battery)

Power Supply Cord with AC Adaptor

Rechargeable Battery Pack

DC Adapter (Car Adapter)

Audio/Video Cord

Headphone

Carrying Case / Car Bag

Operation Manual

Note: Accessories and their parts numbers are subject to change without prior notice.

Your portable DVD player may not include all accessories listed below.

To purchase additional accessories for your player, visit www.polaroid.com.

Contents

Important Safety Instructions 2

Features 5

Accessories 6

View of Front Panel 8

View of Side Panels 9

View of Bottom Panel 10

Revolving LCD Screen 11

USB and SD 12

Remote Control 13

System Connections 15

Power Supply 16

Rechargeable Battery 17

Notes on Discs 19

Playback Operation 20

DVD Playback 21

CD Playback 22

JPEG Playback 23

System Setup 25

Bags 29

Deﬁnitions 32

Troubleshooting 33

Speciﬁcations 34

View of Front Panel*

Speaker

Disc tray: when the disc tray is loaded, gently press the cover to close it

OPEN switch: push to open the disc tray cover

LCD screen

AV IN/OUT button: press to select audio or video in or out

LCD on/off switch

DISPLAY MODE button: press to change the aspect ratio among 16:9 and 4:3.

TITLE button: press to display the title menu

SETUP button: press to access or exit the system setup menu

MENU button: press to access the DVD disc menu during playback

LCD MODE button: press to enter the brightness, contrast, or color adjusting mode.

button: press to pause the playback

button: press to stop playback or press it twice to stop completely

 button: press to start playback

/+/ ZOOM button: press to select different items; press the LCD MODE button and this button to increase the

levels of brightness, contrast, or color; press ZOOM to see various zoom functions

ENT/(PLAY) button: press ENT to conﬁrm selection; press (PLAY) to start playback

//button: press to select different items; press and hold  to search forward fast; press to go to next

list/track/chapter.

/-/ SLOW button: press to select different items; press the LCD MODE button and then this button to decrease

the levels of brightness, contrast, or color; press SLOW to activate the slow playback function

//button: press to select different items; press and hold  to search backwards fast; press to go to

previous list/track/chapter.

Charge indicator: light is red when the battery is being charged; green when battery is fully charged.

Charge indicator

Remote sensor

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

* Your portable DVD player may differ from the player shown.

View of Side Panels*

Ride Side View

Volume Control Knob: Used to adjust the volume of headphones and speaker

Headphone Jack: Used to connect to headphones for private listening. When headphone is plugged in,

the speakers will automatically turnoff.

Headphone Jack

Audio Input/Output Jack: For connecting to an external ampliﬁer or audio source

Video Input/Output Jack: For connecting to an external monitor or video source

Left Side View

DC 9.5/12V Input Jack: Used to connect the DC 9.5/12V adaptor

Power ON/OFF Switch: Switch the power on or off

* Your portable DVD player may differ from the player shown.

View of Bottom Panel*

Rechargeable Battery Contacts: For connecting the rechargeable battery pack

Note: All markings are on the bottom of the portable DVD player.

* Your portable DVD player may differ from the player shown.
