Repair Manual

Americas Business Center

Technical Services

201 Burlington Road

Bedford MA 01730

TEL: 1.781.386.5309

FAX: 1.781.386.5988

ID-100 (Vertical )

May 1997

ID-100 Manual Addendum

VERTICAL ID-100 CAMERA

Description

The Vertical ID-100 System is basically a standard ID-100 camera with the

Optical Assembly/Data Card Holder mounted in the vertical position (Refer to

Figure 1). The data card is inserted from the top. This produces a vertical ID

card with subject and data appearing one on top of the other instead of side-by-

side. To accommodate this change, some modifications were necessary.

Figure 1

Modifications

Note: All new part numbers are designated in the illustrations and in the table on

page 6.

Repositioning the Optical Assembly/Data Card holder resulted in the following

modifications:

1. A new molded Front Shroud and extended Data Card Guide (Refer to

Figure 2).

Optical Assembly/Data Card

Holder (vertically aligned)

Data Card Slot

ID-100 Manual Addendum

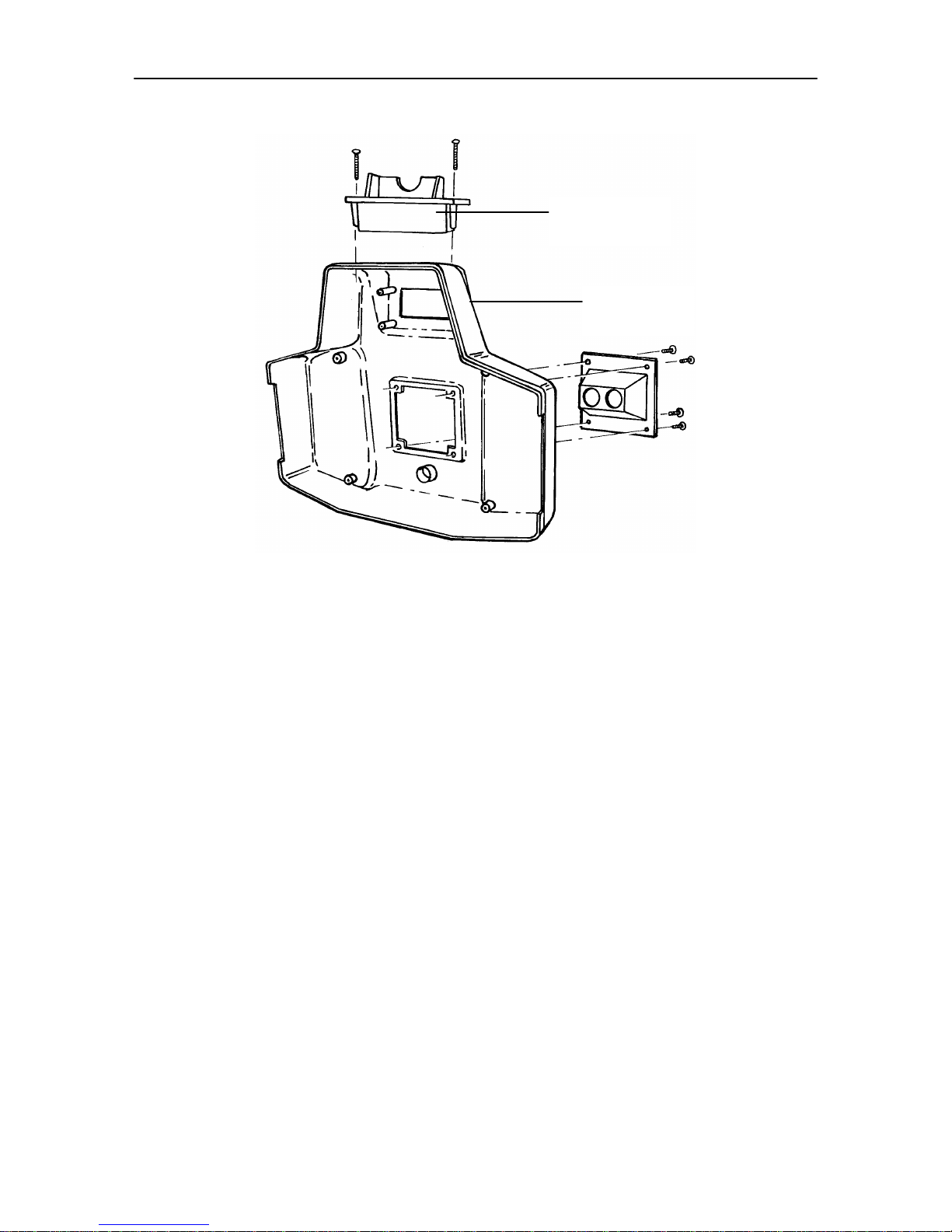

Figure 2

2. The following Logic Board and Strobe Board connectors were modified

because they were obstructed by the repositioned Optical Assembly/Data

Card Holder:

Logic Board (Refer to Figure 3)

• DC to DC Converter Board Harness connector (P1).

• Subject and Data Shutter Solenoid Harness connector (P5).

Subject Strobe Board (Refer to Figure 4)

• Capacitor Board Harness connector (P1)

• Logic/Subject/Data Harness connector (P2)

New Molded

Front Shroud

(PN 70100V)

Vertical Card Guide

(PN 70154V)

ID-100 Manual Addendum

Figure 3 Logic Board

Figure 4 Subject Strobe Board

Modified Harness

Connector (P5)

Note: Harness plugs into side

of connector instead of top

Modified

Harness

Connector (P1)

DC to DC Harness

(PN 70140V)

Subject/Data

Shutter Solenoid

Harness

Logic/Subject/Data

Harness

(PN 70141V)

Modified Logic/Subject/Data

Harness Connector (P2)

Capacitor Harness

Connection

Note: Harness leads are soldered

on underside of board

Logic Board

(PN SA71400V)

Subject Strobe Board

(PN SA71000V)

ID-100 Manual Addendum

3. To maneuver around the repositioned Optical Assembly/Data Card

Holder, the following harnesses were lengthened:

• DC to DC Harness (from Logic Board to DC/DC Converter Board)

- Refer to Figure 3.

• Logic/Subject/Data Harness (from Logic Board to Subject Strobe

and Data Strobe Boards) - Refer to Figure 3.

• Capacitor/Data Strobe Harness (from Capacitor Board to Data

Strobe Board) - Refer to Figure 5.

Figure 5

Camera Repair

Refer to the ID-100 Repair Manual for all repairs. All parts are the same except

for those noted in this addendum.

Important

Prior to modification of the Logic and Strobe boards, all obstructed connections

were soldered. Also, harnesses were lengthened with splices. If any of these

cameras are returned for repair, be sure to replace boards and/or harnesses

with the new parts listed on the next page.

Capacitor/Data

Strobe Harness

(PN 70144V)

ID-100 Manual Addendum

Special Parts

Parts Description Part Number

Front Shroud 70100V

Vertical Card Guide 70154

DC/DC Harness 70140

Logic/Subject/Data Harness 70141

Subject Strobe Board SA71000V

Logic Board SA71400V
