APPLICATION

Verify accessory fitment at Polaris.com.

BEFORE YOU BEGIN

Read these instructions and check to be sure all parts and tools are accounted for. Please retain these

installation instructions for future reference and parts ordering information.

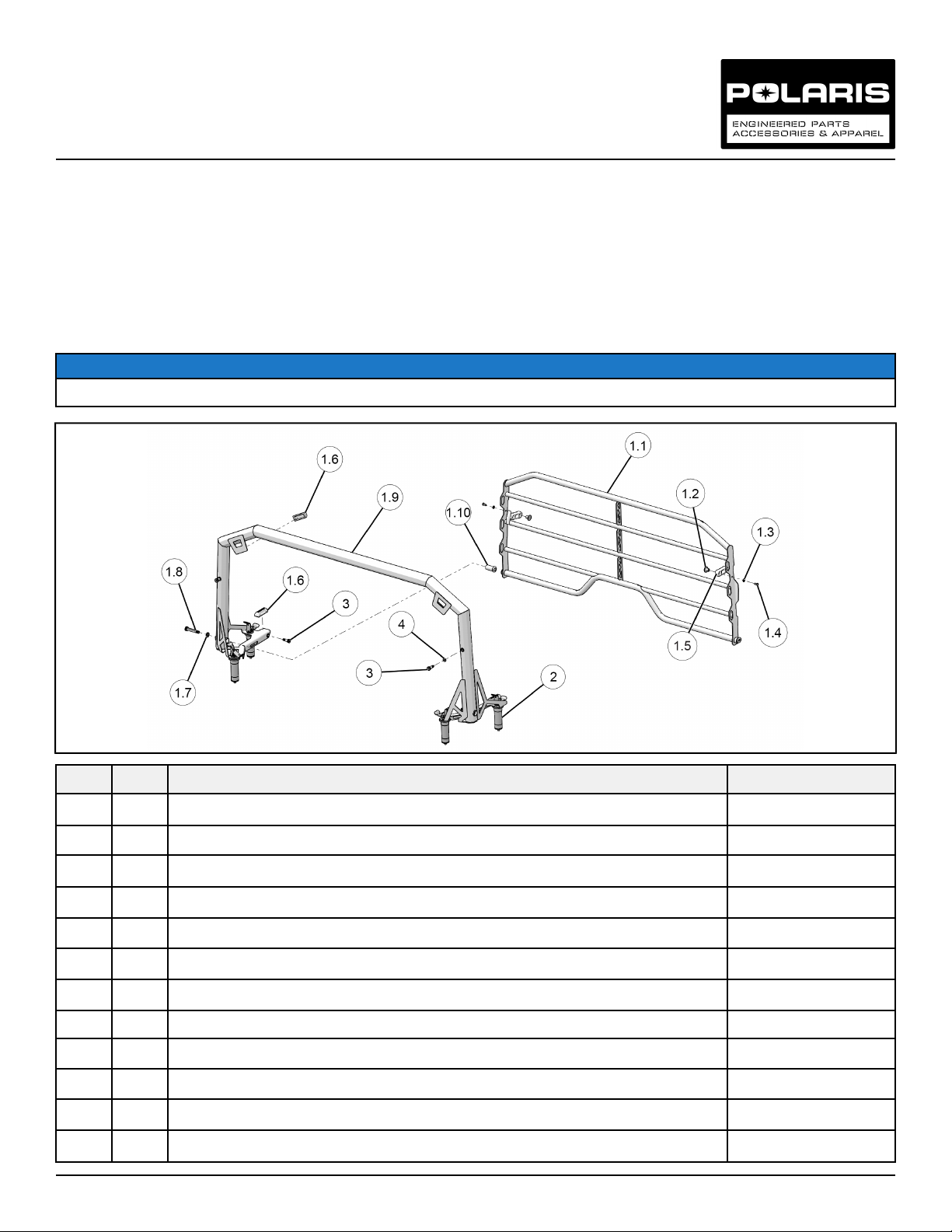

KIT CONTENTS

This Kit includes:

NOTE

Kit PN 2881531 shown; Kit PN 2879976 similar except as noted below.

REF QTY PART DESCRIPTION PART NUMBER

1 1 Headache Rack Assembly (includes items 1.1–1.10) -

1.1 1 - Headache Rack, Moveable -

1.2 2 - Retainer Spacer - 25 mm -

1.3 2 - Washer, Spring - M6 -

1.4 2 - Screw, Torx®- M6 X 1.0 X 15 -

1.5* 2 - Strap -

1.6 4 - Bumper -

1.7* 2 - Washer - 12.5 X 20 X 2 -

1.8* 2 - Screw, Shoulder - M10 X 1.5 -

1.9 1 - Headache Rack, Fixed -

1.10 2 - Bushing -

2 4 Expansion Anchor Kit, Lock & Ride®2875250

Instr 9926584 Rev 03 2018-05 Page 1 of 3

P/N 2879976, 2881531

HEADACHE RACK KIT

Instr 9926584 Rev 03 2018-05 Page 2 of 3

REF QTY PART DESCRIPTION PART NUMBER

3* 4 Screw, Shoulder - M8 X 1.25 -

4* 2 Washer - 8.4 X 16 X 1.5 -

1 Instructions 9926584

Items marked (*) are included in Hardware Kit PN 2206118.

TOOLS REQUIRED

• Safety Glasses

• Screwdriver, Phillips

• Socket Set, Hex Bit, Metric

• Wrench Set, Metric

IMPORTANT

Your HEADACHE RACK KIT is exclusively designed for your vehicle. Please read the installation instructions

thoroughly before beginning. Installation is easier if the vehicle is clean and free of debris. For your safety, and to

ensure a satisfactory installation, perform all installation steps correctly in the sequence shown.

INSTALLATION INSTRUCTIONS

1. Shift vehicle transmission into “PARK”. Turn

ignition switch to “OFF” position and remove key.

2. Install shoulder screw eand washer rto fixed

rack A. Tighten screw. Repeat for RH side.

NOTE

Shoulder screw functions as strap retention post.

3. Raise moveable rack B, then secure two straps C

to shoulder screws einstalled in previous step.

4. Install shoulder screw eto fixed rack A. Tighten

screw. Repeat for RH side.

NOTE

Washers are not used at these locations.

Instr 9926584 Rev 03 2018-05 Page 3 of 3

5. Assemble and install LOCK & RIDE®expansion

anchor wto each corner of fixed rack A. Observe

location of nylon washer Dand steel washer E.

6. Ensure all expansion anchors ware unlocked,

then install headache rack assembly qinto bed

until anchors are fully seated. Depress levers to

lock in place.

If installation is loose, remove rack from bed,

tighten nut at base of affected anchor(s), and

reinstall.

FEEDBACK FORM

A feedback form has been created for the installer to provide any comments, questions

or concerns about the installation instructions. The form is viewable on mobile devices

by scanning the QR code or by clicking HERE if viewing on a PC.

FEEDBACK FORM
