PNI IPMAX POE FIVE Manual de usuario

PNI HOUSE IPMAX POE FIVE

POE Video surveillance system / POE Videoüberwachungssystem /

Sistema de videovigilancia POE / Système de vidéosurveillance POE /

POE videó megﬁgyelő rendszer / Sistema di videosorveglianza POE /

System nadzoru wideo POE / Sistem supraveghere video

EN User manual ............................................. 2

DE Benutzerhandbuch ................................... 18

ES Manual de usuario .................................... 34

FR Manuel utilisateur ..................................... 50

HU Használati utasítás ................................... 66

IT Manuale utente ........................................ 82

PL Instrukcja obsługi ..................................... 98

RO Manual de utilizare ................................... 114

User manual 2

English

BASIC FEATURES

»Supports 4 x 5MP POE cameras or 8 x 5MP IP cameras

»Simultaneous HDMI and VGA video output

»Supports up to 1 x 8TB SATA HDD

»Ethernet port RJ45 10 / 100Mbps

»4 standard POE pots

»ONVIF compatible

»Supports Cloud and P2P service

»Remote control

»Supports DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL

»Supports human detection with face identiﬁcation

PACKAGE CONTENTS

»POE NVR

»4 x POE 5MP cameras

»230V - 52V power adapter

»4 x 18.3 meters Ethernet cable

»USB mouse

TECHNICAL SPECIFICATIONS

NVR

Video input 4 POE channels 5MP / 8 IP channels 5MP

Video output 1 x HDMI / 1 x VGA

Network 1 x RJ45 10/100Mbps

USB port 2 x USB2.0

PoE output 4 standard POE ports

Storage 1 x HDD SATA max. 8TB

Playback 1 channel 5MP / 1 channel 4MP

Working temperature -10°C ~ +60°C

CAMERA

Resolution 2560 × 1920px

IR LEDs 18 special IR LEDs

IR distance Up to 30 m

3User manual

English

Lens 4.0 mm

Working temperature -26°C ~ +60°C

CONNECTION DIAGRAM

IP Camera IP Camera

Ethernet Cable

USB mouse / USB ash drive

Power

supply

Monitor Monitor

Power supply Insert the 230V - 52V power adapter

USB Insert a USB mouse or USB ﬂash drive for ﬁrmware update or

data backup

Ethernet port Insert an Ethernet cable to connect the NVR to the router

POE inputs

(Power over

Ethernet) Connect the 4 included cameras through the Ethernet cable

VGA Connect a monitor via a VGA cable (max. 1080P)

HDMI Connect a monitor with an HDMI cable (max. 2K)

User manual 4

English

SYSTEM AUTHENTICATION

After you have inserted in the NVR a compatible HDD and made all the

connections (power, cameras, mouse, monitor), on the monitor you’ll be able to

see the interface where you will be asked for the system authentication.

The admin user is by default protected by password 1234. Immediately after the

ﬁrst login, we recommend that you change the password.

The user 888888 has a backup role in case you forgot the password of the admin

user. This user is protected by password 888888. We recommend that you do not

delete this user.

SETUP WIZARD

Follow the steps of the conﬁguration wizard to perform the basic settings, such

as: network, language, date, time, mobile application download and system adding

to the application:

Right-click on the screen to access the system menu:

5User manual

English

1. MAIN MENU

PLAYBACK

The system will provide you with dierent methods of searching for recordings

saved on the hard disk: Common Playback, Smart Express, Smart Search and

Face Search.

Common Playback

Search for recordings on each channel within a certain period (date, time).

Smart Express

Select only the channel and recording type (alarm, perimeter alert, motion

detection, etc.)

User manual 6

English

Smart Search

Select the channel and type of recording (alarm, perimeter alert, motion

detection, etc.) within a certain period (date, time).

Face Search

Search for records containing facial detection on a particular channel and from

within a certain period (date, time).

RECORD CONFIG

Conﬁgure the recording mode on each channel: continuous recording, motion

detection or alarm.

NETWORK

7User manual

English

Set the network parameters manually or check DHCP for automatic retrieval.

DATE TIME

Set the time zone, date and time format.

2. SYSTEM

User manual 8

English

GENERAL

Set system name, menu display language, behavior when HDD is full (overwrite

or stop recording), automatic exit period, or enable quick setup guide display at

each system reboot.

ENCODE

Set dierent video parameters such as compression, resolution, frames per second

(FPS) or quality for each channel.

9User manual

English

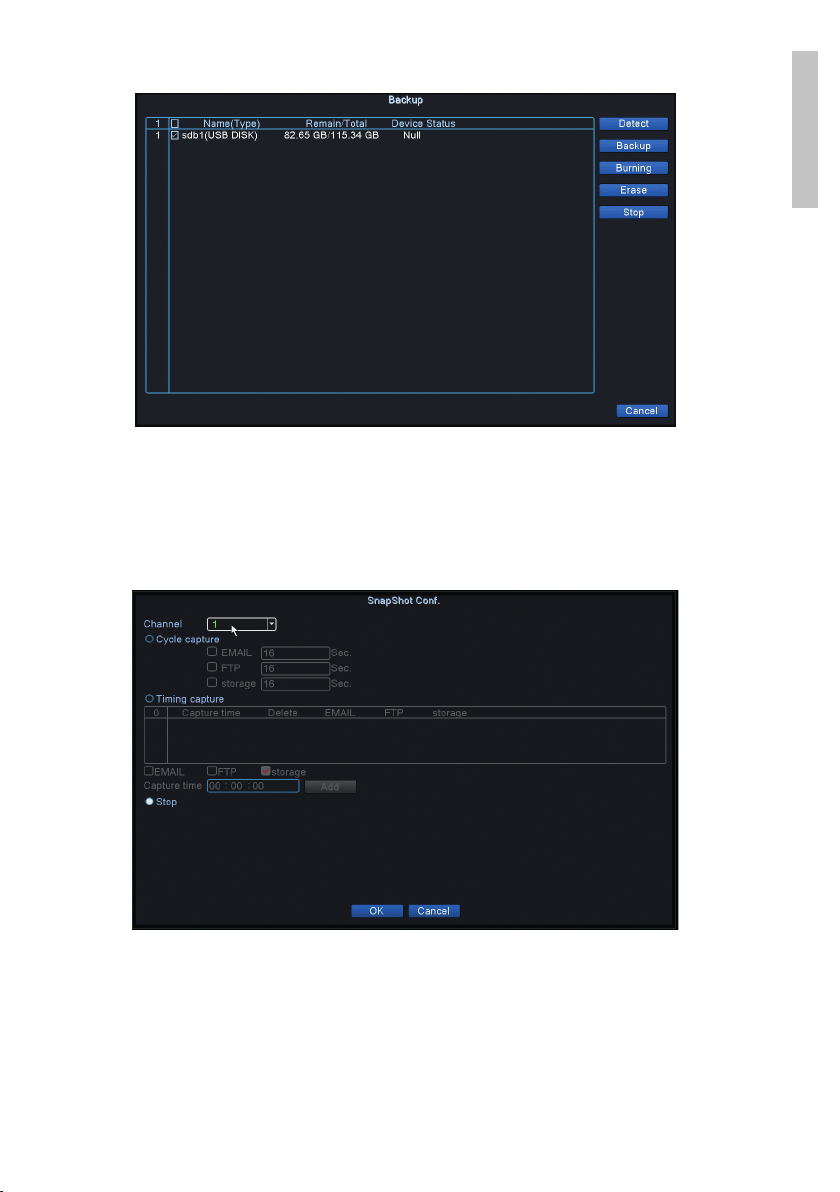

BACKUP

Insert into the NVR a USB disk to make a copy of the recordings.

SNAPSHOT CONF.

Enable image snapshot cyclically or at certain time intervals and send them

by email / FTP or save them on the internal hard disk. Disable this feature by

checking the “Stop” option.

User manual 10

English

DISPLAY

Set a name for each camera, display resolution, menu interface transparency and

display of dierent information like: time, channel name, registration status, etc.

ACCOUNT

Create or delete users and groups, change passwords, or change system access

and control rights.
