Pleasant hearth HARMONY Manual de usuario

HARMONY FIRE PIT

MODEL #OFW750R

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

Español p.9

Français p.17

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday, or email

us at [email protected].

30-10-207 Rev. 08/31/2020

PACKAGE CONTENTS

PART DESCRIPTION QUANTITY

APoker Bracket 1

BMesh Cover 1

CCooking Grid 1

DOuter Ring 4

EMesh Cover Rest 4

FFire Bowl 1

GLeg 4

HPoker 1

HARDWARE USED

Wrench

QTY: 1

M6 Nut

QTY: 13

M6X12mm Bolt

QTY: 20

AA BB CC

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install

the product. If you have any questions regarding the product, please call customer service at

1-877-447-4768, 8:00 a.m. – 4:30 p.m. CST, Monday – Friday.

WARNINGS:

• DO NOT allow children or pets near the re pit without supervision.

• DO NOT touch surface of re pit while in use.

• FOR OUTDOOR USE ONLY! Burning wood or charcoal indoors can kill you. It gives off carbon

monoxide, which has no odor.

• NEVER burn in vehicles, tents, garages, other enclosed areas or indoors. CARBON

MONOXIDE HAZARD.

• NEVER LEAVE FIRE UNATTENDED!

• NEVER place a storage cover on re pit when in use. Ensure the re pit and mesh cover have

cooled before placing a storage cover over the re pit.

• When the re pit is in use, the poker bracket on the mesh cover can reach extreme temperatures

that can cause serious injury to an unprotected hand. Use a poker when handling.

• DO NOT use under overhead cables or power lines.

CAUTIONS:

• Adequate re extinguishing material should be readily available.

• Always ensure that the mesh cover is secured over re bowl while in use.

• Burn only seasoned hard wood or re logs in the re pit.

• DO NOT attempt to move the re pit while it is hot or in use.

• DO NOT use gasoline or kerosene to start the re in your re pit.

• DO NOT use this outdoor re pit under any overhead or near any unprotected combustible

constructions. Avoid using near or under overhanging trees and shrubs. DO NOT use this unit

on long or dry grass and/or leaves.

• Always use this outdoor re pit on a hard, level, non-combustible surface such as concrete,

rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose. DO NOT

use on wooden decks.

• Place the re pit no closer than 10 feet / 3.05 meters from walls or combustibles during use.

• Poker handle may become hot during and after use.

• Use heat-resistant gloves to handle hot tools.

• Burn only 7LBs/3.18KG of charcoal, wood or re logs in the re pit.

SAFETY INFORMATION

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and hardware contents above. If any part is missing or damaged, do not attempt to

assemble the product. Contact customer service for replacement parts.

Estimated Assembly Time: 30 minutes

Tools Required for Assembly:

Phillips Screwdriver (Not Included) and Wrench (Included).

WARNING

This product and the fuels used to operate this product (charcoal or wood), and

the products of combustion of such fuels, can expose you to chemicals including

carbon black, which is known to the State of California to cause cancer, and carbon

monoxide, which is known to the State of California to cause birth defects or other

reproductive harm.

For more information go to www.p65Warnings.ca.gov

ASSEMBLY INSTRUCTIONS

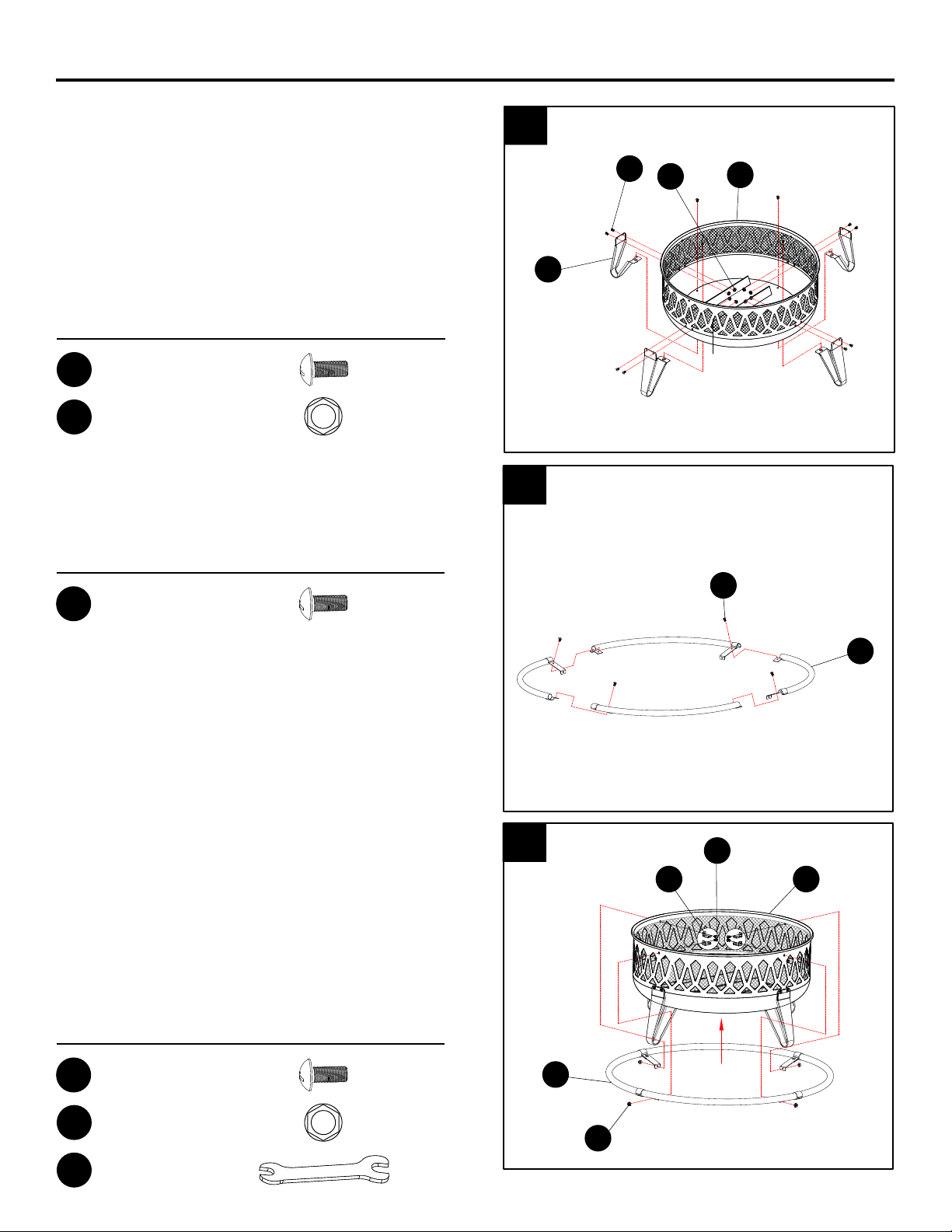

1. Insert two M6x12mm bolts (AA) through the

holes in the leg (G) and into the holes on the

side of the re bowl (F). Secure with two M6

nuts (BB). Then, screw one M6 x 12mm bolt (AA)

through the hole on the bottom of the re bowl

(F) and into the rivet nut in the leg (G). Repeat

these steps for the three remaining legs. Tighten

securely with a screwdriver.

AA BB F

Hardware Used

M6x12mm Bolt

M6 Nut

x 12

x 8

2. Attach four outer ring (D) pieces together using

four M6x12mm bolts (AA). Keep the bolts loose

during this step.

3. Slide the assembled outer ring (D) over the

re bowl (F) from the bottom to the top. Align the

holes on the outer ring (D) with the holes on the

re bowl (F). Then, slide four M6x12mm bolts

(AA) through the four mesh cover rests (E) and

the holes on the inside of the re bowl (F), then

into the holes on the outer ring (D). Secure with

four M6 nuts (BB) from the outside of the outer

ring (D). Tighten with the wrench (CC) and a

screwdriver.

Once attached to the bowl (F), tighten all bolts on

the outer ring (D) assembly.

Hardware Used

M6x12mm Bolt

x 4

E F

CC Wrench

ASSEMBLY INSTRUCTIONS

5. For re pit use, place the mesh cover (B) over

the re pit as illustrated.

6. For barbeque use, remove the mesh cover

(B) and place the cooking grid (C) onto the mesh

cover rests (E). Place food onto the cooking grid

4. Insert the poker bracket (A) into the hole in

the mesh cover (B) and secure with one M6 nut

(BB). Tighten the nut with the wrench (CC).

Hardware Used

M6 Nut

Wrench

x 1

ASSEMBLY INSTRUCTIONS

7. Your re pit is now ready for use. Keep the

poker (H) near the re pit for use anytime.

CARE AND MAINTENANCE

• Use gloves in lieu of bare hands while handling.

• To protect the re pit nish, use a soft cloth to wipe the re pit and the poker.

• Do not attempt to clean while hot.

• Store in a cool, clean, dry place.

1-YEAR LIMITED FRAME WARRANTY

If within one year from the date of original purchase, this item fails due to a defect in material

or workmanship, we will replace or repair at our option, free of charge. To order parts or to

obtain warranty service, call 1-877-447-4768, Monday - Friday, 8:00 a.m. - 4:30 p.m. CST. This

warranty does not cover defects resulting from improper or abnormal use, misuse, accident, or

alteration. Failure to follow all instructions in the owner's manual will also void this warrranty. The

manufacturer will not be liable for incidental or consequential damages, or common erosion of

outdoor products. Some states do not allow the exclusion or limitation of incidental or

consequential damages, so the above limitation may not apply to you. This warranty gives you

specic legal rights, and you may also have other rights which vary from state to state.

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m.,

CST, Monday – Friday.

Printed in China

Manufactured by

GHP Group, Inc.

6440 W. Howard St.

Niles, IL 60714-3302

877-447-4768

PART DESCRIPTION PART #

APoker bracket 40-07-453

BMesh Cover 30-06-174

CCooking Grid 30-06-223

DOuter Ring 30-01-324

EMesh Cover Rest 30-01-152

FFire Bowl 30-01-326

GLeg 30-01-327

HPoker 40-04-409

AA - CC

Hardware Pack 30-09-554

N/A Instruction Manual 30-10-207

AA BB CC
