Playcraft 1102 Manual de usuario

IMPORTANT NOTES: Read First

www.playcraftsystems.com

For Customer Service Call

800.333.8519 (U.S.A.) or 541.955.9199 (International)

TRI DECK ASSEMBLY

INSTALLATION INSTRUCTIONS

Rev F

7/15/2019

1102

Page 1 of 2

See Installation Manual

Section 09 Collars

Figure 1.1

45"

1143mm

42"

1067mm

(A)

Use liquid thread lock (such as Loctite

®) with all threaded hardware.

Important:

Liquid thread lock (prior

to curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving

as a lubricant during assembly.

(B)

The top of the collars are located 7/8" [22mm] below the top of the deck. Refer to Installation Manual for

09 Collars installation instructions.

(C)

An appropriate energy absorbing safety surface is required under and around all playground equipment.

Loose fill protective surfacing is shown only as an example for the purpose of this assembly instruction. Other

surfacing material may vary in thickness and/or compression depths. See free publication - The Handbook for

Public Playground Safety, Publication #325 at www.cpsc.gov for the surfacing appropriate for the fall height

of the equipment or consult your surfacing supply representative.

(D)

All deck heights on your system's top view drawing are measured from the top of ground cover (finished

grade) to the top of the deck. Post location dimensions are on centers.

(E)

Never allow the gap between decks to be between 3-1/2" [89mm] and 9" [229mm]. Deck fillers are

provided for gaps between decks with 6" [152mm] and 12" [305mm] rise increments.

FIGURE 1

Tri Deck Assembly

R5 ASSEMBLY

R3.5 ASSEMBLY

www.playcraftsystems.com

For Customer Service Call

800.333.8519 (U.S.A.) or 541.955.9199 (International)

1102

Page 2 of 2

Rev F

7/15/2019

TRI DECK ASSEMBLY

INSTALLATION INSTRUCTIONS

3/8" x 2-1/2"

Button Head

Bolt

3/8" x 1" O.D.

Washer

1/2" SAE

Washer

3/8" x 2" Barrel

Nut

1/4" x 1-3/8"

TR Socket

Head Screw

MOUNTING

BLOCK TOP

MOUNTING

BLOCK

BOTTOM

Figure 1.1

Step 1

Attach Deck to Collars as shown in Figure 1.1.

(See Note A)

NOTE:

3 Places

Step 2

Fully tighten all fasteners according to the

"TIGHTENING TORQUE FOR HARDWARE"

section of the Installation Manual.

Step 3

Place required protective surfacing under and

around Tri Deck Assembly. (See Note C)

TRI DECK:

Shall be fabricated from punched, formed, and

welded 12 gauge sheet steel. The Tri Deck shall be

Play Tuff™ coated after fabrication.

MOUNTING BLOCKS:

Shall be two-part and precision die-cast from a high

strength aluminum alloy. The Mounting Blocks shall

have a multi-stage baked-on powder coat finish.

HARDWARE:

Shall be stainless steel, zinc/nickel plated or

galvanized as required to resist rust and corrosion.

R3.5 Parts List

Part #

DESCRIPTION

QTY

CF-7009

Tri Deck R5

GF-7006-B

Mounting Block R5 Bottom

GF-7006-T

Mounting Block R5 Top

9103112-TR

Bolt Button Head 3/8" x 2-1/2"

9281062-5-TR

Screw Soc HD CS 1/4" x 1-3/8" TR

9333002

Washer Flat 3/8" x 1" O.D. x .100" thick

9345002

Washer Flat SAE 1/2"

9443092-TR

Nut Barrel 3/8" x 2" BH

Part #

DESCRIPTION

QTY

CG-8115

Tri Deck R3.5

GG-8110

Mounting Block 4 Top R3.5

GG-8111

Mounting Block 4 Bottom R3.5

9103112-TR

Bolt Button Head 3/8" x 2-1/2"

9281062-5-TR

Screw Soc HD CS 1/4" x 1-3/8" TR

9333002

Washer Flat 3/8" x 1" O.D. x .100" thick

9345002

Washer Flat SAE 1/2"

9443092-TR

Nut Barrel 3/8" x 2" BH

R5 Parts List

Specifications

Periodically tighten all screws, bolts and nuts. A

periodic inspection of all parts is necessary. If a part

is broken or worn, replace immediately. For general

maintenance please refer to our Playground

Maintenance Manual.

Maintenance

Otros manuales de Juegos y equipos de juegos infantiles de Playcraft

Playcraft

Playcraft 1414 Manual de usuario

Playcraft

Playcraft Twister Slide 1710 Manual de usuario

Playcraft

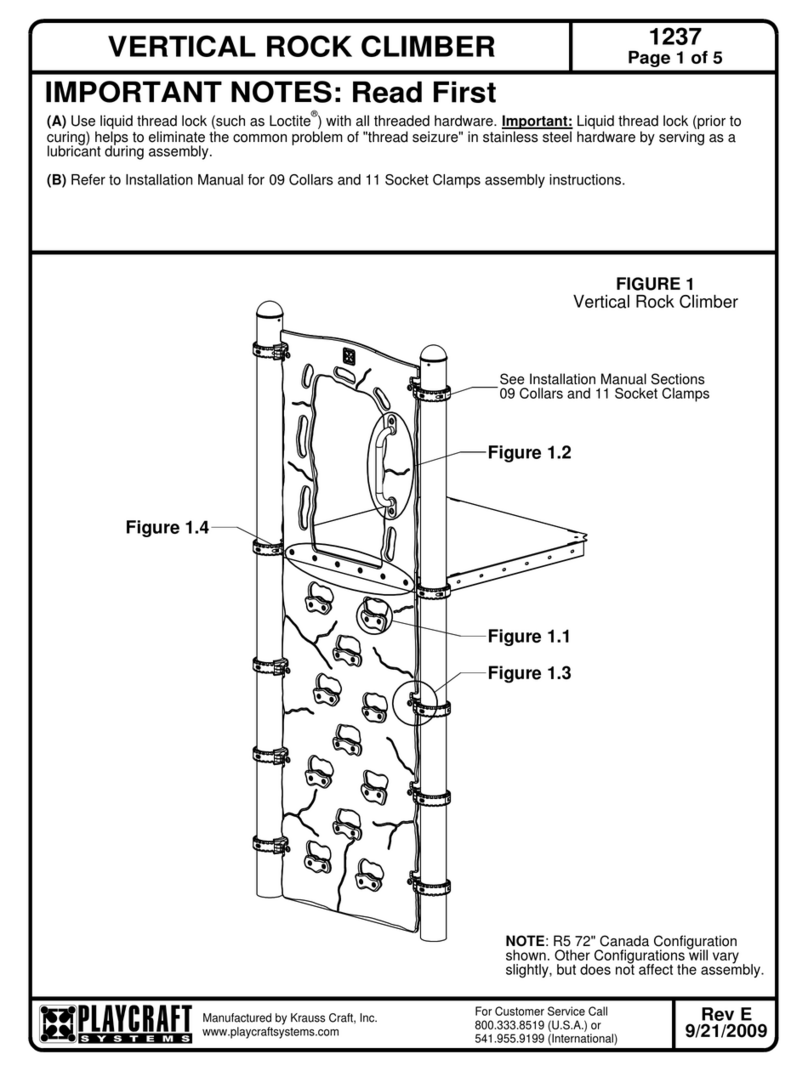

Playcraft 1237 Manual de usuario

Playcraft

Playcraft Tube Panel 1613 Manual de usuario

Playcraft

Playcraft Counter 1615 Manual de usuario

Playcraft

Playcraft Zig Zag Steel Net Wall 1968 Manual de usuario

Playcraft

Playcraft Poly Wave Single Slide V2 Manual de usuario

Playcraft

Playcraft Easy Access Stairs 24" 1201-2 Manual de usuario

Playcraft

Playcraft HDPE Half Wall R5 Manual de usuario

Playcraft

Playcraft Transfer Station with Half Walls 1209-HW Manual de usuario

Playcraft

Playcraft Panel 1 Rotomolded LLDPE R5-1601 Manual de usuario

Playcraft

Playcraft Ramp R5 Manual de usuario

Playcraft

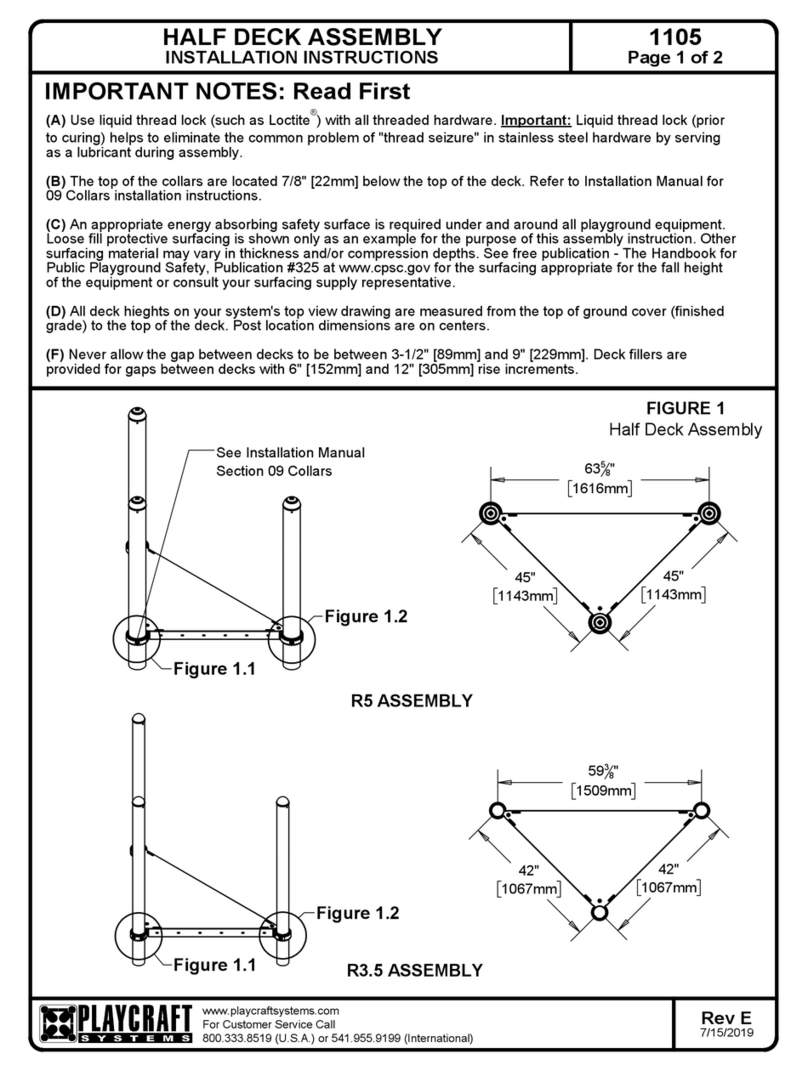

Playcraft 1105 Manual de usuario
