Playcraft 1237 Manual de usuario
IMPORTANT NOTES: Read First
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
VERTICAL ROCK CLIMBER
Rev E
9/21/2009
1237
Page 1 of 5
Figure 1.2
09 Collars and 11 Socket Clamps
Figure 1.1
Figure 1.3
See Installation Manual Sections
Figure 1.4
NOTE: R5 72" Canada Configuration
shown. Other Configurations will vary
slightly, but does not affect the assembly.
Refer to Installation Manual for 09 Collars and 11 Socket Clamps assembly instructions.
(A) Use liquid thread lock (such as Loctite
®
) with all threaded hardware. Important: Liquid thread lock (prior to
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B)
FIGURE 1
Vertical Rock Climber
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
VERTICAL ROCK CLIMBER
Rev E
9/21/2009
1237
Page 2 of 5

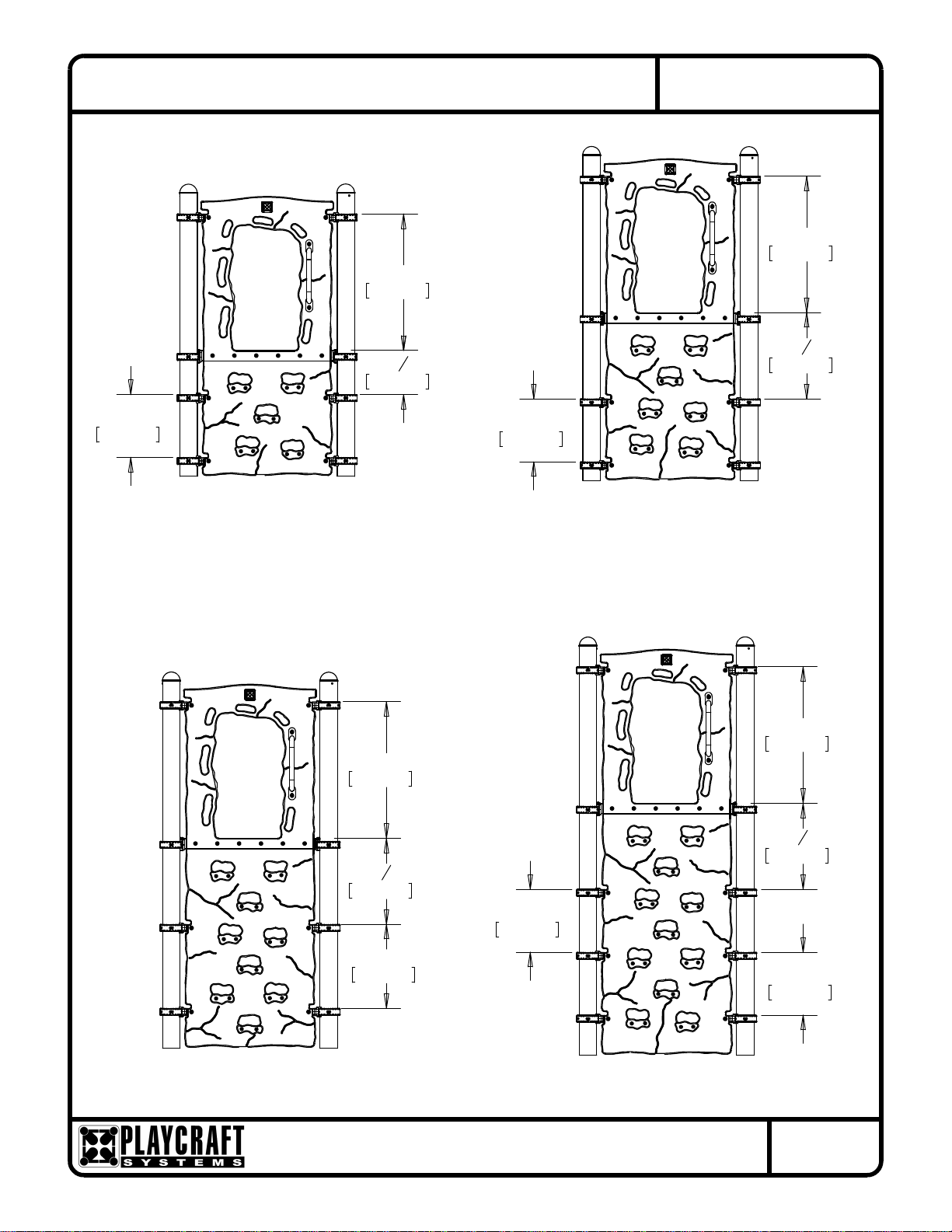

* Top of Collar to Top of Collar
** Top of Deck to top of Collar
FIGURE 5
72" Vertical Rock Climber
24
58
" **
625mm
39" **
991mm
18" *
457mm
18" *
457mm
FIGURE 3
48" Vertical Rock Climber
24
58
" **
625mm
39" **
991mm
18" *
457mm
FIGURE 4
60" Vertical Rock Climber
24" *
610mm
24
58
" **
625mm
39" **
991mm
FIGURE 2
36" Vertical Rock Climber
12
58
" **
321mm
39" **
991mm
18" *
457mm
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
VERTICAL ROCK CLIMBER
Rev E
9/21/2009
1237
Page 3 of 5
3/8" x 5/8"
Barrel Nut
Figure 1.2
CLIMB ENTRY
VERTICAL ROCK
O.D. Washer
3/8" x 1"
Head Bolt
3/8" x 1" Button
Washer
1/2" SAE
VERTICAL ROCK
CLIMBER HANDLE
Step 2
Attach the Vertical Rock Climber Handle to the
Vertical Rock Climb Entry Panel as shown in
Figure 1.2. (See Note A)
Step 1
(Factory Assembled)
Attach the Vertical Rock Climb Grips to their
corresponding slot on the Vertical Rock Climber
Panel as shown in Figure 1.1. (See Note A)
Step 3
Attach the collars at the heights shown on Page 2
for your climber height. (See Note A and Note B)
Step 4
Attach the Vertical Rock Climber Panel and
Vertical Rock Climber Entry Panel to the posts as
shown in Figure 1.3. (See Note A and Note B)
SOCKET
Shoulder Bolt
3/8" x 1-3/8"
Washer
1/2" SAE
LUG
MOUNTING
CLAMP TOP
SOCKET CLAMP
BOTTOM
Figure 1.3
3/8" x 1-1/2"
Barrel Nut
3/8" x 5/8"
Washer
1/2" SAE
ROCK CLIMB
VERTICAL
CLIMB GRIP
VERTICAL ROCK
Button Head Bolt
3/8" x 7/8"
O.D. Washer
Figure 1.1
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
VERTICAL ROCK CLIMBER
Rev E
9/21/2009
1237
Page 4 of 5
Parts List
36" Parts List
Part # DESCRIPTION QTY.
FS-1237 Vertical Rock Climber Handle 1
HS-1001-R5 Socket Clamp Set R5 6
Varies Mounting Lug 6
Varies Vertical Rock Climb Entry 1
9103052-TR Bolt Button Head 3/8" x 1" 2
9103082-TR Bolt Button Head 3/8" x 1-3/4" 6
9143062-TR Bolt Shoulder 3/8" x 1-3/8" BH 6
9333002 Washer Flat 3/8" x 1" O.D. x .100" thick 14
9345002 Washer Flat SAE 1/2" 8
9413002 Nut Lock 3/8" 6
9443022-TR Nut Barrel 3/8" x 5/8" BH 2
36" Assembled Parts List
Part # DESCRIPTION QTY.
EE-8197-G1 Vertical Rock Climb Grip - 1 1
EE-8197-G2 Vertical Rock Climb Grip - 2 1
EE-8197-G3 Vertical Rock Climb Grip - 3 1
EE-8197-G4 Verticl Rock Climb Grip - 4 2
Varies Vertical Rock Climb 36" 1
9103072-TR Bolt Button Head 3/8" x 1-1/2" 10
9333042 Washer Flat 3/8" x 7/8" O.D. 10
9345002 Washer Flat SAE 1/2" 10
9443022-TR Nut Barrel 3/8" x 5/8" BH 10
48" Parts List
Part # DESCRIPTION QTY.
FS-1237 Vertical Rock Climber Handle 1
HS-1001-R5 Socket Clamp Set R5 6
Varies Mounting Lug 6
Varies Vertical Rock Climb Entry 1
9103052-TR Bolt Button Head 3/8" x 1" 2
9103082-TR Bolt Button Head 3/8" x 1-3/4" 6
9143062-TR Bolt Shoulder 3/8" x 1-3/8" BH 6
9333002 Washer Flat 3/8" x 1" O.D. x .100" thick 14
9345002 Washer Flat SAE 1/2" 8
9413002 Nut Lock 3/8" 6
9443022-TR Nut Barrel 3/8" x 5/8" BH 2
48" Assembled Parts List
Part # DESCRIPTION QTY.
EE-8197-G1 Vertical Rock Climb Grip - 1 1
EE-8197-G2 Vertical Rock Climb Grip - 2 1
EE-8197-G3 Vertical Rock Climb Grip - 3 1
EE-8197-G4 Verticl Rock Climb Grip - 4 3
EE-8197-G5 Vertical Rock Climb Grip - 5 1
Varies Vertical Rock Climb 48" 1
9103072-TR Bolt Button Head 3/8" x 1-1/2" 14
9333042 Washer Flat 3/8" x 7/8" O.D. 14
9345002 Washer Flat SAE 1/2" 14
9443022-TR Nut Barrel 3/8" x 5/8" BH 14
Step 5
Attach the Vertical Rock Climber Panel and Vertical
Rock Climber Entry Panel to the Deck as shown in
Figure 1.4. (See Note A)
Step 6
Fully tighten all fasteners according to the
"TIGHTENING TORQUE FOR HARDWARE"
section of the Installation Manual.
Lock Nut
Button Head Bolt
3/8" x 1-3/4"
O.D. Washer
3/8" x 1"
ROCK CLIMB
VERTICAL
CLIMB ENTRY
VERTICAL ROCK
O.D. Washer
3/8" x 1"
3/8"
DECK
Figure 1.4
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
VERTICAL ROCK CLIMBER
Rev E
9/21/2009
1237
Page 5 of 5
Specifications
Parts List
60" Parts List
Part # DESCRIPTION QTY.
FS-1237 Vertical Rock Climber Handle 1
HS-1001-R5 Socket Clamp Set R5 6
Varies Mounting Lug 6
Varies Vertical Rock Climb Entry 1
9103052-TR Bolt Button Head 3/8" x 1" 2
9103082-TR Bolt Button Head 3/8" x 1-3/4" 6
9143062-TR Bolt Shoulder 3/8" x 1-3/8" BH 6
9333002 Washer Flat 3/8" x 1" O.D. x .100" thick 14
9345002 Washer Flat SAE 1/2" 8
9413002 Nut Lock 3/8" 6
9443022-TR Nut Barrel 3/8" x 5/8" BH 2
60" Assembled Parts List
Part # DESCRIPTION QTY.
EE-8197-G1 Vertical Rock Climb Grip - 1 1
EE-8197-G2 Vertical Rock Climb Grip - 2 1
EE-8197-G3 Vertical Rock Climb Grip - 3 3
EE-8197-G4 Verticl Rock Climb Grip - 4 3
EE-8197-G5 Vertical Rock Climb Grip - 5 1
Varies Vertical Rock Climb 60" 1
9103072-TR Bolt Button Head 3/8" x 1-1/2" 18
9333042 Washer Flat 3/8" x 7/8" O.D. 18
9345002 Washer Flat SAE 1/2" 18
9443022-TR Nut Barrel 3/8" x 5/8" BH 18
72" Parts List
Part # DESCRIPTION QTY.
FS-1237 Vertical Rock Climber Handle 1
HS-1001-R5 Socket Clamp Set R5 8
Varies Mounting Lug 8
Varies Vertical Rock Climb Entry 1
9103052-TR Bolt Button Head 3/8" x 1" 2
9103082-TR Bolt Button Head 3/8" x 1-3/4" 6
9143062-TR Bolt Shoulder 3/8" x 1-3/8" BH 8
9333002 Washer Flat 3/8" x 1" O.D. x .100" thick 14
9345002 Washer Flat SAE 1/2" 10
9413002 Nut Lock 3/8" 6
9443022-TR Nut Barrel 3/8" x 5/8" BH 2
72" Assembled Parts List
Part # DESCRIPTION QTY.
EE-8197-G1 Vertical Rock Climb Grip - 1 1
EE-8197-G2 Vertical Rock Climb Grip - 2 2
EE-8197-G3 Vertical Rock Climb Grip - 3 3
EE-8197-G4 Verticl Rock Climb Grip - 4 4
EE-8197-G5 Vertical Rock Climb Grip - 5 1
Varies Vertical Rock Clib 72" 1
9103072-TR Bolt Button Head 3/8" x 1-1/2" 22
9333042 Washer Flat 3/8" x 7/8" O.D. 22
9345002 Washer Flat SAE 1/2" 22
9443022-TR Nut Barrel 3/8" x 5/8" BH 22
VERTICAL ROCK CLIMBER HANDLE:
Shall be fabricated from Ø 1.315" 12 gauge
tubing welded to 1/4" Steel tabs. Handle shall
have a multi-stage baked-on powder coat finish.
VERTICAL ROCK CLIMBER PANELS:
Shall be made from high density 3/4" thick hot
extruded polyethylene sheet plastic specially
formulated for optimum UV stability and color
retention.
MOUNTING LUGS:
Shall be precision die-cast from a high-strength
aluminum alloy. The Mounting Lugs have a
multi-stage baked-on powder coat finish.
HARDWARE:
Shall be stainless steel, zinc/nickel plated or
galvanized as required to resist rust and
corrosion.
Periodically tighten all screws, bolts and nuts. A
periodic inspection of all parts is necessary. If a part
is broken or worn, replace immediately. For general
maintenance please refer to our Playground
Maintenance Manual.
Maintenance
