Plantronics Voyager 510S Manual de usuario

5 Easy Steps

The fastest way to set up your Plantronics

Voyager™510S Oce Headset System with

your desk phone and Bluetooth®mobile phone

Plantronics Voyager 510S Setup Guide

Base Power

Adapter

Voyager 510S

Headset Base

Voyager 510S

Headset

HL10

Automatic

Handset Lifter*

*Not included in all congurations

2Plantronics Voyager 510SSetup Guide

Headset Base with Pre-

installed Phone Cable

Base Power Adapter

5 Easy Steps

The fastest way to set up your

Voyager 510S Oce Headset System with your

desk phone and Bluetooth mobile phone

Voyage r 5 10S Series Setup Guide

BasePower

Adapter

Voyager510S

HeadsetBase

Voyager510S

Headsetwith Eartip

HL10

Automatic

HandsetLifter*

*Notinclud ed in all congurations

Setup Guide

HL10 Automatic

Handset Lifter HL10

User Guide

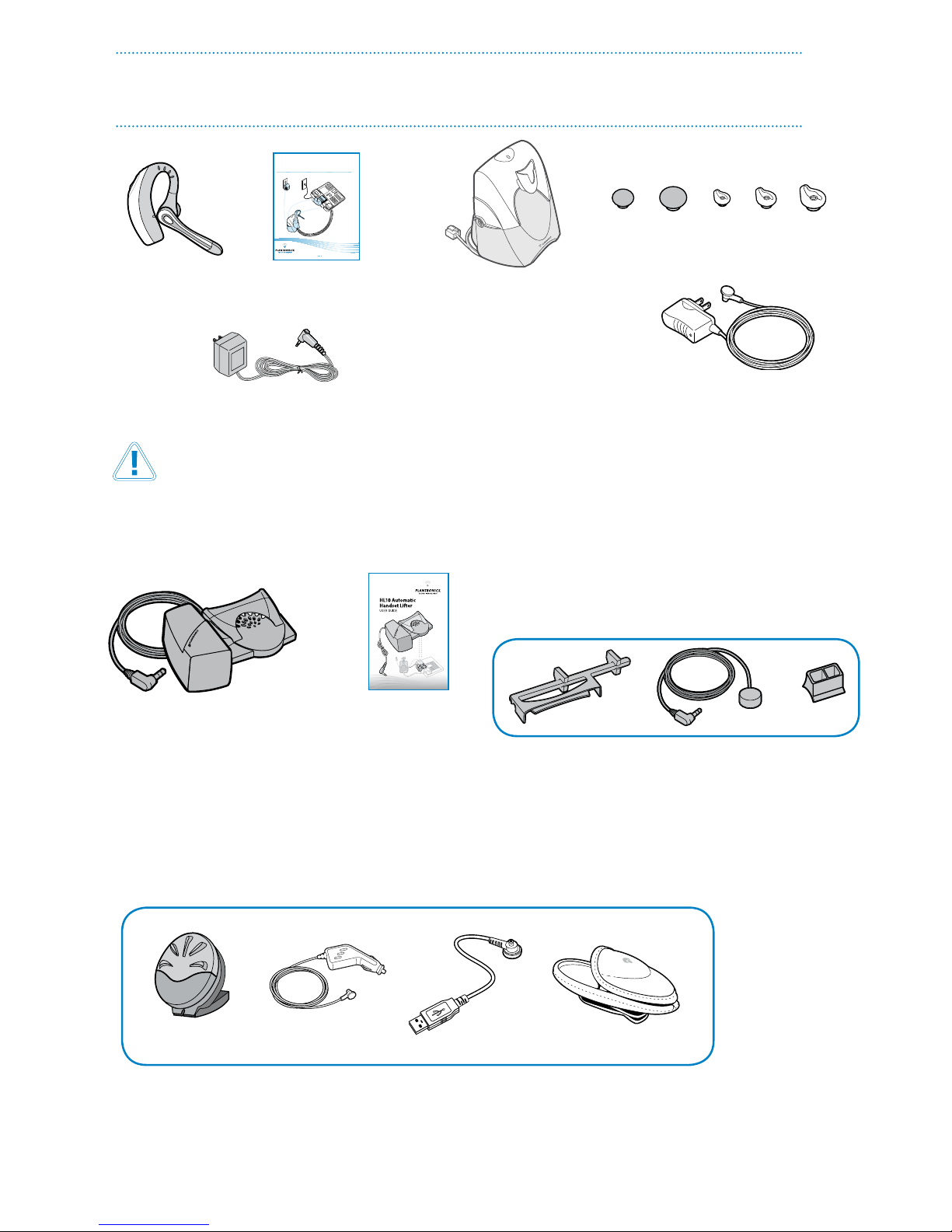

Plantronics Voyager 510s Package contents

Voyager 510SL With Automatic Handset Lifter* Adds:

Extender

Arm

Ringer

Microphone

Adapter for

Nortel i2004

Phones

HL10 Additional Parts Kit (if needed)

Please refer to the separate Safety Instructions for important product safety information prior

to installation or use of the product.

*Automatic Handset Lifter is bundled with certain Voyager 510S congurations and also available separately.

Eartips

Headset Travel Charger

Voyager 510SL+ Adds:

Online

Indicator

Light

Car

Lighter

Adapter

USB

Headset

Charger

Belt Clip

Carry Pouch

Accessories are available separately.

Headset

Questions? For fast, efficient Technical Support call: 800-544-4660 Ext. 5538

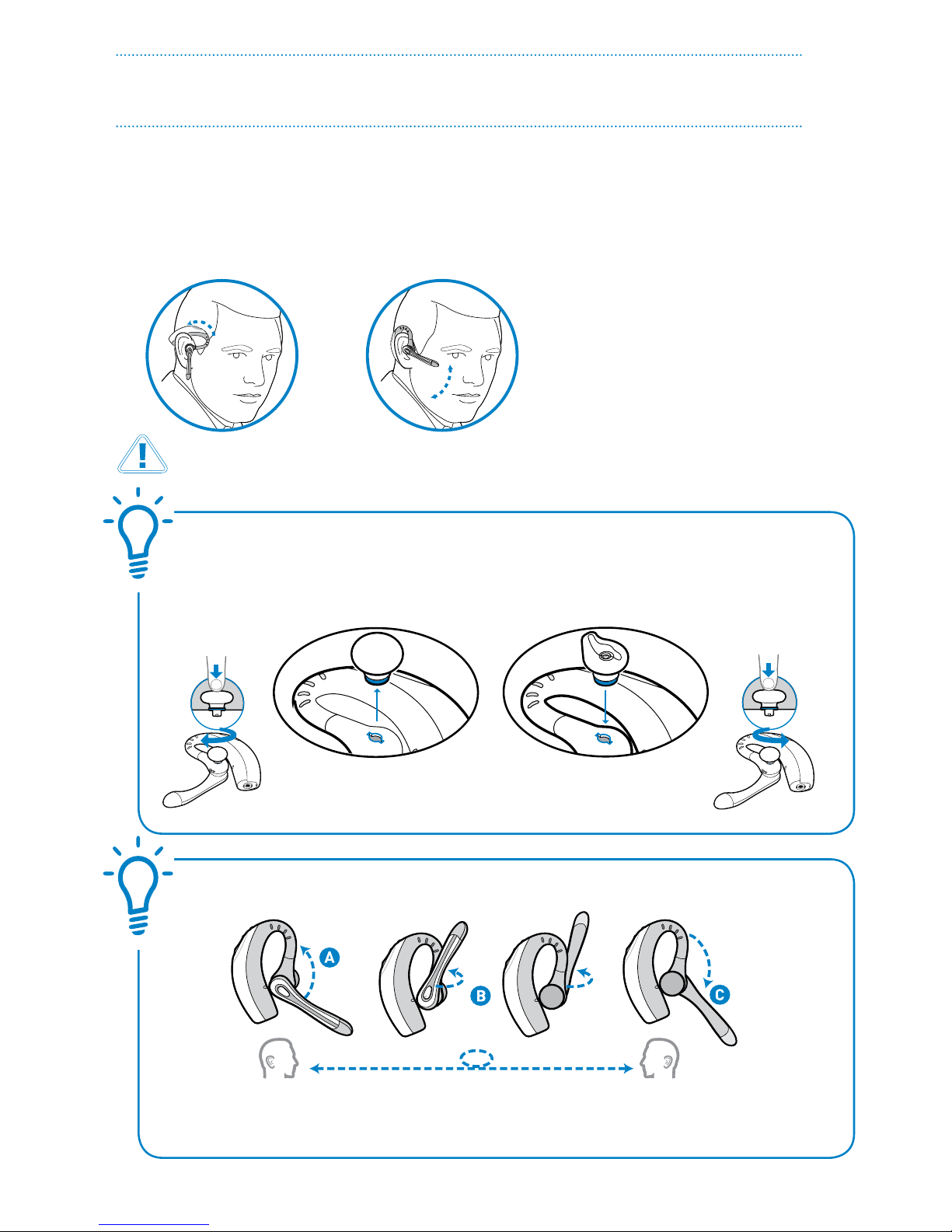

Fit the Headset

Slide the headset over and behind your ear, then press gently toward your ear. Rotate the

microphone boom until it is pointed toward your mouth. If the eartip is uncomfortable,

install a dierent eartip. See below.

To Convert for Wearing on Left Ear

A. Rotate microphone

boom up

B. Turn microphone

boom around

C. Rotate microphone

boom down

install eartiP & adjust fit

S T E P

For your safety and comfort, the eartip should never be inserted into the ear canal.

Choose the size and style of

eartip that ts most comfort-

ably. Align eartip tabs with

notches in headset.

Push in rmly and

twist counter

clockwise.

To Install a Dierent Eartip

Remove the pre-installed eartip by

pushing in and turning the eartip

clockwise, then pull rmly.

Note: For gel tips, ensure the raised part of the

eartip is pointed towards the curved section

of the headset as shown..

4Plantronics Voyager 510SSetup Guide

S T E P

2connect Base to desk Phone

Use Conguration A if:

You will use the Automatic Handset Lifter

or…

Your phone does NOT have built-in headset functionality (no Headset button).

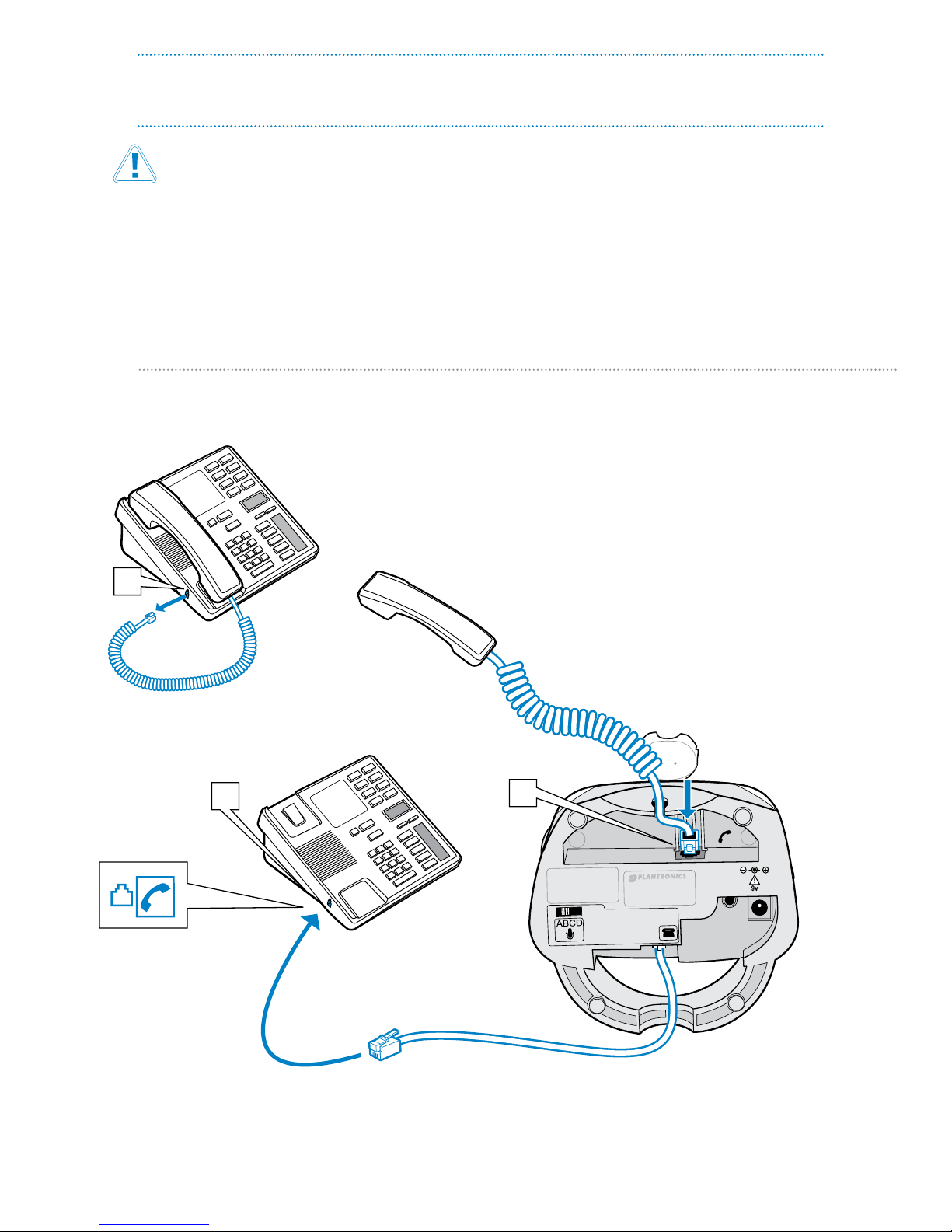

Conguration A

2. Plug the short black Phone Cable that

is pre-installed on the Headset Base into

the now-open handset port [A] on the

desk phone.

1. Unplug the handset coil

cord from the desk phone

handset port [A], then plug it

into the handset port [B] on the

Headset Base.

Handset

Coil Cord Handset

Headset Base

(bottom view)

It is important for correct and safe operation that the base cord is installed into the proper jack of

your telephone. Follow these instructions carefully, especially if your telephone has two jacks where

the handset was attached. Be sure to note or mark which jack was used for the handset.

Questions? For fast, efficient Technical Support call: 800-544-4660 Ext. 5538

Use Conguration B if:

You will NOT use the Automatic Handset Lifter

and…

Your phone has built-in headset functionality (a Headset button).

HANDSET port or HEADSET port?

You should only use the headset port if you will not be using the Automatic Handset

Lifter and you have a pre-programmed Headset button on your phone.

In this conguration you must press both the Headset button on your phone

and the Call Control Button on the headset to answer/end calls.

1. Plug the short BLACK Phone

Cable that is pre-installed on

the Headset Base into the

Headset port [C] on the

desk phone.

Conrm there is

a “HEADSET” button

on your phone

Conguration B

Headset Base

(bottom view)

6Plantronics Voyager 510SSetup Guide

connect Power and charge headset

S T E P

Insert into yellow labeled power

connection on Headset Base as

shown to charge.

Headset Base

(bottom view)

Base

Power

Adapter

1. Plug the Base Power Adapter into a wall outlet, then plug the power cord into the yellow

labeled connector on the bottom of the Headset Base. The red Power light on the left

front of the Headset Base will turn on. (See illustration at bottom of page.)

A. Connect Headset Base to power outlet

1. Gently push the headset into the charging cradle as shown below. The amber Charge Status

light on the base will ash to indicate the headset battery is charging. A solid light indicates

full charge. A full charge will take approximately 3 hours.

B. Charge the Headset for at least 20 Minutes before using

The headset may also be charged directly with the

Headset Travel Charger. Plug the headset travel charger

into a wall outlet, then plug the power cord from the

adapter into the headset. The indicator light will ash

red while the headset battery is charging. The light will

change to solid blue when the battery is fully charged.

Power

(Red)

Charge Status

(AmbeR)

Questions? For fast, efficient Technical Support call: 800-544-4660 Ext. 5538

Why use a handset lifter? The lifter greatly simplies using

a headset with your desk phone. It lets you answer and

end calls without being near your phone.

install automatic handset lifter

S T E P

firmly press Lifter power

cord into red labeled port

on Headset Base.

Automatic

Handset Lifter

Headset Base

(bottom view)

The HL10™ Automatic Handset Lifter is included with certain Voyager 510S congurations

and is also available separately. See www.plantronics.com/Voyager510S for a complete

list of accessories.

1. Verify that the base-to-desk phone cable is connected to the handset port of the desk

phone, and not the headset port (Refer to Step 2, Conguration A).

2. firmly press the Handset Lifter power cord into the red labeled port to ensure a

complete connection.

A. Connect Handset Lifter power cord to Headset Base

8Plantronics Voyager 510SSetup Guide

4. Slide the Handset Lifter Arm under the handset until the lifter base touches

the side of the phone.

5. Slide the Lifter up to where it nearly touches the handset earpiece and hold.

Slide Lifter under

handset, then up

toward the ear piece

B. Determine Lifter position and height setting

Lifter viewed

from back Start with Lifter

Height Switch in

lowest position

Handset Lifter Arm

To determine the lifter position and height setting, you will rst need to power the

headset on and t the headset.

1. Press and hold the power/mute button on the headset for 3 seconds until the status

indicator ashes blue.

2. Fit the headset over and behind your ear as described on page 3.

3. Set the Lifter Height Switch to the lowest setting.

Status Indicator

Power/Mute

Button

Questions? For fast, efficient Technical Support call: 800-544-4660 Ext. 5538

6. With the other hand, press the Call Control Button on the headset.

This will activate the Handset Lifter and lift the handset from the phone.

If you hear a dial tone, the lifter height is set correctly and needs no adjustment. Press the Call

Control Button to return the handset to the cradle. Please continue with section D “Mount the

Lifter in permanent position” below. If you do not hear a dial tone continue with section C.

If you do not hear a dial tone, the Lifter may not be raising the handset high enough

or the Conguration Dial may need adjusting.

C. If you do not hear a dial tone

Press Call

Control Button

2. If you still cannot hear a dial tone, you will

need to change the setting on the

Conguration Dial. Using a coin or

paperclip, turn the Conguration Dial

to a dierent setting until you hear a dial tone.

If you still cannot hear a dial tone, please call

Technical Support at 800-544-4660 Extension 5538.

Multiple settings might work with your phone; however, only one is the

optimal position.

1. Check the Lifter height adjustment by moving the Lifter Height Switch to a higher position.

See Section B and repeat steps 4 through 6.

If you hear a dial tone, the lifter height is now set correctly. Please continue with

the next section “Mount the Lifter in Permanent Position”. Position

Indicator

Conguration

Dial

10 Plantronics Voyager 510SSetup Guide

Note: If the side of the phone is curved, the protective cover on the side can be left on

to improve fit.

1. Remove the protective strips from the three mounting tapes on the underside

of the Lifter.

2. gently place the Lifter on the desk phone in the optimum position as determined

above. Test the Lifter to verify positioning by pressing the Call Control Button on your

headset to activate the Lifter and listen for a dial tone.

3. Press firmly to adhere the Lifter to the desk phone.

D. Mount the Lifter in permanent position

Peel back

mounting tape

protective strips

(3 places)

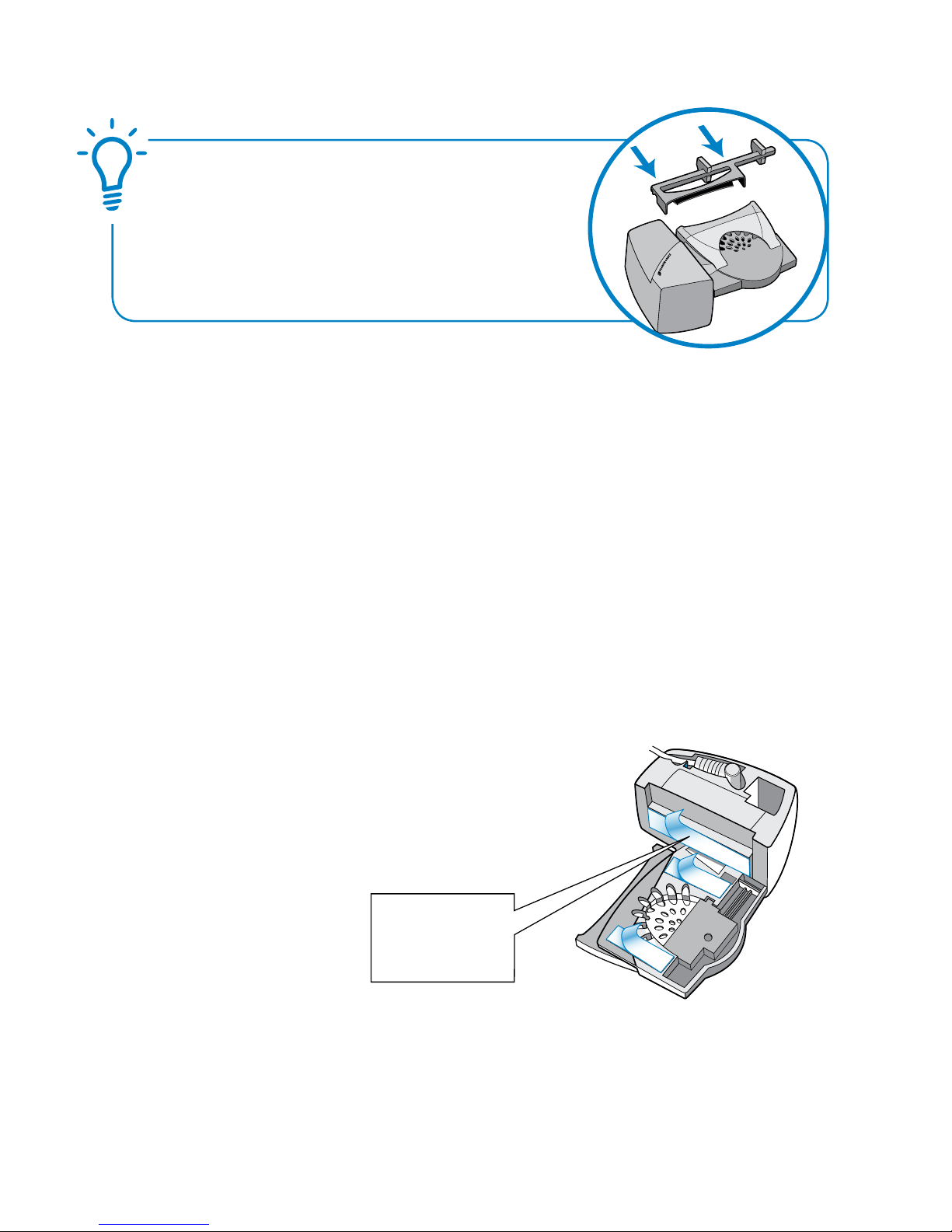

If your handset falls o the phone base or does not re-

turn to its cradle when lowered, you will need to attach

the Extender Arm to the Lifter as described in the HL10

Additional Parts Kit.

Use the Extender Arm to Stabilize Handset

(if needed)
