Plantronics EXPlorEr™220

BlUEtootH®HEaDsEt

USER GUIDE

75656-01 (12-06)

WELCOME

Thank you for purchasing a Plantronics headset.

Let us provide you with the best possible service and technical support.

After reviewing this user guide, if you need additional assistance or

have any product questions, please contact:

•Plantronics Technical Assistance Center at 866-363-BLUE (2583)

•www.plantronics.com/support

Please refer to the separate Safety Instructions booklet for

important product safety information prior to installation or use of the

product.

Visit www.plantronics.com/productregistration to register your product

online so we can provide you with the best possible service and

technical support.

TABLE OF CONTENTS

Package Contents & Features 3

Charging & Powering 3

Pairing 4

Adjusting Fit 6

Using Your Headset 7

Indicator Lights 8

Accessories 9

Troubleshooting 9

Product Specifications 10

Warranty 10

Regulatory Notices 11

Technical Assistance 12

PACKAGE CONTENTS & FEATURES

Indicator light

Call control

button

Microphone

Adjustable ear

loop

Ear tip

Charging jack

AC power adapter Volume control

POWERING

Before using, you must first charge your

headset.

20 minutes = minimum charge

2 hours = full charge

Light is solid red when battery is charging.

NOTE For the best user experience, keep

your headset fully charged.

CAUTION Do not use headset while

charging and do not connect the charger

while the headset is in use.

Press the control

button for 2

seconds to power

on. Press the

control button

for 3 seconds to

power off.

CHARGING & POWERING

CHARGING

PAIRING

Step One:

Prepare Phone—

Turn on Bluetooth

For most phones, go

to Settings/Tools menu

and select Bluetooth or

Connectivity and select

“On.” (Or see the user

guide for your phone.)

SETTINGS

Time and Date

Phone Settings

Bluetooth

Sound Settings

Network Services

Security

Reset Settings

BLUETOOTH

Discover/

BLUETOOTH

220Plantronics

Headset Passkey

PASSKEY

0000

This headset comes with QuickPairTM technology so pairing with your

Bluetooth phone is even easier. Follow the instructions below to pair your

phone with your headset for the first time.

Step Two:

Prepare Headset—

Pairing Mode

Begin with headset

turned off. Turn

headset on (hold call

control button for four

seconds until the light

flashes blue) and it will

automatically go into

pairing mode, flashing

red and blue.

Step Three:

Pairing—

Add Headset to Phone

For most phones,

go to Settings/Tools

> Bluetooth > Search

or Add a Device, then

Select “220Plantronics.”

For passkey enter

0000. Headset will

flash blue when paired

successfully. It is now

powered on and ready

to use.

NOTE: Normally you only need to pair the headset and handset once. If

headset has been previously paired with another device, follow pairing

instructions on the next page.

QUICKPAIR FEATURE INSTRUCTIONS

220

If headset has been previously paired with another device, please

follow these instructions for pairing a second time. Be sure the

headset is fully charged. For set up and pairing instructions with other

Bluetooth devices, please consult your Bluetooth device user guide or

visit www.plantronics.com/easytopair, an online, interactive pairing

guide for phones and headsets.

Begin with headset turned off.

1. Press and hold down the call

control button for 8 seconds

until the headset status

indicator begins to flash blue

then red.

The headset is now in pairing

mode for the next 120

seconds.

1. 2.

PAIRING

2. While the headset is flashing,

use the phone menu to

search for Bluetooth devices

and select “220Plantronics.”

3. When prompted for a

passkey, enter 0000. Headset

will flash blue when paired

successfully.

NOTE: The headset can pair to multiple Bluetooth devices, but will only

connect to one device at a time. The headset will automatically connect

to the last device to which it was connected.

ADJUSTING FIT

Lift ear loop.

Right Ear Left Ear

Swivel ear loop to the right or left

for right or left ear wearing.

Place ear loop

behind ear.

Pivot headset

to place

speaker into

ear.

Position

speaker

and align

microphone

with mouth.

1. 2.

3. 4. 5.

USING YOUR HEADSET

ANSWERING/ENDING/MAKING CALLS

For best performance, position your mobile phone on the same side of

your body as the headset.

To answer or end a call, briefly press the call control button.

To make a call, enter number on your phone, press send, and the call

is automatically transferred to headset; no need to press call control

button.

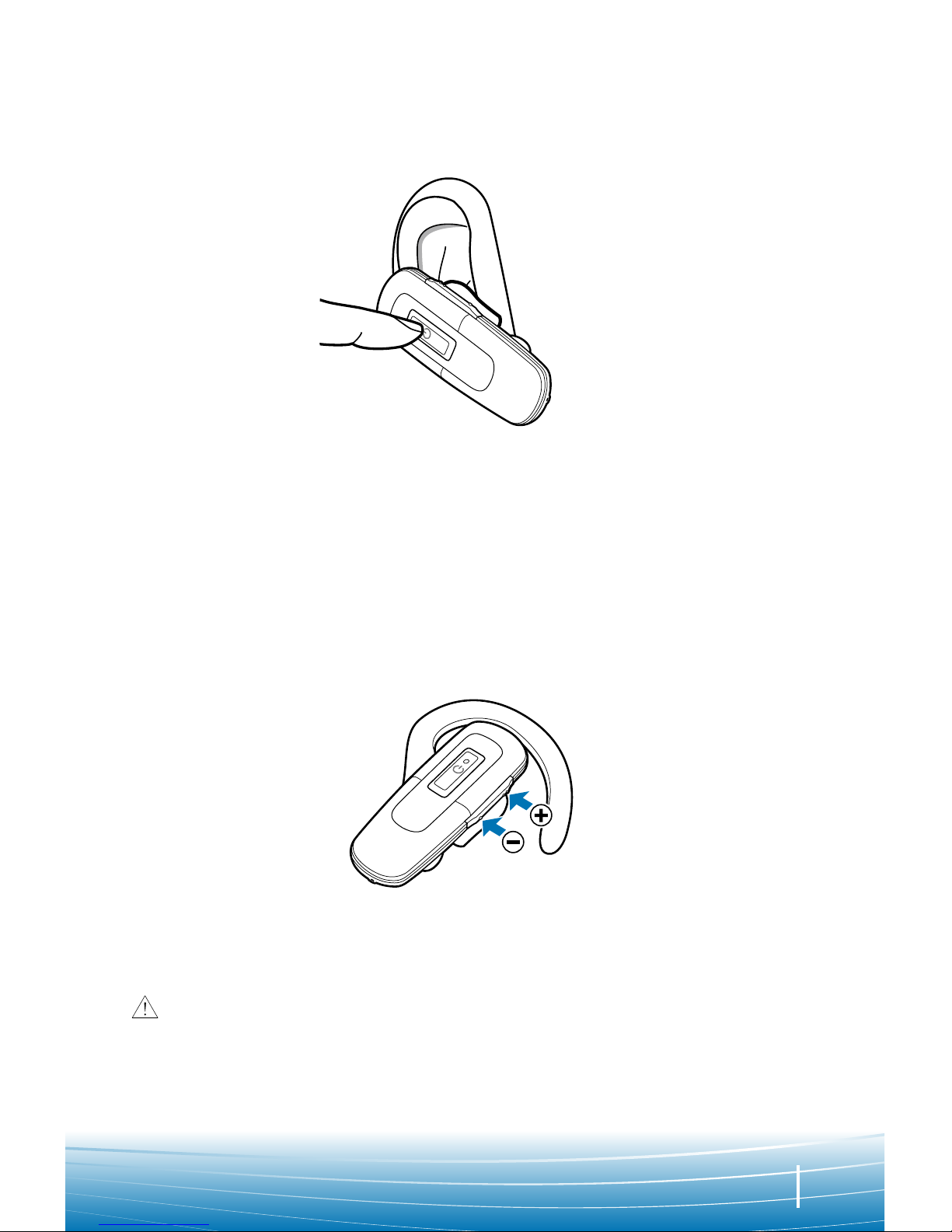

ADJUSTING THE VOLUME

Briefly push up or down on the volume button for incremental volume

steps. You will hear two tones (high tone followed by low tone) at the

volume limit.

WARNING Do not use headphones/headsets at high volumes for an

extended period of time. Doing so can cause hearing loss. Always listen

at moderate levels. See www.plantronics.com/healthandsafety for more

information on headsets and hearing.

ADDITIONAL FEATURES

Redialing Last Number

To activate last number redial,

double press the call control

button. You will hear a high tone

after each double key press.

Using Voice Dialing

With the headset on, press the

call control button for 2 seconds

to activate the voice dialing.

NOTE To use voice activated

dialing, the voice dialing feature

must be enabled on your phone.

See your Bluetooth phone

manual for instructions.

Rejecting a Call

When receiving an incoming call,

press the call control button for 2

seconds to reject the call.

Switching a Call From Phone to

Headset

To switch an active call from your

phone to your headset, press the

call control button for 3 seconds.

Switching a Call From Headset to

Phone

To switch an active call from your

headset to your phone, press the

call control button for 2 seconds.

USING YOUR HEADSET

INDICATOR LIGHTS

Headset Status Headset Indicator Light

Powering on Blue flashes. Repeat.

Powering off Red appears and goes off.

Charging battery Red solid light.

Low battery Red flashes.

Pairing mode Blue/red flashes.

Missed call Purple flashes. Single press the call control

button to cancel.

Ringing Purple flashes. Briefly press call control button

to answer the call. Press call control button for

2 seconds to reject the call.

AVAILAbLE FOR PURCHASE

ACCESSORIES

76015-01

Vehicle

charging

adapter

76016-01

USB headset

charger

To order, please contact your Plantronics supplier or go to

www.plantronics.com.

TROUBLESHOOTING

Headset was not in pairing mode when mobile

phone menu selections were made. See page 4

“Bluetooth Pairing”.

Incorrect menu selections were made on your

mobile phone. See page 4 “Bluetooth Pairing”.

Your phone did not locate the headset.

Repeat the pairing process on page 4.

Incorrect menu selections were made on your

mobile phone. Repeat the pairing process on

page 4.

The headset is not turned on. Press the call

control button for 2 seconds until you hear a

beep or see the indicator light glow blue to turn

headset on.

Your headset is out of range. Move the headset

closer to the phone or Bluetooth device.

Your headset battery is drained. Charge your

battery using the AC power adapter supplied.

The listening volume is too low. Press the volume

key up (toward the ear loop) to increase the sound

heard in the headset.

My headset does

not work with my

phone.

I did not enter

my passkey.

Callers cannot

hear me, or I

cannot hear

caller/dialing

tone.

PROBLEM SOLUTION

PRODUCT SPECIFICATIONS

Talk Time* Up to 6 hours

Standby Time* Approximately 200 hours

Charge Time 2 hours

Range Bluetooth standard 33 feet (10 meters)

Power Requirements 5V DC – 300 mA

Battery Type Lithium Ion Polymer

Version Bluetooth 2.0

Storage and Usage Temperature 50F–104F (10C – 40C)

Supports Bluetooth hands-free and headset profiles.

*Performance may vary by device. Headset can last up to four days without charging, based

on average talk time of 1.5 hours per day.

LIMITED WARRANTY

• This warranty covers defects in materials and workmanship of products

manufactured, sold or certified by Plantronics which were purchased and

used in the United States.

• The warranty lasts for one year from the date of purchase of the products.

• This warranty extends to you only if you are the end user with the original

purchase receipt.

• We will at our option, repair or replace the products that do not conform

to the warranty. We may use functionally equivalent reconditioned/

refurbished/remanufactured/pre-owned or new products or parts.

• To obtain service in the U.S., contact Plantronics at (866) 363-BLUE (2583).

• THIS IS PLANTRONICS’ COMPLETE WARRANTY FOR THE PRODUCTS.

• This warranty gives you specific legal rights, and you may also have other

rights that vary from state to state. Please contact your dealer or our

service center for the full details of our limited warranty, including items

not covered by this limited warranty.

WARRANTY

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Auriculares de Plantronics

Plantronics

Plantronics Voyager 4210 Office Manual de usuario

Plantronics

Plantronics M50 Manual de usuario

Plantronics

Plantronics M70 Series Manual de usuario

Plantronics

Plantronics Blackwire 200 Dimensiones

Plantronics

Plantronics Blackwire 3200 Series Manual de usuario

Plantronics

Plantronics Blackwire 725-M Manual de usuario

Plantronics

Plantronics Tristar Manual de usuario

Plantronics

Plantronics CALISTO B70 WITH BUA-100 USB DONGLE Guía de referencia

Plantronics

Plantronics Stereo SupraPlus USB Manual de usuario

Plantronics

Plantronics Explorer 500 Series Manual de usuario

Plantronics

Plantronics Explorer 200 Series Manual de usuario

Plantronics

Plantronics Savi Office WO201 Manual de usuario

Plantronics

Plantronics Winter 2006 Manual de usuario

Plantronics

Plantronics CS530 Series Manual de instrucciones

Plantronics

Plantronics Voyager PRO UC Dimensiones

Plantronics

Plantronics Savi 410 Manual de usuario

Plantronics

Plantronics Voyager B230 Manual de usuario

Plantronics

Plantronics Poly Voyager 5200 Series Manual de usuario

Plantronics

Plantronics Blackwire C710 Manual de usuario

Plantronics

Plantronics Stereo SupraPlus USB Dimensiones

Plantronics

Plantronics VOYAGER PRO Guía de referencia

Plantronics

Plantronics Blackwire C435 Manual de usuario

Plantronics

Plantronics Savi Go WG100/B Manual de usuario

Plantronics

Plantronics Discovery 640 Manual de usuario

Manuales populares de Auriculares de otras marcas

Sena

Sena SMH10 Manual de usuario

IASUS

IASUS Stealth IA-NT4-BASIC-BT Manual de usuario

Sennheiser

Sennheiser EPOS ADAPT 230 Manual de usuario

Doro

Doro Flexus HS2005 Manual de usuario

GE 98971 Manual de usuario

Hama

Hama 00184070 Manual de usuario

Blue Tiger

Blue Tiger Advantage PLUS Manual de usuario

Jawbone

Jawbone Icon Manual de usuario

Jabra

Jabra FR 20 Manual de usuario

Roxcore

Roxcore Flow A+ Manual de usuario

Turtle Beach

Turtle Beach XP 510 Manual de usuario

Philips

Philips SHB6101 Manual de usuario

Jabra

Jabra PRO 9460 Duo Manual de usuario

HyperX

HyperX HyperX Cloud Flight Manual de usuario

Bose

Bose MIE2 Mobile Manual de usuario

Jabra

Jabra Steel Manual de usuario

HyperX

HyperX cloud ii Manual de usuario

Southwing

Southwing SA505 Manual de usuario
