Plantronics BLUETOOTH HEADSET 220 SERIES Manual de usuario

PLANTRONICS EXPLORER™220

BLUETOOTH®HEADSET

USER GUIDE

WELCOME

Thank you for purchasing a Plantronics headset.

Let us provide you with the best possible service and technical

support. After reviewing this user guide, if you need additional

assistance or have any product questions, please contact:

•www.plantronics.com/support

Please refer to the separate Safety Instructions booklet for

important product safety information prior to installation or use of the

product.

Visit www.plantronics.com/productregistration to register your product

online so we can provide you with the best possible service and

technical support.

TABLE OF CONTENTS

Package Contents & Features 3

Charging & Powering 3

Pairing 4

Adjusting Fit 6

Using Your Headset 7

Indicator Lights 8

Accessories 9

Troubleshooting 9

Product Specifications 10

Model & Country Information 11

Warranty 11

PACKAGE CONTENTS & FEATURES

Indicator light

Call control

button

Microphone

Adjustable ear

loop

Ear tip

Charging jack

AC power adapter Volume control

POWERING

Before using, you must first charge your

headset.

20 minutes = minimum charge

2 hours = full charge

Indicator light is solid red when battery is

charging.

NOTE For the best user experience, keep

your headset fully charged.

CAUTION Do not use headset while

charging and do not connect the charger

while the headset is in use.

Press and hold

the call control

button for

2 seconds to

power on.

Press and hold

the call control

button for

3 seconds to

power off.

CHARGING & POWERING

CHARGING

PAIRING

Step One:

Prepare Phone—

Turn on Bluetooth

or most phones,

ettin

Tools

selec

Blue

Connectivity

and

elect

“

On.

”

(Or see

”

the user

uide

our

hone.

)

SETTINGS

Time and Date

Phone Settings

Bluetooth

Sound Settings

Network Services

Security

Reset Settings

BLUETOOTH

Discover/

BLUETOOTH

220Plantronics

PASSKEY

0000

This headset comes with

uickPair

technolo

y so pa

th your

Blue

hone

s even eas

er. Follow the

nstruct

ons below to

r your

phone with your headset for the first time.

Step Two:

Prepare Headset—

Pairing Mode

egin with headset

off

. T

headset on

(

hold call

ntr

n f

econds until the light

lashes blue) and it

ll automat

cally

nto pa

ng mode,

lashing red and blue.

Step Three:

Pairing—

Add Headset to Phone

or most phones,

ettin

s/Tools

th >

Sea

Add

evice, t

elect

“

220Plantronics.”

For passkey enter

0000

. H

eadse

t will

lash blue when

aired

success

ull

. It is now

powered on and ready

o use.

NOTE: Normally you only need to

r the headset and handset once.

headset has been

reviously

aired with another device,

ollow

nstruct

ons on the next page.

UICKP

IR FE

TURE INSTRUCTION

220

If headset has previously been paired with another device, please

follow these instructions for pairing a second time. Ensure that

the headset is fully charged. For instructions on set-up and pairing

with other Bluetooth devices, please consult your Bluetooth device

user guide.

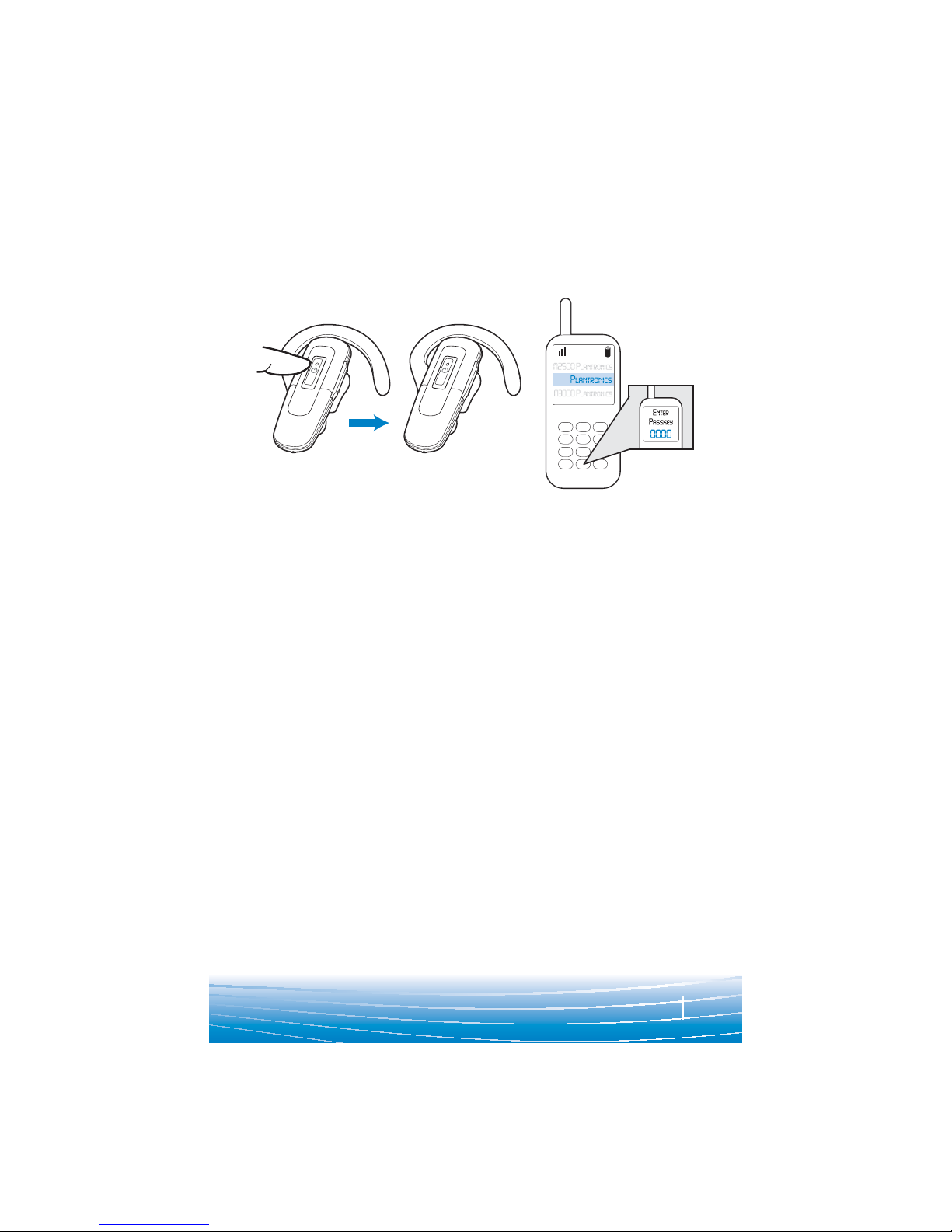

Begin with headset turned off.

1. Press and hold down the call

control button for 8 seconds

until the headset status

indicator begins to flash blue

then red.

The headset is now in pairing

mode for the next 120

seconds.

1. 2.

PAIRING

2. While the headset is flashing,

use the phone menu to

search for Bluetooth devices

and select “220Plantronics.”

3. When prompted for a

passkey, enter 0000. Headset

will flash blue when paired

successfully.

NOTE: The headset can pair to multiple Bluetooth devices, but will

only connect to one device at a time. The headset will automatically

connect to the last device to which it was connected.

ADJUSTING FIT

Lift ear loop.

Right Ear Left Ear

Swivel ear loop to the right or left

for right or left ear wearing.

Place ear loop

behind ear.

Pivot headset to

place speaker

into ear.

Position speaker and

align microphone

with mouth.

1. 2.

3. 4. 5.

USING YOUR HEADSET

ANSWERING/ENDING/MAKING CALLS

For best performance, position your mobile phone on the same side of

your body as the headset.

To answer or end a call, briefly press the call control button.

To make a call, enter number on your phone, press send, and the call

is automatically transferred to headset; no need to press call control

button.

NOTE: When answering a call, wait until you hear a ring from the

headset itself (not the ring from your phone), before pressing the call

control button.

ADJUSTING THE VOLUME

Briefly push up or down on the volume button for incremental volume

steps. You will hear two tones (high tone followed by low tone) at the

volume limit.

WARNING Do not use headphones/headsets at high volumes for

an extended period of time. Doing so can cause hearing loss. Always

listen at moderate levels. See www.plantronics.com/healthandsafety

for more information on headsets and hearing.

ADDITIONAL FEATURES

Redialling Last Number

To activate last number redial,

double press the call control

button. You will hear a high tone

after each key press.

Using Voice Dialling

With the headset on, press and

hold the call control button for

2 seconds to activate the voice

dialling.

NOTE To use voice activated

dialing, the voice dialling feature

must be enabled on your phone.

See your Bluetooth phone manual

for instructions.

Rejecting a Call

When receiving an incoming call,

press the call control button for

2 seconds to reject the call.

Switching a Call From Phone to

Headset

To switch an active call from your

phone to your headset, press the

call control button for 3 seconds.

Switching a Call From Headset

to Phone

To switch an active call from your

headset to your phone, press the

USING YOUR HEADSET

INDICATOR LIGHTS

Headset Status Headset Indicator Light

Powering on Blue flashes. Repeat.

Powering off Red appears and goes off.

Charging battery Red solid light.

Low battery Red flashes.

Pairing mode Blue/red flashes.

Missed call Purple flashes. Single press the call control

button to cancel.

Ringing Purple flashes. Briefly press call control button

to answer the call. Press call control button for

2 seconds to reject the call.

AVAILABLE FOR PURCHASE

ACCESSORIES

76015-01

Vehicle

charging

adapter

76016-01

USB headset

charger

To order, please contact your Plantronics supplier or go to

www.plantronics.com.

TROUBLESHOOTING

Headset was not in pairing mode when mobile

phone menu selections were made. See page 4

“Bluetooth Pairing”.

Incorrect menu selections were made on your

mobile phone. See page 4 “Bluetooth Pairing”.

Your phone did not locate the headset.

Repeat the pairing process on page 4.

Incorrect menu selections were made on your

mobile phone. Repeat the pairing process on

page 4.

The headset is not turned on. Press the call

control button for 2 seconds until you hear a

beep or see the indicator light glow blue to turn

headset on.

Your headset is out of range. Move the headset

closer to the phone or Bluetooth device.

Your headset battery is drained. Charge your

battery using the AC power adapter supplied.

The listening volume is too low. Press the

volume key up (toward the ear loop) to increase

the sound heard in the headset.

My headset does

not work with my

phone.

I did not enter

my passkey.

Callers cannot

hear me, or I

cannot hear

caller/dialling

tone.

PROBLEM SOLUTION

TECHNICAL ASSISTANCE

PRODUCT SPECIFICATIONS

Visit our Web site at www.plantronics.com/support for technical

support including frequently asked questions, compatibility and

accessibility information.

Talk Time* Up to 6 hours

Standby Time* Approximately 200 hours

Charge Time 2 hours

Range Bluetooth standard 33 feet (10 meters)

Power Requirements 5V DC – 300 mA

Battery Type Lithium Ion Polymer

Version Bluetooth 2.0

Storage and Usage Temperature 50F–104F (10C – 40C)

Supports Bluetooth hands-free and headset profiles.

*Performance may vary by device. Headset can last up to four days without charging,

based on average talk time of 1.5 hours per day.
