Planet 802.11n Wireless Access Point WNAP-1120 Manual de usuario

802.11n Wireless Access Point

WNAP-1120

Quick Installation Guide

Table of Contents

Introduction ................................................................................. 3

Package Content............................................................................. 4

Installing the Access Point ............................................................... 5

Web Conguration .......................................................................... 6

Further Conguration .....................................................................11

3

Introduction

The WNAP-1120 is the 11n Wireless Access Point with one Ethernet

port. The 1T2R 11n speed is up to 150Mbps. Fully compliant with

IEEE802.11b/g standard, it provides powerful features such as the

Web Conguration, Multiple SSID / VLAN tag, Built-in Radius server,

MAC lter, WPA2-PSK, WPA and WPA2. With the six wireless operating

modes, establish their wireless easily.

4

Package Content

1 x Access Point

1 x 12V1A Power Adapter

1 x User’s Manual CD

2 x 3dBi External Antenna

1 x Ethernet Cable

1 x Quick Installation Guide

Note

If any of the above items are missing or damaged,

contact your local dealer for support.

l

l

l

l

l

l

5

Installing the Access Point

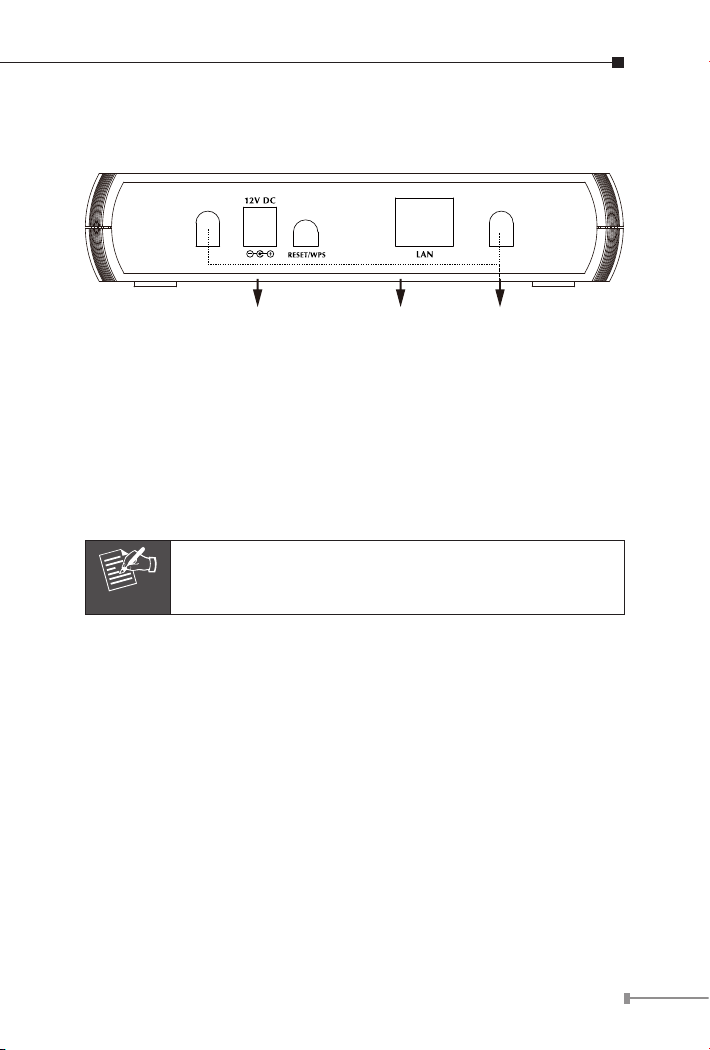

Power Socket LAN Port SMA Connectors

Connect bundled antenna to the two SMA connectors.

Connect the LAN PC or network devices to WNAP-1120 LAN port with

RJ-45 Ethernet cables.

Connect power adapter to the power socket on WNAP-1120, and plug

the other end of the power pack into an electrical outlet.

After hardware connection is done, please refer to below for the

conguration.

Note

ONLY use the power adapter supplied with WNAP-1120.

Otherwise, the product may be damaged.

l

l

l

l

6

Web Conguration

The following instructions will guide you to complete WNAP-1120 basic

settings.

1. Open your web browser and type WNAP-1120 default IP address

(192.168.1.1) into the “Address Field” of you web browser. Before

conguration, please make sure your PC’s IP address is under the

same IP range with WNAP-1120.

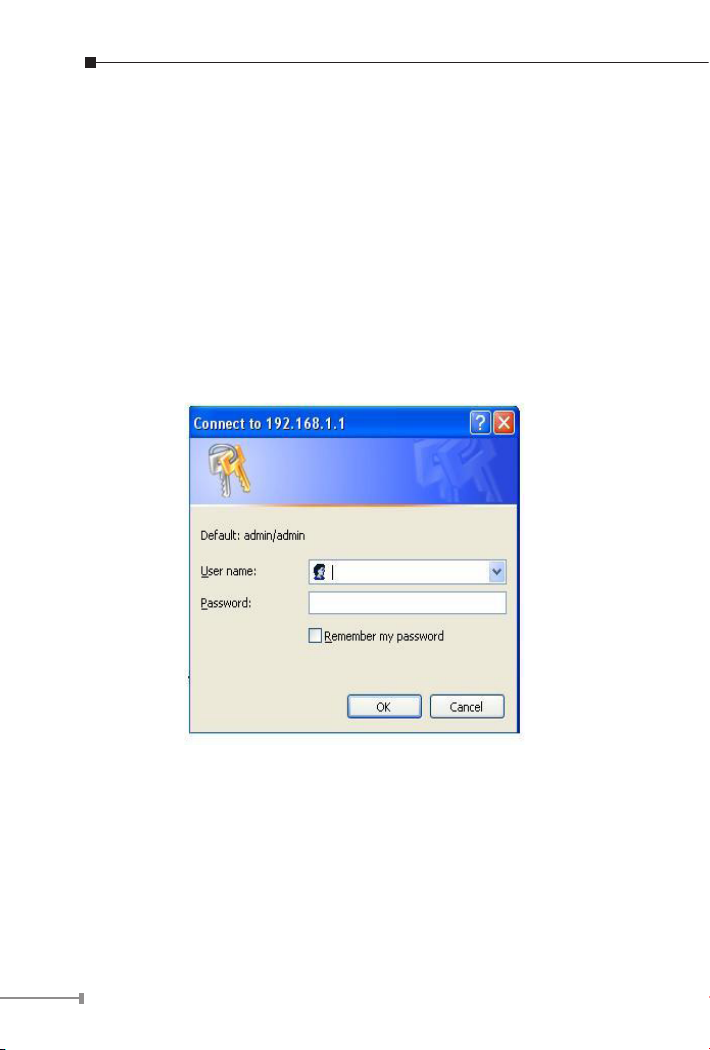

2. After enter the IP address and press Enter key, you can see the

dialog box appear as below, please enter the User name and Pass-

word with “admin”. Then press “OK”.

7

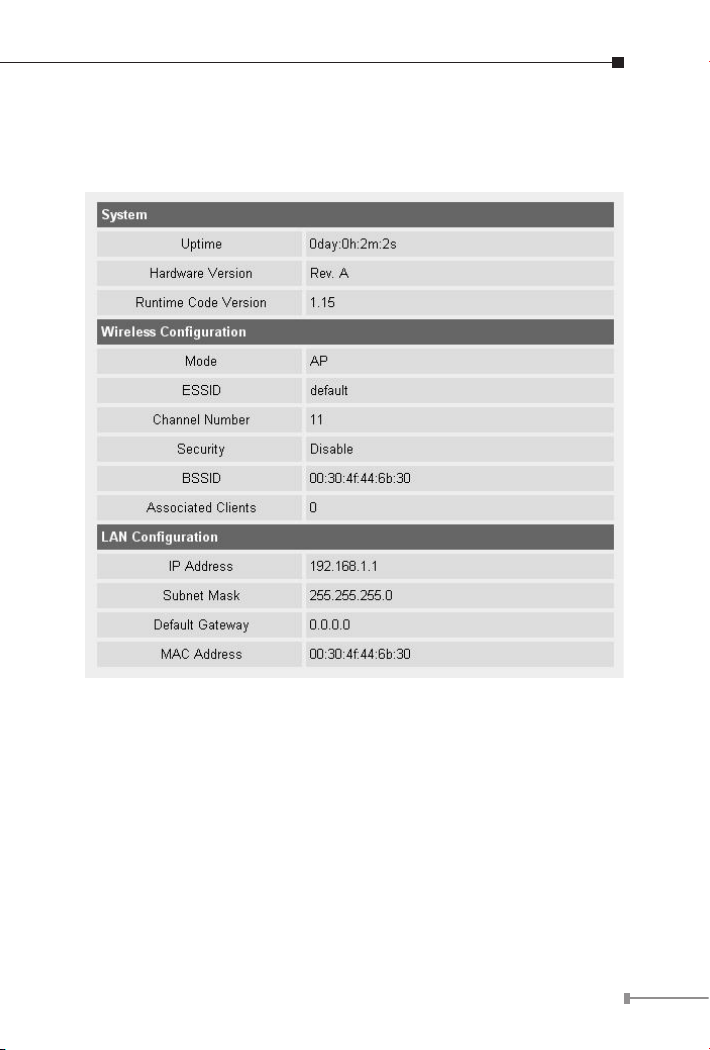

3. If you have entered correct User name and Password, you can see

the conguration screen as below. It will show you the information of

this Access Point.

8

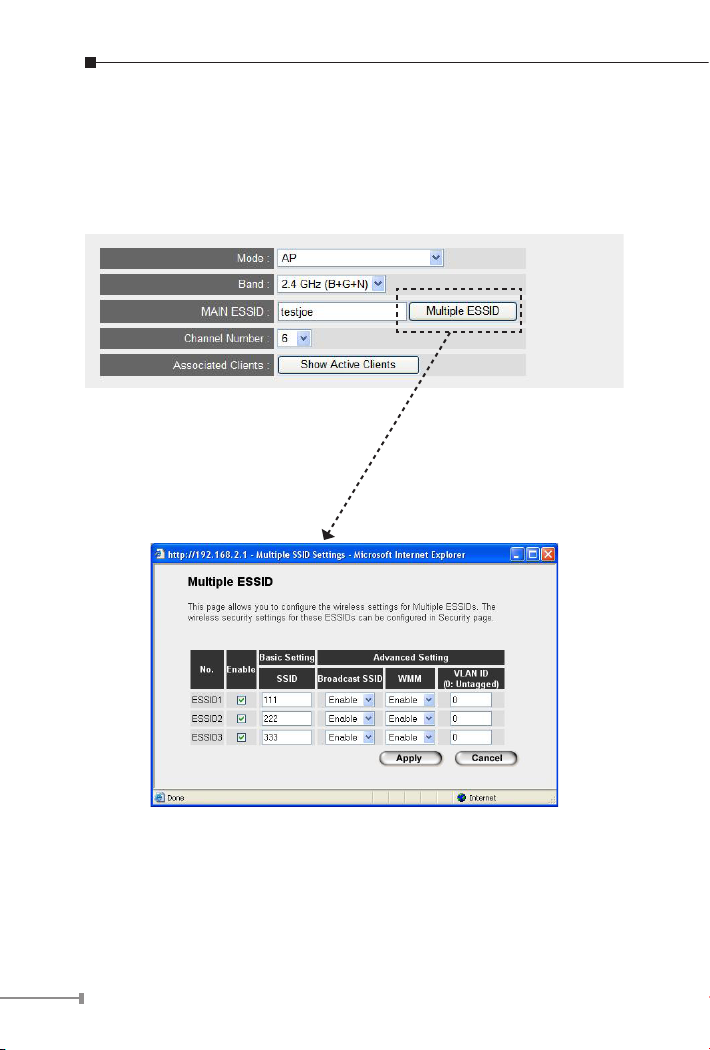

4. Please select the Basic Setting in the left side. Then you will see the

screen as below. Please set a SSID and Channel for your wireless

clients connected. When enable the Multiple ESSID function, you can

apply Multiple SSID VLAN VID (0~4904) with the VLAN function.

VLAN VID “0” is Untagged for managing AP.

9

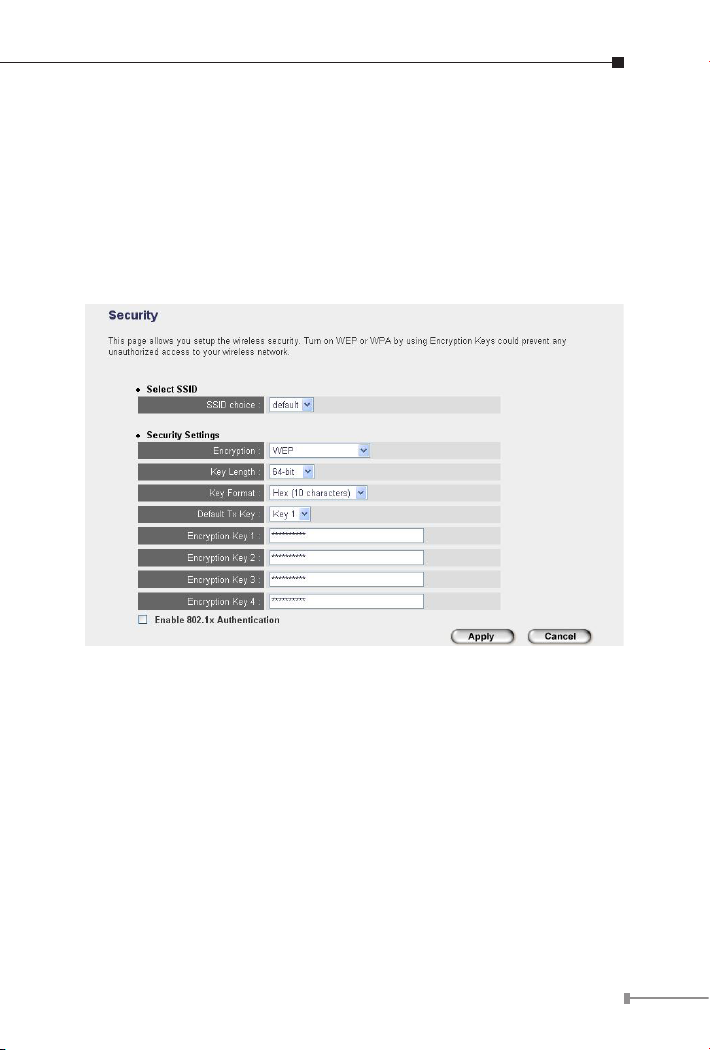

5. If you want to enable the Security function. Please select Security

option in the list. The default setting of this option is “Disable”. You

may enable WEP or WPA function to protect your wireless connec-

tion. If you are select WEP in the pull-down list, you will see the

dialog box below. Please dene the WEP (Wired Equivalent Privacy)

function by yourself. There are 4 keys available for the 64bit (10 Hex

digits) or 128bit (26 Hex digits), please select one of them and enter

the key you want to use. Please press “Apply” to save.

10

6. Select System Utility option. You may assign a new Password and

IP address to WNAP-1120 in this option. If you need a DHCP Server

to your wireless network, you can also enable DHCP Server in this

option to provide IP addresses to the clients.
