Planet ICA-106 Manual de usuario

Table of Contents

REQUIREMENTS 1

PHYSICAL INSTALLATION 2

CONFIGURATION 3

MP4 IP FINDER 4

FURTHER CONFIGURATION 5

This page is intentionally left blank

1

Requirements

ICA-106 ICA-106W

Network Environment

LAN 10/ 100Base-TX Ethernet 10/ 100Base-TX Ethernet,

IEEE 802.11g WLAN

Monitoring System Recommended

System Hardware • CPU: Pentium 4, 2GHz or above

• Memory Size: 128 MB (256 MB Recommended)

• VGA card resolution: 1024 x 768 or above

Web Browser • Internet Explorer 5.5 or above

System Requirement for Application

Support OS Win 2000 / XP

System Hardware 1 – 4 cameras surveillance application

• CPU: Pentium 4, 2GHz or above

• Memory Size: 256 MB or above.

• VGA card resolution: 1024x768 or above

2

Physical Installation

1. Connect an Ethernet cable

Connect one end of an Ethernet cable to the LAN port located on the ICA-106

real panel and attach the other end to the network device (hub or switch).

2. Attach the external power supply

Connect the provided power adapter to the ICA-106’s connector labeled

“5VDC” on real panel.

3. Check the LEDs

The PWR LED should be on.

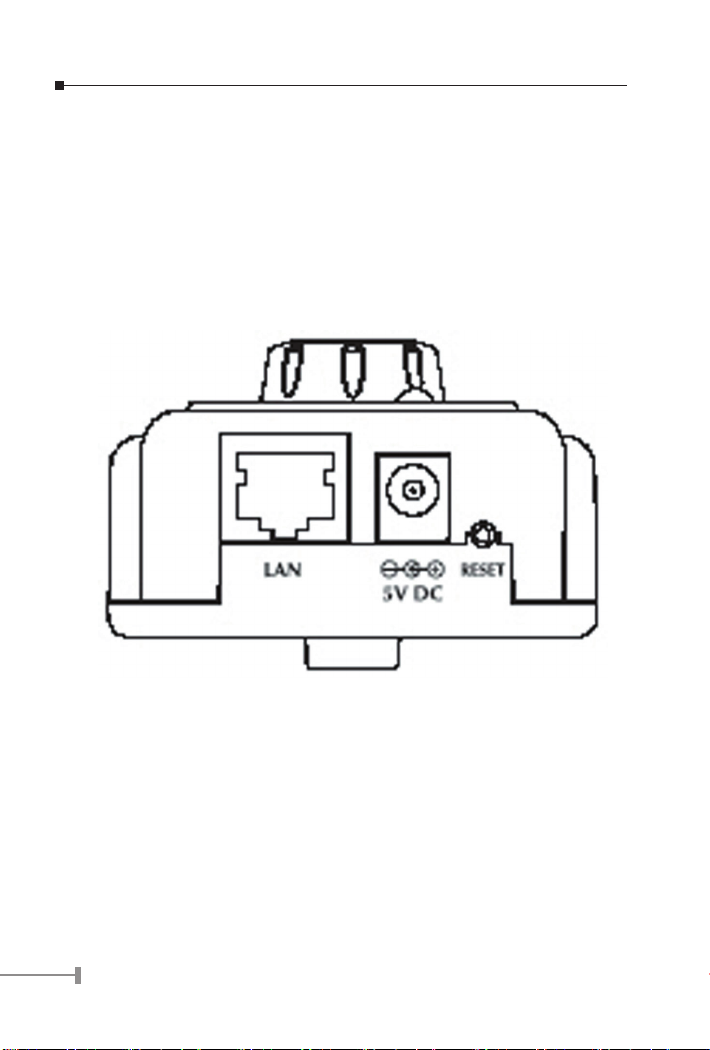

Real Panel of ICA-106/ICA-106W

3

Configuration

PLANET ICA-106 provides GUI (Web based, Graphical User Interface) for machine

management and maintenance.

To start the ICA-106 web conﬁguration, please have the proper web browser installed on

computer for web management

• Microsoft Internet Explorer 5.5 or higher

Default IP address of ICA-106 is 192.168.0.20. Please execute the web browser, and

insert http://192.168.0.20 in the address bar to logon ICA-106 web conﬁguration

page.

The ICA-106 will prompt for User Name and Password, please enter: admin as username

and admin as password to continue machine Web Management.

If any difﬁculty is met, please refer to the following steps to establish the connection:

• Your PC can establish a physical connection to the Internet Camera. The PC and

the ICA-106 must be directly connected (using the LAN port on the camera) or

on the same LAN segment. That is, the PC must be configured to an IP address

and subnet mask in 192.168.0.x segment. For example: IP: 192.168.0.2, sub-

4

net mask: 255.255.255.0.

• The ICA-106 must be installed and powered ON.

• If the ICA-106’s default IP Address (192.168.0.20) is already used by another

device, the other device must be turned OFF until the ICA-106 is allocated a

new IP Address during configuration.

Another convenient way to ﬁnd the camera is to execute MP4 IP Finder to discover

ICA-106.

Before starting installation, please ensure that:

Procedures of MP4 IP Finder utility

• Please find the MP4 IP Finder.exe in the Utility folder on user’s manual CD

• Double-click the MP4 IP Finder.exe and the following screen should be

prompt on your computer.

• Choose the destination camera for IP address and device name modifications

• After modifications, you may now connect the ICA-106 via web browser.

5

Further Configuration

If you want to conﬁgure more detail settings of ICA-106, please refer to our user’s manual

in the CD. If you have any difﬁculty on resolving the problem while installing or using the

camera, please feel free to contact PLANET for support.
