Planet Multi-Port Fast Ethernet Print Server... Manual de usuario
Multi-Port
Fast Ethernet Print Server
FPS-3121
Quick Installation Guide
Table of Contents
Package Content............................................................................. 4
Physical Installation......................................................................... 5
Print Server Setup .......................................................................... 6
Administrator PC Setup ................................................................... 7
>> Windows Peer-to-Peer Printing.............................................. 7
Install Peer-To-Peer Print Driver .......................................... 7
>> Macintosh (AppleTalk) .........................................................12
This Quick Installation Guide contains brief instructions for the following
environments:
● Windows95/98/Me/NT/2000/XP/Sever2003Peer-to-PeerNetworks
● Macintosh(AppleTalk)
For other environments, or any problems, please refer to the full User’s
Manual in the CD-ROM.
4
Package Content
1 x Print Server
1 x Quick Installation Guide
1 x Drivers and User’s Manual CD
1 x Power Adapter
5
Physical Installation
1. Make sure the power is OFF then connect printer to the Print Server's
printer port.
2.ConnecttheLANcabletotheproperconnectorofthePrintServer.
3.ConnecttheotherendoftheLANcabletoa10Base-Tor100Base-TX
hub or switch.
4. Connect the supplied Power Adapter.
5. Please make sure the POWER LED is light on.
6
Print Server Setup
In the following situation, you do not need to congure the Print
Server. Just follow the procedures on section “Administrator PC Setup”
to share your printer. If you want to install print server to a client PC,
you may refer to our manual in the CD-ROM.
Windows users:
●AlreadyinstalledTCP/IPprotocol.
Apple Macintosh users: Already installed AppleTalk protocol.
7
Administrator PC Setup
>> Windows Peer-to-Peer Printing
Install Peer-To-Peer Print Driver
1. Insert Drivers and User’s Manual CD into the CD-ROM drive to initiate
the autorun program. Once completed a menu screen will appear.
2. Click on “Administrator Installation” hyper link to initiate the installa-
tion. Or you can click the “Start” button and choose “Run”. (Suppose
“E” is your CD-ROM drive). When the dialog box appears, enter “E:\

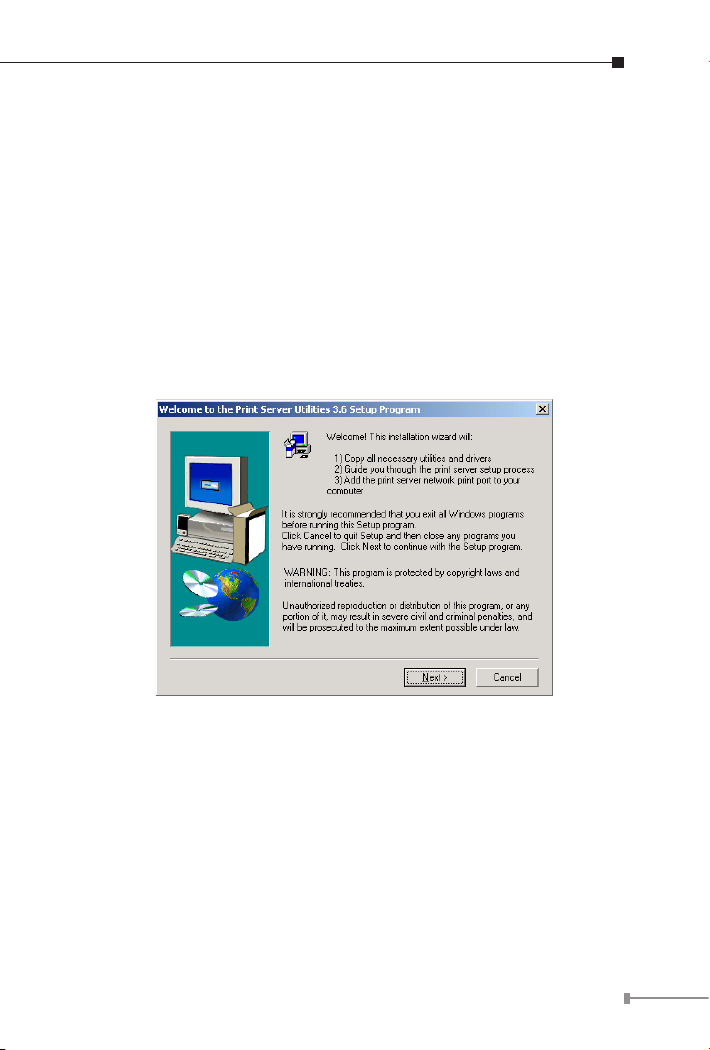

Utility\Setup.exe” and press enter key. You will see the dialog box as
below.Pleaseclick“Next”tocontinue.
8
3.Specify the destination folder where the utility will be installed. Click
“Next”.
4. Select the components you want to install. It is highly recommended
to install all provided components in administrator installation. Please
click“Next”.
9
5. Specify the program folder name where the program icons will be
addto.Pleaseclick“Next”tostartinstallation.
6.For a while, the program will nish installing utility and driver you
selected. Thus far you have completed the installation phase and
prepare to congure the Print Server. The “Choose Print Server”
dialog box will be displayed as following. Please select the print
serverandclick“Next”.
10
7.“Name the print Server”, you can assign an easy to memorize name
formanagement.Butnotethat,thisnamewillbethe“Identier”for
the Peer-to-Peer Printing.
Note
If this is the first time you configure the print server, the
“PrintServerName”willthesameasthe“DeviceName”
printed at the bottom of the print server.
