Planet ICA-HM136 Manual de usuario

2 Mega-Pixel Outdoor IR IP Camera

ICA-HM136 / ICA-HM315W

Quick Installation Guide

Table of Contents

1. Introduction ............................................................................................... 3

1.1 Before Installation ............................................................................... 3

1.2 System Requirements .......................................................................... 3

2. Physical Description and Installation ............................................................. 4

2.1 ICA-HM136 2 Mega-Pixel 15M IR Vandal Proof Dome IP Cam.................. 4

2.1.1 ICA-HM136 Package Content ....................................................... 4

2.1.2 ICA-HM136 Physical Details......................................................... 4

2.1.3 ICA-HM136 I/O Control Instruction .............................................. 4

2.1.4 ICA-HM136 Installation ............................................................... 6

2.2 ICA-HM315W 2 Mega-Pixel Wireless Outdoor IR IP Camera..................... 7

2.2.1 ICA-HM315W Package Content .................................................... 7

2.2.2 ICA-HM315W Physical Details ...................................................... 7

2.2.3 ICA-HM315W Installation ............................................................ 8

3. Camera Windows Utility .............................................................................. 9

3.1 ICA-HM136 / ICA-HM315W IP Assignment............................................. 9

Further Information ........................................................................................12

1. Introduction

Thank you for purchasing the PLANET 2 Mega-Pixel Wired/Wireless IP-Camera. It

is versatile and high image solution of surveillance application for day and night.

The video can be stored in the SD card and playback remotely. With user friendly

interface, it is an easy-to-use IP camera which is designed for security application.

The PLANET IP Camera support Multi-Prole function can stands for simultaneously

video streams. These Network Cameras can generate H.264, MPEG-4 and M-JPEG

streaming simultaneously to different clients. Moreover, the resolution can be

different from one client to another. This state-of-art design is considerable to t in

various network environments.

1.1 Before Installation

Before installation, please be sure to read this quick installation guide and user’s

manual (CD) carefully to complete machine installation. This guide shows how to

quick set up the two cameras, unless model name specied terms “IP Camera” will

be used for these two models.

1.2 System Requirements

CPU Intel Dual Core 1.66G

RAM 1024MB

Graphic card 128MB

Display Resolution 1024 x 768 24bits

Operating System Windows 2000, XP, 2003, Vista 32bit, Win7 32bit

Network Ethernet 10/100 Base-T

2. Physical Description and Installation

2.1 ICA-HM136 2 Mega-Pixel 15M IR Vandal Proof Dome IP Cam

2.1.1 ICA-HM136 Package Content

Camera unit x 1

Power Adapter x 1

Accessories Kit x 1

User’s Manual CD-ROM x 1

Quick Installation Guide x 1

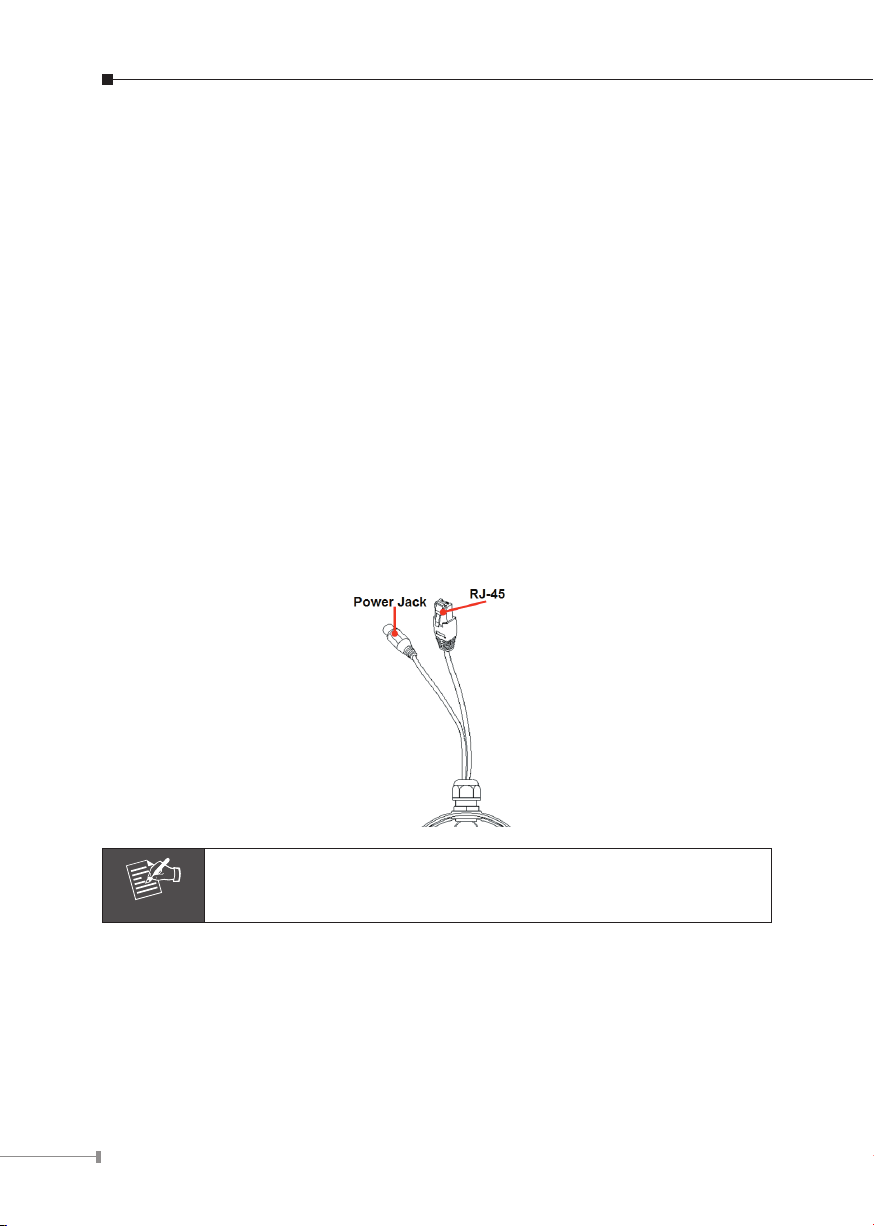

2.1.2 ICA-HM136 Physical Details

1. RJ-45 LAN socket: Connect to PC or Hub/Switch.

For connect to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This

Ethernet port built N-Way protocol can detect or negotiate the transmission speed

of the network automatically. Please use CAT-5 cable to connect the Network

Camera to a 100Mbps Fast Ethernet network switch or hub.

2. Power Jack: The input power is DC 12V.

Note

ONLY use package power adapter supplied with the internet.

Otherwise, the product may be damaged.

2.1.3 ICA-HM136 I/O Control Instruction

I/O terminal connector – used in application, for e.g., motion detection, event

triggering,

Digital Input:l(GND+Alarm)

An alarm input for connecting devices that can toggle between an open and closed

circuit, for example: PIRs, door/window contacts, glass break detectors, etc. When

a signal is received the state changes and the input becomes active.

Relay output:l(COM +N.O.) / (COM+N.C.)

An output to Relay switch, for example: LEDs, Sirens, etc.

1. Digital Input/Alarm Input:

1) GND (Ground): Initial state is LOW

2) Alarm: Max. 50mA, DC 3.3V

2. Relay Output:

1) N.C. (Normally Close): Max. 1A, 24VDC or 0.2A, 125~240VAC

2) COM: (Common)

3) N.O. (Normally Open): Max. 1A, 24VDC or 0.2A, 125~240VAC

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

RELAY OUT

ALARM IN

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

Door/Window

Contacts IN

3. Relay Connection:

1) Digital Input connection

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

RELAY OUT

ALARM IN

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

Door/Window

Contacts IN

2) Relay Output Connection

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

RELAY OUT

ALARM IN

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

Door/Window

Contacts IN

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

RELAY OUT

ALARM IN

N.O

COM

N.C

GND

ALARM IN

AUDIO OUT

MIC IN

GND

VIDEO OUT

Door/Window

Contacts IN

4.MIC_IN:

Connect a microphone to the network camera.

5.AUDIO_OUT

Connect a loud speaker to the network camera. This is for voice alerting and

two-way audio.

2.1.4 ICA-HM136 Installation

1. Fix IR camera to desired location with stand

2. Plug-in Ethernet Cable into RJ45 connector (LAN port)

3. Connect the attached power adapter to camera and plug-in this adapter into power

outlet

4. Connect Video BNC connector to a TV set if necessary (to check camera viewing

angle and focus)

5. Done.

2.2 ICA-HM315W 2 Mega-Pixel Wireless Outdoor IR IP Camera

2.2.1 ICA-HM315W Package Content

IP Camera Unit x 1

Power Adapter x 1

Screw package x 1

Stand x 1

Antenna x 1

User’s Manual CD-ROM x 1

Quick Installation Guide x 1

2.2.2 ICA-HM315W Physical Details

1. RJ-45 LAN socket: Connect to PC or Hub/Switch.

For connect to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This

Ethernet port built N-Way protocol can detect or negotiate the transmission speed

of the network automatically. Please use CAT-5 cable to connect the Network

Camera to a 100Mbps Fast Ethernet network switch or hub.

DC 12V

I/O terming

Video output

Microphone input (RED)

Microphone output (Green)

Network

2. I/O Control Instruction

I/O terminal connector – used in application, for e.g., motion detection, event

triggering, alarm notications. It provides the interface to:

3. Digital Input (GND + Alarm)

An alarm input for connecting devices that can toggle between an open and closed

circuit, for example: PIRs, door/window contacts, glass break detectors, etc. When

a signal is received the state changes and the input becomes active.

4. Relay output (COM +N.O.) / (COM+N.C.)

An output to Relay switch, for example: LEDs, Sirens, etc

5. Digital Input/Alarm Input

1) GND (Ground): Initial state is LOW

2) Alarm: Max. 50mA, DC 3.3V

6. Relay Output

1) N.C. (Normally Close): Max. 1A, 24VDC or 0.2A, 125~240VAC

2) COM: (Common)

3) N.O. (Normally Open): Max. 1A, 24VDC or 0.2A, 125~240VAC

7. Power Jack

The input power is DC 12V.

Note

ONLY use package power adapter supplied with the internet.

Otherwise, the product may be damaged.

8. MIC in (audio in)

Connect a microphone to the network camera.

9. Line out (audio out)

Connect a loud speaker to the network camera. This is for voice alerting and

two-way audio.

2.2.3 ICA-HM315W Installation

1. Fix IR camera to desired location with stand

2. Plug-in Ethernet Cable into RJ45 connector (LAN port)

3. Connect the attached power adapter to camera and plug-in this adapter into

power outlet

4. Connect Video BNC connector to a TV set if necessary (to check camera viewing

angle and focus)

5. Done

3. Camera Windows Utility

This chapter shows how to quick set up your H.264 IP Camera. The H.264 IP

Camera is with the default settings. However to help you nd the networked

camera quickly the windows utility (PLANET IP Installer) can search the cameras in

the network that shall help you to congure some basic setting before you started

advanced management and monitoring.

Please insert the bundle CD disk into your CD/DVD-ROM drive. When the welcome

web page appears, please click your IP camera name on the IP camera list. Then

click the PLANET IP Installer hyperlink to start the PLANET IP Installer.

3.1 ICA-HM136 / ICA-HM315W IP Assignment

1. Use “PLANET IP Installer” to assign an IP address of IP CAMERA.

The PLANET IP Installer software is in the attached CD.

2. IP Installer supports languages.

PLANET IP Installer.exe

3. OS: Windows XP SP2 or above. If the following “Windows Security

Alert” popup, please click “Unblock”.

4.The GUI of IP Installer is as follows (Default IP: 192.168.0.20).

IP Installer will search all IP Cameras connected on LAN. The user can clickl

“Search Device” to search again.

Click one of IP Cameras listed on the left side of IP Installer, then the networkl

conguration of that IP Camera will be listed on the right side. If parameters

changed, click on “Submit”. Then, the network conguration will be changed.

Just click “OK” to reboot

Please make sure the subnet of PC IP address and IP CAM IP address are thel

same.

For Example:

IP CAM IP address: 192.168.0.20

PC IP address: 192.168.0.100

Otros manuales para ICA-HM136

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara IP de Planet

Planet

Planet ICA-500 Manual de usuario

Planet

Planet ICA-HM131 Manual de usuario

Planet

Planet ICA-HM351 Manual de usuario

Planet

Planet RS-21 KLMR Manual de usuario

Planet

Planet ICA-107 Manual de usuario

Planet

Planet Internet Camera ICA-110 Manual de usuario

Planet

Planet ICA-HM125 Manual de usuario

Planet

Planet ICA-HM315W Manual de usuario

Planet

Planet ICA-501 Manual de usuario

Planet

Planet ICA-3350V Manual de usuario

Planet

Planet ICA-3260 Manual de usuario

Planet

Planet ICA-3350V Manual de usuario

Planet

Planet ICA-100 Manual de usuario

Planet

Planet ICA-W7100 Manual de usuario

Planet

Planet ICA-100C-V2 Manual de usuario

Planet

Planet ICA-300 Manual de usuario

Planet

Planet ICA-HM101 Manual de usuario

Planet

Planet ICA-HM830 Manual de usuario

Planet

Planet ICA-151 Manual de usuario

Planet

Planet ICA-108 Manual de usuario

Planet

Planet ICA-108 Manual de usuario

Planet

Planet ICA-100C Manual de usuario

Planet

Planet ICA-H610 Manual de usuario

Planet

Planet ICA-5350V Manual de usuario

Manuales populares de Cámara IP de otras marcas

FLIR

FLIR Exx series Manual de usuario

Avigilon

Avigilon H4A-BO1-IR Manual de usuario

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manual de usuario

ShareTech

ShareTech AV1 Manual de usuario

Ezviz

Ezviz C6C Manual de usuario

Melchioni

Melchioni UCAM 2015 Manual de usuario

Geutebruck

Geutebruck G-Cam/ESD-4630 Manual de usuario

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manual de usuario

Mitel

Mitel 6800i Series Manual de servicio

Vitek

Vitek VTC-IR403-212NP Manual de usuario

THOMSON

THOMSON DSC - 323W Manual de usuario

AVer

AVer FB2027 Manual de usuario

ENFORCER

ENFORCER EV-T5105-N2SQ Manual de usuario

Wansview

Wansview NC543 Manual de usuario

Eneo

Eneo MCB-64A0003M0A Manual de usuario

deView electronics

deView electronics CBDNI36F Manual de usuario

Swann

Swann SwannEye Manual de usuario

LevelOne

LevelOne IP CamSecure Manual de usuario
