Planet ICA-3350V Manual de usuario

3 Mega-Pixel Vari-Focal IR / Fisheye IP Camera

ICA-3350V / ICA-5350V / ICA-8350

Quick Installation Guide

Table of Contents

Chapter 1. Introduction .................................................................................... 3

1.1 Before Installation ............................................................................... 3

1.2 System Requirements .......................................................................... 3

Chapter 2. Physical Description and Installation.................................................. 4

2.1 ICA-3350V 3 Mega-Pixel Vari-Focal Bullet IR IP Camera.......................... 4

2.1.1 Package Content ........................................................................ 4

2.1.2 Physical Details .......................................................................... 4

2.1.3 Installation ................................................................................ 6

2.2 ICA-5350V 3 Mega-Pixel Vandal Proof IR IP Camera............................... 7

2.2.1 Package Content ........................................................................ 7

2.2.2 Physical Details .......................................................................... 7

2.2.3 Installation ................................................................................ 9

2.3 ICA-8350 3 Mega-Pixel Vandal Proof Fisheye IP Camera ........................10

2.3.1 Package Content .......................................................................10

2.3.2 Physical Details .........................................................................10

2.3.3 Installation ...............................................................................12

Chapter 3. Camera Windows Utility ..................................................................13

Further Information ........................................................................................16

Chapter 1. Introduction

Thank you for purchasing the PLANET 3 Mega-Pixel Vari-Focal IR / Fisheye IP

Camera. It is versatile and high image solution of surveillance application for

day and night. The PLANET IP Camera support Multi-Prole function can stands

for simultaneously video streams. These Network Cameras can generate H.264,

MPEG-4 and M-JPEG streaming simultaneously to different clients. Moreover, the

resolution can be different from one client to another. This state-of-art design is

considerable to t in various network environments.

1.1 Before Installation

Before installation, please be sure to read this quick installation guide and user’s

manual (CD) carefully to complete machine installation. This guide shows how to

quick set up these cameras, unless model name specied terms “IP Camera” will

be used for these three models.

1.2 System Requirements

CPU Intel Dual Core 2.4GHz or higher

RAM 2GB (above Recommended)

Video RAM 256MB (above Recommended)

Display Resolution 1280x1024 24bits or above

Operating System Windows XP / Vista / Win7

DirectX 10 or above

Network Wired Ethernet 100Base-TX

Chapter 2. Physical Description and Installation

2.1 ICA-3350V 3 Mega-Pixel Vari-Focal Bullet IR IP Camera

2.1.1 Package Content

ICA-3350V x 1

Power Adapter x 1

Accessory Kit x 1

User’s Manual CD x 1

Quick Installation Guide x 1

Note

If any of the above items are missing, please contact your dealer

immediately.

2.1.2 Physical Details

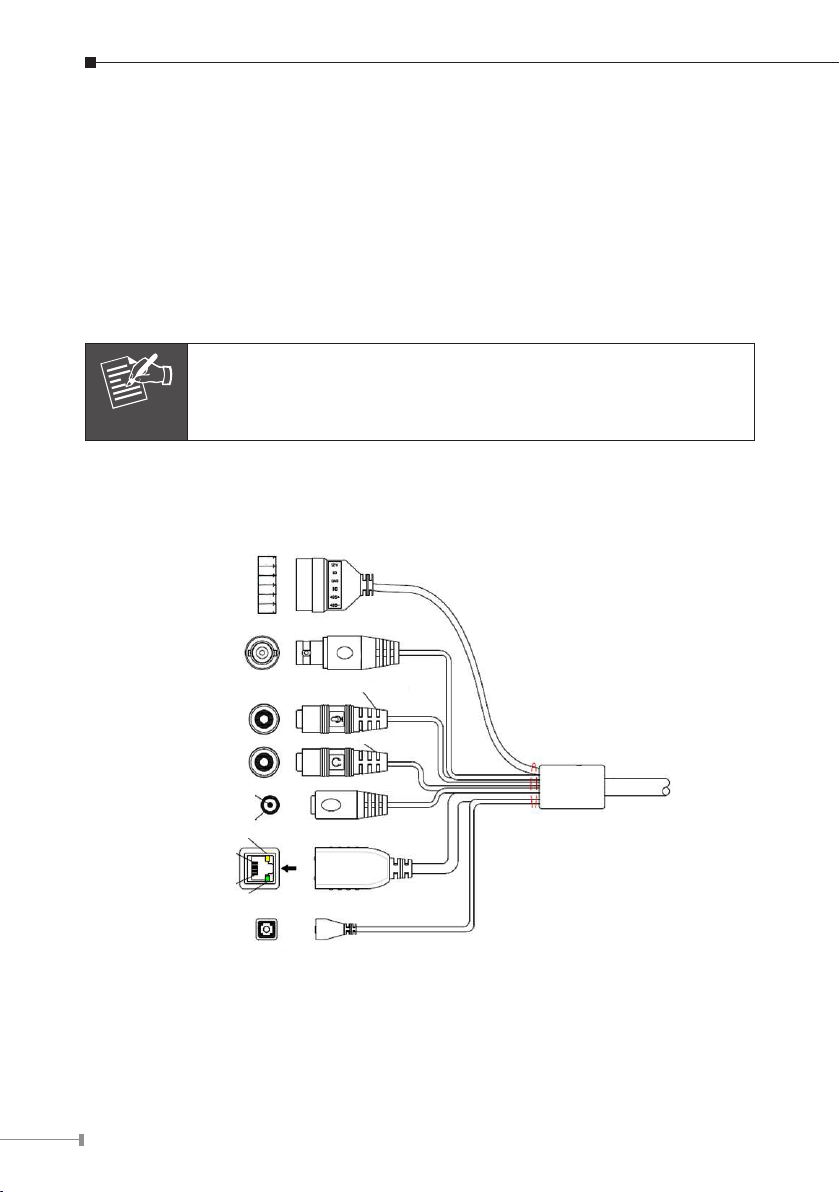

ICA-3350V Connector

DI/DO

MIC

AUDIO

RJ-45

RESET

VIDEO

12V

GND

485+

485-

Color Green

Green

LED

Orange

LED

–

Color Pink

Interface Description

RJ45 LAN

socket

Connects to your local area network by Ethernet cable.

LAN LED (green color)

This LED will be ashing while network accessing via Ethernet.

Power LED (orange color)

This LED is used to indicate whether DC power is on or not.

DC-in Jack

DC power input, connect to AC power adapter.

Note

To ensure maximum compatibility, use only the power

adapter that came with your product. Otherwise, the

product may be damaged.

RS-485 &

Digital I/O

RS-485: Connect to a local keyboard controller.

DI/ DO: Connect to sensor in and alarm out devices.

Cable for I/O connectors:

Name Number Function

12VDC 1DC 12V (50mA maximum)

DI 2Digital signal input

GND 3GND

DO 4Digital signal output

485+ 5RS485 data +

485- 6RS485 data -

MIC in

(Audio in) Connect a microphone to the network camera.

Audio out Connect a loud speaker to the network camera. This function is

for voice alerting and two-way audio.

Video out

(BNC

connector)

The Network Camera also provides composite video output.

The video output function is only for easy installation to check

view angle and focus. The output is not a Mega-Pixel resolution.

Furthermore, only “720P Mode” supports this function. “2 Mega

Mode” does not support it. Please refer to Setting \ Video \

Common chapter.

Reset

This button is used to restore the all factory default settings.

Sometimes restarting the device will make the system back to

a normal state. However, if the system still got problems after

restart, user can restore the factory default settings and install it

again.

Restore the device:

1. While the Camera is ready and then press the button down

continuously.

2. Hold the button at least 5 seconds and release it. Then the

device has been restored to default settings and reboot again.

Note

Restoring the factory default setting will lose the all

previous settings included IP address forever. User

needs to run the IPWizard II program to search the

device and congure it to let the device work properly

again.

2.1.3 Installation

1. Fix IR camera to desired location with wall mount xture.

2. Plug-in Ethernet Cable into RJ-45 connector.

Connect an Ethernet cable to the LAN socket located on the Network Camera’s

back panel and attach it to the network.

3. Connect RS485 D+ and D- (if you need to control PT scanner).

4. Connect the attached power adapters to camera and heater (option/by model)

and plug-in these adapters into power outlet.

5. Done.

2.2 ICA-5350V 3 Mega-Pixel Vandal Proof IR IP Camera

2.2.1 Package Content

ICA-5350V x 1

Power Adapter x 1

Accessory Kit x 1

User’s Manual CD x 1

Quick Installation Guide x 1

Note

If any of the above items are missing, please contact your dealer

immediately.

2.2.2 Physical Details

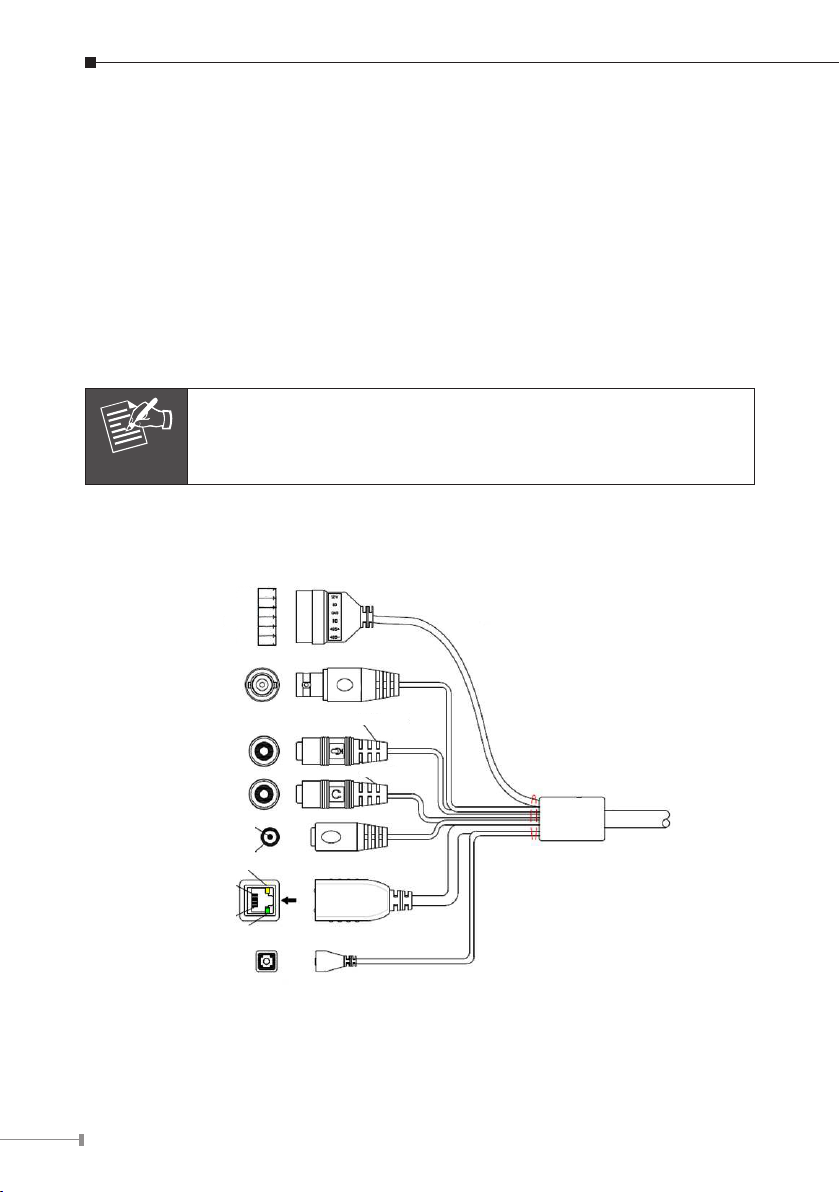

ICA-5350V Connector

DI/DO

MIC

AUDIO

RJ-45

RESET

VIDEO

12V

GND

485+

485-

Color Green

Green

LED

Orange

LED

–

Color Pink

Interface Description

RJ45 LAN

socket

Connects to your local area network by Ethernet cable.

LAN LED (green color)

This LED will be ashing while network accessing via Ethernet.

Power LED (orange color)

This LED is used to indicate whether DC power is on or not.

DC-in Jack

DC power input, connect to AC power adapter.

Note

To ensure maximum compatibility, use only the power

adapter that came with your product. Otherwise, the

product may be damaged.

RS-485 &

Digital I/O

RS-485: Connect to a local keyboard controller.

DI/ DO: Connect to sensor in and alarm out devices.

Cable for I/O connectors:

Name Number Function

12VDC 1DC 12V (50mA maximum)

DI 2Digital signal input

GND 3GND

DO 4Digital signal output

485+ 5RS485 data +

485- 6RS485 data -

MIC in

(Audio in) Connect a microphone to the network camera.

Audio out Connect a loud speaker to the network camera. This function is

for voice alerting and two-way audio.

Video out

(BNC

connector)

The Network Camera also provides composite video output.

The video output function is only for easy installation to check

view angle and focus. The output is not a Mega-Pixel resolution.

Furthermore, only “720P Mode” supports this function. “2 Mega

Mode” does not support it. Please refer to Setting \ Video \

Common chapter.

Reset

This button is used to restore the all factory default settings.

Sometimes restarting the device will make the system back to

a normal state. However, if the system still got problems after

restart, user can restore the factory default settings and install it

again.

Restore the device:

1. While the Camera is ready and then press the button down

continuously.

2. Hold the button at least 5 seconds and release it. Then the

device has been restored to default settings and reboot again.

Note

Restoring the factory default setting will lose the all

previous settings included IP address forever. User

needs to run the IPWizard II program to search the

device and congure it to let the device work properly

again.

2.2.3 Installation

1. Fix IR camera to desired location with wall mount xture.

2. Plug-in Ethernet Cable into RJ-45 connector.

Connect an Ethernet cable to the LAN socket located on the Network Camera’s

back panel and attach it to the network.

3. Connect RS485 D+ and D- (if you need to control PT scanner).

4. Connect the attached power adapters to camera and heater (option/by model)

and plug-in these adapters into power outlet.

5. Done.

2.3 ICA-8350 3 Mega-Pixel Vandal Proof Fisheye IP Camera

2.3.1 Package Content

ICA-8350 x 1

Power Adapter x 1

Accessory Kit x 1

User’s Manual CD x 1

Quick Installation Guide x 1

Note

If any of the above items are missing, please contact your dealer

immediately.

2.3.2 Physical Details

ICA-8350 Connector

DI/DO

MIC

AUDIO

RJ-45

RESET

VIDEO

12V

GND

485+

485-

Color Green

Green

LED

Orange

LED

–

Color Pink
