Planar LA1550TS Manual de usuario

LA1550TS

USER MANUAL

www.planar.com

LA1550TS User Manual 2

The information contained in this document is subject to change without notice. This

document contains proprietary information that is protected by copyright. All rights are

reserved. No part of this document may be reproduced, translated to another language

or stored in a retrieval system, or transmitted by any means, electronic, mechanical,

photocopying, recording, or otherwise, without prior written permission. Windows is

registered trademark of Microsoft, Inc.

Other brand or product names are trademarks of their respective holders.

Important Recycle Instruction:

Lamp(s) inside this product contains mercury. This product may contain other electronic

waste that can be hazardous if not disposed of properly. Recycle or dispose in

accordance with local, state or federal laws. For more information, contact the

Electronic Industries Alliance at www.eiae.org. For lamp specific disposal information,

check www.lamprecycle.org.

LA1550TS User Manual 3

Table of Contents

I. Usage Notice 4

Precautions 6

II. Package Overview 7

III. Installation 8

Product Overview 8

VESA Mount your Monitor 9

Connect the Display 10

Warning-Explosion Hazard 10

Special installation Instructions 11

IV. User Controls 12

Front Panel Controls 12

How to use the OSD 13

On-Screen Display Menus 14

V. Appendix 15

Troubleshooting 15

Warning Signal 146

Product Dimensions 147

Compatibility Modes 16

Manufacturer’s Instructions 18

Compliance Information 20

LA1550TS User Manual 4

I. Usage Notice

This apparatus is suitable for use in Class I, Division 2 group A, B, C, D or

unclassified locations.

WARNING- EXPLOSION HAZARD –DO NOT DISCONNECT EQUIPMENT

UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE

NONHAZARDOUS.

AVERTISSEMENT –RISQUE D’ECPLOSION – AVANT DE DECONNECTER

L’EEQUIPEMENT, COUPER LE COURANT OU S’ASSURER QUE L’EMPLACEMENT

EST DESIGNE NON DANGEREUX.

WARNING- SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY

FOR CLASS1, DIVISION 2.

AVERTISSEMENT –RISQUE D’EXPLOSION – LA SUBSTITUTION DE

COMPOSANTS PEUT RENDRE CE MATERIEL INACCEPTABLE POUR LES

EMPLACEMENTS DE CLASSE I, DIVISION 2.

Warning –Please do not open or disassemble the product as this

may cause electric shock.

LA1550TS User Manual 5

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s

manual to maximize the life of your unit.

Do:

Disconnect the power plug before cleaning

Touch screen surfaces may be cleaned using a soft clean cloth moistened

with mild window glass commercial cleaners or 50/50 mixture of water and

isopropyl alcohol.

Use a soft cloth moistened with mild detergent to clean the display housing.

Use only high quality and safety approved AC/DC adapter.

Disconnect the power plug from AC outlet if the product is not going to be

used for an extended period of time.

Don’t:

Do not touch the LCD display screen surface with sharp or hard objects.

Do not use abrasive cleaners, waxes or solvents for your cleaning.

Do not operate the product under the following conditions:

Extremely hot, cold or humid environment

Areas susceptible to excessive dust and dirt

Near any appliance generating a strong magnetic field

In direct sunlight

LA1550TS User Manual 6

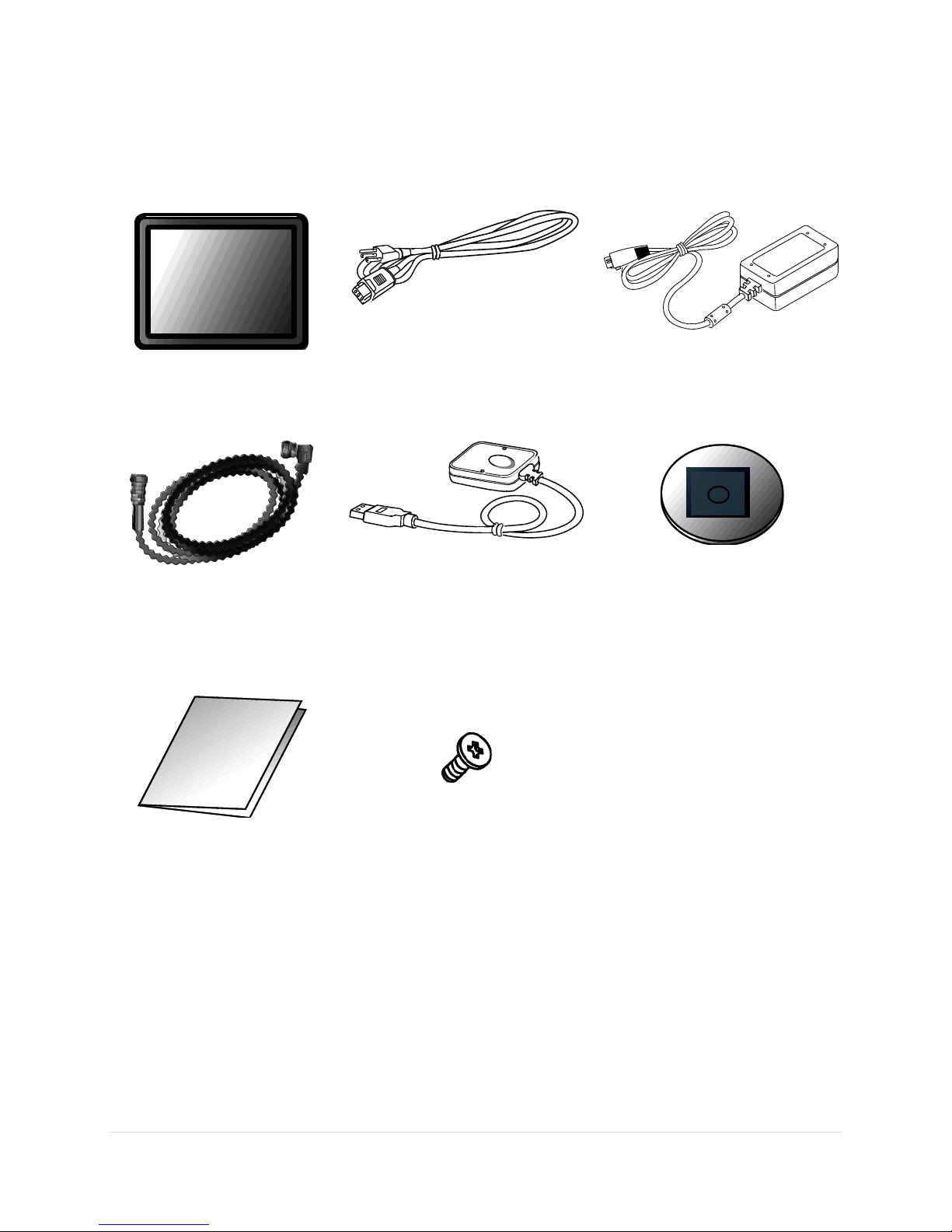

II. Package Overview

LCD Display

Power Cord

DC Power Supply

Wall to monitor

Cable

USB Transmitter

Touch Driver CD

Manual

VESA Mount Screws

M4*8

LA1550TS User Manual 7

III. Installation

Product Overview

• Front View

LA1550TS User Manual 8

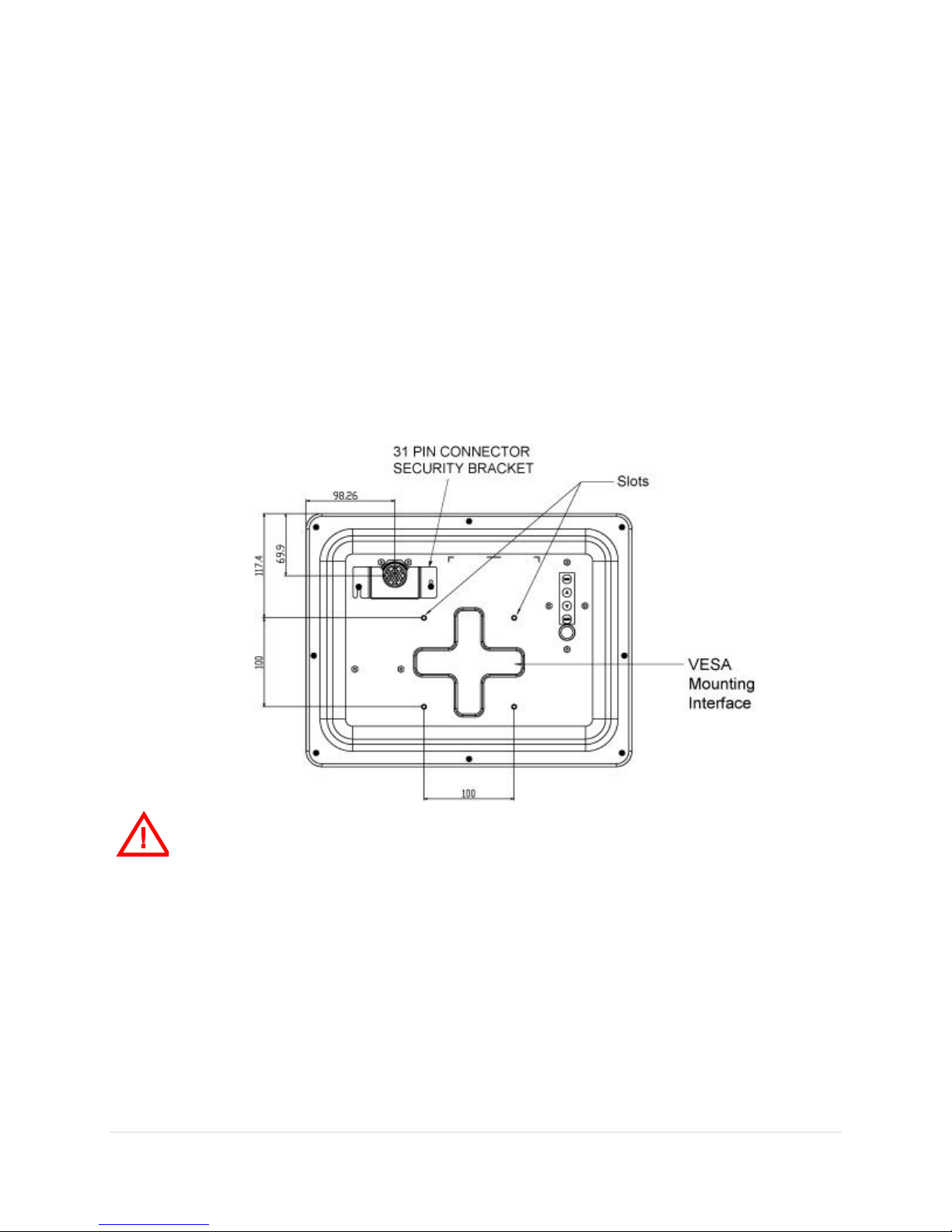

VESA Mount your Monitor

This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface

Standard which defines a physical mounting interface for flat panel monitors, and

corresponding with the standards of flat panel monitor mounting devices, such as wall

and table arms. The VESA mounting interface is located on the back of your monitor.

To mount the monitor on a swing arm or other mounting fixture, follow the instructions

included with the mounting fixture to be used. Please note to mount your monitor to the

devices (either mounting fixture or swing arm) what conforms to the UL listed.

Warning!

Please select the proper screws! The distance between the back cover surface and the

bottom of the screw hole is 8mm. Please use four M4 screws diameter with the

maximum length of 8mm to mount your monitor.

Please note the mounting stand shall be able to sustain at least 7Kg weight.

LA1550TS User Manual 9

Connecting the Display

To setup this display, please refer to the following figure and procedures.

1. Be sure all equipments are turned off.

2. Connect the Paint Booth Cable to the connector on the back cover of the monitor.

3. Connect the Extension Cable to the Paint Booth Cable and the other end to PC.

4. Connect D-SUB connector from the extension Cable to VGA output connector on

PC.

5. Connect RJ-45 connector from extension cable to USB Transmitter device and

connect USB Transmitter device to PC USB port.

6. Connect power connector to 110VAC power brick..

7. Connect Power cord to power brick and the other end into AC socket.

Notice!

To ensure the LCD display works well with your computer, please configure the display

mode of your graphics card to make it less than or equal to 1024 x 768 resolution and

make sure the timing of the display mode is compatible with the LCD display.

We have listed the compatible “Video Modes” of your LCD display in the appendix

(on page 18) for your reference.

Attention

This equipment is suitable for use in Class I, Division 2, Group A, B, C, D, or Non-

Hazardous Locations Only.

LA1550TS User Manual 10

Warning-Explosion Hazard

Do not disconnect equipment unless power has been switched OFF or the area is

known to be non-hazardous.

Special installation Instructions

Install system as per diagram above by qualified personnel in accordance with

NFPA 70 (NEC) Article 500 (contact an electrician if you have any questions or

concerns about the installation).
