Installation guide
Type 100-22L, 100-33L and 100-44L
•Min distance from front facing wall, 0 mm
•Min distance from right or left wall, 100 mm
•Min distance between two bike stands is 0 mm (if bikes are on different heights, otherwise 200 mm between)
•Width of room is 3600mm
•Width of room with bike stands on two opposite walls is 5600mm

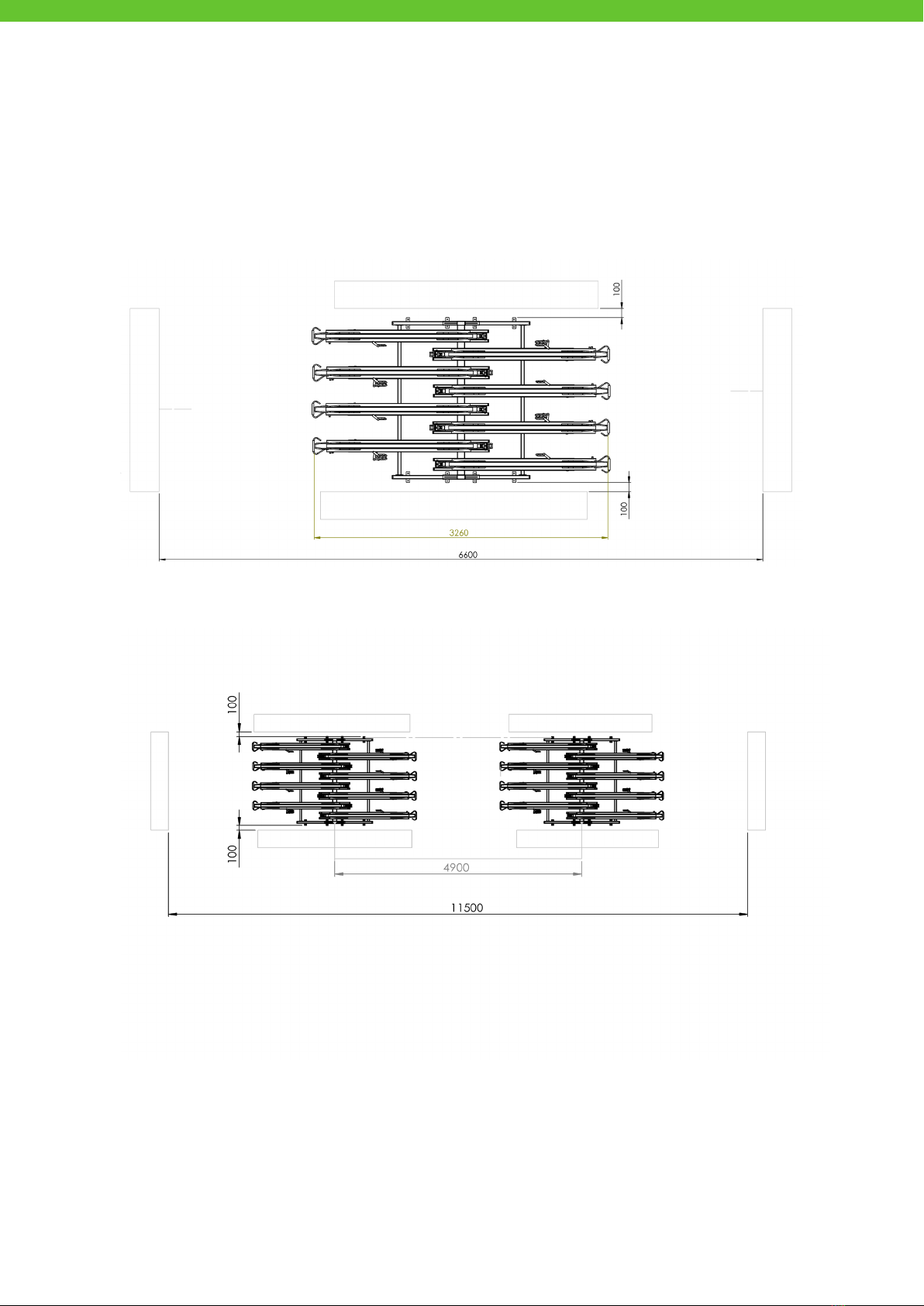

Type 100-2222, 100-3333 and 100-4444
•Min distance from right or left wall, 100 mm
•Min distance between two bike stands is 0 mm (if bikes are on different heights, otherwise 200 mm
• between)
•Min width of room with one bike stand is 6600mm
•Min width of room with two bike stands is 11500mm
•C-C distance between two bike stands is 4900mm
Type 300-22L, 300-33L, 300-44L, 400-22UL, 400-33UL and
400-44UL
•Min distance from front facing wall, 0 mm
•Min distance from right or left wall, 100 mm
•Min distance between two bike stands is 0 mm (if bikes are on different heights, otherwise 200 mm between)
•Width of room is 3600mm
•Width of room with bike stands on two opposite walls is 5600mm
Type 300-2222, 300-3333, 300-4444, 400-2222U,
400-3333U, 400-4444U
•Min distance from right or left wall, 100 mm
•Min distance between two bike stands is 0 mm (if bikes are on different heights, otherwise 200 mm
• between)
•Min width of room with one bike stand is 6600mm
•Min width of room with two bike stands is 11500mm
•C-C distance between two bike stands is 4900mm
11500
Type 500-1
For rooms with more than 2100mm between floor and ceiling
•If the ceiling height is at least 2100 the measurements must be made from the floor
•The recommended distance from the floor, 810 mm (1860 mm to upper hole)
•Min distance from right wall to centre of hole, 400 mm
•Min distance from left wall to centre of hole, 310 mm
•Min distance between two Type 5 is 600 mm if
mounted on same height
•If the ceiling height is at least 2100 mm the
Type 5 can be mounted in a zig-zag pattern
For rooms with less than 2100 mm between floor and ceiling
• Min distance from ceiling, 89mm
(distance ceiling to upper hole is 244 mm)
• Min distance from right wall to centre of hole, 400 mm
• Min distance from left wall to centre of hole, 310 mm
• Min distance between two Type 5 is 600 mm if mounted on same height
•Min. width of room with one bike 3000 mm
•Min. width of room with two bikes on opposite walls 4000 mm
Type 600-4
•Min distance from front facing wall, 140 mm
•Distance from wall to right or left side, 120 mm
•Min distance between two bike stands is 0 mm
•Min width of room is 3600mm
•Min width of room for bike stands on both sides is 5600mm
Type 600-5
•Min distance from front facing wall, 140 mm
•Distance from wall to right or left side, 120 mm
•Min distance between two bike stands is 0 mm
Type 700-2
• Min distance from front wall, 10 mm
• Min distance from right or left wall, 90 mm
• If wheel holders are on different height is the minimum distance between two bike stands 0 mm.
• If wheel holders are on same height is the minimum distance between two bike stands 180mm.
