Pioneer VSX-D488 Manual de uso y mantenimiento

ORDER NO.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER ELECTRONIC CORPORATION 1999

RRV2098

T – ZZK JAN. 1999 Printed in Japan

¶Refer to the service manual RRV1911 for VSX-D507S/KUXJI.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model

VSX-D488

Type Power Requirement Remarks

KUXJI

KCXJI

AUDIO/VIDEO MULTI-CHANNEL RECEIVER

VSX-D488

‡AC120V

VSX-D488

1. CONTRAST OF MISCELLANEOUS PARTS

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

Screws adjacent to mark on product are used for disassembly.

Reference Nos. indicate the pages and Nos. in the service manual for the base model.

NOTES:

CONTRAST TABLE

VSX-D488/KUXJI and VSX-D507S/KUXJI are constructed the same except for the following :

PACKING

P3- 3 Operating Instructions (English) ARB7134 ARB7179

P3- 4 NSP Warranty Card ARY1051 ARY7023

P3- 5 Remote Control Unit (CU-VSX127) AXD7158 Not used

P3- 5 Remote Control Unit (CU-VSX154) Not used AXD7211 *1

P3-11 Packing Case AHD7554 AHD7731

P3-13 Sub Instructions (English) ARH7033 Not used

EXTERIOR SECTION

P5-14 AC Power Cord PDG1063 PDG1064

P5-19 Rear Panel ANC7624 ANC7797

FRONT PANEL SECTION

P6-17 Front Panel AMB7486 AMB7607

P6-19 PIONEER Badge PAM1755 PAM1776

Part No.

VSX-D507S

/KUXJI

Ref. No. Symbol and Description Remarks

Mark VSX-D488

/KUXJI

VSX-D488/KCXJI and VSX-D507S/KCXJI are constructed the same except for the following :

PACKING

P3- 3 Operating Instructions (English/French) ARE7165 ARE7203

P3- 4 NSP Warranty Card ARY1075 ARY7024

P3- 5 Remote Control Unit (CU-VSX127) AXD7158 Not used

P3- 5 Remote Control Unit (CU-VSX154) Not used AXD7211 *1

P3-11 Packing Case AHD7601 AHD7731

P3-13 Sub Instructions (English) ARH7033 Not used

EXTERIOR SECTION

P5-14 AC Power Cord PDG1063 PDG1064

P5-19 Rear Panel ANC7670 ANC7798

FRONT PANEL SECTION

P6-17 Front Panel AMB7486 AMB7607

P6-19 PIONEER Badge PAM1755 PAM1776

Part No.

VSX-D507S

/KCXJI

Ref. No. Symbol and Description Remarks

Mark VSX-D488

/KCXJI

*1 : refer to “2. REMOTE CONTROL UNIT [CU-VSX154 (AXD7211)]”.

VSX-D488

2. REMOTE CONTROL UNIT [CU-VSX154 (AXD7211)]

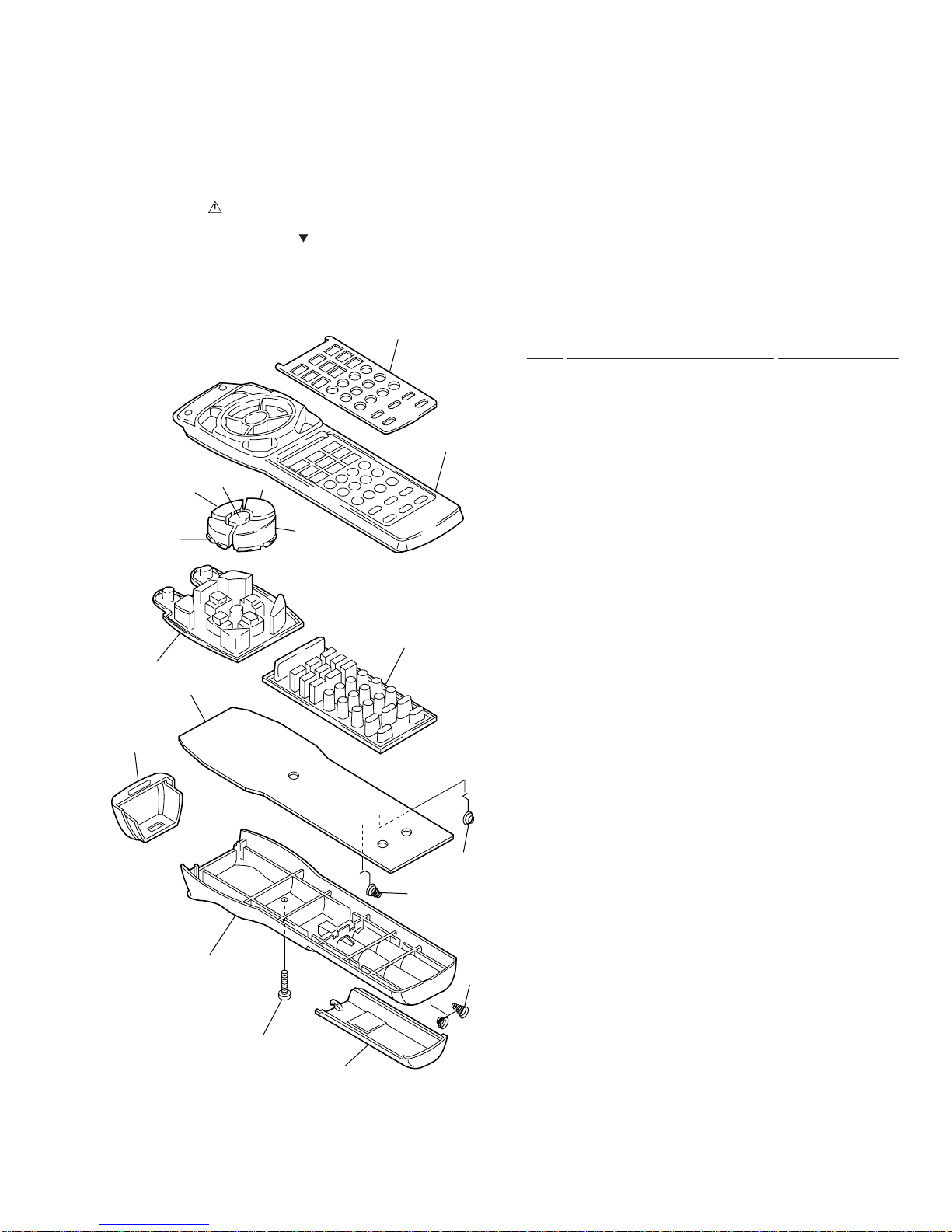

2.1 EXPLODED VIEWS AND PARTS LIST

•Parts List

Mark No. Description Part No.

1 Filter AZA7152

2 Name Plate AZA7323

3 Rubber Sheet (A) AZA7324

4 Rubber Sheet (B) AZA7322

5 Spring (+) AZB7049

6 Spring (–) AZB7050

7 Spring AZB7051

8 Screw AZB7052

9 Remo-con Case (A) AZN7766

10 Remo-con Case (B) AZN7326

11 Battery Cover AZN7327

12 Main Key (FF) AZN7666

13 Main Key (STOP) AZN7767

14 Main Key (REV) AZN7665

15 Main Key (PAUSE) AZN7768

16 Main Key (PLAY) AZN7765

NSP 17 PCB AZW7248

NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

•The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

•Screws adjacent to mark on the product are used for disassembly.

VSX-D488

1234

8 16 24 32 40

7 15 23 31 39

6 14 22 30 38

5 13 21 29 37

4 12 20 28 36

3 11 19 27 35

2 10 18 26 34

1 9 17 25 33

No.

128

3.0V

T4T3

4.0MHz

RLS-73

KEY No.

47Ω

100kΩ

1.8ΩR2

220Ω

IC1

AZC7284

R18

Q4Q3Q2 R5

100kΩ

R10

R13

R16R15R14

R12R11

R9R8 D11

D14

D17

SE303A-C

1/50

2SC3265

D16D15

D13D12

D10D9

Q2 - Q4 : RN4605 ×3

D9 - D17 : CL-230HR-CD ×9

R8 - R16 : 240Ω×9

P0D1

P0D0

P0C3

P0C2

P0C1

P0C0

P0B3

P0B2

P0B1

P0B0

P0A3

P0A2

P0A1

P0A0

P0D2

P0D3

P0D2

P0D1

P0E3

P0E2

P0E0

INT

P0E0

P0E1

P0E2

P0E3

REM

VDD

XOUT

XIN

GND

RESET

WDOUT

220/6.3 C2

47/10

K01 : AMP (POWER)

K02 : TV (POWER)

K03 : MUTING

K04 : POWER

K05 : TV FUNC.

K06 : VOL.-

K07 : VOL.+

K08 :

K09 :

K10 :

K11 :

K12 : ENT.

K13 : CH-

K14 : CH+

K15 : DVD

K16 : LD/SAT

K17 : CD

K18 : VCR1

K19 : TUNER

K20 : TV CONTROL

K21 : No key

K22 : SURROUND

K23 : No key

K24 : 1

K25 : 2

K26 : 3

K27 : 4

K28 : 5

K29 : 6

K30 : 7

K31 : 8

K32 : 9

K33 : 10 (0)

K34 : 11 (+10)

K35 : 12 (DISC)

K36 : No key

K37 : FUNCTION

K38 : MODE CHECK

K39 : No key

K40 : COMMANDER SET UP

SWITCHES

Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST"

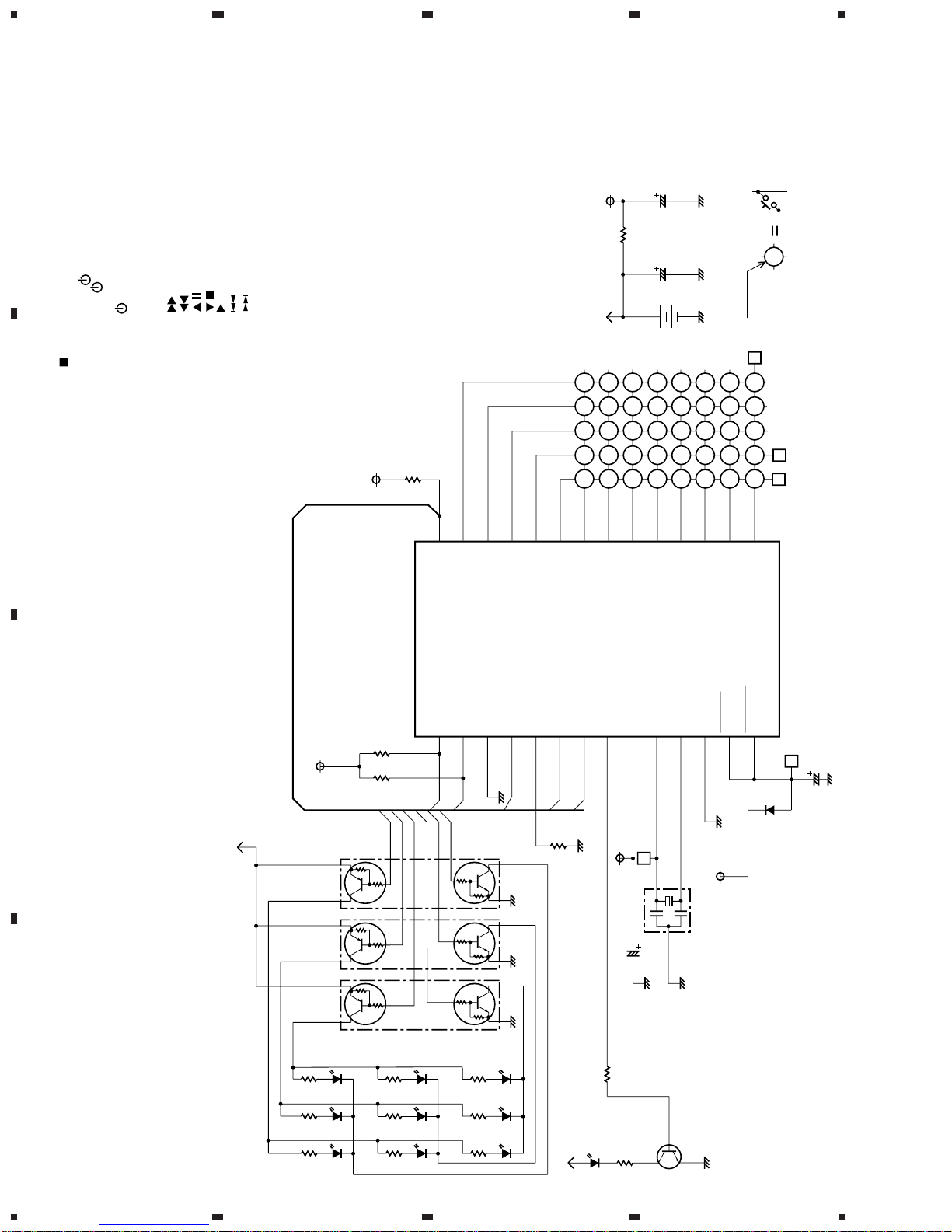

2.2 SCHEMATIC DIAGRAM

VSX-D488

1234

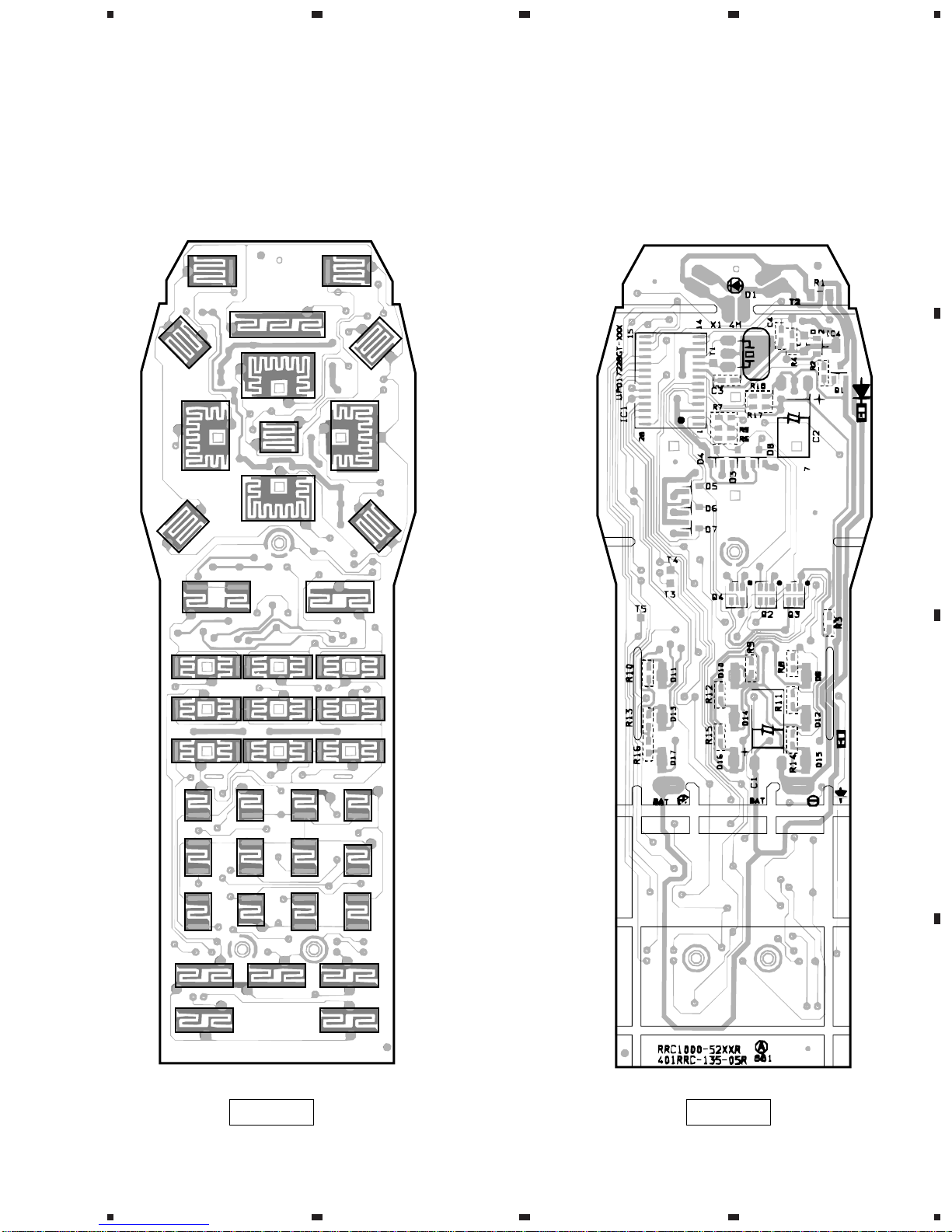

2.3 PCB DIAGRAM

K01

K04

K10

K12

K11

K09

K03

K07

K05

K06

K13

K15

K02

K08

K14

K16 K17

K18

K24

K20 K19

K21

K37 K36 K38

K39 K40

K22 K23

K25 K26 K27

K33

K28 K29 K30

K32 K34 K35

K31

SIDE A SIDE B

VSX-D488

2.4 PCB PARTS LIST

Mark No. Description Part No.

SEMICONDUCTORS

IC1 AZC7284

Q1 2SC3265

Q2-Q4 RN4605

D1 SE303A-C

D2 RLS-73

D9-D17 CL-230HR-CD

CAPACITORS

C2 CEAT470M10

C1 CEAT221M6R3

C3,C4 CEATR10M50

RESISTORS

R1 RS1/8S1R8J

Other Resistors RS1/10S J

OTHERS

X1 CERAMIC RESONATOR KBR-4.0M

(4MHz)

NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

•The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

•When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,

and K=10%).

560 Ω→56 × 101→561 ........................................................ RD1/4PU 56

47k Ω→47 × 103→473 ........................................................ RD1/4PU

0.5 Ω→R50 ..................................................................................... RN2H R5

1 Ω→1R0 ..................................................................................... RS1P 1R

Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).

5.62k Ω→ 562 × 101→5621 ...................................................... RN1/4PC 56
