MVH-MS512BS Operation Manual

Mode d’emploi

Manual de operación

Important (Serial number)

The serial number is located on the bottom of this unit. For your own security and convenience, be sure to

record this number on the enclosed warranty card.

Important (Numéro de série)

Le numéro de série se trouve au bas de cet appareil. Pour votre sécurité et votre commodité, veillez à noter ce

numéro sur la carte de garantie fournie.

Importante (Número de serie)

El número de serie se encuentra en la parte inferior de esta unidad. Por su propia seguridad y comodidad,

asegúrese de anotar este número en la tarjeta de garantía que se adjunta.

- 2 -

English

Getting Started ........................................................................................ 3

Radio.......................................................................................................... 7

USB/iPhone®/AUX.................................................................................... 8

Bluetooth ............................................................................................... 10

Pandora® ................................................................................................ 14

Spotify® .................................................................................................. 16

SiriusXM Satellite Radio ...................................................................... 18

Using Pioneer Smart Sync/APP.......................................................... 21

Audio Adjustments .............................................................................. 24

Settings .................................................................................................. 26

FUNCTION settings ............................................................................... 26

AUDIO settings ...................................................................................... 28

SYSTEM settings.................................................................................... 31

ILLUMINATION settings........................................................................ 34

MIXTRAX settings.................................................................................. 35

Additional Information ....................................................................... 37

About this manual:

•In the following instructions, a USB memory or USB audio player are referred to as

“USB device”.

Table of Contents

- 3 -- 3 -

English

MVH-MS512BS

Optional remote control

The marine wired remote control CD-ME300 is sold separately.

Frequently used operations

Getting Started

Basic operation

Purpose Operation

Turn on the power* Press SRC/OFF to turn on the power.

Press and hold SRC/OFF to turn off the

power.

Adjust the volume Turn the M.C. dial.

Select a source Press SRC/OFF repeatedly.

Change the display information Press DISP repeatedly.

Return to the previous display/list Press BAND/.

Return to the normal display from the menu Press and hold BAND/.

Change the display brightness (not

available when [SIRIUSXM] is selected as a

source)

Press and hold BAND/.

SRC (source)/OFF

Detach button

Display window

M.C. (multi-control) dial

BAND/

DISP (display)

(navigation)/LIST

USB port

AUX input jack (3.5 mm stereo jack)

BASS

- 4 -

English

* When this unit’s blue/white lead is connected to the boat’s auto-antenna relay control terminal, the

boat’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source

off.

Display indication

Detach the front panel to prevent theft. Remove any cables and devices attached to the

front panel and turn off the unit before detaching it.

Important

•Avoid subjecting the front panel to excessive shock.

•Keep the front panel out of direct sunlight and high temperatures.

•Always store the detached front panel in a protective case or bag.

Answering a call Press any button.

Ending a call Press .

Boost the bass level Press BASS.

•You can select the bass level ([HI] or

[LOW]) in [D.BASS] (page 30).

Indication Description

Appears when a lower tier of the menu or folder exists.

BASS Appears when the BASS function is activated.

Appears when random/shuffle play is set (except when BT AUDIO is

selected as the source).

Appears when repeat play is set (except when BT AUDIO is selected as the

source).

Appears when a Bluetooth connection is made (page 10).

APP Appears when a Pioneer Smart Sync connection is made (page 21).

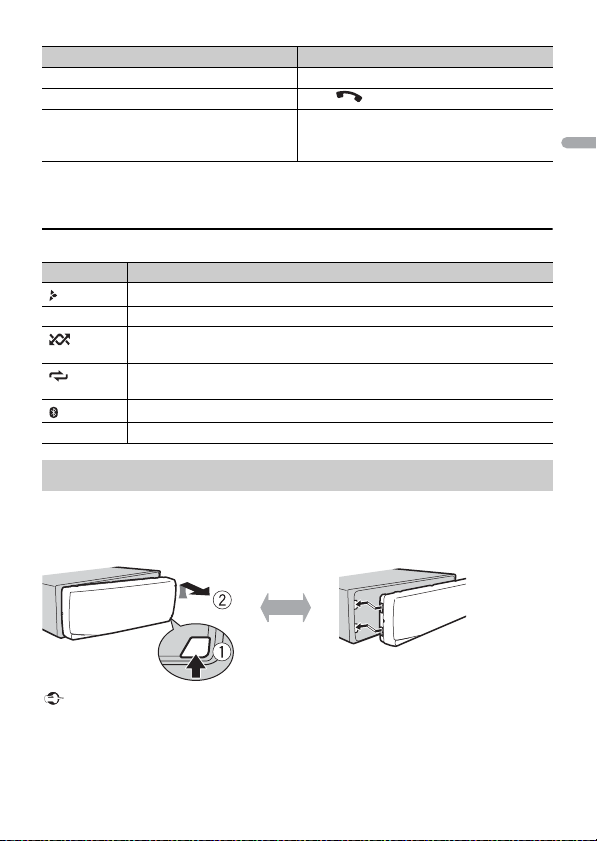

Detaching the front panel

Purpose Operation

Detach Attach

- 5 -- 5 -

English

The microprocessor must be reset in the following situations:

– Before using this unit for the first time after installation

– If the unit fails to operate properly

– When strange or incorrect messages appear on the display

1Remove the front panel (page 4).

2Press the RESET button with a pointed instrument longer than 8 mm.

When you turn the ignition switch to ON after installation, the setup menu appears in

the display.

NOTE

If your boat’s ignition has no ACC position, some settings are not saved to the memory. To save, detach

the front panel or wait for the unit to shut off completely 10 seconds after turning it off by pressing and

holding SRC/OFF (when [ON] is selected in [PW SAVE]), then turn the ignition off.

WARNING

Do not use the unit in standard mode when a speaker system for network mode is connected to the

unit. Do not use the unit in network mode when a speaker system for standard mode is connected to

the unit. This may cause damage to the speakers.

1Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

Resetting the microprocessor

Setup menu

Menu Item Description

LANGUAGE Select the language to display the text information from a

compressed audio file.

[ENG](English),

[ESP](Spanish),

[FRA] (Canadian

French)

RESET button

- 6 -

English

2[QUIT :YES] appears.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO],

then press to confirm.

3Press the M.C. dial to confirm the settings.

NOTE

These settings other than [SPEAKER MODE] can be made at any time from the SYSTEM settings

(page 31).

1Press the M.C. dial to display the main menu.

2Turn the M.C. dial to select [SYSTEM], then press to confirm.

3Turn the M.C. dial to select [DEMO OFF], then press to confirm.

4Turn the M.C. dial to select [YES], then press to confirm.

1Press and hold SRC/OFF until the unit turns off.

CLOCK SET Set the clock.

1Turn the M.C. dial to adjust the hour, then press to confirm.

The indicator moves to the minute setting automatically.

2Turn the M.C. dial to adjust the minute, then press to confirm.

SPEAKER MODE Switch between two operation modes: the 2-way network mode

(NETWORK) and the standard mode (STANDARD) according to

the connections you have established. For details on operation

modes, see page 24.

After selecting the appropriate mode, turn the M.C. dial to

select [YES], then press to confirm.

•You cannot complete the setup menu without setting the

[SPEAKER MODE].

•Once the speaker mode is set, this setting cannot be changed

unless the default settings of this product are restored. Restore

the default settings to change the speaker mode setting (refer

to SYSTEM RESET on page 7).

•When [NETWORK] is selected, the beep tone function is not

available.

[STANDARD],

[NETWORK]

Canceling the demonstration display (DEMO OFF)

INITIAL settings

Menu Item Description

- 7 -- 7 -

English

2Press and hold SRC/OFF to display the main menu.

3Turn the M.C. dial to select [INITIAL], then press to confirm.

4Turn the M.C. dial to select an option, then press to confirm.

The tuner frequencies on this unit are allocated for use in North America. Use in other

areas may result in poor reception.

1Press SRC/OFF to select [RADIO].

2Press BAND/ to select the band from [FM1], [FM2], [FM3] or [AM].

3Press a number button (1/ to6/).

TIP

The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the

FUNCTION settings (page 26).

The six strongest stations are stored on the number buttons (1/ to6/).

Menu Item Description

REAR-SP Select when there is a full-range speaker connected to the rear

speaker output leads.

[FUL]

[SW] Select when there is a subwoofer connected directly to the rear

speaker output leads without any auxiliary amplifier.

SYSTEM UPDATE Select [SYSTEM INFO] to confirm the latest system information

on the unit.

Select [S/W UPDATE] to update the unit to the latest software

and initialize the unit settings. For details on the latest software

and updating, visit our website.

[SYSTEM INFO], [S/

W UPDATE]

SXM RESET Select to initialize the SiriusXM settings.

[YES], [NO]

SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be

restarted automatically.

[YES], [NO]

Radio

Receiving preset stations

Best stations memory (BSM)

- 8 -

English

1After selecting the band, press the M.C. dial to display the main menu.

2Turn the M.C. dial to select [FUNCTION], then press to confirm.

3Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1After selecting the band, press / to select a station.

Press and hold / then release to seek an available station. Scanning stops

when the unit receives a station. To cancel seek tuning, press / .

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 26).

To store stations manually

1While receiving the station you want to store, press and hold one of the number

buttons (1/ to6/ ) until it stops flashing.

(iPhone source is not available when [USB MTP] is set to [ON] in the SYSTEM settings

(page 32).)

Disconnect headphones from the device before connecting it to the unit.

USB devices (including Android™)/iPhone

1Open the USB port cover.

2Plug in the USB device/iPhone using an appropriate cable.

NOTE

To automatically switch to USB source when a USB device/iPhone is connected to the unit, set [USB

AUTO] to [ON] in the SYSTEM settings (page 33).

CAUTION

Use a USB cable (sold separately) to connect the USB device as any device connected directly to the

unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

USB/iPhone®/AUX

Playing back

- 9 -- 9 -

English

AOA connections

A device running Android OS 4.1 or higher (before OS 8.0) installed and also supports

AOA (Android Open Accessory) 2.0 can be connected to the unit via AOA using the cable

supplied with the device. Most devices running Android OS 8.0 or later do not support

AOA 2.0.

NOTE

If you use an AOA connection, [APP CONTROL] needs to be set to [WIRED] (page 32) and [USB MTP]

needs to be set to [OFF] (page 32) in the SYSTEM settings.

MTP connection

A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP,

using the cable supplied with the device. However, depending on the connected device, OS version or

the numbers of the files in the device, audio files/songs may not be able to be played back via MTP.

Note thatMTP connection isnot compatible with WAV file formats and FLAC file formats, and cannot be

used with the MIXTRAX function.

NOTE

If you use an MTP connection, [USB MTP] needs to be set to [ON] in the SYSTEM settings (page 32).

AUX

1Insert the stereo mini plug into the AUX input jack.

2Press SRC/OFF to select [AUX IN] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX IN] cannot be selected as a source (page 32).

You can make various adjustments in the FUNCTION settings (page 26) (except for AUX

IN/USB source).

Note that the following operations do not work for an AUX device. To operate an AUX

device, use the device itself.

Operations

Purpose Operation

Select a folder*1 Press 1/ or2/.

Select a track/song (chapter) Press or .

Fast forward or reverse*2 Press and hold or .

Search for a file from a list (USB only) 1Press and hold to display the list.

2Turn the M.C. dial to select the desired

file (folder) name or category, then press

to confirm.

3Turn the M.C. dial to select the desired

file, then press to confirm.

Playback starts.

- 10 -

English

*1 Compressed audio files only

*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may

be not correct.

The MIXTRAX function creates a non-stop mix of your music library, accompanied by

illumination effects. For details on MIXTRAX settings, see page 35.

NOTES

•iPhone needs to be connected with Pioneer Smart Sync via USB for using this function (page 21).

•Depending on the file/song, sound effects may not be available.

•Turn the MIXTRAX function off if the illumination effects it produces interfere with driving.

1Press 3/MIX to turn MIXTRAX on/off.

Important

If ten or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may not

work properly.

TIP

The next connection to the unit is performed automatically if the Bluetooth device has been connected

previously in the following steps.

1Turn on the Bluetooth function of the device.

If you make a Bluetooth connection from the device, proceed to step 4.

2Press to display the [ADD DEVICE] setting.

View a list of the files in the selected folder/

category*1

Press the M.C. dial when a folder/category

is selected.

Play a song in the selected folder/

category*1

Press and hold the M.C. dial when a folder/

category is selected.

Repeat play Press 6/.

Random/shuffle play Press 5/.

Pause/resume playback Press 4/PAUSE.

Return to root folder (USB only)*1 Press and hold 1/.

About MIXTRAX (USB/iPhone only)

Bluetooth

Bluetooth connection

Purpose Operation

Otros manuales para MVH-MS512BS

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Receptor de Pioneer

Pioneer

Pioneer Elite VSX-43 Manual de usuario

Pioneer

Pioneer SC-LX501 Manual de usuario

Pioneer

Pioneer MVH-2300NEX Manual de usuario

Pioneer

Pioneer VSX23TXH - Elite 7.1 Channel Audio/Video... Manual de usuario

Pioneer

Pioneer Elite SC-25 Manual de usuario

Pioneer

Pioneer MVH-S310BT Manual de usuario

Pioneer

Pioneer AVH-X5800BHS Manual de usuario

Pioneer

Pioneer Elite SC-72 Manual de usuario

Pioneer

Pioneer SX-2500 Guía de configuración

Pioneer

Pioneer VSX91TXH - Elite AV Receiver Manual de usuario

Pioneer

Pioneer VSX-AX5Ai-S Manual de usuario

Pioneer

Pioneer VSX-C300 Manual de usuario

Pioneer

Pioneer VSX-828-K, VSX-828-S, VSX-528- Manual de usuario

Pioneer

Pioneer 7.1 VSX-AX2AV-S Manual de usuario

Pioneer

Pioneer VSX-1016V-K Manual de usuario

Pioneer

Pioneer Elite VSX-60 Manual de usuario

Pioneer

Pioneer SC-LX901 Guía de instalación

Pioneer

Pioneer HTP-2920 Manual de usuario

Pioneer

Pioneer Elite VSX-33 Manual de usuario

Pioneer

Pioneer PDP-R03E Manual de usuario

Pioneer

Pioneer VSX-919AH-S Manual de usuario

Pioneer

Pioneer AVH-X8650BT Manual de usuario

Pioneer

Pioneer 1014TX-K - THX Select A/V Receiver Manual de usuario

Pioneer

Pioneer VSX-AX3-K Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
