Pioneer Elite PD-F17 Manual de usuario

ORDER NO.

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER ELECTRONIC CORPORATION 1999

KUXQ/CA O AC120V

FILE-TYPE COMPACT DISC PLAYER

RRV2112

T–ZZR MAR. 1999 Printed in Japan

PD-F17

¶Refer to the service manual RRV2085 for PD-F958/KUXQ/CA.

Remarks

Type Model

PD-F17 Power Requirement

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

1. CONTRAST OF MISCELLANEOUS PARTS .....2

2. SCHEMATIC DIAGRAM....................................8

3. PCB CONNECTION DIAGRAM ......................... 9

CONTENTS

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PD-F17

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES : ÷Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.

÷The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

÷Reference Nos. indicate the pages and Nos. in the service manual for the base model.

÷When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by

J = 5%, and K = 10%).

560 Ω=56 ×101 =561................................................... RD1/4PU 561J

47k Ω=47 ×10 3=473 .................................................. RD1/4PU 473J

0.5 Ω=R50 ...................................................................... RN2H Â50K

1 Ω=1R0 ......................................................................... RS1P 1Â0K

Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors).

5.62k Ω=562 ×10 1=5621 ........................................... RN1/4PC 5621F

7CONTRAST TABLE

PD-F17/ KUXQ/CA and PD-F958/KUXQ/CA are constructed the same except for the following:

Note : ÷The numbers in the remarks column correspond to the numbers on the exploded diagram, Refer to "EXPLODED VIEWS".

EXTERIOR

NSP MOTHER BOARD ASSY PWM2269 PWM2272

P6-1 MAIN BOARD ASSY PWZ3895 PWZ3898

P6-2 POWER BOARD ASSY PWZ3900 PWZ3902

P6-3 DISPLAY BOARD ASSY PWZ3904 PWZ3905

P6-4 NSP SWITCH BOARD ASSY PWZ3907 PWZ3908

NSP HEADPHONE BOARD ASSY Not used PWZ3911 No.1

NSP COAXIAL OUTPUT BOARD ASSY Not used PWZ3917 No.2

P6-14 Foot Assy REC1263 Not used

P6-18 Rear Base PNA2452 PNA2502

P6-20 Insulator PNW2766 PNW2766

(X2) (X4)

P6-46 Name Plate PAM1776 PAN1376

P6-50 Operation Panel PNW2869 PNW2918

P6-52 Hood PNW2865 PNW2919

Headphone Knob Not used PAC1707 No.3

LED Lens Not used PNW2019 No.4

SR Angle Not used PNB1192 No.5

PACKING

P3-5 NSP Warranty Card ARY7023 ARY7007

P3-7 Operating Instructions (English) PRB1278 PRB1289

P3-11 Packing Case PHG2337 PHG2374

Ref.

No. Remarks

PD-F958/ PD-F17/

KUXQ/CA KUXQ/CA

Part No.

Mark Symbol and Description

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PD-F17

EXPLODED VIEWS

EXTERIOR SECTION

Rear Base

Under Base

Screw (IBZ30P080FZK)

Screw (IBZ30P060FMC)

No.4

Operation Panel

lnsulator

No.3

No.1

Name Plate

No.5

No.2

Screw

(IBZ30P060FMC)

Screw

(BBZ30P080FZK)

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PD-F17

C81, C332, C333, C367, C461 Not used CKCYF103Z50

C475, C477, C4276, C4287 Not used CKCYF103Z50

C185, C323 CKCYF103Z50 Not used

C321 CFTLA104J50 Not used

C322 CEAT101M10 Not used

C331 Not used CEAT470M16

C341, C342 CCCCH120J50 Not used

C365, C395, C413– C416, C4277 Not used CFTLA104J50

C388, C389 Not used CCCSL101J50

C401 Not used CEAT471M6R3

C403 Not used CCCCH120J50

C404 Not used CCCCH220J50

C429, C430, C435– C438 Not used CCCSL390J50

C431, C432 Not used CEAT330M16

C481, C482 CCCSL390J50 Not used

CN401, CN951 Not used 52147-0310

D451, D452 Not used 1SS254

IC341 Not used PD0236AM

IC401 Not used PD2029A

IC406 Not used BA15218

JA321 GP1F32T Not used

L151, L152, L307, L309, L351 Not used RTF1167

Q451, Q452 Not used DTC124ES

Q453, Q454 Not used 2SJ103

R310– R312, R411– R413 Not used RD1/4PU241J

R341 RD1/4PU271J Not used

R342 RD1/4PU105J Not used

R364, R451, R452 Not used RD1/4PU103J

R365 RD1/4PU103J Not used

R375 RD1/4PU471J RD1/4PU241J

R401, R457, R458, R472, R473 Not used RD1/4PU102J

R405– R410 Not used RD1/4PU471J

R427– R430 Not used RD1/4PU223J

R435, R436 Not used RD1/4PU163J

R437, R438 RD1/4PU473J RD1/4PU163J

R439– R442 RD1/4PU823J RD1/4PU443J

R470, R471 Not used RD1/4PU470J

R481, R482, R485, R486 RD1/4PU223J Not used

R487– R490 RD1/4PU104J Not used

X341 PSS1008 Not used

X401 Not used PSS1008

Note : Refer to "2.SCHEMATIC DIAGRAM".

MAIN BOARD ASSY

PWZ3898 and PWZ3895 are constructed the same except for the following:

CONTRAST OF PCB ASSEMBLIES

Mark Symbol and Description Part No.

PWZ3895 PWZ3898 Remarks

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PD-F17

COAXIAL OUTPUT BOARD ASSY

(PWZ3917)

SEMICONDUCTORS

IC951 (LOGIC) TA74HCU04AP

COIL L952 (COIL) PTL1003

CAPACITORS

C959 CCCSL101J50

C954 CEAT101M10

C951 CEAT470M16

C955, C957, C958, C961 CFTLA104J50

C952 CKCYF103Z50

RESISTORS

R951, R953 RD1/4PU471J

R952 RD1/4PU750J

OTHERS

JA951 OPTICAL LINK OUT GP1F32T

JA952 1P JACK RKB1012

3P Cable Holder 51048-0300

J951 2mm JUMPER WIRE D20PDY0350G

Mark No. Description Part No.

HADPHONE BOARD ASSY (PWZ3911)

COILS AND FILTERS

L501, L504, L505 (AXIAL INDUCTOR) LAU1R0J

CAPACITORS

C503 CKCYF473Z50

RESISTORS

VR501 (0.5kΩΒ) PCS1003

OTHERS

JA501 HADPHONE JACK RKN1002

3P Cable Holder 51048-0300

J501 2mm JUMPER WIRE D20PDY0315E

C714 Not used CKCYF103Z50

NSP J703 Not used DE010WE0

Mark Symbol and Description Part No.

PWZ3904 PWZ3905 Remarks

DISPLAY BOARD ASSY

PWZ3905 and PWZ3904 are constructed the same except for the following:

Note : Refer to "2.SCHEMATIC DIAGRAM".

D751 Not used PCX1019

R751 Not used RD1/4PU471J

Mark Symbol and Description Part No.

PWZ3907 PWZ3908 Remarks

SWITCH BOARD ASSY

PWZ3908 and PWZ3907 are constructed the same except for the following:

Note : Refer to "2.SCHEMATIC DIAGRAM".

POWER BOARD ASSY

Although PWZ3900 and PWZ3902 are different in part number, they consist of the same components.

¶PCB PARTS LIST

Mark No. Description Part No.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PD-F17

1234

DISPLAY BOARD ASSY

SWITCH BOARD ASSY

SIGNAL ROUTE

: AUDIO SIGNAL

: EFM SIGNAL

: FOCUS SERVO LOOP

: TRACKING SERVO LOOP

: CARRIAGE SERVO LOOP

: SPINDLE DRIVE

: LOADING DRIVE

: DOOR DRIVE

(SEL)

(D)

(S)

(D)

223

23 3.4V

5.0V

1.7V

0.2V

1.6V

1.8V

1.6V

-O.7V

(F)

(T)

(F)

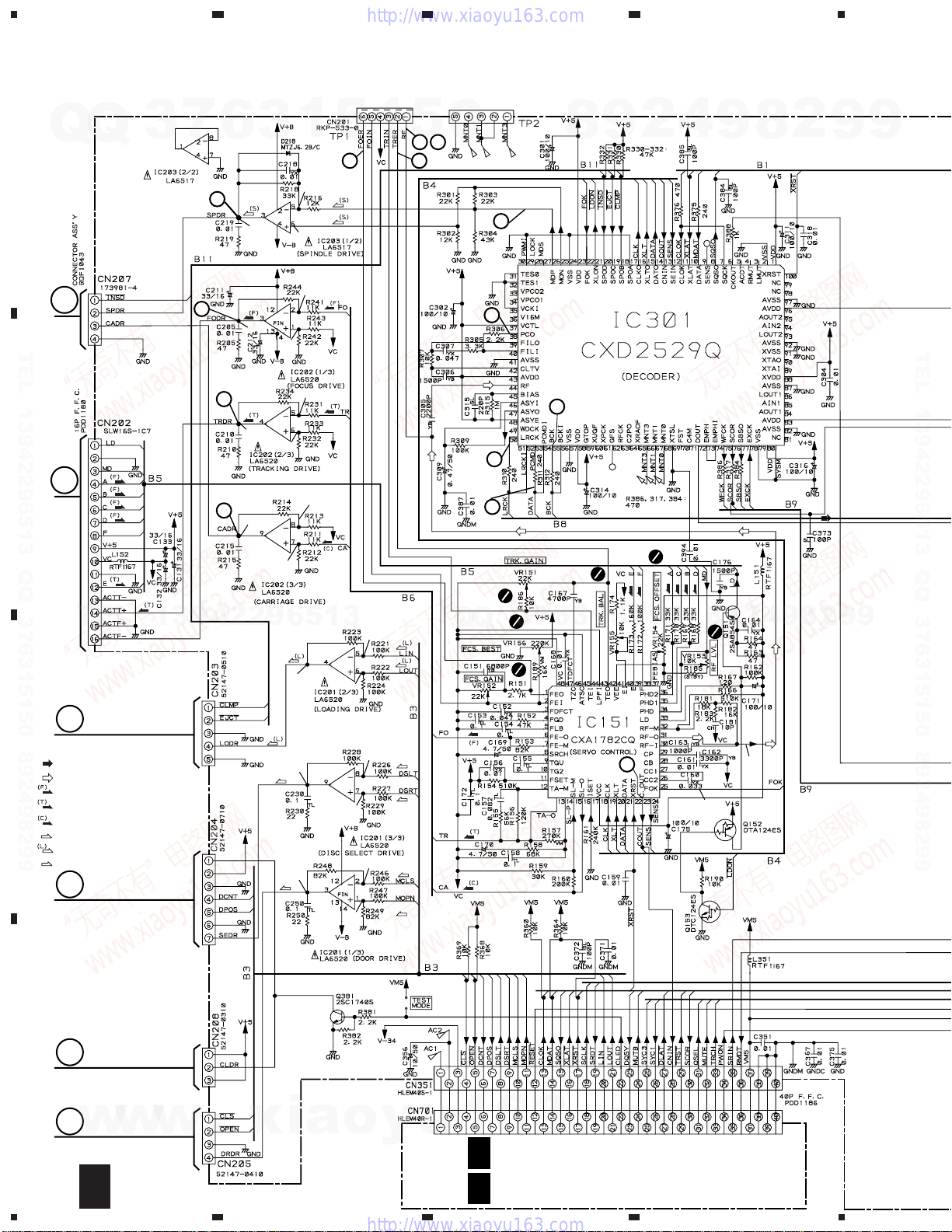

2. SCHEMATIC DIAGRAM

2.1 MAIN BOARD ASSY, HEADPHONE ASSY and COAXIAL OUTPUT ASSY

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PD-F17

5678

LINE OUT

JACK

MAIN BOARD ASSY

(PWZ3898: PD-F17

/KUXQ/CA)

TO POWER BOARD ASSY

-9.2

1.6V

J11

COAXIAL OUTPUT

BOARD ASSY

(PWZ3917)

Note:

The numbers marked with a circle show the number of each

measuring point, which correspond to the number in the

service manual PD-F958 (ORDER NO. RRV2085) on page12 .

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PD-F17

1234

2.2 DISPLAY BOARD ASSY, POWER BOARD ASSY and SWITCH BOARD ASSY

LFMFIF

SWITCH BOARD ASSY

DISPLAY BOARD ASSY

CN351

PD-F17/KUXQ/CA

:(PWZ3908)

POWER BOARD ASSY

(PWZ3902:PD-F17/KUXQ/CA)

(TO MAIN BOARD ASSY) CN11

PD-F17/KUXQ/CA

AC120V

TO MAIN BOARD ASSY

60Hz

AC POWER CORD

KUXQ/CA : PDG1064

P0WER TRANSFORMER

PD-F17/KUXQ/CA

:(PWZ3905)

PE5032A

CABLE HOLDER

51048– 1200

J703

DE010WE0

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

PD-F17

1234

3. PCB CONNECTION DIAGRAM

DEABC

HEAD PHONE BOARD ASSY

COAXIAL OUTPUT BOARD ASSY

CN401

SIDE A

NOTE FOR PCB DIAGRAMS:

1. Part numbers in PCB diagrams match those in the schematic

diagrams.

2. A comparison between the main parts of PCB and schematic

diagrams is shown below.

Symbol in PCB

Diagrams Symbol in Schematic

Diagrams Part Name

Transistor

with resistor

Field effect

transistor

BCE

DGS

BCE

BCEBCE

DGSDGS

3. The parts mounted on this PCB include all necessary parts

for several destination.

For further information for respective destinations, be sure

to check with the schematic diagram.

4. Viewpoint of PCB diagrams

Resistor array

3-terminal

regulator

CapacitorConnector

P. C. Board Chip Part

SIDE B

SIDE A

PNP1455-B

CN951

IC951

P Q

3.1 HEAD PHONE BOARD ASSY and COAXIAL OUTPUT BOARD ASSY

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com
