Pioneer DEH-M6217ZH Manual de usuario

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

C PIONEER CORPORATION 2001 K-ZZS. JUNE 2001 Printed in Japan

ORDER NO.

CRT2715

MULTI-CD CONTROL CD PLAYER WITH RDS TUNER

DEH-M6217ZH X1P/EW

Service

Manual

HONDA

VEHICLE DESTINATION PRODUCED AFTER HONDA PART No. ID No. PIONEER MODEL No.

CIVIC EUROPE JUNE 2001 39100-S5S-G500 DEH-M6217ZH/X1P/EW

-This service manual should be used together with the manual(s) listed below.

For the parts numbers, adjustments, etc. which are not shown in this manual,

refer to the following manual(s).

Model No. Order No. Mech. Module Remarks

DEH-M6006ZH/X1P/EW CRT2657

CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly

DEH-M6217ZH

EXTERIOR(Page 4)

-EXTERIOR SECTION PARTS LIST

Part No.

Mark No. Symbol and Description DEH-M6006ZH/X1P/EW DEH-M6217ZH/X1P/EW

20 Tuner Amp Unit UWM7108 UWM7930

Grille Assy CXB7681 CXB7776

Grille Assy

CXB7776

EXPLODED VIEWS AND PARTS LIST

PACKING(Page 3)

-PACKING SECTION PARTS LIST

Part No.

Mark No. Symbol and Description DEH-M6006ZH/X1P/EW DEH-M6217ZH/X1P/EW

5 Contain Box UHL-091 UHL-110

DEH-M6217ZH

ELECTRICAL PARTS LIST(Page 40)

-TUNER AMP UNIT

Part No.

Symbol and Description DEH-M6006ZH/X1P/EW DEH-M6117ZH/X1P/EW

R 209 RS1/16S682J RS1/16S562J

R 210 RS1/16S682J RS1/16S562J

R 211 RS1/16S822J RS1/16S153J

R 212 RS1/16S822J RS1/16S153J

R 301 RS1/16S133J RS1/16S123J

R 302 RS1/16S133J RS1/16S123J

R 313 RS1/16S683J RS1/16S563J

R 314 RS1/16S683J RS1/16S563J

R 315 RS1/16S563J RS1/16S683J

R 316 RS1/16S563J RS1/16S683J

R 317 RS1/16S152J RS1/16S122J

R 318 RS1/16S152J RS1/16S122J

R 319 RS1/16S132J RS1/16S102J

R 320 RS1/16S132J RS1/16S102J

R 321 RS1/16S182J RS1/16S222J

R 322 RS1/16S182J RS1/16S222J

R 323 RS1/16S222J RS1/16S472J

R 324 RS1/16S222J RS1/16S472J

R 329 RS1/16S753J RS1/16S683J

R 330 RS1/16S753J RS1/16S683J

R 331 RS1/16S683J RS1/16S563J

R 332 RS1/16S683J RS1/16S563J

R 333 RS1/16S122J RS1/16S102J

R 334 RS1/16S122J RS1/16S102J

R 337 RS1/16S682J RS1/16S153J

R 338 RS1/16S682J RS1/16S153J

R 339 RS1/16S392J RS1/16S182J

R 340 RS1/16S392J RS1/16S182J

R 345 RS1/16S683J RS1/16S563J

R 346 RS1/16S683J RS1/16S563J

R 347 RS1/16S753J RS1/16S683J

R 348 RS1/16S753J RS1/16S683J

R 349 RS1/16S152J RS1/16S122J

R 350 RS1/16S152J RS1/16S122J

R 351 RS1/16S132J RS1/16S102J

R 352 RS1/16S132J RS1/16S102J

R 353 Not used RS1/16S392J

R 354 Not used RS1/16S392J

R 357 RS1/16S0R0J Not used

R 358 RS1/16S0R0J Not used

R 361 RS1/16S682J RS1/16S472J

R 362 RS1/16S682J RS1/16S472J

DEH-M6217ZH

-TUNER AMP UNIT

Part No.

Symbol and Description DEH-M6006ZH/X1P/EW DEH-M6217ZH/X1P/EW

C 243 CKSRYB104K16 CKSRYB333K25

C 244 CKSRYB104K16 CKSRYB333K25

C 245 CKSRYB683K16 CKSRYB473K25

C 246 CKSRYB683K16 CKSRYB473K25

C 301 CKSRYB683K16 CKSRYB154K10

C 302 CKSRYB683K16 CKSRYB154K10

C 303 CKSRYB223K25 CKSRYB333K25

C 304 CKSRYB223K25 CKSRYB333K25

C 305 CKSRYB105K10 CKSRYB474K10

C 306 CKSRYB105K10 CKSRYB474K10

C 307 CKSRYB473K16 CKSRYB333K25

C 308 CKSRYB473K16 CKSRYB333K25

C 309 CKSRYB154K10 CKSRYB683K16

C 310 CKSRYB154K10 CKSRYB683K16

C 315 CKSRYB104K16 CKSRYB224K16

C 316 CKSRYB104K16 CKSRYB224K16

C 317 CKSRYB223K25 CKSRYB103K50

C 318 CKSRYB223K25 CKSRYB103K50

C 321 CKSRYB333K25 CKSRYB103K50

C 322 CKSRYB333K25 CKSRYB103K50

Tabla de contenidos

Otros manuales de Reproductor de CD de Pioneer

Pioneer

Pioneer CLD-3090 Manual de usuario

Pioneer

Pioneer CMX-3000 Manual de usuario

Pioneer

Pioneer LaserDisc CLD-2950 Manual de usuario

Pioneer

Pioneer Super Tunet IIID DEH-16 Manual de usuario

Pioneer

Pioneer CLD-900 Manual de usuario

Pioneer

Pioneer CDJ-400 - Cd/Media Player Manual de lista de piezas

Pioneer

Pioneer CLD-99 Manual de usuario

Pioneer

Pioneer CDJ-800MK2 Manual de usuario

Pioneer

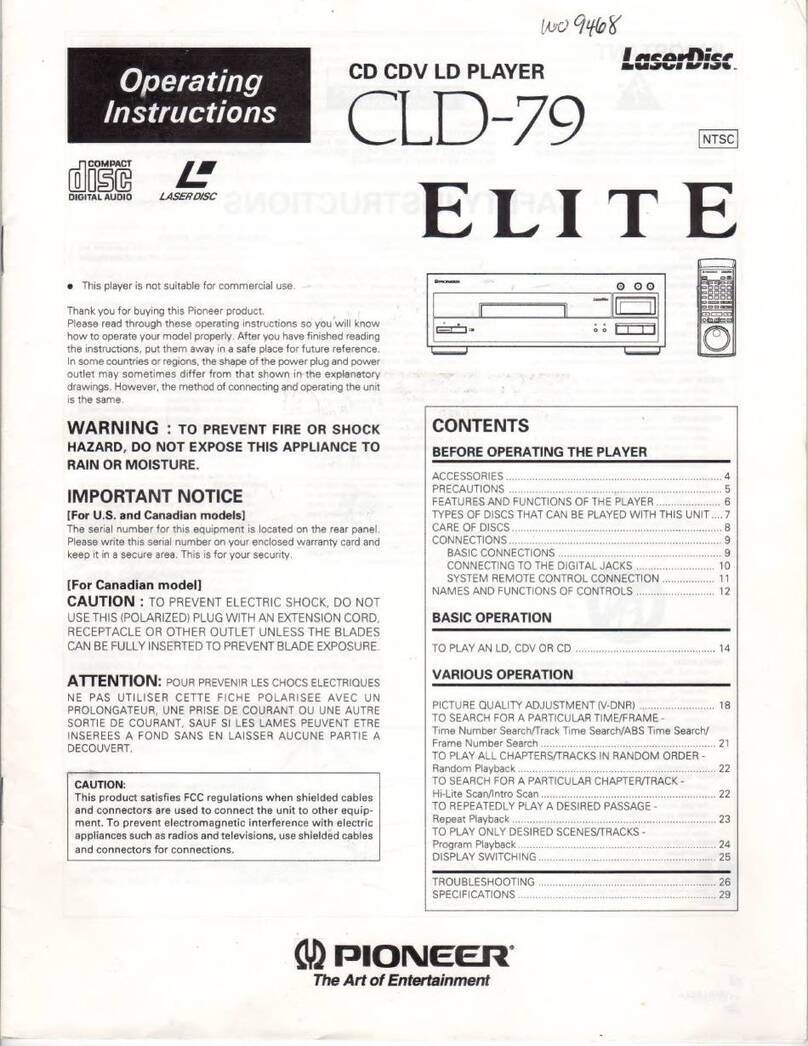

Pioneer CLD-79 Manual de usuario
