ORDER NO.

CRT3071

PLAYER-CD

CDS-4037ZMWL

Service

Manual

MAZDA

VEHICLE DESTINATION PRODUCED AFTER MAZDA PART No. ID No. PIONEER MODEL No.

Not specified U.S.A., CANADA, August 2003 GJ6R66AGOB CDS-4037ZM/WL

EU, AUSTRALIA,

NEW ZEALAND,

HONGKONG

-This service manual should be used together with the manual(s) listed below.

For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following

manual(s).

Model No. Order No. Mech. Module Remarks

CDS-4027ZM/E CRT2875

1234

CDS-4037ZM/WL

EXPLODED VIEWS AND PARTS LIST

PACKING(Page 4)

-PACKING SECTION PARTS LIST * : Non spare part

Part No.

Mark No. Symbol and Description CDS-4027ZM/E CDS-4037ZM/WL

1 Screw Assy CEA3384 Not used

2 Screw(M5x0.8) CBA1603 Not used

* 3 Polyethylene Bag CEG1158 Not used

4 Polyethylene Bag CEG1185 CEG1042

5 Carton CHG4799 Not used

6 Contain Box CHL4799 Not used

7 Protector CHP2601 Not used

8 Protector CHP2602 Not used

9 Protector CHP2603 Not used

10 Protector CHP2624 Not used

11-1 Polyethylene Bag CEG1116 Not used

* 11-2 Warranty Card CRY1203 Not used

EXTERIOR(Page 5)

-EXTERIOR SECTION PARTS LIST

Part No.

Mark No. Symbol and Description CDS-4027ZM/E CDS-4037ZM/WL

7 Sheet CNM7915 Not used

Head unit

(Other Makers)

DEH-P8400MP etc.

CDS-4037ZM/WL

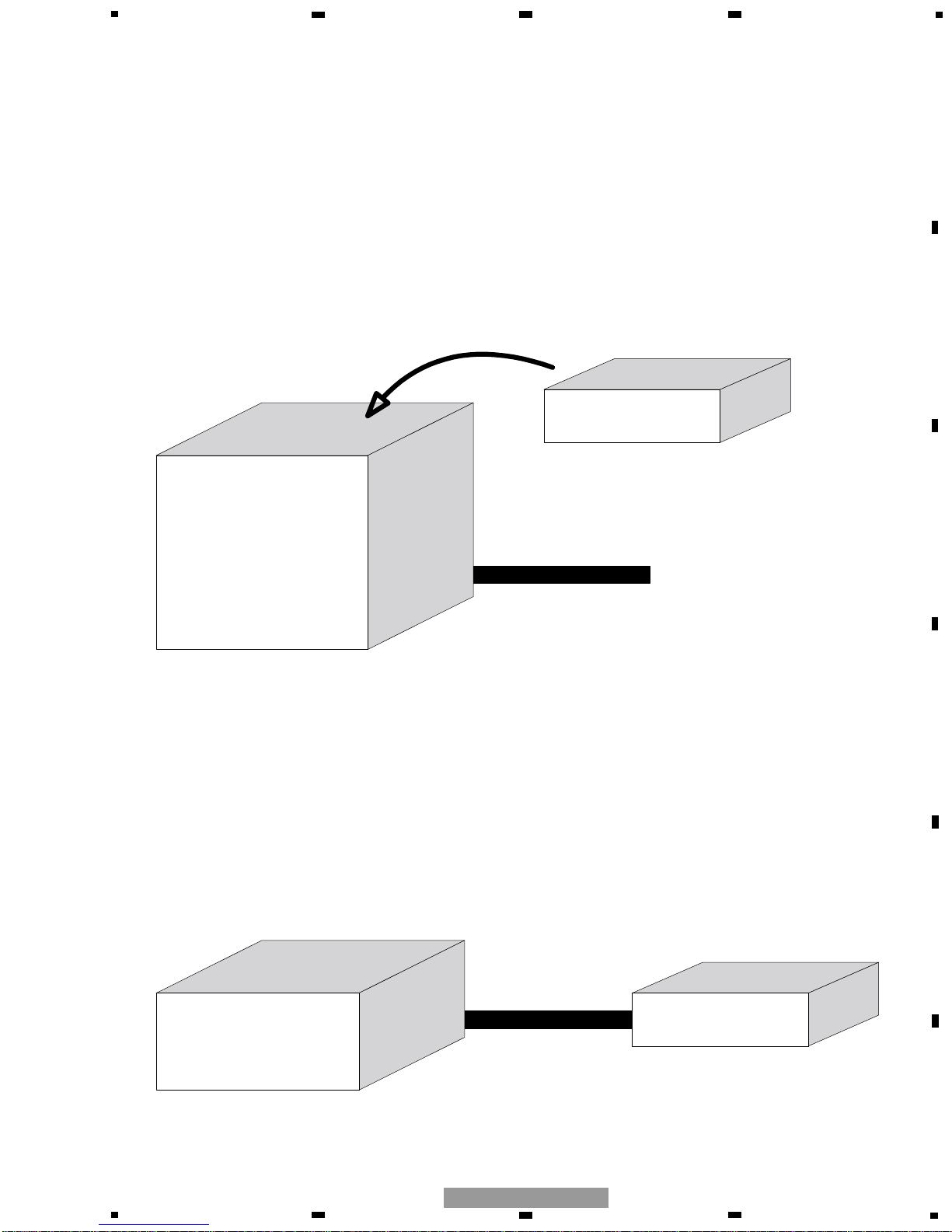

1. When you check the CD operation.

Operation is confirmed by installing CDS-4037ZM/WL in Head Unit.

2. When you do the CD operation check in the test mode.

Operation is confirmed by installing CDS-4037ZM/WL in the Pioneer Head Unit.

GGP1026

21P flexible cable

GGD1295

Power Cable

CDS-4037ZM/WL

5678

CDS-4037ZM/WL

ADJUSTMENT

CONNECTION DIAGRAM

Position for MP3-address : 1 Position for CD-address : 2

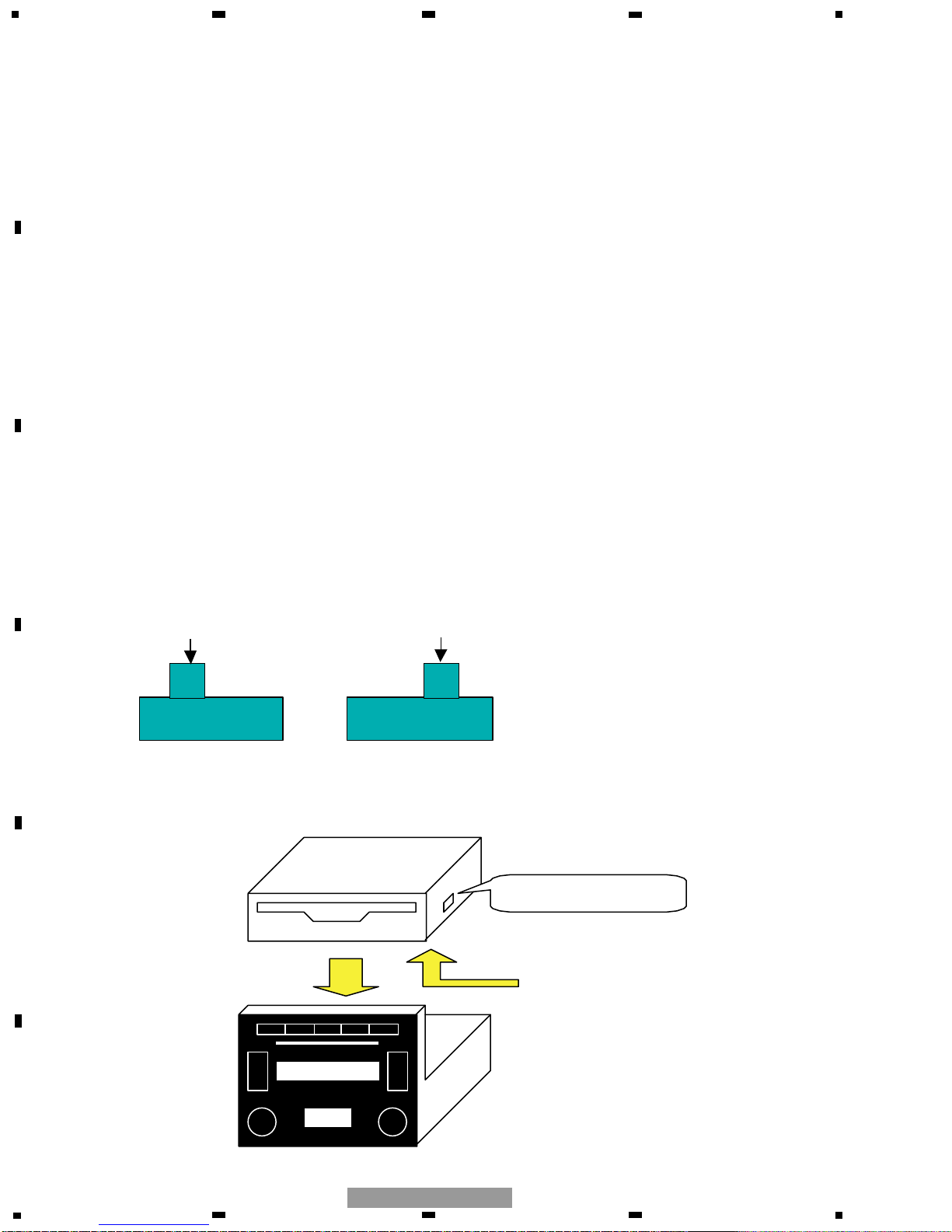

Switching image of DIP switch

Procedure 1

Switching with DIP switch

(on the bottom surface of the product)

Procedure 2

Docking with the base unit

Small window for checking

switch positions

• Playback and Operation

TYPE-C

Activated with MP3-address

Playback It’s possible to playback CD-DA / MP3.

Operationality CD-DA →It’s operated with Tr.

MP3 →It can be managed with folders or files.

TYPE-A, TYPE-B

Activated with CD-address

Playback It’s possible to playback CD-DA / MP3.

Operationality CD-DA →It’s operated with Tr.

MP-3 →It’s operated with Tr.

(Files from 1 through 98 are played back as Tr from 1 through 98.

Files from 99 are played back as Tr from 99.)

•Switching

The built-in DIP switch on CD/MP3 player can be used to switch depending on the address of the base unit.

The DIP switch should be operated before docking with CD/MP3 player.

1212

1234

CDS-4037ZM/WL

ADDRESS SETTING FOR M-BUS
