Pioneer GM-6300F/XU/UC Manual de usuario
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
CRT3842
BRIDGEABLE FOUR-CHANNEL POWER AMPLIFIER
GM-6300F
/XU/UC
GM-6300F
/XU/EW5
GM-6300F
/XU/ES
GM-6300F
/XU/CN5
This service manual should be used together with the following manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manual(s).
Model No. Order No. Mech. Module Remarks
GM-6200F/XU/UC CRT3520
K-ZZA. NOV. 2006 Printed in Japan
GM-6300F/XU/UC2
1234
1234
C
D
F
A
B
E
SAFETY INFORMATION
EXPLODED VIEWS AND PARTS LIST

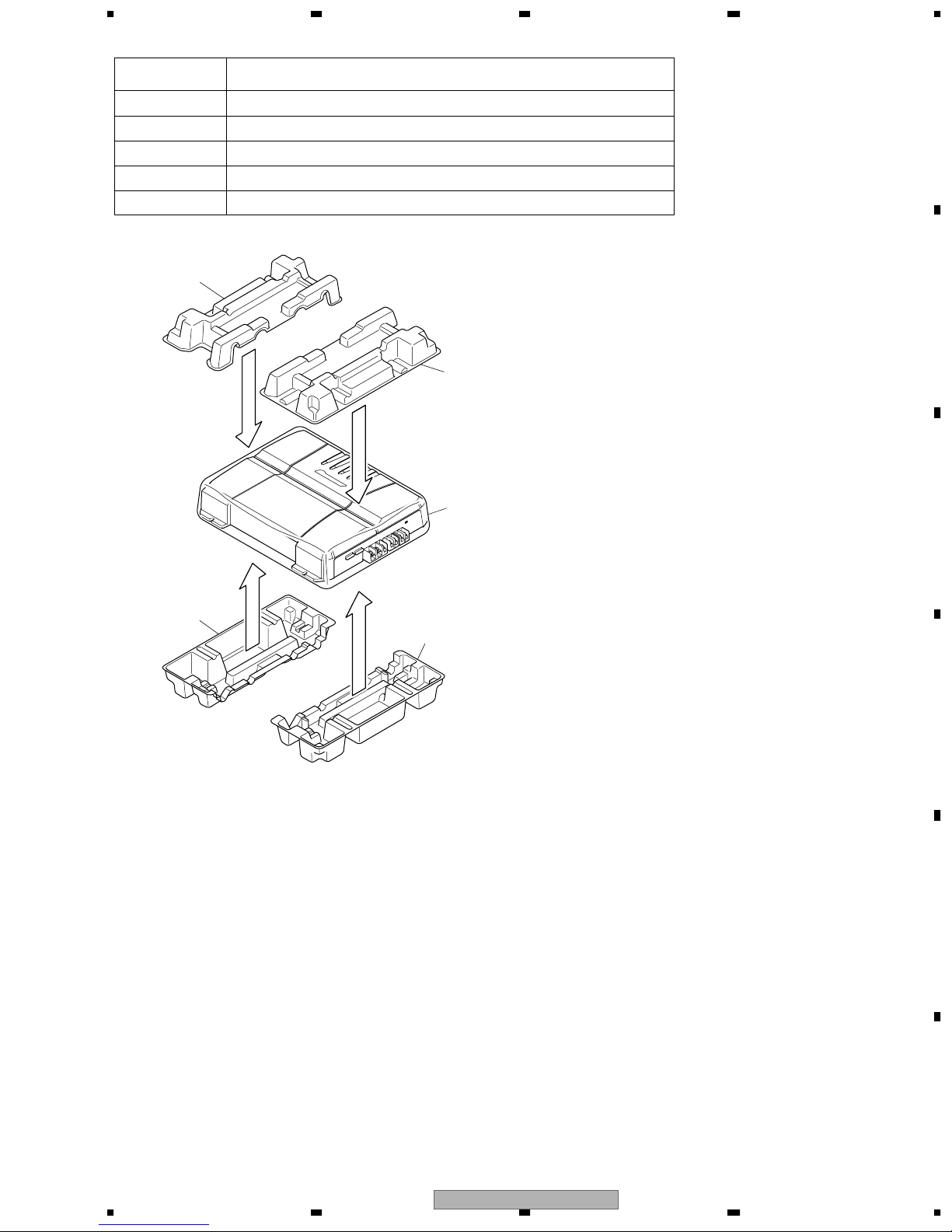

PACKING(Page 8)
PACKING SECTION PARTS LIST
*:Non spare part
Mark No. Description GM-6200F/XU/UC GM-6300F/XU/UC
5 Protector CHP3066 Not used
7 Carton CHG5591 YHG5140
8 Contain Box CHL5591 YHL5140
9-2 Owner's Manual CRD4019 YRD5104
* 9-6 Caution Card CRP1337 YRP5006
10 Protector Not used YHP5020
11 Protector Not used YHP5021
Mark No. Description GM-6200F/XU/EW GM-6300F/XU/EW5
5 Protector CHP3066 Not used
7 Carton CHG5591 YHG5139
8 Contain Box CHL5591 YHL5139
9-2 Owner's Manual CRD4019 YRD5103
* 9-6 Caution Card CRP1337 YRP5006
10 Protector Not used YHP5020
11 Protector Not used YHP5021
Mark No. Description GM-6200F/XU/ES GM-6300F/XU/ES
5 Protector CHP3066 Not used
7 Carton CHG5593 YHG5138
8 Contain Box CHL5593 YHL5138
9-2 Owner's Manual CRD4021 YRD5101
9-5 Owner's Manual CRD4022 YRD5102
* 9-6 Caution Card CRP1337 YRP5006
10 Protector Not used YHP5020
11 Protector Not used YHP5021
Mark No. Description GM-6200F/XU/CN GM-6300F/XU/CN5
5 Protector CHP3066 Not used
7 Carton CHG5594 YHG5137
8 Contain Box CHL5594 YHL5137
9-2 Owner's Manual CRB2108 YRB5040
* 9-6 Caution Card CRP1337 YRP5006
10 Protector Not used YHP5020
11 Protector Not used YHP5021
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
GM-6300F/XU/UC 3
5 678
5678
C
D
F
A
B
E
Owner's Manual
Part No. Language
YRD5104 English, French, Spanish
YRD5103 English, Spanish, German, French, Italian, Dutch, Russian
YRD5101 English, Spanish
YRD5102 Portuguese(B), Arabic
YRB5040 Simplified Chinese
11
6
11
10
10
GM-6300F/XU/UC4
1234
1234
C
D
F
A
B
E

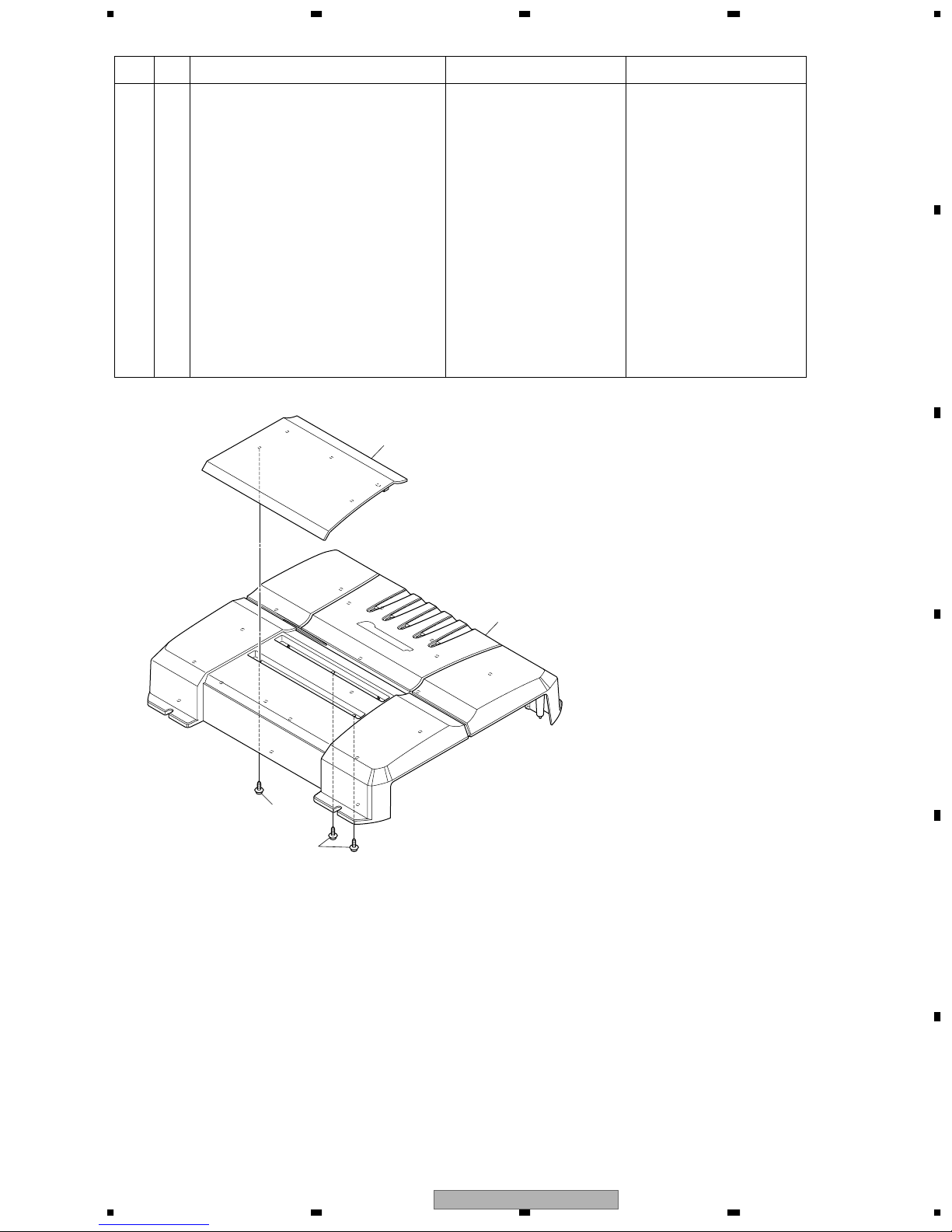

EXTERIOR(Page 10)
EXTERIOR SECTION PARTS LIST
Mark No. Description GM-6200F/XU/UC GM-6300F/XU/UC
* 4 Badge CAH1946 YAH5033
6 Case CNB3199 YNB5019
7 Panel CNB3204 YNB5029
8 Panel CNB3208 YNB5024
9 Heat Sink CNR1833 YNR5036
11 Lighting Conductor CNV8692 YNV5091
12 Amp Unit CWH1289 YWH5019
17 Sub Heat Sink CNR1809 YNR5054
18 Sub Heat Sink CNR1811 YNR5055
24 Terminal (CN601) CKE1055 YKE5008
31 Cover Not used YNR5045
32 Screw Not used IBZ30P100FTC
Mark No. Description GM-6200F/XU/EW GM-6300F/XU/EW5
* 4 Badge CAH1946 YAH5033
6 Case CNB3199 YNB5019
7 Panel CNB3204 YNB5029
8 Panel CNB3208 YNB5024
9 Heat Sink CNR1832 YNR5036
11 Lighting Conductor CNV8692 YNV5091
12 Amp Unit CWH1289 YWH5019
17 Sub Heat Sink CNR1809 YNR5054
18 Sub Heat Sink CNR1811 YNR5055
24 Terminal (CN601) CKE1055 YKE5008
31 Cover Not used YNR5046
32 Screw Not used IBZ30P100FTC
Mark No. Description GM-6200F/XU/ES GM-6300F/XU/ES
* 4 Badge CAH1946 YAH5033
6 Case CNB3199 YNB5019
7 Panel CNB3204 YNB5029
8 Panel CNB3208 YNB5024
9 Heat Sink CNR1833 YNR5036
11 Lighting Conductor CNV8692 YNV5091
12 Amp Unit CWH1289 YWH5019
17 Sub Heat Sink CNR1809 YNR5054
18 Sub Heat Sink CNR1811 YNR5055
24 Terminal (CN601) CKE1055 YKE5008
31 Cover Not used YNR5045
32 Screw Not used IBZ30P100FTC
GM-6300F/XU/UC 5
5 678
5678
C
D
F
A
B
E
Mark No. Description GM-6200F/XU/CN GM-6300F/XU/CN5
* 4 Badge CAH1946 YAH5033
6 Case CNB3199 YNB5019
7 Panel CNB3204 YNB5029
8 Panel CNB3208 YNB5024
9 Heat Sink CNR1833 YNR5036
11 Lighting Conductor CNV8692 YNV5091
12 Amp Unit CWH1289 YWH5019
17 Sub Heat Sink CNR1809 YNR5054
18 Sub Heat Sink CNR1811 YNR5055
24 Terminal (CN601) CKE1055 YKE5008
31 Cover Not used YNR5045
32 Screw Not used IBZ30P100FTC
31
9
32
32
GM-6300F/XU/UC6
1234
1234
C
D
F
A
B
E

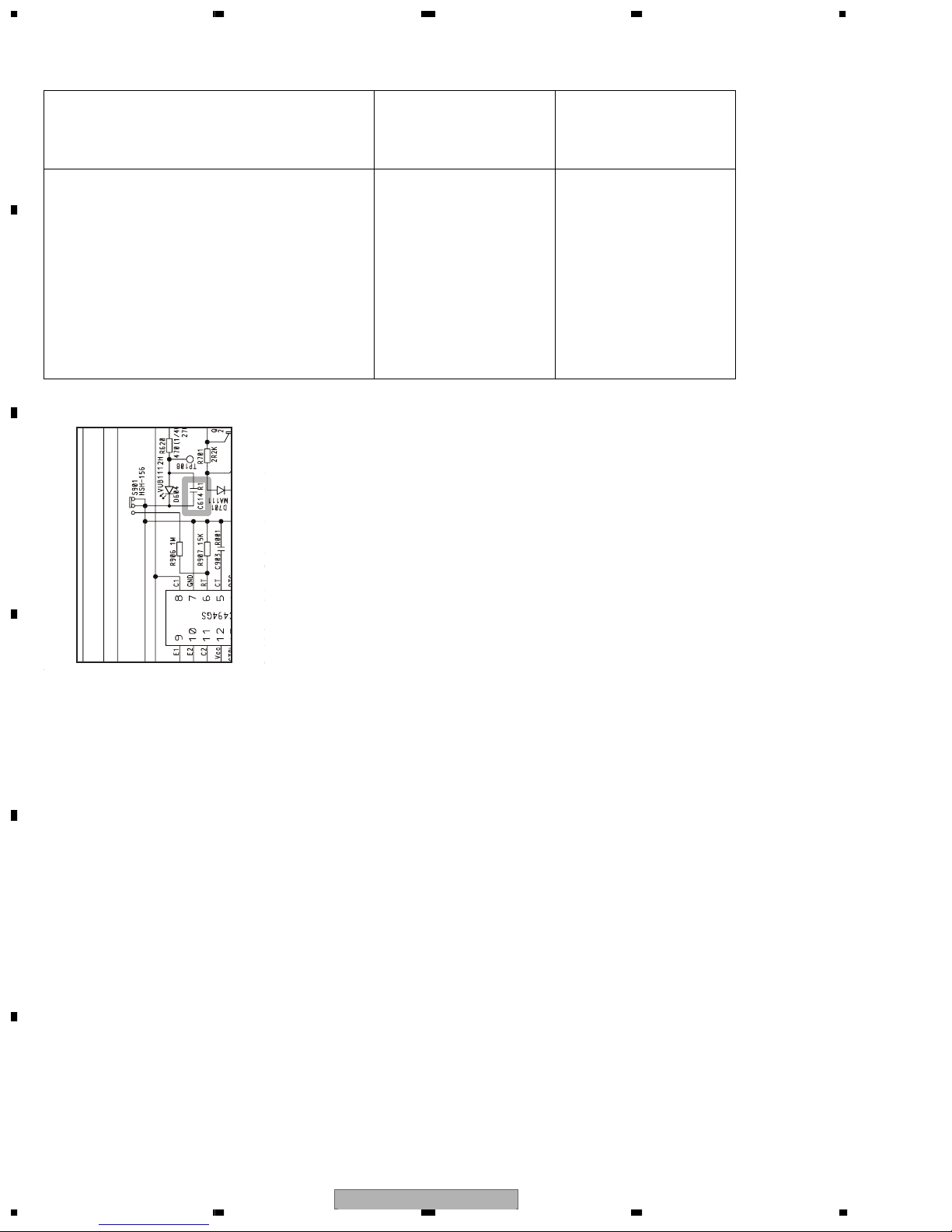

ELECTRICAL PARTS LIST(Page 22)
AMP UNIT
Circuit Symbol and No. Part Name
GM-6200F/XU/UC
GM-6200F/XU/EW
GM-6200F/XU/ES
GM-6200F/XU/CN
GM-6300F/XU/UC
GM-6300F/XU/EW5
GM-6300F/XU/ES
GM-6300F/XU/CN5
Q604 Transistor DTA124EU DTA124EUA
Q701 Transistor DTA114EU DTA114EUA
Q702 Transistor DTC114TU DTC114TUA
Q704 Transistor DTC114TU DTC114TUA
D604 LED FR1112H VUB1112H-4B63B
L901 Choke Coil 50 µH CTH1323 CTH1341
R619 RD1/4PU271J RD1/4PU331J
R620 RD1/4PU471J RD1/4PU331J
C614 Not used CKSQYB104K50
BFC
Page 17 Address 7F
