WORKSHOP MANUAL

633387

Beverly 500 i.e.

WORKSHOP

MANUAL

Beverly 500 i.e.

The descriptions and illustrations given in this publication are not binding. While the basic specifications

as described and illustrated in this manual remain unchanged, PIAGGIO-GILERA reserves the right, at

any time and without being required to update this publication beforehand, to make any changes to

components, parts or accessories, which it considers necessary to improve the product or which are

required for manufacturing or construction reasons.

Not all versions shown in this publication are available in all countries. The availability of single versions

should be checked at the official Piaggio sales network.

in whole or in part is prohibited."

PIAGGIO & C. S.p.A. - Q.C.S./After sales V.le Rinaldo Piaggio, 23 - 56025 PONTEDERA (Pi)

www.piaggio.com

WORKSHOP MANUAL

Beverly 500 i.e.

This workshop manual has been drawn up by Piaggio & C. Spa to be used by the workshops of Piaggio-

Gilera dealers. This manual is addressed to Piaggio service mechanics who are supposed to have a

basic knowledge of mechanics principles and of vehicle fixing techniques and procedures. Any important

changes made to the vehicles or to specific fixing operations will be promptly reported by updates to this

manual. Nevertheless, no fixing work can be satisfactory if the necessary equipment and tools are

unavailable. It is therefore advisable to read the sections of this manual relating to specific tools, along

with the specific tool catalogue.

N.B. Provides key information to make the procedure easier to understand and carry out.

CAUTION Refers to specific procedures to carry out for preventing damages to the vehicle.

WARNING Refers to specific procedures to carry out to prevent injuries to the repairer.

Personal safety Failure to completely observe these instructions will result in serious risk of personal

injury.

Safeguarding the environment Sectionsmarked with this symbol indicatethe correct use of thevehicle

to prevent damaging the environment.

Vehicle intactness The incomplete or non-observance of these regulations leads to the risk of serious

damage to the vehicle and sometimes even the invalidity of the guarantee.

INDEX OF TOPICS

CHARACTERISTICS CHAR

MAINTENANCE MAIN

ELECTRICAL SYSTEM ELE SYS

ENGINE FROM VEHICLE ENG VE

ENGINE ENG

INJECTION INJEC

SUSPENSIONS SUSP

BRAKING SYSTEM BRAK SYS

COOLING SYSTEM COOL SYS

CHASSIS CHAS

PRE-DELIVERY PRE DE

TIME TIME

INDEX OF TOPICS

CHARACTERISTICS CHAR

This section describes the general specifications of the vehicle.

Rules

This section describes general safety rules for any maintenance operations performed on the vehicle.

Safety rules

•Should it be necessary to keep the engine running while servicing, make sure that the area

or room is well ventilated, and use special exhaust fans, if required. never let the engine run

in an enclosed area. Exhaust fumes are toxic.

•The battery electrolyte contains sulphuric acid. Protect your eyes, clothes and skin. Sul-

phuricacidis highly corrosive; in the event of contact with your eyesorskin, rinse thoroughly

with abundant water and seek immediate medical attention.

•The battery produces hydrogen, a gas that can be highly explosive. Do not smoke and avoid

sparks or flames near the battery, especially when charging it.

•Fuel is highly flammable, and in some conditions it can be explosive. Do not smoke in the

working area, and avoid open flames or sparks.

•Clean the brake pads in a well ventilated environment, directing the compressed air jet so

as to not inhale the dust produced by the wear of the friction material. Even though the latter

contains no asbestos, dust inhalation is harmful.

Maintenance rules

•Use original PIAGGIO spare parts and lubricants recommended by the Manufacturer. Non-

original or non-conforming spares may damage the vehicle.

•Use only the special tools designed for this scooter.

•Always use new gaskets, sealing rings and split pins upon reassembly.

•After removal, clean the components using non-flammable or low fire-point solvent. Lubri-

cate all the work surfaces except the tapered couplings before refitting.

•After reassembly, check that all components have been installed properly and that they are

in good working order.

•Forremoval, overhaul and reassemblyoperations use only tools provided with metric meas-

ures. Metric bolts, nuts and screws are not interchangeable with coupling members with

English measurement. Using unsuitable coupling members and tools may damage the

scooter.

•Should any interventions to the scooter electrical system be required, check that the elec-

trical connections - especially earth and battery connections - have been implemented

properly.

Characteristics Beverly 500 i.e.

CHAR - 6

Vehicle identification

Chassis prefix: ZAPM34100

Engine prefix: M341M

Dimensions and mass

WEIGHT

Specification Desc./Quantity

Kerb weight in running order 193 Kg

Width (at the handles) 770 mm

Length 2215 mm

Wheel base 1550 mm

Height 1305 mm

Engine

ENGINE

Specification Desc./Quantity

Engine Single-cylinder, four-stroke

Bore 92 mm

Stroke 69 mm

Cubic capacity 460 cm³

Compression ratio 10.5: 1

Timing system Single overhead camshaft with integrated tone wheel, control

from flywheel side chain, 4 valves and automatic start-up valve

lifting device.

Beverly 500 i.e. Characteristics

CHAR - 7

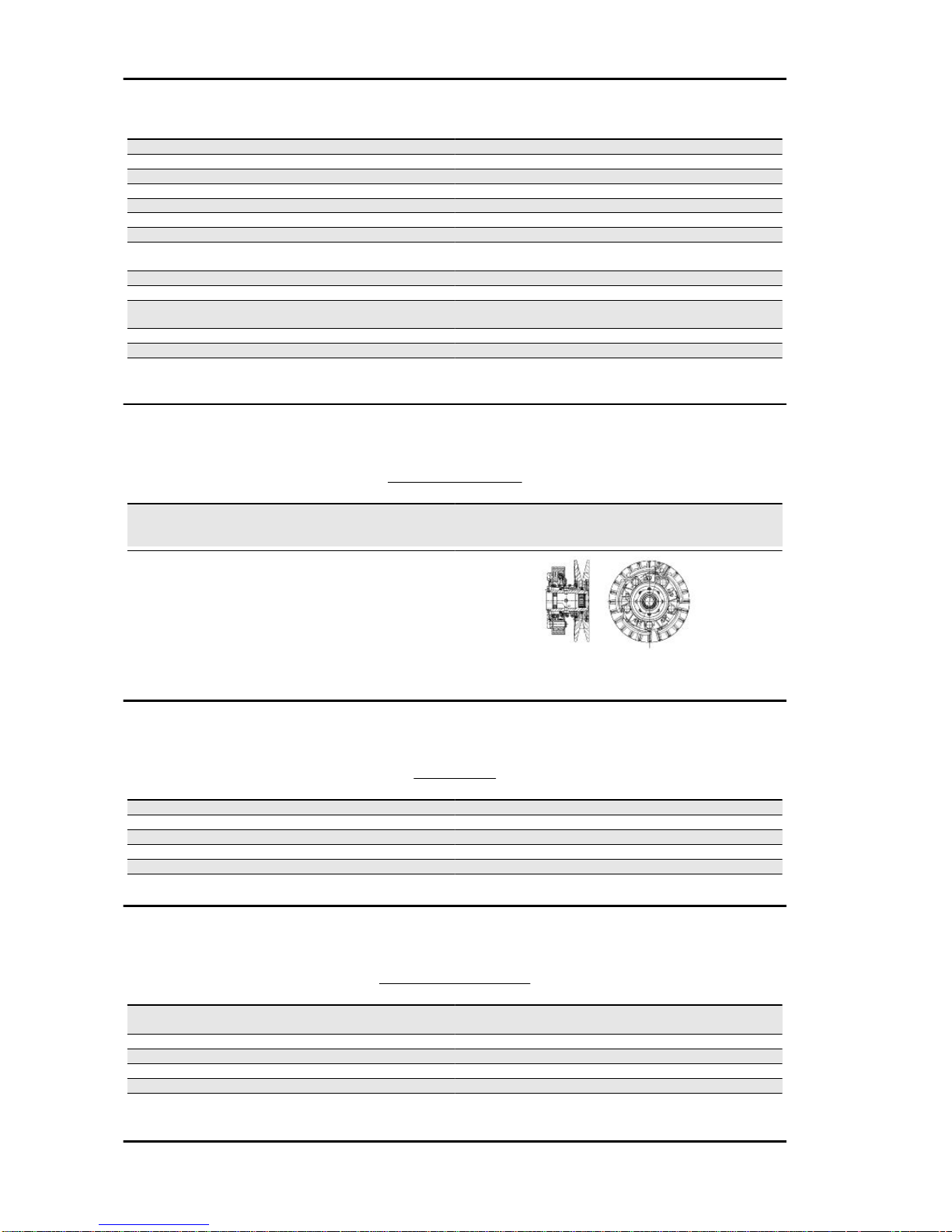

Specification Desc./Quantity

Valve clearance: intake 0.15 mm (when cold)

Valve clearance: discharge 0.15 mm (when cold)

Valve clearance adjustment By threaded adjuster on the rockers

Engine idle speed 1500 ± 50 rpm

Air filter sponge, impregnated with mixture (50% petrol and 50% oil)

CO % value (measured at the intake manifold) 1 - 1.5%

Starting system Electric starter system with freewheel.

Lubrication By trochoidal pump (inside the crankcase), pressure adjust-

ment by-pass and oil filter.

Lubrication pressure 4 bar

Minimum allowed (at 100° C) 0.8 bar

Fuel supply Electronic injection system with electric fuel pump, Ø 38 mm

throttle body and single injector.

Max. power (shaft) 29 kW (39 CV) at 7250 rpm

Max. torque (shaft) 40 N·m (4 kgm) at 5500 rpm

Cooling system Fluid circulation through a motor-driven pump, 3-way thermo-

stat and electric fan.

Transmission

TRANSMISSIONS

Specification Desc./Quantity

Transmission With automatic expandable pulley variator with torque server,

V belt, automatic clutch, gear reduction unit and transmission

housing with forced air circulation cooling.

Clutch

This is to inform you that in order to improve the

overallperformanceoftheclutch,startingfromen-

gine no. M341M 33318, a new 5-roller centrifuge

clutch, dwg. no. 842559, has been introduced.

Capacities

CAPACITY

Specification Desc./Quantity

Engine oil (empty) 1.7 lt.

Engine oil (at oil and filter change) 1.5 lt.

Fuel tank approx. 13.2 litres (including reserve approx. 3 litres)

Rear hub approx. 250 cc.

Cooling system approx. 1.7 litres

Front fork approx. 195 ± 3 cc in each fork leg

Electrical system

ELECTRIC SYSTEM

Specification Desc./Quantity

Ignition type High efficiency inductive ignition, integrated with variable in-

jection, timing and dwell angle and separate HV coil.

Spark plug NGK CR7EKB

Spark plug CHAMPION RG6YC

Battery Dry charge lead battery 12V-12Ah

Fuses 1 to 30A - 2 to 15A - 2 to 10A - 3 to 7,5A - 1 to 5A-1 to 3A

Generator Three-phase alternating current

Characteristics Beverly 500 i.e.

CHAR - 8

Frame and suspensions

CHASSIS AND SUSPENSIONS

Specification Desc./Quantity

Chassis Welded steel pipes with pressed sheet metal stiffening

Front suspension Hydraulic telescopic fork with diameter 41 mm stems

Front fork max. stroke 104 mm

Rear suspension Engine based on oscillating fork pivoted to the chassis by 1-

freedom degree oscillating arm. Pair of dual effect hydraulic

shock absorbers and coaxial springs with 4-position preload

adjustment

Rear shock absorber max. travel 95.5 mm

Brakes

BRAKES

Specification Desc./Quantity

Front right Disc brake, 260 mm diameter, with hydraulic command activa-

ted from the handlebar by right-hand lever.

Integral Disc brake, 260 mm front diameter (vehicle LH side) and 240

mm rear diameter, with hydraulic command located on the

handlebarLHlever.Thefrontdiscisinterlockedwithapressure

distribution valve.

Wheels and tyres

WHEELS AND TYRES

Specification Desc./Quantity

Light alloy rims (Front rim) 16"x3"

Light alloy rims (rear rim) 14"x4.50"

Tyres (front) Pirelli 110/70 - 16" - GTS 23 M/C - 52 S - TUBELESS

Tyres (rear) Pirelli 150/70 14" - GTS 24 M/C - 66 S - TUBELESS

Tyre pressure (when cold) front 2.2 bar

Tyre pressure (when cold) rear 2.2 bar

(2.3 bar with passenger)

N.B.

CHECK AND ADJUST TYRE PRESSURE WITH TYRES AT AMBIENT TEMPERATURE. ADJUST

PRESSURE ACCORDING TO THE WEIGHT OF RIDER AND ACCESSORIES.

CAUTION

IT IS MANDATORY TO ADOPT EXCLUSIVELY "S" CLASS TYRES, WHICH GUARANTEE COR-

RECT VEHICLE PERFORMANCE AT THE DIFFERENT SCOOTER SPEEDS. USING ANY OTHER

TYRE MAY RESULT IN VEHICLE INSTABILITY. IT IS ADVISABLE TO USE TYRE TYPES REC-

OMMENDED BY PIAGGIO.

Tightening Torques

CHASSIS

Name Torque in Nm

Electric pump locking ring nut 20

Chassis cross-member lower screws 16 - 25

chassis front cross-member upper screws 6 - 10

Beverly 500 i.e. Characteristics

CHAR - 9

BRAKE SYSTEM

Name Torque in Nm

Brake calliper coupling 20 - 24

Front brake disc mounting 11 ÷ 13

Rear brake disc mounting 11 ÷ 13

Front brake calliper mounting on fork 20 ÷ 25

Pipe / brake calliper coupling 20 to 25

Circuit bleed calliper fitting 12 - 16

FRONT SUSPENSION

Name Torque in Nm

Front wheel axle 45 to 50

Holding torque of lower ring nut 20 ÷ 25

Fork stem mounting to the plate 20 ÷ 25

Steering lower ring nut 10 - 13 **

Upper steering ring nut 36 - 39

Stem upper cap 35 - 55

Fixing screw handlebar to steering tube 45 ÷ 50

Pumping element fixing screw 25 - 35

Safety screw on fork leg 6 ÷ 7

Wheel fastening screws 33 - 37

* tighten and loosen completely. ** tighten and loosen by 90°.

REAR SUSPENSION

Name Torque in Nm

Lock nut 40 ÷ 50

Nut for bolt securing swinging arm to chassis 66 ÷ 73

Central stand retainers 25 ÷ 30

Rear shock-absorber lower retainers 33 ÷ 41

Muffler heat guard retainers 6 - 8

Rear shock absorber upper retainers 33 ÷ 41

Swinging arm to engine retainer, muffler side 66 ÷ 70

swinging arm to engine retainer, transmission side 100 - 120

Side stand clamp 15 ÷ 20

Shock absorber to crankcase bracket fastener 20 - 25

rear shock absorber to muffler support arm bracket fastener 20 - 25

rod retainer 33 - 41

bolt securing swinging arm to chassis 14 ÷ 17

Rear wheel axle 104 ÷ 126

ENGINE ASSEMBLY

Name Torque in Nm

starter motor retainers 11 - 13

THERMAL UNIT AND TIMING SYSTEM

Name Torque in Nm

Spark plug 12 ÷ 14

Head fixing stud bolts ***

Head fixing nuts 10 - 12

Exhaust / intake head fixing nuts 10 - 12

Head lubrication control jet 5 - 7

Coolant temperature sensor 10 ÷ 12

counterweight mass fixing screw 7 - 8.5

Tensioner sliding block fixing screw 10 - 14

Rpm timing sensor fixing screw 3 - 4

injector fixing screw 3 ÷ 4

Revolution timing sensor fixing screw 3 ÷ 4

Valve lifter mass stop bell fixing screws 30 - 35

inlet manifold fixing screws 11 - 13

Tappet cover fixing screws 7 - 9

Throttle body fixing screws 11 ÷ 13

camshaft retaining bracket fixing screws 4 - 6

Head fixing screws 10 - 12

Characteristics Beverly 500 i.e.

CHAR - 10

Otros manuales para Beverly 500 i.e.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Scooter de PIAGGIO

PIAGGIO

PIAGGIO Vespa 150 1962 Manual de usuario

PIAGGIO

PIAGGIO MSS Fly 50 4T Manual de instrucciones

PIAGGIO

PIAGGIO MSS X9 EVOLUTION 250 Manual de instrucciones

PIAGGIO

PIAGGIO Liberty E-Mail Manual de usuario

PIAGGIO

PIAGGIO Beverly Tourer 125 Manual de usuario

PIAGGIO

PIAGGIO Beverly Tourer 250 i.e. Guía

PIAGGIO

PIAGGIO MSS X9 EVOLUTION 250 Manual de instrucciones

PIAGGIO

PIAGGIO Beverly 500 i.e. Manual de usuario

PIAGGIO

PIAGGIO Vespa G.S. Guía de instalación

PIAGGIO

PIAGGIO X8 400 Euro 3 Guía

PIAGGIO

PIAGGIO Allstate Cruisaire 1964 Manual de uso y cuidado

PIAGGIO

PIAGGIO Carnaby 250ie Manual de usuario

PIAGGIO

PIAGGIO MSS X10 500ie Executive Guía

PIAGGIO

PIAGGIO MP3 250 i.e. Manual de usuario

PIAGGIO

PIAGGIO Vespa LX 150 4T Euro 3 Guía

PIAGGIO

PIAGGIO NRG Power DT Manual de instrucciones

PIAGGIO

PIAGGIO Vespa 125 Super Guía de instalación

PIAGGIO

PIAGGIO Vespa 125 primavera Guía de instalación

PIAGGIO

PIAGGIO Fly Manual de instrucciones

PIAGGIO

PIAGGIO MP3 LT 500 i.e. Series Manual de usuario

PIAGGIO

PIAGGIO Beverly Tourer 250ie 2007 Manual de usuario

PIAGGIO

PIAGGIO X9 Evolution 500 Guía

PIAGGIO

PIAGGIO MP3 500 ie SPORT Business LT (2011) Manual de usuario

PIAGGIO

PIAGGIO MP3 400 i.e. Manual de usuario

Manuales populares de Scooter de otras marcas

TEKTRO

TEKTRO CHEETAH Manual de usuario

Douglas

Douglas Vespa Sprint Guía de instalación

PLAYTIVE

PLAYTIVE AS-2448 Manual de usuario

Ebinger

Ebinger DONKEY XL Manual de usuario

Flyer

Flyer Mountain Guía del usuario

BackCountry eBikes

BackCountry eBikes Storm Manual de usuario

equipmed

equipmed FreeRoam II Manual de usuario

Yoto

Yoto Lion Manual de usuario

WESTHILL BIKES

WESTHILL BIKES LINK Manual de usuario

BAnff

BAnff eProdigy series Manual de usuario

Winther

Winther 475 Manual de usuario

Jetson

Jetson JBZL17 Manual de usuario

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manual de usuario

Carrera

Carrera impel Manual de usuario

Afikim

Afikim Superlight SL-3 Manual de usuario

CareCo

CareCo ZOOM Manual de usuario

Douglas

Douglas Vespa G.S. Manual de usuario

Gazelle

Gazelle with BOSCH System Manual de usuario
