Phoenix Model Tiger 3 Manual de usuario

Wingspan : 1500mm (59.2 inch)

Length : 1250mm (49.2 inch)

Weight : 2400gr - 2600gr

Engine : 40 - 46 two stroke / 52 four stroke

Radio : 4 channel / 4 servos standard

We wish you many enjoyable flights with your plane and one again thank you for your choosing a Phoenix Model products.

Instruction Manual

nstruction Manual

Instruction Manu

ction Man

nst

tion Manua

ion Manu

Instruction M

HOBBIRAN.COM

KIT CONTENTS: We have organized the parts as they come out of the box for better identification

during assembly. We recommend that you regroup the parts in the same manner. This will ensure you

have all of parts required before you begin assembly

AIR FRAME ASSEMBLIES

(2) Wing

(1) Fuselage

(1) Horizontal

(1) Vertical

(1) Instruction manual

main gear assembly

(2) Main gear

(2) 60mm wheel

(4) Collar

(4) 3mm x 4mm screw

(4) Nylon clasp

(8) 3mm x 12mm screw

nose gear assembly

(1) Nose gear

(1) 60mm wheel

(2) Collar

(2) 3mm x 4mm screw

(1) Steering arm

elevator control system

(1) Clevis

(1) Nylon clasp

(1) Nylon control horn

(2) 2mm x 16mm screw

rudder control system

(1) Clevis

(1) Nylon clasp

(1) Nylon control horn

(2) 2mm x 16mm screw

aileron control horn

(2) Clevis

(2) Nylon clasp

(2) Nylon control horn

(2) 2mm x 180mm wire metal pushrod

engine mount

(4) 3mm x 20mm screw

(4) Lock washer

FUel TANK

(1) Fuel tank

(1) Clunk

(1) 110mm silicone tube

(1) Stopper

(1) 160mm x 250mm foam

miscellaneous items

(1) Dihedral

(1) Spinner

(1) Trim tape 25mm x 600mm

(2) 4mm x 30mm screw

(2) Washer

(2) Metal connector

(1) Servo box

KIT CONTENTS

tiger 3

Instruction Manual

1 2

3 4

5 6

7 8

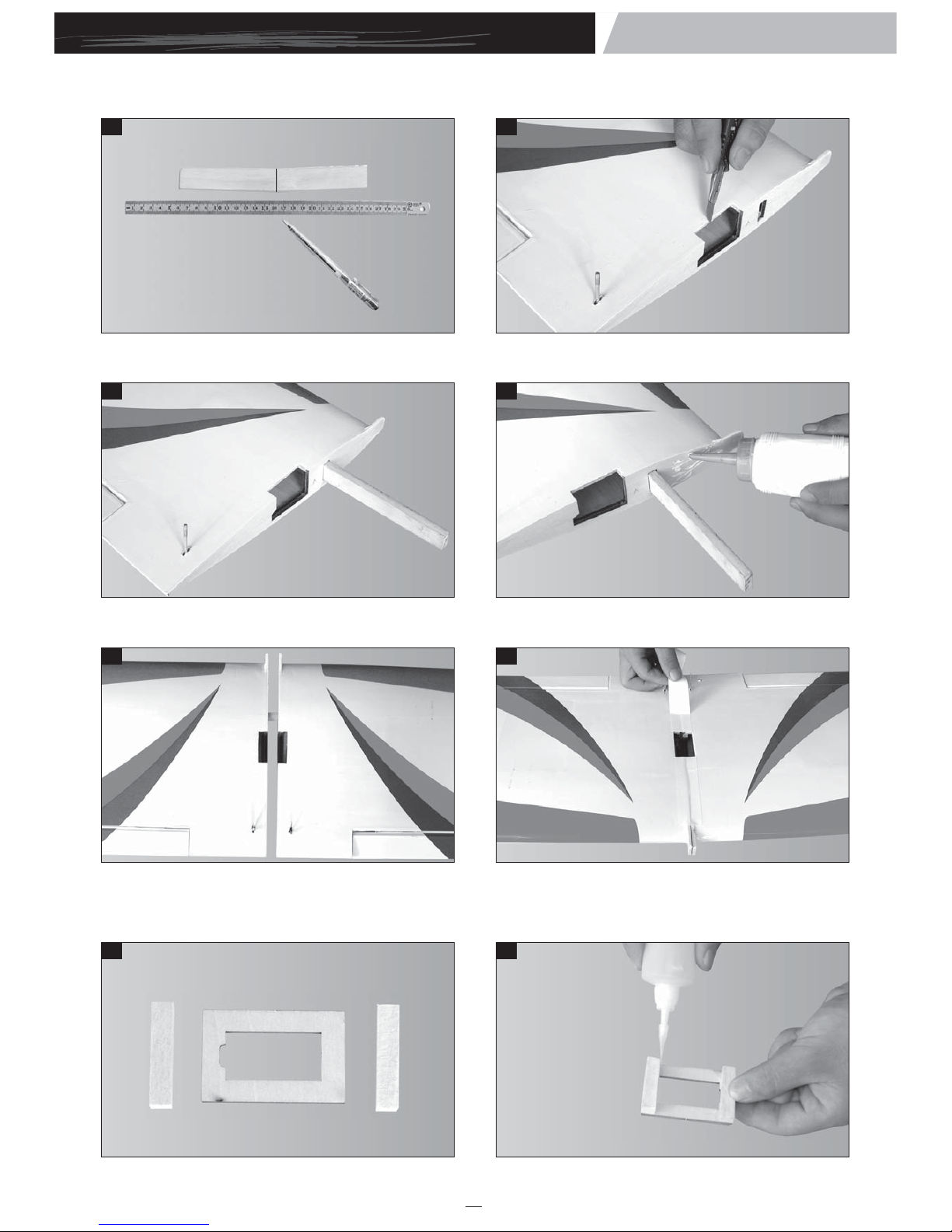

Draw a center line. Remove the covering.

Glue the wing joiner to the wing, using the epoxy glue. Apply the epoxy into the wing section.

Glue the wing by epoxy. Apply the trim tape to the center section on the top and the

bottom of the wing where they join.

Servo box. Glue the two hard wood by C.A glue.

tiger 3

Instruction Manual

1. Joining the wing halves.

2. Installing the aileron servo and linkage.

Center line

HOBBIRAN.COM

910

11 12

13 14

15 16

Mark the shape of the servo box to the wing. Remove the covering.

Glue the servo box by C.A glue. Install and secure the aileron servo.

Install the two nylon control horn. Install the clevis to the aileron pushrod.

Attach the clevis to the control horn. Cut away the aileron pushrod.

tiger 3

Instruction Manual

Nylon control horn

Clevis

Control horn

Metal pushrod Clevis

Hard wood

Servo box

HOBBIRAN.COM

17 18

19 20

21 22

23 24

Bend "L" the aileron pushrod. Attach the nylon clasp to the aileron servo arm.

The landing gear. Remove the covering from the bottom of the wing.

Drill four holes for the nylon straps. Install the collar.

Install the wheel. Install and secure the landing gear.

tiger 3

Instruction Manual

3. Installing the landing gear and nose gear.

Nylon clasp

Collar

Gear

Collar

Nylon strap

25 26

28 29

30 31

The nose gear. Install the wheel.

Install the nose gear.

Draw a center line. Remove the covering from the fuselage.

Attach the horizontal to the fuselage and check it. Mark the shape of the fuselage onto the bottom of the

horizontal.

tiger 3

Instruction Manual

4. Installing the horizontal and vertical stabilizer.

32 33

34 35

36 37

38 39

Remove the covering from the bottom of the horizontal. Glue the horizontal and fuselage by epoxy.

Cut away the covering from the fuselage. Mark the shape of the fuselage onto the both side of the

vertical.

Remove the covering from the vertical. Remove the covering on the top of the fuselage.

Glue the vertical into the fuselage by epoxy. Finishing.

tiger 3

Instruction Manual

40 41

42 43

44 45

46 47

The control horn. Install the control horn onto the elevator.

Remove the covering from the slot. Attach the clevis to the elevator pushrod.

Attach the clevis to the control horn. Install the nylon control horn.

Remove the covering. Attach the clevis to the rudder pushrod.

tiger 3

Instruction Manual

5. Installing the elevator and rudder pushrod.

Control horn

Clevis

Control horn

Clevis

Pushrod

48 49

50 51

52 53

54 55

Attach the clevis to the control horn. Install the rudder servo.

Install the metal connector. Connect the rudder pushrod and the nose gear pushrod to

the rudder servo.

Cut away the rudder pushrod. Bend "L" the rudder pushrod.

Attach the nylon clasp to the servo arm. Install the elevator servo.

tiger 3

Instruction Manual

HOBBIRAN.COM

56 57

58 59

60 61

62 63

Cut away the elevator pushrod. Bend "L" the elevator pushrod and attach the nylon clasp.

The stopper. Install the stopper to the tank.

Secure the stopper. Install the silicone tube to the tank.

Slide the fuel tank into the fuselage. Secure the fuel tank by foam and wood.

tiger 3

Instruction Manual

6. Installing the fuel tank.

Wood

C.A glue
