Philips FC9252 Manual de usuario

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC9252

11/03

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment

TECHNICAL INFORMATION

- Colour : Dark raven

- Power consumption : 2000 W (IEC) 230 V

- Maximum Air displacement : 37 l/s

- Vacuum : 27.5 kPa

- Duststorage capacity : 1.5 L

- Cord length : 9 m

- Motor : Infrared remote controlled

- Fiter system : HEPA cyclone-filtration

auto-clean system

: Permanent motor

protection filter

: Ultra Clean Air HEPA13

washable exhaust filter

- Dimensions of cleaner : 485 x 285 x 335 mm

- Net weight : 9.6 kg

ACCESSORIES

- Nozzle : Tri-Active all purpose nozzle

- Tubes : Metal lacquered telescopic tube

- Hose : Extra large hose

- Handgrip : Ergonomic handgrip with remote

control

- Accessories : Brush, crevice nozzle and small nozzle

- Accessory storage : Active accessory storage bridge in

handgrip

- Coupling : Button coupling

OPTIONAL (accessories)

- FC 8031 : Super Clean Air HEPA filter

- FC 8038 : Super Clean Air HEPA washable filter

FC9252

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- To open the appliance, first remove the filter cover

(item 37).

- Remove the can with the filters.

- Then remove the hingecover (2 screws A)

- When the hinge cover is removed, the dustcover can be

removed.

- To remove the housing (6 screws F), for some screws you

will require a screwdriver with 14.5 cm long shrank.

Screwdriver 4322 009 08490 for T15 can be used.

- When the repair is finished, check whether all functions of

the appliance work properly.

- To disassemble the cord winder, use TORX screwdriver no.

T10, which is one of a set consisting of T20; T15; T10; T9;

T8; T7 and T6 (code number 4822 395 50145)

ELECTRICAL DIAGRAM

REPAIR INSTRUCTION

- If the reel half spring unit is replaced, shaft (M) must be

lubricated with silicone grease. Do not apply any silicone

grease to or spill any grease on terminals (item 53) or

conductors (item 54).

- The cord winder spring must be tensioned to the maximum

level and the be rewound approx 1.5 turn.

- Item 13, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

Black

BlackBlack

Blue

Brown

IR PCB

Switch

CORD

WINDER

TRANSMITTER

2-8

FC9252

- Appliances from before WK845 have a potential problem

in the cord winder system; the lever of spindle (Pos. 24) can

move out of position.

Symptom:

Cord will not rewind pressing the cord winder button.

Solution:

Remove the Cord winder button as shown in below picture:

Remove the cord winder button by simultaneously operating

the button and putting a screwdriver between the openings

that occur.

Then lift the button by levering the screwdriver.

This has to be done at 2 (two) positions as indicated in the

picture.

Insert a screwdriver (size 1) in the position as shown in below

picture and move it backwards until a “Click” is heard, the

lever of spindle is now back in position. This can be tested by

pressing lever A, the cord should rewind now.

“Click”

REPAIR INSTRUCTION

To prevent lever shifting out of position to re-occur,

CW support (Pos. 68) must be added as shown in below

pictures:

Rotate the part 90 degrees CCW, once it is inside the housing

half way.

90°

CCW

90°

CCW

Then drop the part till it is completely inside the appliance

and push down with a screwdriver untill “Click”.

“Click”

Finally re-assemble the button.

Press it ﬁrmly, until the “Click”.

3-8

FC9252

PARTS LIST

4-8

Pos Service code Description

4322 005 25400

4322 003 34210

4322 003 34200

4322 003 34180

4322 003 33420

4322 003 32960

4322 000 68230

4322 003 33000

4322 001 73910

4322 003 31570

4322 003 35150

4322 003 31300

4322 005 26540

4322 009 09830

4322 003 32920

4322 005 24230

4322 004 20130

4322 005 25650

4322 003 33030

4322 005 27150

4322 005 27470

4322 006 23510

4322 001 74100

4322 003 31310

4322 003 33200

4322 003 33190

4322 005 24840

4322 000 39120

4322 003 32890

4322 003 32900

4322 003 33040

4322 005 27160

4322 003 33090

4322 006 07750

4322 003 33100

Handle assy

Handle side rear

Handle side front

Handle support

Dustcover toppanel Cold blue

Dustcover Dark raven

Spring

Dustcover lock button Dark raven

Dustcover sealing

Dustc. inside incl. seal. Dark raven

Choke valve cover Dark raven

Hinge cover Dark raven

Choke valve assy

Man. rattle ﬁlt. cyl. assy Dark rav.

Tower assy

Bucket assy Transp. Aqua

Filter Brush

Upperh. sidec. assy Tr. angel blue

Bumper right Dark raven

Cordwinder button Dark raven

RMC window assy

PCB assy incl. IR

Cooling tube

Lever of spindle

Front handle Dark raven

Lower housing Dark raven

Caster wheel assy Dark raven

Motor inlet ﬁlter

Inlet sealing 2

Switch lever

Bumper left Dark raven

On/Off button Dark raven

Backpanel Dark raven

Switch

Cord outlet Dark raven

Pos Service code Description

36*

4322 005 27781

4322 005 24150

4322 004 93350

4322 000 38960

4322 000 39020

4322 003 31220

4322 000 39000

4322 000 39010

4322 003 25390

4322 003 31240

4322 001 73440

4322 009 09430

4322 000 39110

4322 003 26030

4322 001 73520

4322 003 31250

4322 005 18670

4322 005 17430

4322 005 17910

4322 006 07410

4322 006 07390

4322 006 07400

4322 005 25770

4322 009 09930

4322 005 24180

4322 009 09950

4322 005 25790

4322 003 34660

4322 005 25800

4322 004 20580

4322 005 27340

4341 004 20840

4322 003 35650

Skate wheel assy Left & Right

Exhaust grille assy Cold blue

HEPA13 ﬁlter washable

Exhaust sealing

Silencer 4

S-class H sealing

Silencer 1 wall

Silencer 2 bottom

Inlet sealing 1

Motorhousing top

Motorbuffer front

Motor 1761 220 - 240 V

Silencer 3 VCM

Motor bracket

Bufferback green

Motorhousing bottom

Reelhalf spring unit

Reelhalf cordside assy

Contactplate assy

Cordset UK/HK 9.3 m

Cordset Euro 4.8 mm 9.3 m

Cordset Swiss 9.3 m

Battery lid assy

Bend type 1 assy

Hose/connect. assy Dark raven

Hose/connection/bend

type 1 assy Dark raven

Accessoiry holder

Crevice nozzle

Small nozzle

Brush tool

2pc Telescopic tube

Tri-active nozzle

CW Support

* Standardized colour

= changed

FC9252

EXPLODED VIEW

5-8

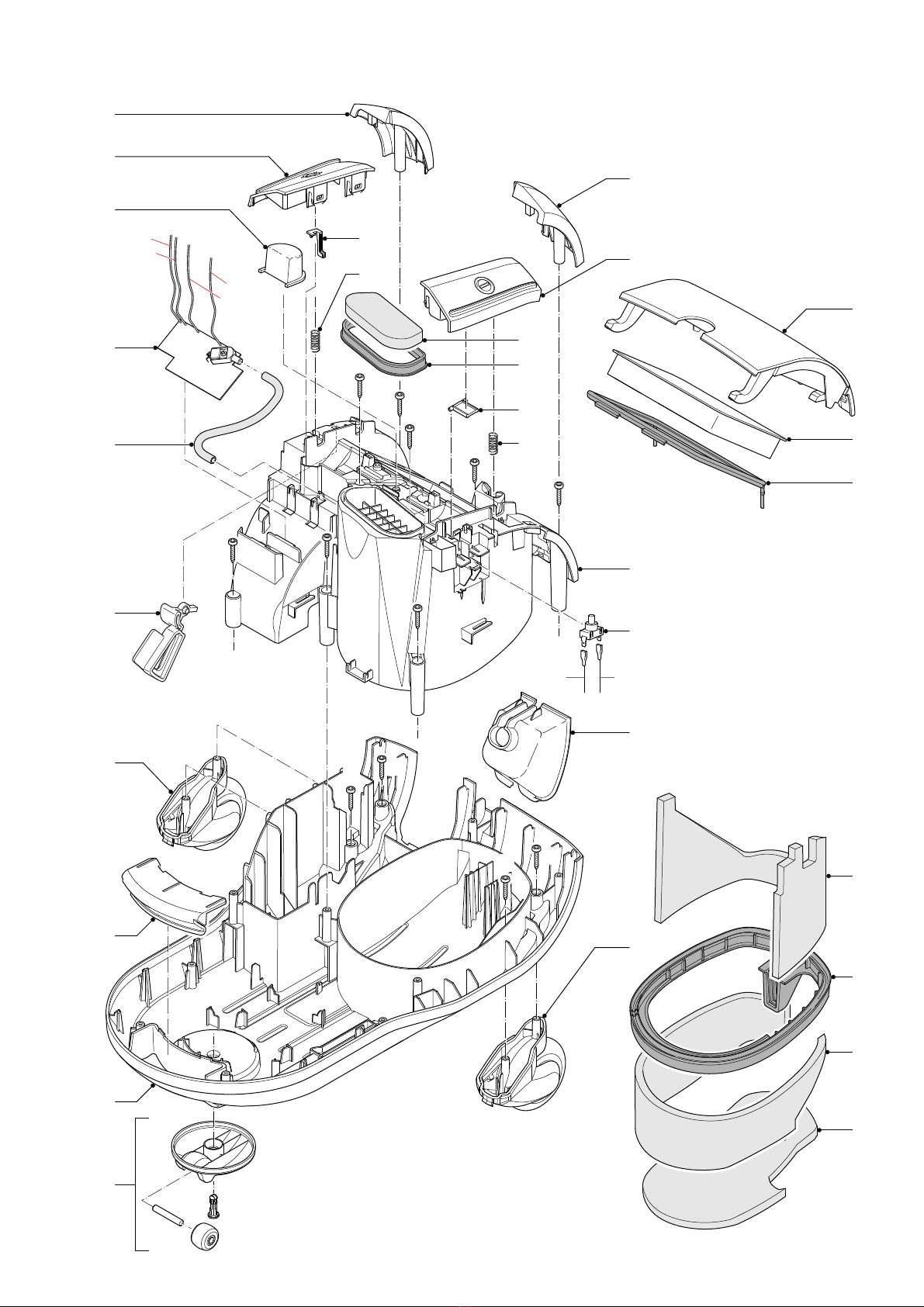

FC9252

EXPLODED VIEW

Black Black

Brown

Black

Blue

Black

6-8

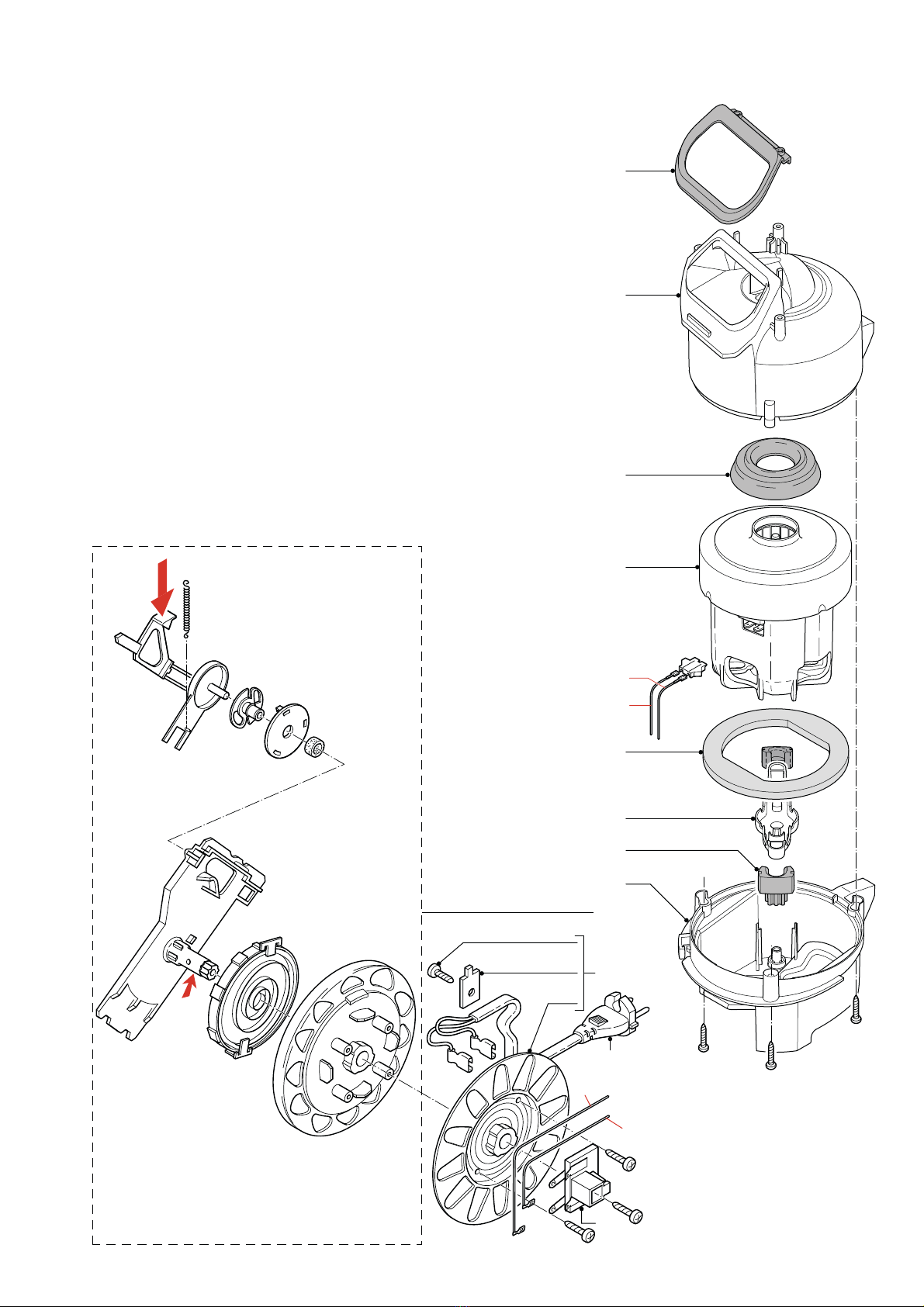

FC9252

EXPLODED VIEW

Blue

Brown

55 57

Black

7-8

FC9252

EXPLODED VIEW

Europe Ø 4.8mm 56

Swiss

55U.K. / H.K. 57

59 60

8-8
