Philips FC9088 Manual de usuario

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC9088

09/03

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Pearl Beige/Vivid Green

- Power consumption : 1250 W (IEC) 230 V

- Maximum Air displacement : 39 l/s

- Vacuum : 28 kPa

- Duststorage capacity : 3 L

- Cord length : 8 m

- Fiter system : Classic S-Baglong

performance

: 3 layer permanent motor

protection filter

: Ultra clean air washable

HEPA13 exhaust filter

- Net weight : 7.5 kg

ACCESSORIES

- Nozzle : Tri-Active all purpose nozzle

- Additional Nozzle : Super Parquet nozzle

- Tubes : Metal lacquered telescopic tube

- Handgrip : Ergonomic handgrip

- Accessories : Brush, crevice nozzle and

small nozzle

- Accessory storage : Active accessory holder in tube

- Coupling : Button coupling

OPTIONAL (accessories)

- FC8021 : S-bag Classic

- FC8022 : S-bag Clinic

- FC8023 : S-bag Anti-Odour

- FC8038 : Ultra clean air washable HEPA13 exhaust filter

FC9088

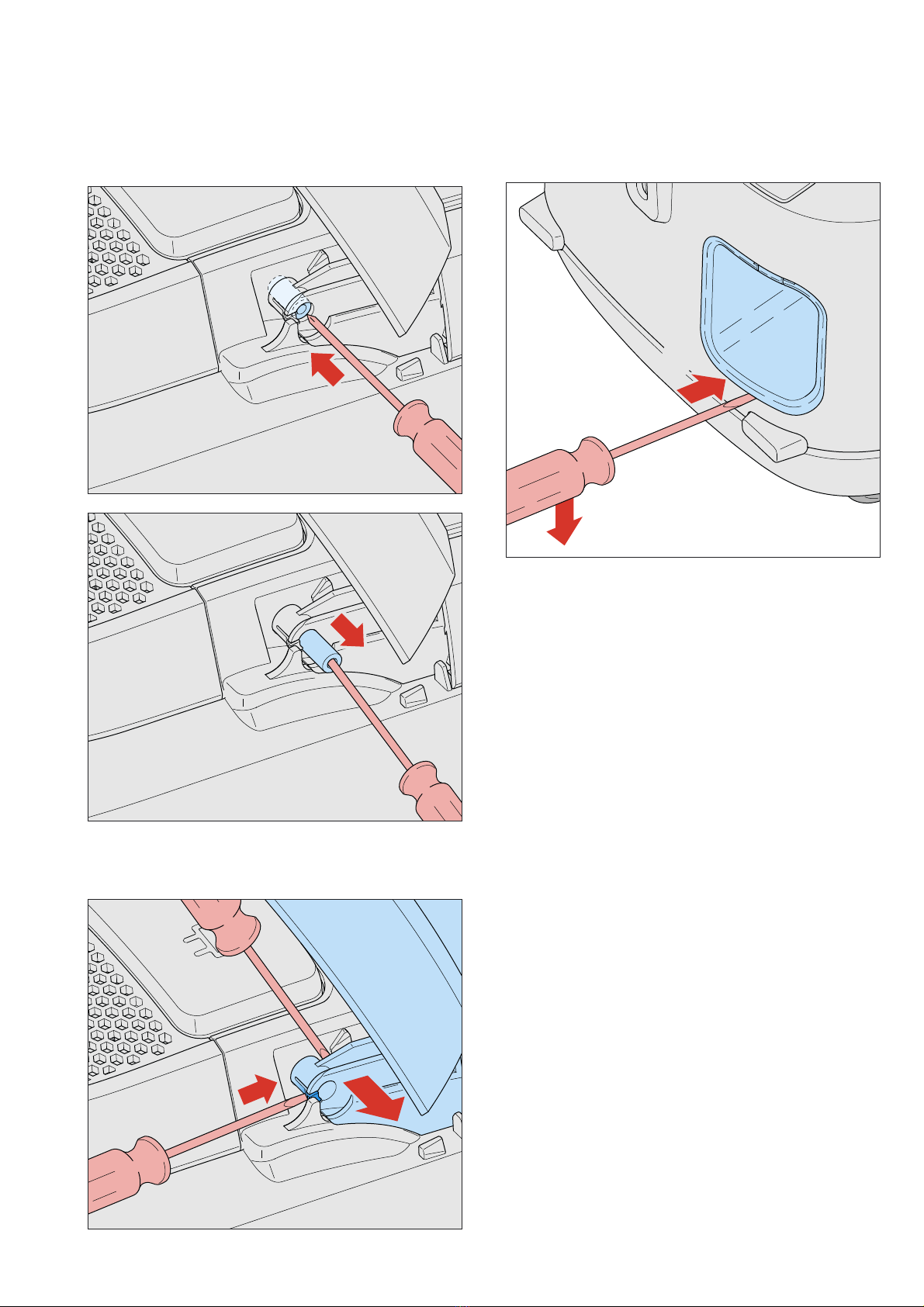

- To open the appliance, first remove the exhaust filter cover

and filter.

- Remove the hinge lock-pin (see pictures).

- Remove the dustcover by simultaneously pushing the click

hook in the hinge and bending the hinge outside with a

screwdriver (see picture).

- To be able to remove the upper housing the cord outlet

must be removed using a screwdriver in the lower section

(see picture).

- After removing the 6 screws (A) the upper housing can be

removed.

- When the repair is finished, check whether all functions of

the appliance work properly.

- To disassemble the cord winder, use TORX screwdriver

no. T10, which is one of a set consisting of T20; T15; T10;

T9; T8; T7 and T6 (code number 4822 395 50145).

REPAIR INSTRUCTION

- The spare parts have been standardized as much as possible.

- Depending on the original cord, the spare cord must be

shortened to the length of the original cord.

- The cord winder spring must be tensioned to the maximum

level and then be rewound approx. 1.5 turn.

- Item 16, safety valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

2-7

FC9088

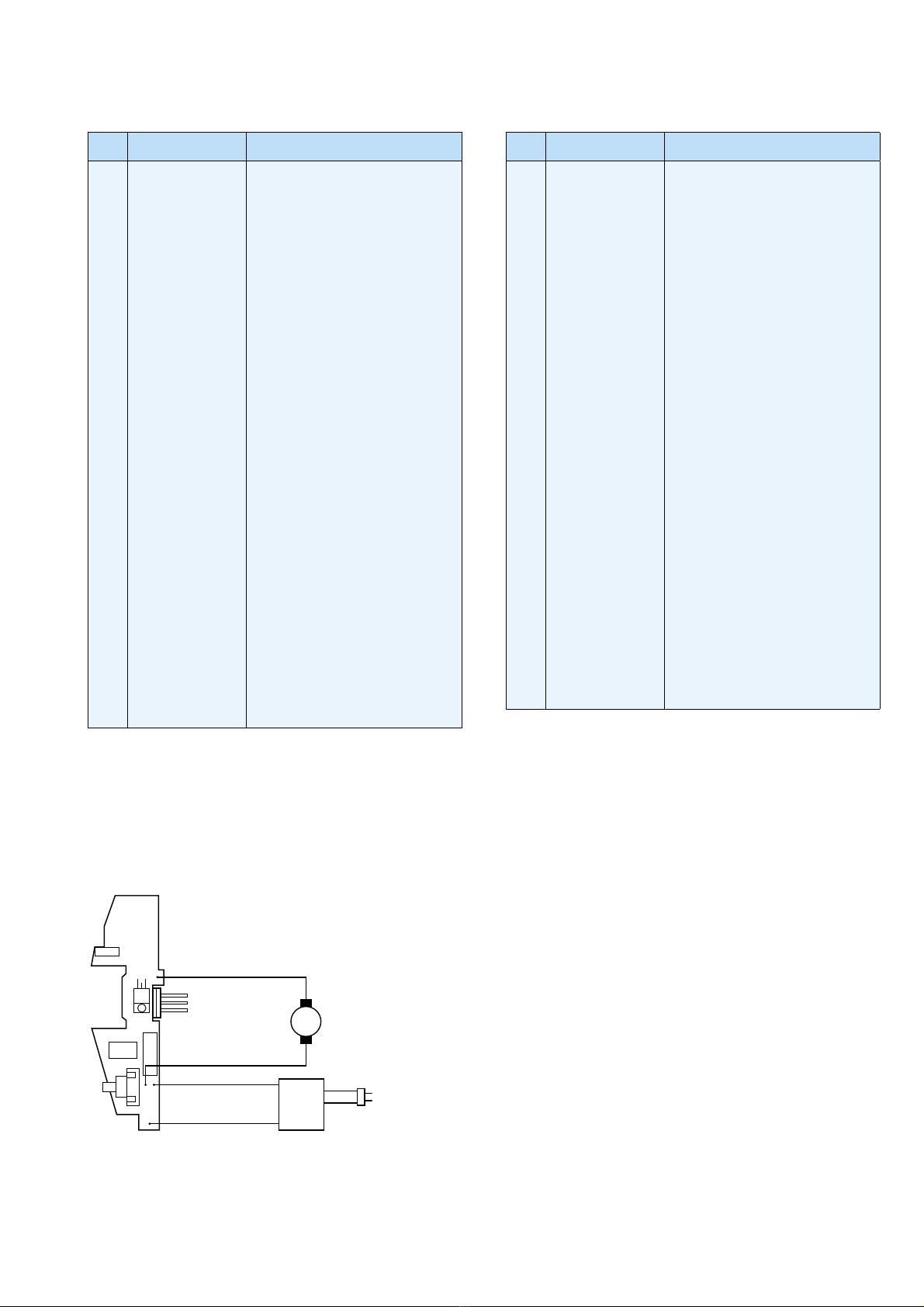

PARTS LIST

ELECTRICAL DIAGRAM

MOTOR

POWER

MODULE

Black

White

CORD WINDER

Brown

3-7

Pos Service code Description

4222 459 45586

4222 459 45637

4222 459 45583

4222 459 45578

4222 459 45585

4222 459 45579

4322 004 93350

4222 459 45638

4222 459 45581

4322 001 74110

4222 459 45605

4222 459 45604

4222 459 45592

4822 480 10228

4322 003 33280

4322 005 16990

4222 459 45595

4222 459 45640

4222 459 45639

4222 459 45641

4222 459 45589

4322 006 23880

4222 459 45590

4222 459 45593

4222 459 45594

4222 459 45606

4322 001 73440

4322 009 09960

Hinge pin

Dustcover assy FC9088 Beige

Dustbag detector incl. spring

Dustbagholder Vapour dusk

Handle assy White

Exhaust grille Beige

HEPA ﬁlter

Cord outlet Vivid green

HEPA lock grille Beige

Exhaust seal

Support right Beige

Support left Beige

Control wheel ring Chrome

Inlet ﬁlter

Inlet grille

DBFI/valve assy

Brake lever

CW button Pastel green

On/Off button Pastel green

Control wheel Vivid green

Switch lever

PCB assy Pilatus HV

Pedal spring

Backpanel/Dustchamber

Silencer 3

Motor housing top

Bufferring front

Motor Domel 1271 220-240 V

Pos Service code Description

39*

4222 459 45607

4222 459 45608

4322 001 73450

4222 459 45609

4222 459 45598

4222 459 45599

4322 009 00080

4322 005 26610

4222 459 45596

4222 459 45603

4322 006 07390

4322 006 07400

4222 459 45602

4222 459 45601

4222 459 45600

4222 459 45597

4222 459 45642

4322 005 27980

4322 005 27930

4322 003 35550

4322 005 27970

4322 004 20860

4322 004 20330

4322 004 20110

4322 005 11040

8838 041 01010

Silencer 4

Motor bracket

Buffer back

Motor housing bottom

Front handle inside White

Front handle outside White

Cordwinder no cord!

Contact plate

Rubber knee bend dustchamber

Casterwheel kit Beige

Cordset Euro 4.8 mm 9 m

Cordset Swiss 9 m

S-Class sealing

Silencer 2

Silencer 1

Lower housing Beige

Bend type 5/hose/connection assy

Beige

Accessory holder Beige

2p telescopic tube act. bush Beige

Crevice nozzle Beige

Small nozzle Beige

Brush nozzle Beige

Tri-active nozzle Beige

Super parquet nozzle

Polishing disk

Polishing brushes

* Standardized colour

FC9088

EXPLODED VIEW

4-7

FC9088

EXPLODED VIEW

Black

White

Brown

5-7

FC9088

EXPLODED VIEW

39, 40

White

Brown

Black

6-7

FC9088

EXPLODED VIEW

Europe Ø 4.8mm 39 Swiss 40

7-7
