Philips FC6144 Manual de usuario

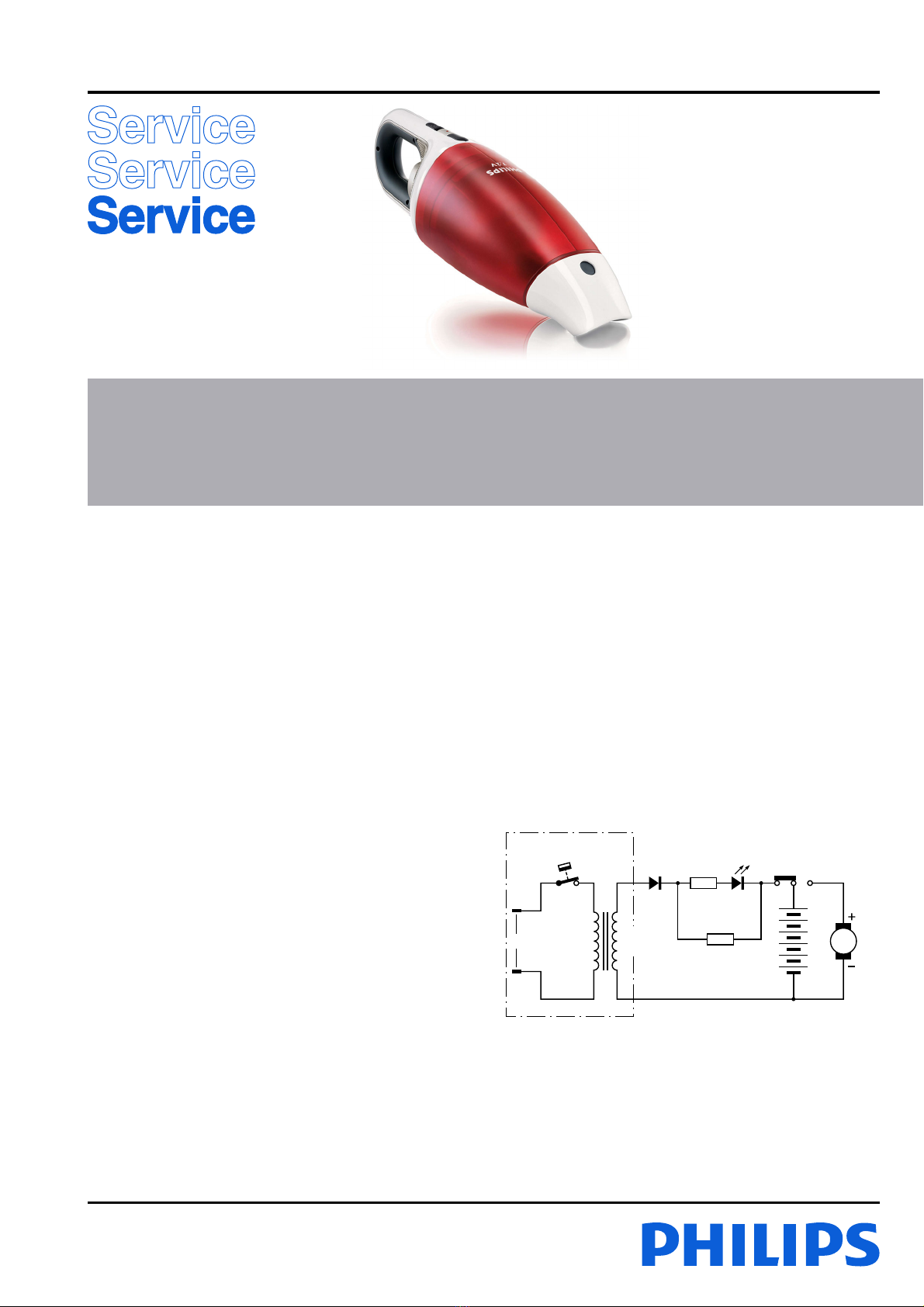

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Handheld Vacuum cleaner

FC6144

16/07 Version 1.2

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Adapter AC / DC : 230 V / 9V DC - 300 mA

- Rechargeable batteries : 6 x NiMH - 1500 mAh

- Run time : 8 min.

- Charging time : 16-18 hours

- Charge indicator : LED

- Charging base : Standing, also wall mountable,

incl. accessory storage

- Air flow system : Cyclonic action

- Accessories : Crevice and brush

- Application

environment : Dry

- Filter : 2-stage type, washable

- Dust capacity : 430 ml

REPAIR INSTRUCTIONS

- No specific issues

ASSEMBLY & DISASSEMBLY ADVICE

- No specific issues

OPTIONAL (accessories)

- No specific issues

Electrical diagram

Thermal

Fuse 130 °C

R2 LED

1.2 V x6

AC DC 9V

300 mA

230 V

50 Hz

FC6144

PARTS LIST & EXPLODED VIEW

Pos Service code Description

4222 459 45078

4222 459 45695

9965 100 75714

9965 000 23217

Nose piece

Adapter UK/HK

Adaptor + Charging assy EU

Outer ﬁlter white *

* Standardized colour

Pos Service code Description

4222 459 45075

8838 035 01010

4222 459 45077

4222 459 45076

Crevice Nozzle

Inner ﬁlter

Filter holder white *

Brush nozzle

FC6144

Version history

09/02 Version 1.1 : FC6144 initial release.

16/07 Version 1.2 : In Parts List: Added Pos. 2: 9965 100 75714 Adaptor + Charging assy EU
