Table of contents

1 Your Prestigo 3

1.1 What’s in the box? 3

2 Getting started 3-6

2.1 Charging the battery 3-4

2.2 Setting up the remote control 4-5

2.3 Exit Setup mode 6

3 Using the remote control - Basic operation 6-7

3.1 Selecting devices 6-7

4 Extra possibilities - Advanced setup 7-20

4.1 Entering Setup mode 7

4.2 Setting up devices 8-9

4.3 Setting up activities 9-12

4.4 Selecting activities (use mode) 12-13

4.5 Setting up favorites 13-15

4.6 Selecting favorites (use mode) 15

4.7 Reconﬁguring buttons 15-18

4.8 Reconﬁguring the Power / AV buttons 18-19

4.9 Adjusting system settings 19

4.10 Installing Philips PrestigoSync software 19-20

5 Frequently asked questions 20-22

6 Technical speciﬁcations 22

7 Service and support 22-24

7.1 Need help? 22

7.2 Information to the consumer 23-24

Equipment list 25

Table of contents

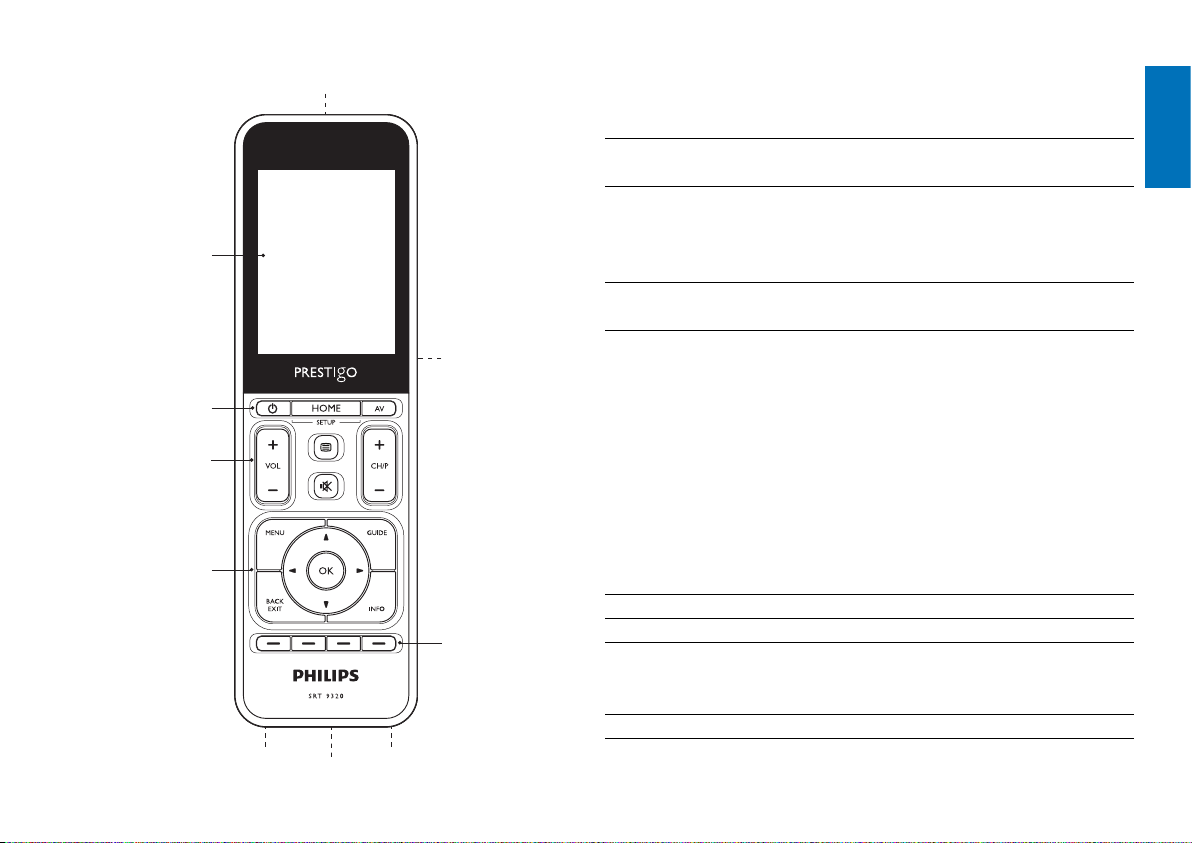

IR transmitter

Display /

touchscreen

- Power button

- Home / Setup button

- AV button

- Volume + / - button

- Teletext button

(Europe / Australia)

Previous channel button (USA)

- Mute button

- Channel /

Program + / – button

- Menu button

- Back / Exit button

- Cursor buttons

- OK button

- Guide button

- Info button

IR receiver

USB port

Power supply jack

Color buttons

On / Off switch

(Rear of Prestigo)

(Bottom of Prestigo)

(Top of Prestigo)

3EN

English

1 Your Prestigo

After setting up the Philips Prestigo universal remote control you can

operate up to 20 different devices with it, use up to 20 activities and select

a total of 100 favorites.

Favorites are your favorite TV and radio channels that you can select and

watch / listen with a single button press.

Activities give you one-touch access to your home entertainment system.

During setup you can select yourself the devices you wish to operate with

the remote control (see table under chapter 2.2 ‘Setting up the remote

control’).The on-screen instructions on the remote control display help you

to easily set up and operate the remote control.

If, however, you require extra information, please consult this user manual.

It is provided to help you set up and use the remote control.

To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome

• At ‘www.philips.com/welcome’, select ‘Register my product’ and follow

the on-screen instructions for registration.

How to use this manual

When you click with the cursor on a sentence in theTable of contents you

automatically go to the right page / chapter.

When you click on a page number, reference chapter or internetsite in the

text you go there.

Clicking on the blue language tab in the right top corner brings you back to

the Table of contents.

1.1 What’s in the box

Please verify that the packaging contains the following items:

• Prestigo SRT9320 universal remote control

• User manual

• Quick Start Guide

• Customer Demonstration sheet

• Charging cable

• USB cable

• CD ROM containing Philips PrestigoSync software and user manual

• Power plug Europe + Power plug UK

Or:

• Power plug Australia

2 Getting started

2.1 Charging the battery

The remote control comes pre-installed with a rechargeable battery.

When using the remote control for the first time, make sure the battery is

fully charged. Do not disconnect the remote control from the power supply

until the battery is fully charged ( ). Charging may take up to 3 hours

and can take place with the remote control turned on or off.

With the remote control turned on you can follow the charging process on

the remote control display.

Your Prestigo

4EN

English

1Select the adapter plug for your

country and slide it over the power

plug of the charging cable.

OR:

Fold out the contact blades.

2Insert the power plug into a wall

outlet.

3Turn the protective cap, covering the

connectors, to the left.

4Insert the plug at the other end of

the charging cable into the remote

control power supply jack.

5If desired, set the On / Off switch

to the right (On).

The On / Off switch is located at the

rear of the remote control.

Use a pen or small screwdriver to

set the switch.

• The Philips Startup screen appears, followed by the Language

Selection screen.The progress animation ( ) in the top right

corner of the screen indicates the charging status.

• When the battery is fully charged the battery full icon ( )

appears at the top right corner of the screen.

Notes

• Operation time of a fully charged battery is approximately 1 month but also

depends on the intensity of usage. When the battery is almost empty the

battery low icon ( ) flashes in the top right corner of the screen.

Recharge the battery as described above.

• When the battery cannot be recharged anymore it needs to be replaced.

For this, refer to chapter 7.2.2 ‘Replacing the battery’.

2.2 Setting up the remote control

Make sure the remote control is fully charged and turned on (for this refer

to chapter 2.1 ‘Charging the battery’).

Avoid turning off the remote control with the On / Off switch at the rear

for this will shorten battery life time.

1Select your preferred language by

Setup

English

Français

Español

Deutsch

touching the language (flag) in the

Language Selection screen.

• Use the and buttons, at the bottom of the screen,

to scroll through the list of available languages.

• A welcome message appears.

Getting started

5EN

English

2Touch the button to continue

Setup

Welcome to the Prestigo setup

guide.The next steps will help you

add devices to your SRT9320.

With the button you go back

to the Language Selection screen.

3Follow the on-screen instructions to set up the remote control for all

devices you wish to operate, using the remote control.

• You can set up the remote control for any of the devices listed below,

with a maximum of 20 devices.

Device name Description

TV Traditional TV, ﬂat screenTV and projectionTV

Set-Top Box Cable box, satellite receiver, Digital Video

Broadcasting Terrestrial device (DVB-T), IPTV,

TNT (FR), Freeview (UK)

Set-Top Box Recorder Cable box, satellite receiver, Digital Video

Broadcasting Terrestrial device (DVB-T), IPTV,

TNT (FR), Freeview (UK) with recording

capabilities (Hard Disk Drive)

DVD Player DVD player

Blu-Ray Player Blu-Ray player

DVD Recorder DVD Recorder

Hard Disk Recorder DVD / Hard Disk Drive combination, PVR,

(+HDD)DVR

VCR Video cassette player and recorder

PC Personal Computer,Windows Media Center

Game Console Game Console

MP3 Player Dock MP3 player docking station and audio-video

accessories (Switches, Apple TV, etc.)

Digital Media Receiver Digital Media Receiver, Media Adapter, Squeezebox

Receiver AV Receiver, Ampliﬁer + Tuner combination, sound

processor

Home Theatre System HomeTheatre System, Home Entertainment

System

Audio System Audio System, AudioSet, Hiﬁsystem

Ampliﬁer Ampliﬁer, Preampliﬁer, Active Speaker System

Radio tuner Radio Tuner, Digital Audio Broadcasting (DAB)

CD player CD player and recorder, Super Audio CD player

(SACD)

Tape Audio cassette tape player and recorder, DAT,

DCC

Minidisc Minidisc player and recorder

TV / DVD Combo TV with integrated DVD

TV / VCR Combo TV with integrated VCR

TV / VCR / DVD Combo TV with integrated VCR and DVD

DVD / VCR Combo DVD / VCR combination

Projector Video projector

Video CD / Laser Disc Video Compact Disc, Laser Disc, Karaoke

HD-DVD player High-Deﬁnition DVD player

Phono Turntable

TiVo Digital Video Recorder*

Satellite Radio Satellite Radio Receiver*

* USA only

Getting started

6EN

English

2.3 Exit Setup mode

1 To exit the initial Setup at any time,

press the HOME button.

• The message ‘Do you want to

save your settings and exit setup’

appears.

2Touch the ‘Yes’ button to exit.

• If you accidentally press the HOME

button during initial Setup, you can enter Setup mode again by touching

the ‘No’ button. Also refer to chapter 4.1 ‘Entering Setup mode’.

Notes

• In order to be able to use the remote control, it should be set up for at least

one device.

• Devices for which the remote control is set during this initial set up can be

deleted, renamed, rearranged or replaced afterwards.

For this, refer to chapter 4.2 ‘Setting up devices’.

3 Using the remote control

-Basic operation

After initial setup you can use the remote control to operate your devices.

For operation the appropriate hard buttons on the remote control can be

used as well as the touchscreen buttons that are displayed when a device

is selected.

3.1 Selecting devices

1Press the HOME button.

• The Home screen appears.

The ‘Devices’ tab is highlighted

and the devices for which the

remote control is set up are

displayed. For adding devices,

refer to chapter 4.2.‘Setting up

devices’.When more pages with devices are available the

button appears.Touch the button to go to the next page.

With the button you go back to the previous page.

2Select the desired device by

Home

Devices

Set-top Box

DVD

Receiver

Activities

touching the corresponding button.

• A keypad with buttons for

Keypad

enter

Favorites

operating the selected device

appears.

• Touch the button to go to the next keypad.

With the button you go back to the previous keypad.

Using the remote control

7EN

English

3You can now operate the selected device by using the touchscreen

buttons (keypad) and the appropriate hard buttons on the remote

control.

• Touch the button to go back to the list of available devices.

• To set up the remote control for other (more) devices, refer to

chapter 4.2.1 ‘Adding devices’.

Note

If a device does not respond properly to a button command you can have the

remote control search for the button function or learn the function from the

original remote control. For this refer to chapter 4.7.4.1 ‘Searching the database’

and / or chapter 4.7.4.2 ‘Learning button functions’.

4 Extra possibilities

- Advanced setup

4.1 Entering Setup mode

When in normal operation mode, pressing the HOME button for 3 seconds

will display a toolbar.This toolbar enables you to configure the current

screen and contains the following tools:

(add): adds items (devices, activities, etc.) to the current screen.

(delete): deletes items (devices, activities, etc.) from the current

screen.

(edit): renames and reconfigures items (devices, activities, etc.).

(done): confirms settings and returns to normal operation mode.

• When more items are available than can be displayed on the screen, the

button appears.Touch the button to go to the next

list of items.With the button you go back to the previous list.

• When an item is selected on the screen, the button appears.

Press the button and use the arrows that appear to move the item

to a different position on the screen.

• Press the button to exit Setup mode at any time.

Extra possibilities

8EN

English

4.2 Setting up devices

When entering setup mode from the devices home screen, you can add,

delete, rename and rearrange devices.

1In the Home screen, touch

ome

Devices

WatchTV

Listen to music

Watch a movie

Play a game

Activities

the ‘Devices’ tab.

• The devices for which the

remote control is set up are

displayed on

the screen.

2Keep the HOME button pressed for

Receiver

3 seconds.

3Use the buttons in the toolbar to

add, delete and edit devices.

4Touch the button in the toolbar

when finished.

4.2.1 Adding devices

1Touch the button in the toolbar.

• The Add device screen appears.

2Select the new device you wish to set up the remote control for (add)

and follow the on-screen instructions.

3Touch the button in the toolbar when finished.

• The Home screen appears.The remote control is now set up to

operate the newly added device.

4.2.2 Deleting devices

1In the list of devices, select the device you wish to delete.

• The Delete device screen appears.

2Touch the button in the toolbar.

3Touch the ‘Yes’ button to confirm.

4Touch the button in the toolbar when finished.

• The Home screen appears.

The device is now deleted from the remote control memory.

Note

Buttons of the deleted device that are used elsewhere, e.g. in an activity or the

volume buttons will be deleted as well. Check the activities you installed and

reinstall them if necessary. For this refer to chapter 4.3 ‘Setting up activities’.

Check the volume buttons for your devices and reinstall them if necessary.

For this refer to chapter 4.2.4 ‘Copy volume buttons from another device’.

4.2.3 Renaming devices

1In the list of devices, select the device you wish to rename.

2Touch the button in the toolbar.

• The Edit device screen appears.

3Touch the ‘Rename’ button.

4Use the keyboard to enter the new name.

5Touch the ‘OK’ button when finished.

• The Setup screen appears.

6Touch the button in the toolbar.

• The Home screen appears.

The device is now stored under the new name.

Extra possibilities

9EN

English

4.2.4 Copy volume buttons from another device

When adding devices, the remote control copies the volume settings as

follows:

• If a device has its own volume buttons in the remote control database,

these volume buttons will be used.

• If a device has no volume buttons in the remote control database,

the volume buttons of another device will be used automatically.

You can change which volume buttons are used, for instance if you wish to

use the volume buttons of the Amplifier to control the volume of the

DVD player.

1In the list of devices, select the device you wish to copy the volume to.

2Touch the button in the toolbar.

• The Edit device screen appears.

3Touch the ‘Copy volume buttons’ button.

• The Copy volume screen appears.

4Follow the on-screen instructions.

5Touch the button in the toolbar when finished.

• The Home screen appears.The volume settings are now copied.

Notes

• When changing the volume settings, the default volume settings of the

remote control will be overwritten.

• Previously installed volume settings will be overwritten.

• Volume settings will be deleted when the volume source device is deleted.

• In ‘Add device’ mode, punched through volume buttons will not be available

for testing.

4.2.5 Rearranging devices

1In the list of devices, select the device you wish to rearrange.

2Touch the button in the toolbar.

3Use the arrows to move the device to the preferred position.

4Touch the button in the toolbar when finished.

• The Home screen appears.

4.3 Setting up activities

Activities enable you to turn a number of devices on and off with a single

button press while all buttons needed for operating the devices immediately

become available.

For example: touching the ‘Watch DVD’ activity can automatically turn on

yourTV, DVD player and Home Theater System, select the correct AV

inputs on yourTV and Home Theater System and displays the buttons that

can be used for operating these devices. Only the buttons that you typically

use when watching a DVD will be shown.

Start / Stop Activity macro

After selecting all desired devices for the activity, you can set up a start and

stop macro for the activity. In the start macro you define a series of button

presses that turn on your devices and select the correct input(s) when you

activate the activity. In the stop macro you define a series of button presses

that turn off your devices when you deactivate the activity.

Note that a short delay is required between each button command that is

sent, otherwise your devices might not respond properly.

Extra possibilities

10EN

English

If you do not set up start / stop macros, all devices have to be turned on /

off manually one after another.This can be easily done by pressing the ‘On’

and ‘Off’ buttons in the Power screen that appears after selecting the activity.

• Touch the ‘Yes’ button when you are asked if you wish to set up macros

and follow the on-screen instructions.

Example Start Activity macro for ‘Watch DVD’:

1Turn on TV.

- Standard delay of 0.25 seconds is automatically inserted.

2Turn on DVD.

3User-defined delay of 10 seconds to wait for the TV to turn on.

4Select input 1 on TV.

Example Stop Activity macro for ‘Watch DVD’:

1Turn off TV.

- Standard delay of 0.25 seconds is automatically inserted.

2Turn off DVD.

Tips and tricks for setting up Macros

A/V input selection

On most remote controls A/V input selection is done by cycling through the

available input sources, using the A/V button and then selecting the desired

source (cyclic input selection).

Some remote controls, however, are equipped with physical buttons

(TV, DVD, etc.) that directly select a particular input source (discrete input

selection).

In order to make your macros more reliable use discrete input selection

where possible.

It might occur that input names used by the remote control differ from the

names used on your device (e.g.‘Input 1’ could be ‘HDMI’,‘Input 2’ could be

‘RGB’, etc.).Try all input commands and check whether your device reacts.

Maybe the original remote control does not have discrete commands, but

nevertheless the Prestigo supports them.

Command sequences

Before you set up a macro, it is useful to try out the sequence of commands

you intend to program, using the original remote control.

You may encounter issues that can help you optimize the macro.

E.g. for most TVs the sequence 0 and 1 in a macro will perform better than

1 only. Other TVs might need -/-- 1 2 iso 1 2, etc.

Button press duration

For some devices it may be necessary to extend the duration of an IR

command (button press) for these devices need a long button press on the

original remote control in order to perform certain functions.

E.g. some PanasonicTVs only turn on after a long press on the Power (B)

button and some Philips DVD players only eject a disc after a long press on

the Stop button.

Delay time

Sometimes delay times between IR commands (button presses) are needed,

for the receiving device needs some time to react.

E.g. after turning on your TV, it may take a couple of seconds before you are

able to change inputs. Also when setting up favorites delays may be needed

since the receiving device(s) need(s) some time to react (for this refer to

chapter 4.5 ‘Setting up favorites’).

You can easlily try this out by pressing 1 and 2 very fast after each other on

the original remote control. If your TV switches to channel 12, no delay time

is needed. If yourTV switches to channel 1 a delay time is needed.

Extra possibilities

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Control remoto universal de Philips

Philips

Philips Prestigo SRU6008 Manual de usuario

Philips

Philips SRM7500 Manual de usuario

Philips

Philips SRP4004 Manual de usuario

Philips

Philips SRU 3040/10 Manual de usuario

Philips

Philips PERFECT SRP3004 Manual de usuario

Philips

Philips SBC RU 00U Manual de usuario

Philips

Philips SRU4010 Manual de usuario

Philips

Philips SRU2103 Manual de usuario

Philips

Philips Prestigo SRT9320 Manual de usuario

Philips

Philips Universal remote control SRP2004WM/17 Manual de usuario

Philips

Philips Universal SBC RU 254 Manual de usuario

Philips

Philips SBC RU240/00U Manual de usuario

Philips

Philips Perfect replacement SRP1003/27 Manual de usuario

Philips

Philips Pronto SBCRU940 Manual de usuario

Philips

Philips SBC RU 120 Manual de usuario

Philips

Philips SRU4007 Manual de usuario

Philips

Philips SBC RP 421 Manual de usuario

Philips

Philips SRU 5040 Manual de usuario

Philips

Philips SRU4205 Manual de usuario

Philips

Philips PERFECT SRP3004 Manual de usuario

Philips

Philips SRU510 Manual de usuario

Philips

Philips SRU5106 Manual de usuario

Philips

Philips Magnavox REM400 Manual de usuario

Philips

Philips Icon SRU4106 Manual de usuario

Manuales populares de Control remoto universal de otras marcas

Pronto

Pronto Peel Manual de usuario

GE 24929 Manual de usuario

Radio Shack

Radio Shack Wireless Remote Control System Manual de usuario

AUVIO

AUVIO Universal Home Theater Remote Manual de usuario

THOMSON

THOMSON ROC4309 Manual de usuario

GE RM94931 Manual de usuario

RCA

RCA RCU600WMS - Universal Remote Control Manual de usuario

Blackweb

Blackweb BWB17AV002 Manual de usuario

Marmitek

Marmitek DoorGuard 300 Manual de usuario

Chunghop

Chunghop RM-L618 Manual de usuario

GE RM24965 Manual de usuario

Anderic

Anderic KTN828 Manual de usuario

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manual de usuario

Medion

Medion E74023 Manual de usuario

intensity

intensity RM02A Manual de usuario

GE RM24950 Manual de usuario

Sky

Sky MY Manual de usuario

RCA

RCA RCU600M - Universal Remote Control Manual de usuario
