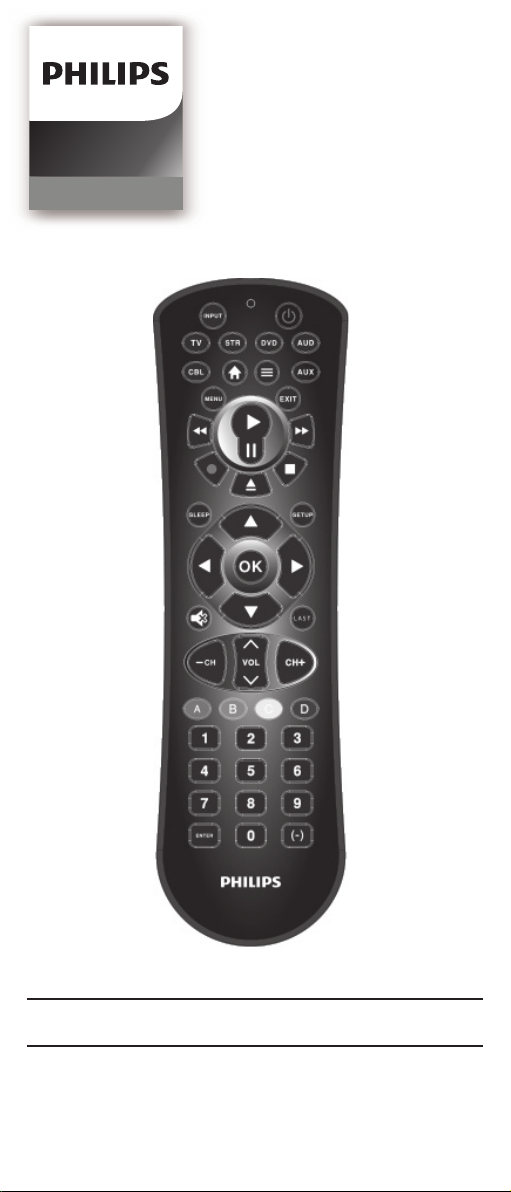

Philips SRP9263C/27 Manual de usuario

User manual

Audio/Video

SRP9263C/27

v2 12/17

Introduction ....................................................... 2

Setup .................................................................. 3

Button Functions...............................................4

Programming Your Remote ..............................6

Direct Code Entry.........................................6

Auto Code Search......................................... 7

Controlling Combo Devices.........................9

Using Your Remote.......................................... 10

Primary Audio Control ............................... 10

Code Identication...................................... 11

Reset to Factory Settings........................... 11

Troubleshooting ...............................................12

Warranty............................................................13

FCC Statement ................................................ 14

Congratulations on your purchase of this

Philips branded Universal Remote Control.

This remote is capable of operating

thousands of audio/video devices including

TVs, Blu-ray™/DVD players, streaming media

players, sound bars, cable receivers

and more!

Table of Contents

For Remote Help:

byjasco.com/urccodes

Your universal remote requires two (2) AAA

batteries (not included). Alkaline batteries

are recommended.

Battery Installation

1. On the back of the remote, pull down on

the textured surface and slide battery

cover downward to remove.

2. Match the (+) and (-) marks on the

batteries to the (+) and (-) marks inside

the battery compartment, then insert two

(2) AAA batteries. Be sure to use fresh

batteries.

3. Position battery cover slightly below

opening and push upward to lock into

place.

NOTE: If your remote stops operating properly,

replace the batteries with new ones.

Battery Precautions

• Do not mix old and new batteries.

• Do not mix alkaline, standard (carbon-

zinc), or rechargeable (Ni-Cd, Ni-MH, etc.)

batteries.

• Always remove old, weak or worn-out

batteries promptly and recycle or dispose

of them in accordance with local and

national regulations.

Battery Saver

Your remote automatically turns o if the

buttons are depressed more than 8 seconds.

This will save your batteries should your

remote get stuck in a place where the buttons

remain depressed (e.g., between the

sofa cushions).

Code Saver

You have up to 10 minutes to change the

batteries in your remote without losing the

codes you have programmed.

Setup

Button Functions

9 9

Button Functions

1. Power - Turns devices ON/OFF

2. TV, STR, DVD, AUD, CBL, AUX - Selects the

device to control

3. Info/Options - Displays on-screen show/

content information

4. Exit -Exit on-screen menus

5. Record, play, stop, rewind, fast forward,

pause

6. Setup - Used to program the remote

7. Up/down/left/right menu navigation

8. Last channel - Returns to the previously

selected channel

9. Channel up/down

10. Numbers - Enter numbers for direct

channel selection

11. Dash (-) - Use to select digital channels,

e.g., 4.1

12. Enter key (Some devices require enter to

be pressed after channel selection)

13. ABCD - Access additional features for

DVRs, cable and satellite receivers

14. Volume up/down

15. Mute - Mutes sound

16. Ok - Selects menu items for the controlled

device

17. Sleep - Sleep timer functions

18. DVD/Blu-ray™open/close - open/close a

player, or List features on cable/satellite

receivers

19. Menu - Displays the on-screen menu

20. Home/Guide - Easily access features on

today’s streaming devices, or Guide on

cable/satellite receivers

21. Input - Selects video inputs

Programming Your Remote

Your remote is designed to control multiple

audio/video devices. To use, you will need to

program the remote for your devices. There

are two dierent methods you can use to

program the remote, Direct Code Entry or

Auto Code Search.

• The Direct Code Entry method is the

recommended method as it is the simplest

and quickest method in most cases.

• The Auto Code Search method searches

through all the codes in the remote to nd

a code for your device.

NOTE: This remote comes preprogrammed for

Roku®boxes and Samsung TVs. Press TV for

Samsung TVs and STR for Roku boxes.

Direct Code Entry (Recommended)

1. Locate the Code List included

with your remote. Find the

section for the type of device you

wish to control, (for example TV,

STR, DVD, AUD, CBL, AUX). Locate

the brand of your device and

circle all the remote codes for the

brand.

2. Press and hold down the SETUP

button on the remote until the

red light on the remote control

turns on. Release the SETUP

button. The red light will

remain on.

NOTE: The red light will either be a

small light at the top of the remote

or the power ON/OFF button.

3. Press and release the device

button on the remote for the type

of device you wish to control, (for

example TV, STR, DVD, AUD, CBL,

AUX). The red light will blink once

and remain on.

NOTE: Any of the device buttons

on the remote can be programmed

to control any of your devices.

For example, you can use the aux

device button on the remote to

Programming Your Remote

control a Satellite Receiver, Digital

Converter Box, Streaming Media

Player or any device category in

the Code List.

4. Use the number buttons on the

remote to enter the rst 4-digit

remote code you circled in the

Code List in Step 1. The red light

will turn o after entering the

fourth digit.

5. Point the remote at the device.

Test the buttons on the remote

to see if the device responds as

you would expect. If the buttons

do not operate the device,

return to Step 2 above and use

the next code that you circled

for that device.

6. Repeat steps 1 – 5 for each

device you wish to control.

Programming Notes

• Some codes may operate only a few

functions of your device. There may

be another code in the Code List that

controls more functions. Test other codes

in the Code List for more functionality.

• If you do not nd a remote code that

works your device or there are no codes

in the Code List for your device, use the

Auto Code Search method in the next

section to program your remote.

• For combination devices such as a TV/

DVD combo or TV/VCR combo, you may

have to enter a code for each device.

• Write down the remote codes used to

program the remote for future reference.

Auto Code Search

The Auto Code Search is a process where

you can search through all the codes stored

in the remote to nd a code for your device.

It is recommended that you read through all

the steps below to familiarize yourself with

the Auto Code Search before starting

the process.

Programming Your Remote

1. Manually turn on the device you

wish to control.

NOTE: The Auto Code Search

process cannot be used for devices

without power ON/OFF capability.

Use the Direct Code Entry method in

these cases.

2. Press and hold down the SETUP

button on the remote until the red

light on the remote control turns

on. Release the SETUP button.

The red light will remain on.

NOTE: The red light will either be a

small light at the top of the remote

or the power ON/OFF button.

3. Press and release the device

button on the remote for the type

of device you wish to control, (for

example TV, STR, DVD, AUD, CBL,

AUX). The red light will blink once

and remain on.

4. With the remote pointed at the

device, press and release the

POWER button on the remote.

The remote will send 10 dierent

codes to the device. The red light

will blink once for each code and

remain on after sending the 10

codes.

Did the device turn o?

• If YES, go to Step 5.

• If NO, repeat Step 4 to test the

next 10 codes.

5. Manually turn the device back on.

6. With the remote pointed at the

device, press and release the

VOL button. The remote will re-

send the rst code of the 10 codes

from Step 4. The red light will blink

once and remain on.

Did the device turn o?

• If YES, you have found a code

for the device. Press and

release the same device button

Programming Your Remote

you pressed in Step 3. This will

store the code in the remote.

Go to Step 7.

• If NO, continue to press and

release the VOL button

until the device turns o

to test the other 9 codes

from Step 4. Be sure to wait

approximately 3 seconds after

each VOL button press

to allow the device time to

respond to the code. When

the device turns o, you have

found a code for your device.

Press and release the same

device button pressed in Step

3. This will store the code in

the remote. Go to Step 7.

NOTE:

• The VOL button can be used

to go backwards through each

batch of 10 codes.

• The red indicator light will ash

2 times after testing the rst or

last code in each batch of 10.

7. Use the remote to turn the

device back on. Test the buttons

on the remote to see if the

device responds as you would

expect. If the buttons do not

operate the device, return to

Step 2 and repeat this process

to search for a better code to

operate the device.

8. Repeat this process for each

device you wish to control.

Controlling Combo Devices

Some combo devices (e.g. TV/VCR, TV/DVD,

DVD/VCR, etc.) will require you to set up

two dierent device buttons to control both

parts of the combo device. For example, if

you have a TV/DVD combo, you may need

to set up one code under the TV button to

control the TV and a separate code under

the DVD button to control the DVD.

Using Your Remote

Primary Audio Control

The Primary Audio Control feature allows

you to select a single device that the volume

buttons always control. For example, the

remote can be in TV mode while the volume

buttons control the volume on your audio

receiver or sound bar instead of your TV.

Enabling the Primary Audio Control

1. Press and hold down the SETUP

button on the remote until the

red light on the remote control

turns on. Release the SETUP

button. The red light will

remain on.

2. Press and release the device

button (TV, AUD, etc.) on the

remote for the device you wish

to control the volume.

3. Press and release the

MUTE button.

4. Press and release the VOL

button. The red light will blink

twice and turn o.

Disabling the Primary Audio Control

1. Press and hold down the SETUP

button on the remote until the

red light on the remote control

turns on. Release the SETUP

button. The red light will

remain on.

2. Press and release the device

button (TV, AUD, etc.)

programmed to control the

Master Volume Feature.

3. Press and release the

MUTE button.

4. Press and release the VOL

button. The red light will blink

twice and turn o.

Tabla de contenidos

Idiomas:

Otros manuales de Mando a distancia de Philips

Philips

Philips TSU9600/05 Guía de seguridad

Philips

Philips SBCRU510/00B Manual de usuario

Philips

Philips SRU5150/86 Manual de usuario

Philips

Philips SRU 1018 Manual de usuario

Philips

Philips 22AV1106B Manual de usuario

Philips

Philips SRP4004/53 Manual de usuario

Philips

Philips SBCRU530/00B Manual de usuario

Philips

Philips SBCRU630/85 Manual de usuario

Philips

Philips 22AV1104 Manual de usuario

Philips

Philips 22HFL2869P/12 Manual de usuario

Philips

Philips SBCRU240/00 Manual de usuario

Philips

Philips SBC RU430 Manual de usuario

Philips

Philips Perfect replacement SRU5108 Manual de usuario

Philips

Philips Perfect replacement SRP2003 Manual de usuario

Philips

Philips SRP9488C/27 Manual de usuario

Philips

Philips SBCRU631/00 Manual de usuario

Philips

Philips LivingColors 69164/31/PH Manual de usuario

Philips

Philips PRESTIGO SRU8008 Manual de usuario

Philips

Philips Pronto TSU9800 Manual de usuario

Philips

Philips Perfect replacement SRP5107/27 Manual de usuario

Philips

Philips SRU2103S/27 Manual de usuario

Philips

Philips SRP5004/53 Manual de usuario

Philips

Philips srp3014 Manual de usuario

Philips

Philips Home Power SPC1241AT/27 Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
