Wireless TV link SLV3100

Welcome

SLV3100 WIRELESS TVLINK TRANSMITTER SLV3100 WIRELESS TVLINK RECEIVER

A. Transmitter B. Receiver

E. Remote control

blaster cord

C. Power adapter

(2x)

F. User manual

SLV5400

User Manual 3

Handleiding 19

Mode d’employ

User Manual

Handleiding

Mode d’employ

D. Quick start

guide

PAY TV

DVDDVD+RW

VCR

SAT

or or or or

Television 1and 2 Power outlet

(2x)

Video cassette

recorder

DVD recorder DVD player Satelite

receiver

Set-top

box

What else you’ll need 1

1video source

Quick start guide

1Connect transmitter

3Enjoy

2Connect receiver

Wireless TV link SLV3100

Welcome

What’s in the box

Wireless TV link SLV3100

User Manual 3

Handleiding 14

Mode d’employ

User Manual

Handleiding

Mode d’employ

1Connect transmitter

Connect the video source

DC 9V

1 2 3 4

TV1

Video source

DC 9V

1 2 3 4

TV1

Video source

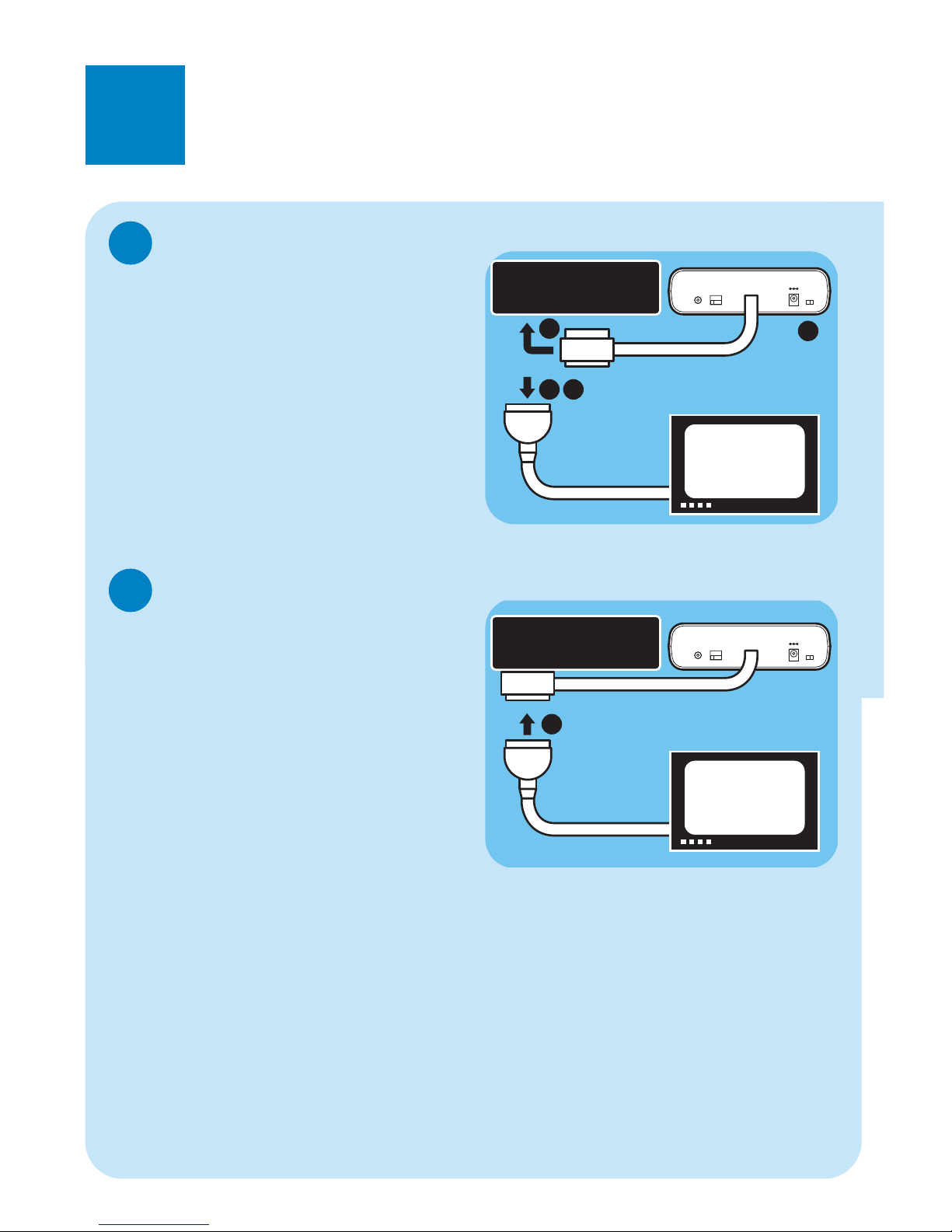

Connect TV1

1. Take the supplied transmitter (A)

2. Find the SCART cable from the video source

that is connected to TV1.

3. Unplug the SCART cable from the video

source.

4. Plug the SCART cable of the transmitter (A)

into the SCART port of the video source.

1. Plug the SCART cable from TV1 into the

SCART connector of the transmitter (A).

Connect the power adapter

1. Take the supplied power adapter (C).

2. Plug the connector into the DC 9V power

connector on the transmitter (A).

3. Plug the adapter into the power outlet.

Preparation

1. Switch on the transmitter (A).

2. Switch on the video source.

3. Take these items:

• Receiver (B)

• Power adapter (C)

• Remote control of a video source.

• This quick start guide (D)

4. Go to TV2.

2Connect receiver

DC 9V

ON/OFF

Check the operation of TV1

1. Switch on TV1.

2. Switch on the connected video source.

3. Select the correct SCART input on TV1.

4. Check if TV1 shows the image of the video source.

The transmitter is connected correctly.

Firmly insert the SCART cables to the ports:

1. Plug the connector straight into the port.

2. Apply some force when you insert the connector.

Connect TV2

DC 9V

1 2 3 4

TV2

DC 9V

14 5

TV2

SLV3100 WIRELESS TVLINK RECEIVER

DC 9V

ON/OFF

Connect the power adapter

Check the operation of TV2

1. Plug the SCART cable of the receiver (B)

into the SCART port of TV2.

1. Switch on TV2.

2. Switch on the receiver (B).

3. Select the correct SCART input on TV2.

4. Point the remote control of the video

source to the receiver (B).

5. Operate the video source with its remote

control.

6. Check if TV2 shows the image of the video

source.

> The receiver is connected correctly.

1. Take the supplied power adapter (C).

2. Plug the connector into the DC 9V power

connector on the receiver (B).

3. Plug the adapter into the power outlet.

Result

3Enjoy

Example:View satellite programs on TV2

65 7

SLV3100 WIRELESS TVLINK RECEIVER

DC 9V

ON/OFF

SLV3100 WIRELESS TVLINK TRANSMITTER

TV2

TV1

TV1TV2

SAT/STB/DVD player

VCR/DVD recorder

SLV3100 WIRELESS TVLINK TRANSMITTER

SLV3100 WIRELESS TVLINK RECEIVER

1. Switch on the transmitter (A).

2. Switch on TV2.

3. Switch on the receiver (B).

4. Select the correct SCART input on TV2.

5. Point the remote control of the satellite

receiver to the receiver (B).

6. Switch on the satellite receiver.

7. Operate the satellite receiver with its

remote control. Enjoy!

To view other video sources, replace ´Satellite

receiver´ with the name of the device used.

Your satellite receiver needs to be connected

to the transmitter (A) of the wireless TV link.

View video source on TV1

1. Switch on TV1.

2. Select the correct SCART input on TV1.

3. Operate the video source as usual. Enjoy!

Troubleshooting

Problem Tip

No image or wrong image on TV1 • Make sure the video source is connected to the transmitter (A).

• Make sure the transmitter (A) is connected to TV1.

• Make sure SCART cables are ﬁrmly inserted.

• Make sure the video source is switched on.

• Make sure the correct SCART input on TV1 is selected.

No image or wrong image on TV2 • Make sure SCART cables are ﬁrmly inserted.

• Make sure the receiver (B) is connected to TV2.

• Make sure both receiver (B) and transmitter (A) are switched on.

• Make sure the video source is switched on.

• Make sure the correct SCART input on TV2 is selected.

• If the video source gives proper image on TV1:

Make sure the video source gives video signal in CVBS mode.

> See its user manual

• Change the wireless channel that is used for communication.

> See the user manual (F) page 7.

• The receiver (B) is out of range of the transmitter (A).The number of

walls and ceilings in between the receiver (B) and transmitter (A) restrict

the distance.

Interference in the image on TV2 • Slightly change the position of the receiver (B) or the transmitter (A).

• Change the wireless channel that is used for communication.

> See the user manual (F) page 7.

• The receiver (B) is out of range of the transmitter (A).The number of

walls and ceilings in between the receiver (B) and transmitter (A) restrict

the distance.

The video sources do not respond • Point the remote control directly to the receiver (B).

to the remote control commands • Replace the batteries of the remote controls with new ones.

from TV2 • Install the remote control blaster cord (E).

> See the user manual (F) page 6.

• The maximum operating distance of the remote control is 5 m.

The image of the video source • Turn off the auto standby mode of the video source.

disappears on TV2

> See its user manual.

• Follow the instructions to reconnect the video sources.

> See this quick start guide (D).

Helpline

België/Belgique/Belgien 070 222 303 (€0.17)

Danmark 3525 8759

Deutschland 0900 1101211 (€0.12)

España 902 888 784 (€0.15)

France 08 9165 0005 (€0.23)

0 0800 3122 1280

Ireland 01 764 0292

Italia 899 23 45 06 (€0.25)

Luxemburg/Luxembourg 40 6661 6544

Nederland 0900 8407 (€0.20)

Norge 2270 8111

Österreich 0900 060 827 (€0.20)

Portugal 2 1359 1442

Schweiz/Suisse/Svizzera 0900 001 600

Suomi 0600 412 001

Sverige 08 5792 9100

UK (United Kingdom) 0906 1010 016 (£ 0.15)

Speciﬁcations are subject to change without notice.

Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

QSG-SLV3100-AEN-V1.0

Need help?

User manual

See the user manual that came with your wireless TV link.

Online help: www.philips.com/support
