Philips DTR4610 Instrucciones de funcionamiento

DTR4610/08

MANUELE D'UTILIZZO

USER MANUAL

PHILIPS

4610_A5_COV.qxp 14/04/2005 13:47 Page 1

Meaning of symbols

Important information:

Must be read and understood.

The "Material recyclability symbol" means the package cardboard or User manual

paper is recyclable.

The "Material recyclability symbol" affixed on plastic parts means these parts are

recyclable.

The "Green Dot" affixed on cardboard means PHILIPS pays a financial duty to the

"Avoidance and Recovery of Packaging Waste" organization.

This receiver contains a large number of materials that can be recycled. If you are

disposing of an old receiver, please take it to a recycling centre.

Safety and environmental instructions

Your receiver has been manufactured to meet the appropriate safety standards, but the

instructions below should be followed to operate it safely.

These instructions must be kept for future reference.

- Before connecting the receiver to the mains, check that the mains supply voltage corresponds

to the voltage printed on the rear of the receiver. If the mains voltage is different, consult the

dealer.

- The receiver does not contain any user-serviceable parts. All maintenance work must be

carried out by qualified personnel.

- If you disconnect the receiver from the mains, make sure to unplug it from the wall socket and

not just from the AC socket at the back of the unit. Children could seriously injure themselves,

as the free end of the cable is still alive.

- Unplug the receiver during lightning storms.

- To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

- The receiver should be placed on a firm surface, and the ventilation openings must not be

covered with items such as newspapers, table clothes, curtains, etc.

- Do not install the receiver near any heat sources such as radiators, stoves or any other

apparatus that produces heat. Protect it from direct sunlight.

- When installing the receiver, ensure there is a gap of approximately 2.5 cm around the receiver

to enable air to circulate freely and prevent overheating.

- Leave accessible the mains connector at the back of the unit in case emergency shutdown is

required.

- Do not place any combustible objects on the receiver (candles, etc.).

- No objects filled with liquids, such as vases, should be placed on the unit. The receiver should

not be exposed to dripping or splashing. Should this happen, disconnect your receiver from the

mains and consult your dealer.

- Make sure that children do not place any foreign objects in any of the openings.

- For cleaning, use a soft, damp (not wet) cloth. Never use any abrasive cloth or aerosol cleaners.

English

SAFETY INSTRUCTIONS 1

4610_A5_GB.qxp 14/04/2005 15:48 Page 1

Contents

English

2CONTENTS

Meaning of symbols ___________________1

Safety and environmental instructions___1

Contents_____________________________2

1 Unpacking _______________________3

2 Installation guide _________________3

3 Product description_______________6

3.1 Front view ______________________6

3.2 Rear view_______________________7

4 Remote Control __________________8

5 Day to Day operation _____________9

5.1 Turn ON your receiver or switch to low

power _________________________9

5.2 Wake up your receiver or switch to

standby ________________________9

5.3 Change channel __________________9

5.3.1 Using number keys ________________9

5.3.2 Using P+ and P-__________________9

5.3.3 Using the channel list(s)_____________9

5.3.4 Using BACK (last channel recall) ______9

5.4 Selecting digital TV or digital Radio__10

5.5 Channel Banner_________________10

5.6 Changing the current programme

options________________________11

5.7 How to Run MHP Interactive

Applications ____________________11

6 Main Menu _____________________12

6.1 Menu navigation ________________13

6.2 Channel manager _______________13

6.3 Timer manager _________________14

6.4 For Parents ____________________15

6.4.1 Decoder Lock___________________15

6.4.2 Parental Control _________________15

6.4.3 Change your PIN code____________15

6.5 Data channels __________________15

6.6 Your preferences________________15

6.6.1 Display options __________________16

6.6.2 Language options ________________16

6.7 Installation _____________________16

6.7.1 Local Time _____________________16

6.7.2 Settings ________________________16

6.7.3 Signal meter ____________________18

6.7.4 Channel Search__________________18

6.7.5 Decoder Status__________________18

6.7.6 Factory Reset ___________________18

6.8 Help__________________________18

7 Advanced Settings_______________19

7.1 Easy Recording _________________19

7.2 Remote control setting ___________20

8 Troubleshooting guide ___________21

9 Technical Specifications __________22

4610_A5_GB.qxp 14/04/2005 15:48 Page 2

English

UNPACKING 3

1 Unpacking

As you unpack your receiver, please make sure the following accessories are included:

Remote control Mains cord SCART cable Phone cord RF cable

with batteries (adapter not

supplied)

The package also includes the following documents:

- User Manual

- Philips World-Wide Guarantee

Plastic bags can be dangerous. To avoid suffocation keep the bag away from babies and

children.

2 Installation guide

Please refer to the safety section before connecting your receiver.

TV set

Video recorder

Terrestrial

receiver

4610_A5_GB.qxp 14/04/2005 15:48 Page 3

English

4INSTALLATION GUIDE

The smart card golden or silver contacts must

be facing up at card insertion.

The "crossed-out wheeled bin" means separate

disposal is required for the receiver, accessories

and used batteries. They mustn't be disposed of

with your household waste. Please, inquire about the local

regulations.

For information: the Philips batteries supplied with your

receiver remote do not contain hazardous substances

such as Mercury, Cadmium, or Lead.

1Disconnect your TV set and recorder from the mains.

2Integrate your receiver in your existing installation as

shown on the above diagram.

3Insert the two batteries supplied in your remote control.

4Reconnect your TV set and recorder to the mains. Do not

connect your receiver to the mains yet!

5Switch on your TV set and select a channel.

6Plug the receiver's power supply cord to the mains. The

receiver front panel green LED gets on.

7Now you should see the Welcome screen on your TV

screen. After a few seconds, the Welcome screen

disappears.

8Then, a screen appears, that allows you to select the

language. Highlight the desired language by pressing Vor

W, and then press OK.

You are prompted to confirm your choice by pressing OK

again.

4610_A5_GB.qxp 14/04/2005 15:48 Page 4

English

INSTALLATION GUIDE 5

9Next, highlight the country where you operate the

receiver by pressing Vor W, and then press OK.

You are prompted to confirm your choice by pressing

OK again.

10 The next screen is used to select both the TV screen

format corresponding to your TV set and update mode.

Highlight the appropriate format by pressing Cor B,

then move to the update mode selection using Vor W,

and highlight Yes to allow for automatic software

upgrade. Alternatively, highlight No if you prefer to be

notified when software upgrade is available. Press OK to

initiate the channel search.

Search operation is indicated by segments moving around

the display.

11 Once it has been completed, follow the prompts

displayed on the screen.

Press OK to store the channels found and tune the

receiver to the first found TV channel.

Now you are ready to enjoy viewing digital terrestrial TV.

Refer to chapter 5 and 6 to learn more about using your

receiver.

4610_A5_GB.qxp 14/04/2005 15:48 Page 5

English

6PRODUCT DESCRIPTION

3 Product description

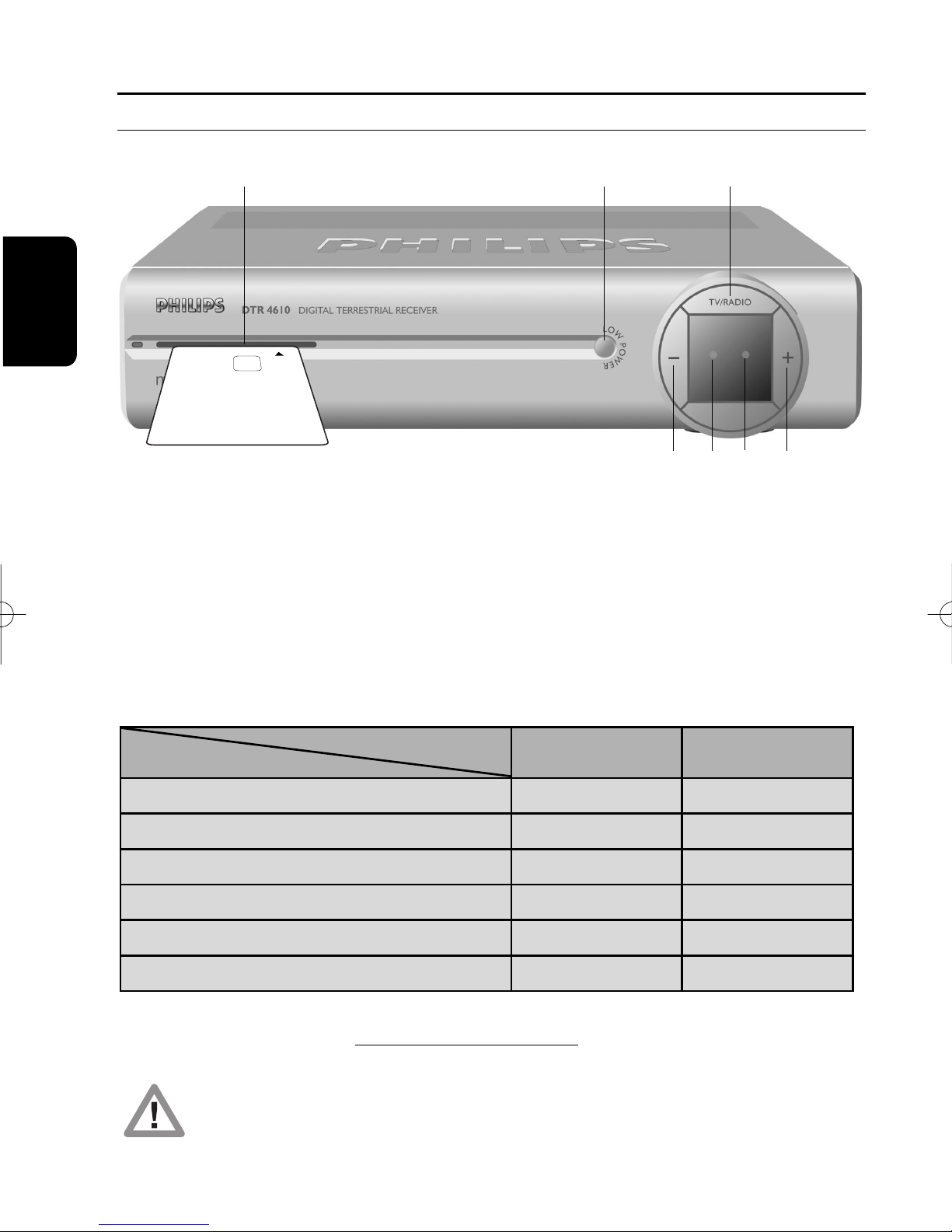

3.1 Front view

1Smartcard slot

2LOW POWER button: Switch the receiver on or to "low power".

3TV/RADIO button: Toggle between digital TV and digital radio.

4"-" button: Channel down.

5Bicolour LED: Display receiver status (see status indicator table).

6Red LED Display receiver status (see status indicator table).

Blink at remote control command reception.

7"+" button: Channel up.

STATUS INDICATOR TABLE

Note: if the red LED is blinking while your receiver is in "Standby", it indicates that an upgrade of your

receiver software is taking place. Do not interrupt this operation. Wait for the green LED to light up,

indicating successful upgrade, and then continue as normal.

Your receiver, as any electronic equipment, consumes power. In order to reduce power

consumption, please switch your receiver to either Standby or "Low Power" whenever you

are not using it. For maximum energy saving we recommend you switch off the receiver by

unplugging it from the mains if you are not using it ffoorraalloonnggttiimmee.

Indicator

Mode Red LED Bicolour LED

Low power red

Standby Orange

TV/Radio mode green

Download in progress Blinking red

Timer active when receiver on red green

Timer active when receiver in standby red orange

123

456 7

4610_A5_GB.qxp 14/04/2005 15:48 Page 6

English

PRODUCT DESCRIPTION 7

3.2 Rear view

1Telephone Line*** (3) To connect the supplied telephone cord to be connected to

your telephone line using the appropriate adapter (adapter not

supplied).

2VCR SCART* (1) To connect a SCART lead to be connected to the SCART socket

input (EXT1) of your VCR or DVD Recorder.

3Digital Audio* To connect to one of the digital audio input of your HiFi /audio

receiver system.

4Serial* Data interface used during servicing.

5Aerial In* To connect the plug of your aerial cable.

6230V~50Hz 15W max** To connect the supplied mains cord to be connected to the

power socket.

7Label Type and serial number of your receiver.

8TV SCART* (1)(2) To connect the supplied SCART lead to be connected to the

SCART socket input of your TV set.

9L/R Audio Output* To connect to the Left/Right audio Cinch inputs of your

HIFI/audio receiver system.

10 RF Out* To connect the supplied RF coaxial cable to be connected to the

aerial input socket of your TV or VCR.

* Safety Extra Low Voltage

** Hazardous Voltage

*** Telecommunication Network Voltage 3

(1) SCART is also called Euroconnector or Peritel.

(2) The supply SCART lead is suited for RGB format, which allows the best picture quality. Consult the

user manual of your TV set to select its RGB capable SCART socket input.

(3) This equipment has been approved pursuant to Commission Decision 99/303/EC for pan-

European connection to the public switched telephone network (PSTN). However, due to

differences between the individual PSTNs provided for in different countries, the approval does

not, of itself, give an unconditional assurance of successful operation on every PSTN network

termination point. In the event of problems, you should contact your equipment supplier in the

first instance.

67 8 910

12345

4610_A5_GB.qxp 14/04/2005 15:48 Page 7

English

8REMOTE CONTROL

4 Remote Control

AA+/-

Increase/Decrease the volume

level.

0-9 number keys

- In viewing mode: select channels.

- In menu: directly select a menu

item or set a setting.

- In standby: wakes up the

receiver.

Open the Options menu to

momentarily change the

soundtrack, subtitles, teletext, or

display format setting.

Standby 22

Switch your receiver into the

standby mode.

RED, GREEN, YELLOW, BLUE

Contextual keys used in MHP

applications.

INFO

Switch between viewing, Channel

Banner, and Channel Banner with

Extended Info.

MUTE c

Mute the sound on your TV or

receiver.

BACK

- In viewing mode: return to the

previously tuned channel.

- In menu mode: return to the

previous screen.

EPG

Open/Close the Programme Guide.

TV/STB

Toggle between watching

terrestrial digital TV via your

receiver and standard analogue TV

via your TV set.

- Switch the Channel Banner in

the browsing mode.

- Scroll up/down in a menu or

channel list.

In Channel Banner: switch

between the current and next

programme.

Confirms your choice.

EXIT

Return to normal viewing. If EXIT

is pressed and held for at least 2

seconds, the current application is

closed and normal viewing is

resumed. The "Autostart" status is

then switched off temporarily until

the receiver tunes to this channel.

TEXT

Contextual key used in MHP

applications.

Open the Options menu to

momentarily change the

soundtrack, subtitles, teletext, or

display format setting.

Open/Close the Menu.

REC

Open the Setting a Timer screen.

RADIO

- In viewing mode: toggle between

TV and Radio.

- In standby: wakes up the

receiver.

FAV

Open/Close the current channel

list.

P+/P-

- In viewing mode: tunes the

next/previous channel within the

current channel list.

- In channel lists: scrolls one page

up/down.

- In standby: wakes up the

receiver.

4610_A5_GB.qxp 14/04/2005 15:48 Page 8

5 Day to Day operation

5.1 Turn ON your receiver or switch to low power

While your receiver is in "low power", the only way to turn it on is to press the LOW POWER

button on the front panel.

While watching digital TV or listening to digital radio, press the LOW POWER button on the

front panel to switch your receiver to "low power".

5.2 Wake up your receiver or switch to standby

While watching digital TV or listening to digital radio, press the standby key of the remote control

to switch your receiver to standby.

While your receiver is in standby, to wake it up:

- Either press the P+, P-, RADIO or any number key of the remote control.

- Or press the PROG-/PROG+ or TV/RADIO button on the front panel.

5.3 Change channel

When you are watching digital TV or listening to digital radio, there are different ways of changing

channel.

5.3.1 Using number keys

Enter the desired channel number using number keys.

5.3.2 Using P+ and P-

Press P+ to select the next channel in the current list, or P- to select the previous channel in the

current list.

Note: Skipped channels cannot be selected using PP++or PP--; they can only be selected either using the

number keys or from a channel list.

5.3.3 Using the channel list(s)

- Press the FAV key to open the current channel list.

- Scroll to the desired channel, and then press OK to

select it.

- Alternatively, press FAV, and then use the Cor Bto

enable another channel list to choose from.

Note: empty lists are not displayed.

TV Channel List

5.3.4 Using BACK (last channel recall)

Press the BACK key to return to the previously selected channel.

English

DAY TO DAY OPERATION 9

4610_A5_GB.qxp 14/04/2005 15:48 Page 9

Otros manuales para DTR4610

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de Philips

Philips

Philips LX-3000D/21L Manual de usuario

Philips

Philips D2902 - annexe 1 Manual de usuario

Philips

Philips STU330A Manual de usuario

Philips

Philips DSR 2111 Manual de usuario

Philips

Philips TransCast DLV92009/10 Manual de usuario

Philips

Philips FR-975 Manual de usuario

Philips

Philips FR-975 Manual de usuario

Philips

Philips SL400i/37 Manual de usuario

Philips

Philips SL400 Manual de usuario

Philips

Philips DAUB-F1 Manual de usuario

Philips

Philips AE 3625 Manual de usuario

Philips

Philips DTR 2000 Manual de usuario

Philips

Philips STU 801 Series Manual de usuario

Philips

Philips MX920AHT Manual de usuario

Philips

Philips SLA5500NS Manual de lista de piezas

Philips

Philips STU 1400 Manual de usuario

Philips

Philips MX1015D37 Manual de usuario

Philips

Philips STU130A Manual de usuario

Philips

Philips SLV5400 Manual de usuario

Philips

Philips Selecon PL1WDMX01 Manual de usuario

Philips

Philips HTS3100 Series Manual de usuario

Philips

Philips DRE420SY Manual de usuario

Philips

Philips TransCast DLV92009/10 Manual de usuario

Philips

Philips HTS 3610 Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
