Philips IntelliVue Arm
P502673 Rev B
IntelliVue Arm Components List
2
Wall Track Options
Select a wall track.
Choose a size that is compatible with your
application.
Wall tracks are available in different lengths.
Each has 3/8" diameter mounting holes
positioned 6" center to center apart.
8326-13-XXX - 13" Wall Track
8326-19-XXX - 19" Wall Track
8326-31-XXX - 31" Wall Track
NOTE: Customlengthtrackscanbe
manufactureduponrequest.
13 "
19 "
31"
8328-XXX Track Mount
The track mount slides into the wall track.
There is a set screw in the front of the
mount which can be used as a locking
mechanism and also controls the
articulation of the mount.
IntelliVue Arm Components List
3
8240-XXX Aluminum Collar
The aluminum collar slides up the bottom
of the adapter assembly pole and locks
into place, preventing the pole from being
removed.
Setup includes 5/32" Allen wrench
(P700147).
Monitor Arm
6958-1000-XXX
This arm is used for IntelliVue only.
6958-1500-XXX
The minimum weight that can be placed
on the arm is 32 lbs with a maximum
weight capability of 53 lbs.
Setup includes 1/4" Allen wrench
(P701127) and 3/32" Allen wrench
(P700146).
2"
10 "
Adapter Assembly Options
Select an adapter assembly size that is
compatible with your application.
The Adapter Assembly Pole is available in
two different lengths.
61302-10-XXX - 10" Pole
(Used for the IntelliVue adapter plug)
61302-2-XXX - 2" Pole
(Use when adapter plug is not required)
NOTE:Eachadaptersizeincludes(4)1/4-20x
1/2"PhilipsFlatHeadScrews.
IntelliVue Arm Assembly Instructions
4
IntelliVue Arm Assembly Instructions
5
The four anchorage methods illustrated
in the next few pages represent load tests
made to comply with California OSHPD
requirements for the anchorage and
installation of instrument support system.
OSHPD requires that such support
systems resist a lateral force of 2 times
the weight of the instrument and a vertical
force of 2.2 times that weight applied
simultaneously.
For 5/8" Gypsum Board walls to comply
with CA seismic requirements for wall
mounted instrumentation. CA OSHPD
Anchorage pre-approval number TBA.
Anchorage or support of metal stud wall
must be verified by the project engineer
and approved by OSHPD prior to the
installation of any mounting system.
IntelliVue Arm Assembly Instructions
6

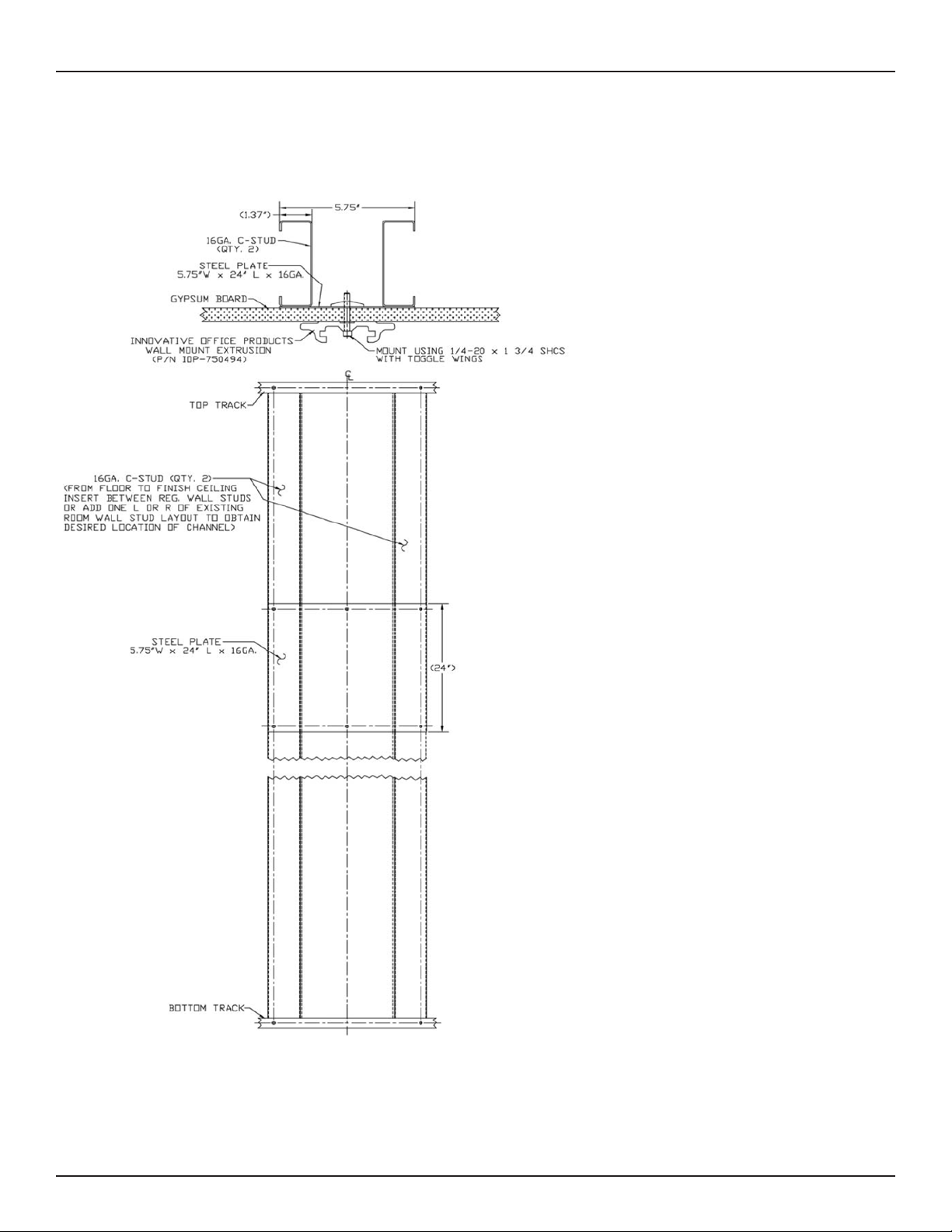

The four anchorage methods illustrated
in the next few pages represent load tests
made to comply with California OSHPD
requirements for the anchorage and
installation of instrument support system.
OSHPD requires that such support
systems resist a lateral force of 2 times
the weight of the instrument and a vertical
force of 2.2 times that weight applied
simultaneously.
For 5/8" Gypsum Board walls to comply
with CA seismic requirements for wall
mounted instrumentation. CA OSHPD
Anchorage pre-approval number TBA.
Anchorage or support of metal stud wall
must be verified by the project engineer
and approved by OSHPD prior to the
installation of any mounting system.
IntelliVue Arm Assembly Instructions
7
The four anchorage methods illustrated
in the next few pages represent load tests
made to comply with California OSHPD
requirements for the anchorage and
installation of instrument support system.
OSHPD requires that such support
systems resist a lateral force of 2 times
the weight of the instrument and a vertical
force of 2.2 times that weight applied
simultaneously.
For 5/8" Gypsum Board walls to comply
with CA seismic requirements for wall
mounted instrumentation. CA OSHPD
Anchorage pre-approval number TBA.
Anchorage or support of metal stud wall
must be verified by the project engineer
and approved by OSHPD prior to the
installation of any mounting system.
IntelliVue Arm Assembly Instructions
8

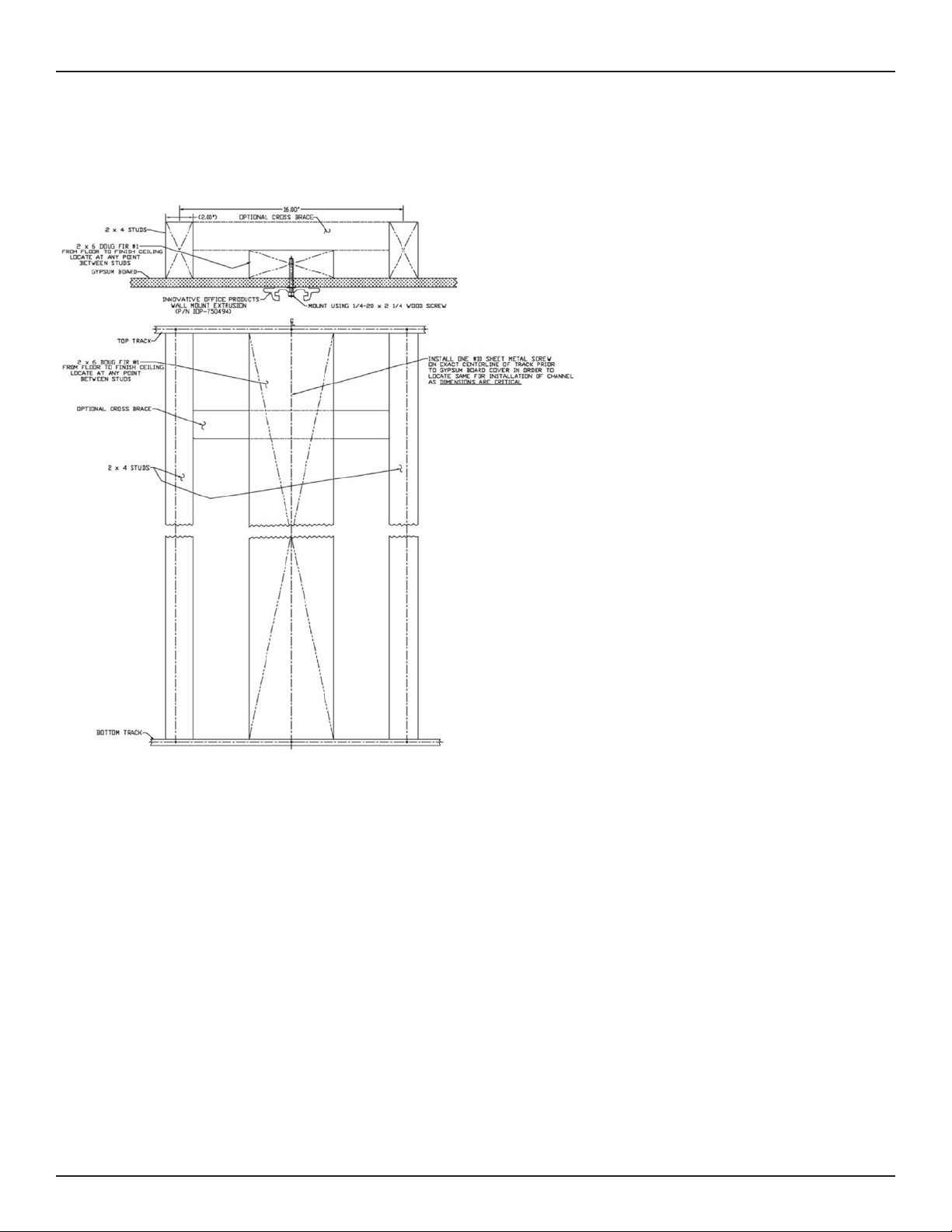

The four anchorage methods illustrated
in the next few pages represent load tests
made to comply with California OSHPD
requirements for the anchorage and
installation of instrument support system.
OSHPD requires that such support
systems resist a lateral force of 2 times
the weight of the instrument and a vertical
force of 2.2 times that weight applied
simultaneously.
For 5/8" Gypsum Board walls to comply
with CA seismic requirements for wall
mounted instrumentation. CA OSHPD
Anchorage pre-approval number TBA.
Anchorage or support of metal stud wall
must be verified by the project engineer
and approved by OSHPD prior to the
installation of any mounting system.
IntelliVue Arm Assembly Instructions
9

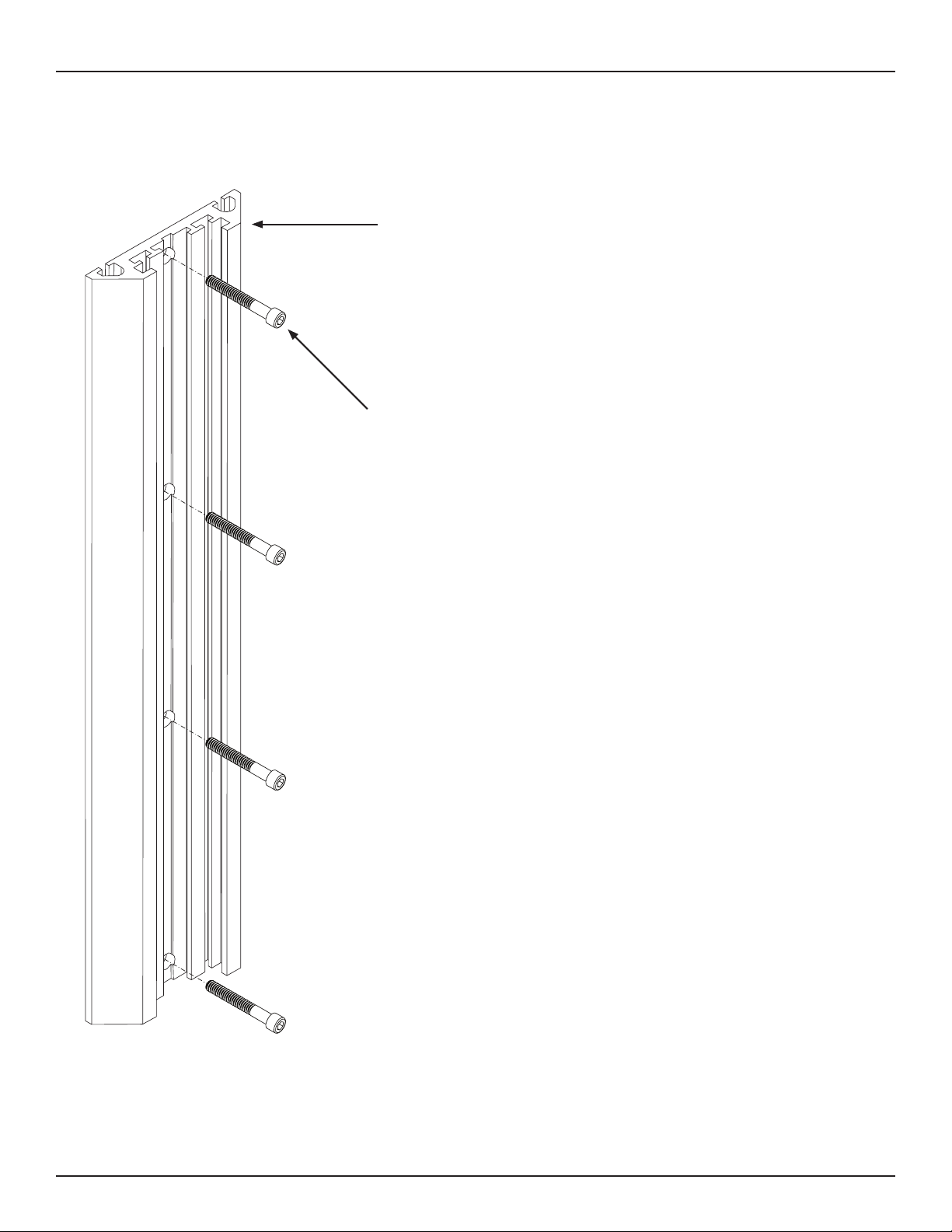

All tracks have 3/8" diameter mounting
holes positioned 6" center to center apart.
Determine where you will be placing the
track and drill appropriate holes.
Position the mount track (8326-#-XXX)
on the wall.
Insert mounting screws (P701274)
through the pre-drilled holes on the track.
Use 3/16" Allen wrench (P701311) and
tighten the screws in the wall.
The length of the track you’ve selected
will depend on how many mounting holes
there are and how many mounting screws
(P701274) you will need. For this example
a 19" track has been selected.
NOTE:Donotfastendirectlyintosheetrock,
plasterordrywall.Consultthefacilitiespersonnel,
installeroryourlocalhardwarestoreifyouhave
anyquestionsonwhatfastenerisappropriatefor
yourwallsurface.
Wall Track
Part No. 8326-#-XXX
1/4-20 x 1-3/4"
Socket Cap Screw
Part No. P701274
IntelliVue Arm Assembly Instructions
10
Align the mount (8328-XXX) in the
grooves at the top of the wall track. Slide
it down to the desired height and tighten
the set screws to lock into place using
the 3/32" Allen wrench (P700146).
Track Mount
Part No. 8328-XXX
