Philips 104E Manual de usuario

Introduction

The 104E colour monitor displays sharp and brilliant images of text and

graphics with a maximum resolution up to 1024x768 pixels. It is optimal

for Windows, spread sheets, and any other application.

This monitor automatically scans horizontal frequencies from 30KHz to

54KHz, and vertical frequencies from 50Hz to 120Hz. With

microprocessor based digital controlled circuit, the monitor can

automatically adjust itself to the video card’s scanning frequency and

displays an image with precise parameters you desire.The wide range

of scanning frequency supports variety of operating platforms, such as

IBM PC and compatibles, including Intel based platforms such as 386,

486, Pentium and Pentium II.

Feature Highlights

•Global Styling demonstrates a soft & smart image.

•Digital Control feature provides user-friendliness and ease-of-use

when operating the monitor.

•Anti-Glare screen coating eliminate any bad effects caused by the

screen surface such as reflection of the room lights.

•85Hz refresh rate:

The maximum display resolution is 1024 x 768 pixels non-interlaced

mode.The recommanded optimum resolution up to 800 x 600 pixels

non-interlaced by maximum 85Hz refresh rate.

•DDC1/DDC2B allows communication between the monitor and PC

system for optimal video configuration.

Note: If you experienced your monitor display is changing from color to

mono, it's possible that you are using a non-VESA-DDC-standard video

card. Please consult with your local PCEC dealer for more information.

ENERGY STAR is a U.S. registered mark.

As an ENERGY STAR®Partner, PCEC, has determined that this

product meets the ENERGY STAR®guidelines for energy efficiency.

IBM, IBM PC and Power PC are registered trademarks of International

Business Machines Corporation.

Safety precautions and maintenance

◆Disconnect the monitor from the mains supply if the monitor is not to

be used for an extended period of time.

◆Do not attempt to remove the back cover, as you will be exposed to

a shock hazard.The back cover should only be removed by qualified

service personnel.

◆Do not place objects on top of the monitor cabinet, which could fall

into vents or which could cover them and prevent proper cooling of

the monitor’s electronic devices.

Do not expose the monitor to rain or excessive moisture to avoid the

risk of shock or permanent damage to the set.

◆Do not use alcohol or ammonia based liquid to clean the monitor. If

necessary, clean with a slightly damp cloth. Disconnect the monitor

from the mains supply before cleaning.

◆Consult a service technician if the monitor does not operate normally

when operating instructions of this manual are followed.

Package

Your 104E package includes the following items:

• The monitor

• Pedestal

•Power cord

• Interface cable (flying-in)

• Win95 driver disk

◆

End of life disposal

Your new set contains materials which can be recycled and reused.

Specialized companies can recycle your product to increase the amount

of reusable materials and to minimize the amount of materials to be

disposed of.

Please inform yourself on local regulations on disposal of your old set.

NInstallation

Important: Please refer to the user’s manuals of your computer and

video adapter to make sure these equipments are properly installed

and configured before installing the monitor.

Positioning / Ventilation

◆Avoid exposing the monitor to direct sunlight, stoves or any other

heat sources.

◆To prevent overheating, make sure that the ventilation openings of

the monitor are not covered.

◆Keep moisture and dust away.

◆Keep away from any magnetic objects, such as speakers, electric

motors, transformers, ...etc.

◆When positioning this monitor, make sure that the mains plug and

socket are easily accessible.

Pedestal

With the built-in pedestal you can tilt and / or swivel the monitor for a

most comfortable viewing angle.

To fit the pedestal, refer to the illustration on the inside front-cover of

this manual.

104

RECALLFUNC.

Connection

Intel Based platform: 386, 486, Pentium, or other compatibles:

• Connect the monitor to the computer using the supplied interface

cables.

Important: Please make sure the AC power to your computer is

“OFF” before connecting or disconnecting any display

peripheral. Failure to do so may cause serious personal injury

as well as permanent damage to your computer equipments.

1) IBM PC connection

2) Mains connection

Monitor rear view

WARNING:SHOCK HAZARD-DO NOT OPEN

AVIS:RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

PRECAUCION RIESGO DE CHOQUE ELECTRICO,NO ABRIR

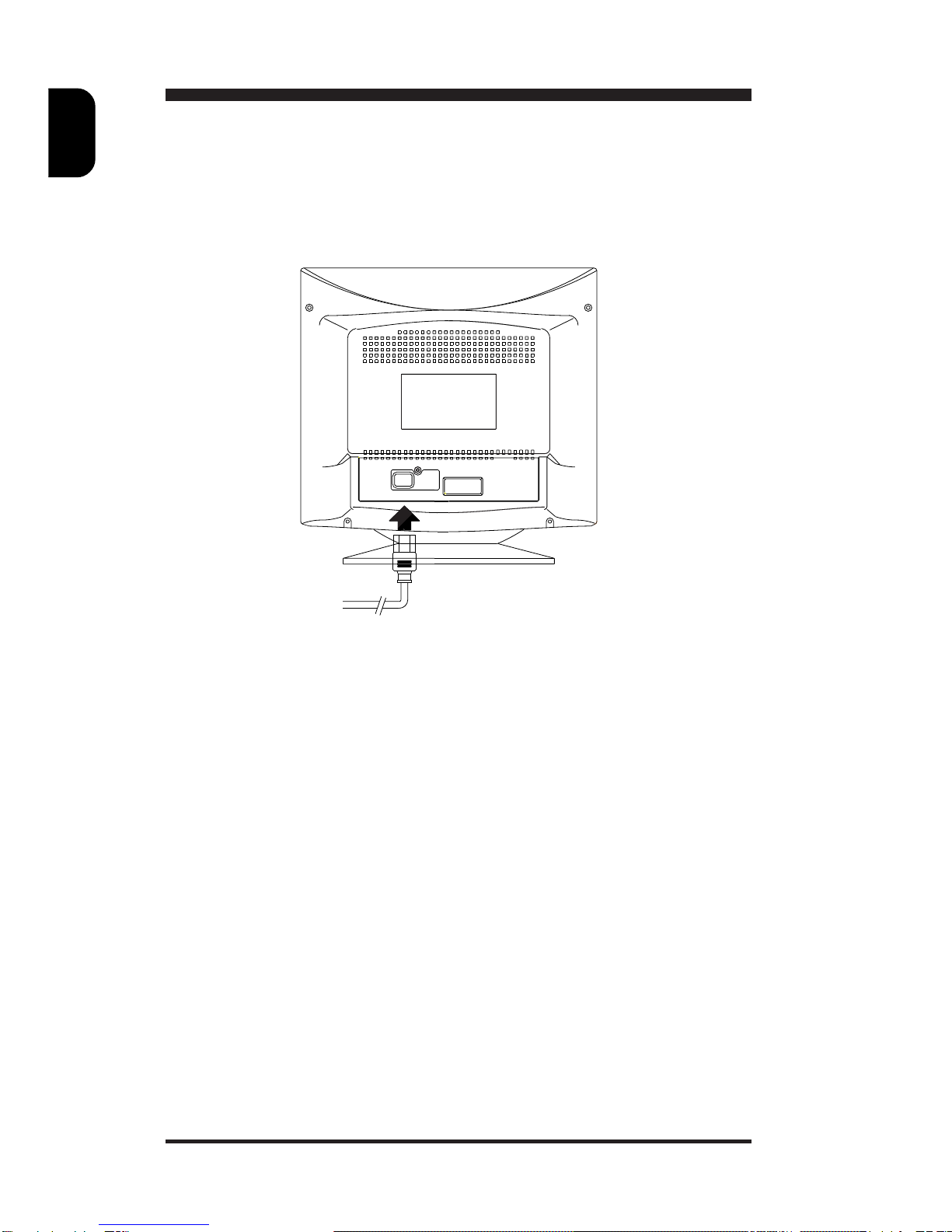

NConnection to the mains

(Rear of the monitor)

Connecting to the mains

This monitor is set to operate at a mains supply of 100-240 volts AC.

If the mains voltage in your home is not between this, consult your

dealer.

Connect one end of the mains cord to the mains socket at the rear of

monitor, and the other end to the mains supply.

The monitor will be operating in power saving mode if you switch on

your monitor without signal input from PC. (Please refer to Power

Management Signalling instruction.)

WARNING:SHOCK HAZARD-DO NOT OPEN

AVIS:RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

PRECAUCION RIESGO DE CHOQUE ELECTRICO,NO ABRIR

(Mains cord)

Front Control locations and functions

POWER.

Press this knob, the green LED lights and the power is ON.

Press this knob again, the green LED disappears and the power

is OFF.

How to use Digital control:

1. When pressing the "FUNC" key, the LED will flash to indicate

the function has been selected.

2. When function has been selected, press or to adjust

picture image.

CONTRAST

Used to adjust the picture contrast level.

BRIGHTNESS

Used to adjust the overall screen brightness as a compensation

for ambient light.

For an optimized adjustment of the picture following controls are

available at the front.

104

FUNC.

RECALL

FUNC.

NH-Size : to adjust the horizontal amplitude of the image.

H-Center : to adjust the horizontal position of the image.

V-Size : to adjust the vertical amplitude of the image.

V-Center : to adjust the vertical position of the image.

Pincushion: to correct the barrel distortion of the image.

Trapezoid : to correct the trapezoid distortion.

Recall: to recall original factory preset mode.

(A) User mode: (12 modes)

The set will save the user's setting parameters automatically.

Press + to recall factory preset mode.

Adjustment

Themonitorispre-setwith7modesforoptimaldisplaysizeandcentering

as indicated in the following table:

Resolution Horizontal Vertical

Mode (dots x lines) Freq.(KHz) Freq.(Hz) Remark

VGA 720 x 400 31.5 70 Non-interlaced

VGA 640 x 480 31.5 60 Non-interlaced

VESA/85 640 x 480 43.3 85 Non-interlaced

VESA/75 800 x 600 46.9 75 Non-interlaced

VESA/60 1024 x 768 48.3 60 Non-interlaced

VESA/85 800 x 600 53.7 85 Non-interlaced

VESA/75 640 x 480 37.5 75 Non-interlaced

N(B) Power Management Signalling

Power Management Definition

VESA DPMS POWER SAVING STATES

MODE VIDEO H-SYNC V-SYNC POWER USED POWER SAVING(%)

ON Active Yes Yes < 90 Watts 0 %

Stand-by Blanked No Yes < 15 Watts > 82 %

Suspend Blanked Yes No < 15 Watts > 82 %

OFF Blanked No No < 5 Watts > 94 %

Note: The video will be blanked and the power LED color will change

into following colors whenever the monitor goes into power

management status.

Green LED light - "Normal" operation

Amber LED light - "Stand by" or "Suspend" mode

Amber LED light - "OFF" mode

This monitor is ENERGY STAR®compliant when used with

a computer equipped with DPMS.

AsanENERGYSTAR®Partner,PCEC,hasdeterminedthatthis

productmeetstheENERGYSTAR®guidelinesforenergyefficiency.

Remark:

The transition time from "on" mode to any power down mode will

take around 5 seconds.

The recovery time from "stand by" or "suspend" mode to "ON"

mode will take around 3 seconds.
