Philips MCD299/98 Manual de usuario

MCD299

DVD Micro Theatre

www.philips.com/welcome

pg001-pg020_MCD299-98-Eng-A 2007.9.27, 13:041

pg001-pg020_MCD299-98-Eng-A 2007.9.27, 13:042

(

)

(

≤

∞

≥

™

pg001-pg020_MCD299-98-Eng-A 2007.9.27, 13:043

Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby

Laboratories.

Windows Media and the Windows logo are trademarks,

or registered trademarks of Microsoft Corporation in the

United States and/or other countries.

Windows

Media

TM TM

Plays

MANUFACTURED UNDER LICENSE FROM DIGITAL

THEATER SYSTEMS, INC. US PAT. NO 5,451,942,

5,956,674, 5,974,380, 5,978,762, 6,226,616, 6,487,535

AND OTHER U.S AND WORLD-WIDE PATENTS ISSUED

AND PENDING.“DTS”AND “DTS DIGITAL SURROUND”

ARE RESISTERED TRADEMARKS OF DIGITAL THEATER

This product incorporates copyright protection technology

that is protected by method claims of certain U.S.patents

and other intellectual property rights owned by Macrovision

Corporation and other rights owners. Use of this copyright

protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited

viewing uses only unless otherwise authorized by

Macrovision Corporation.Reserve engineering or disassem-

bly is prohibited.

pg001-pg020_MCD299-98-Eng-A 2007.9.27, 13:044

English

Index

English ------------------------------------------------ 6

-------------------------------------------------------- 45

CAUTION

Use of controls or adjustments or

performance of procedures other

than herein may result in hazardous

radiation exposure or other unsafe

operation.

pg001-pg020_MCD299-98-Eng-A 2007.9.27, 13:045

English

Contents

General Information

Features .................................................................. 8

Discs for playback ................................................ 8

Supplied accessories ............................................ 9

Environmental information ................................ 9

Care and safety information .............................. 9

Installation

Step 1: Connecting speakers ............................ 11

Step 2:Antennas Connection .......................... 11

Step 3: Connecting TV ....................................... 12

Using A/V OUT jack

Using Y Pb Pr OUT jack

Step 4: Placing the set and speakers ............... 13

Step 5: Connecting the power cord ............... 13

Optional: Connecting additional equipment .....

.......................................................................... 13-14

Listening to the playback of a non-USB device

Using theVCR for recording DVDs

Connecting a USB device or memory card

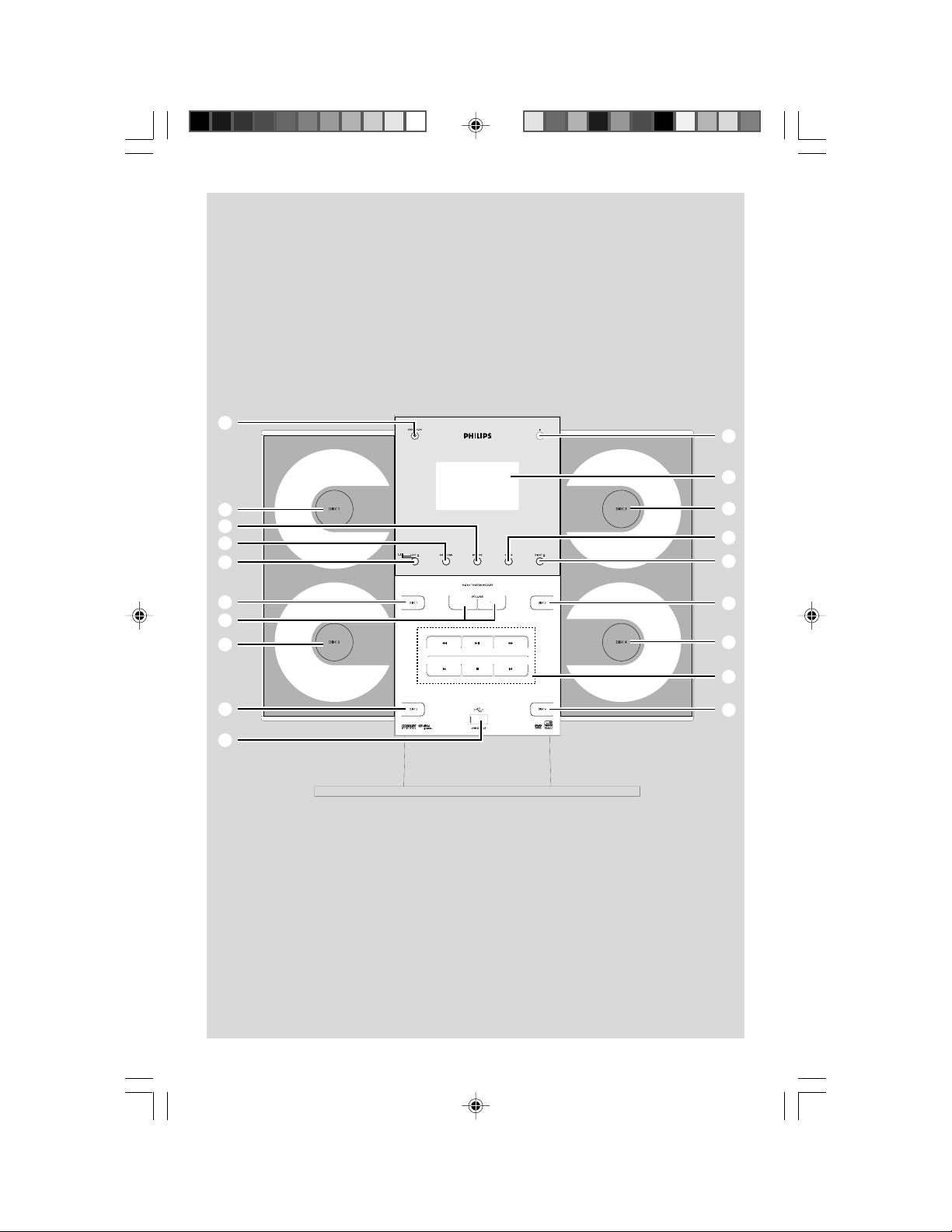

Controls

Controls on the system .................................... 15

Controls on the remote control .............. 15-16

Preparations

Step 1: Inserting batteries into the remote

control .................................................................. 17

Using the remote control to operate the

system

Step 2: Setting the clock ................................... 17

Step 3: Setting video preference .............. 18~19

Setting TV Type

Setting TV Display

Setting up Progressive Scan feature (for

Progressive Scan TV only)

Step 4: Setting language preference ......... 19~20

Basic Functions

Plug and Play ........................................................ 21

Switching the system on/off ............................. 21

Power-saving automatic standby ..................... 21

Sound control ..................................................... 21

DBB

DSC

Volume control ................................................... 22

Dimming the display screen ............................. 22

Demonstration mode ........................................ 22

Disc Operations

Playing discs ......................................................... 23

Using the disc menu .......................................... 23

Basic playback controls ............................... 23-25

Pausing playback

Selecting a track/chapter/title

Resuming playback from the last stopped

point

Zoom

Differnt play modes: SHUFFLE and REPEAT

Repeat A-B

Slow Motion

Program

Forward/Reverse Searching

Time search & search by chapter/track

number

Information display during playback

Special disc features ........................................... 25

Playing a Title

Camera Angle

Changing the Audio Language

Changing the Audio Channel

Subtitles

Playing MP3/WMA disc ..................................... 26

General operation

Playback selection

Playing JPEG Picture CD ................................... 26

General operation

Playback selection

Special JPEG features ......................................... 27

Zoom picture

Slide show playback modes

Playback with multi-angles

pg001-pg020_MCD299-98-Eng-A 2007.9.27, 13:046

English

Contents

System Menu Options

Basic operations ................................................. 28

General Setup Page ............................................ 28

OSD Lang

Screen Saver

Audio Setup Page ........................................ 28~29

Night Mode

Digital Output

Dolby Digital Setup

Video Setup Page................................................ 29

TV Display

Progress

TV Type

Preference Page ........................................... 29~31

Audio

Subtitle

Disc Menu

Parental

Password

Default

Radio Reception

Tuning to radio stations .................................... 32

Programming radio stations ...................... 32~33

Automatic programming

Manual programming

Tuning to preset radio stations ....................... 33

Changing tuning grid .......................................... 33

External Sources

Using a non-USB device.................................... 34

Using a USB mass storage device ............. 34-35

Timer

Timer setting ....................................................... 36

Sleep timer setting ............................................. 37

Specifications ........................................... 38

Tr oubleshooting ............................. 39~41

Glossary ......................................................... 42

Appendix ............................................... 43~44

How to mount your system onto wall .. 43~44

What’s in the supplied mounting kit

What else you’ll need

Preparation

Mounting your main unit onto wall

Mounting your speakers onto wall

pg001-pg020_MCD299-98-Eng-A 2007.9.27, 13:047

English

General Information

Congratulations on your purchase and welcome

to Philips!

To fully benefit from the support that Philips

offers, register your product at www.philips.com/

welcome.

Features

Your DVD MicroTheatre with 2.1 channel full

digital amplifier creates the same dynamic sound

qualities that you find in full-fledged cinemas and

incorporates some of the best features in home

theater technology.

Other features include:

Built-in Dolby Digital decoder, supporting

Incredible Surround and DSC sound setting.

Additional Component Connections

Lets you connect other audio and audio/visual

components to the system so you can use the

system’s surround sound speakers.

Parental control (rating level)

Lets you set a rating level so that your children

cannot watch a DVD that has a rating higher

than you set.

Sleep timer

Enables the system to switch to standby mode

automatically at a preset time.

Night Mode

Lets you compress the dynamic range, reducing

the difference in loudness between different

sounds in Dolby Digital mode.

Progressive Scan

Provides high quality flicker-free images for film

based sources.When a picture refreshes, its

vertical resolution can double to 525 lines.

Note:

–To fully enjoy the progressive scan feature, you

need a progressive scan TV.

Discs for playback

Your DVD System will play:

–Digital Video Discs (DVDs)

–Video CDs (VCDs)

–Super Video CDs (SVCDs)

–Digital Video Discs + Rewritable

(DVD+RW)

–Compact Discs (CDs)

–Picture (Kodak, JPEG) files on CDR(W)

–Windows Media Audio (WMA)

–Supported MP3-CD format.

•ISO 9660 / UDF format

•Max. title/album name –10 characters

•Max. title number plus album is 255.

•Max. nested directory is 8 levels.

•The max. album number is 32.

•The max. MP3 track number is 999.

•Supported sampling frequencies for MP3

disc: 32 kHz, 44.1 kHz, 48 kHz.

•Supported Bit-rates of MP3 disc are: 32, 64,

96, 128, 192, 256 (kbps).

The following formats can’t be supported

•The files like *.VMA, *.AAC, *.DLF, *.M3U,

*.PLS, *.WAV,

•The discs recorded under Joliet format

Region Codes

DVDs must be labeled as shown below in order

to play on this DVD system.You cannot play

discs that are labeled for other regions.

Notes:

–For mixed mode discs, only one mode will be

selected for playback according to the recording

format.

–If you are having trouble playing a certain disc,

remove the disc and try a different one. Improperly

formatted discs will not play on this system.

ALL

pg001-pg020_MCD299-98-Eng-A 2007.9.27, 13:048

English

General Information/Maintenance

Do not block the vents

●Do not operate the system in an enclosed

cabinet and allow about 10 cm (4 inches) of free

space all around the player for adequate

ventilation.

●The ventilation should not be impeded by

covering the ventilation openings with items,

such as newspapers table-cloths, curtains, etc.

Cleaning the cabinet

●Use soft cloth slightly moistened with a mild

detergent solution. Do not use a solution

containing alcohol, spirits, ammonia or abrasives.

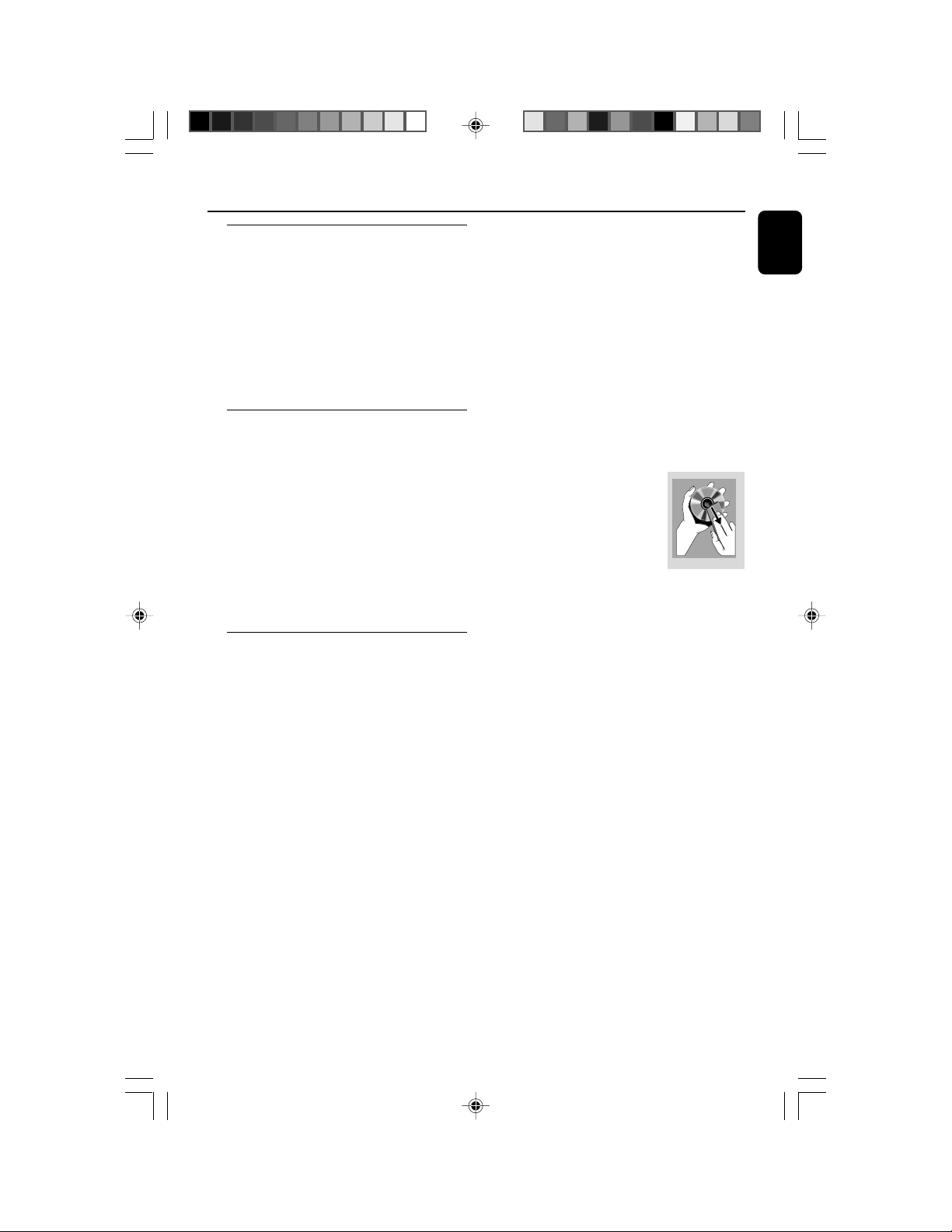

Cleaning discs

●To clean a disc, wipe it in a

straight line from the center

towards the edge using soft and

lint-free cloth.A cleaning agent

may damage the disc.

●Write only on the printed side

of a disc and only with a soft

felt-tipped pen.

●Handle the disc by its edge. Do not touch the

surface.

Finding a suitable location

●Place the player on a flat, hard, stable surface.

●Install this unit near the AC outlet and where the

AC power plug can be reached easily.

Supplied accessories

–A/V cord (R/W/Y)

–Component video cables (red/blue/green)

–FM wire antenna

–MW loop antenna

–15-pin D-Sub cable

–Stands for the main set and speakers

–Wall mounting kit

–Remote Control

–This instruction booklet and a quick start guide

Environmental information

All unnecessary packaging has been omitted.We

have tried to make the packaging easy to

separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene (bags,

protective foam sheet).

Your system consists of materials which can be

recycled and reused if disassembled by a

specialised company. Please observe the local

regulations regarding the disposal of packaging

materials, exhausted batteries and old

equipment.

Care and safety information

Avoid high temperatures, moisture,

water and dust

●Do not expose the system, batteries or discs to

humidity, rain, sand or excessive heat (caused by

heating equipment or direct sunlight).

●No objects filled with liquids, such as vases, shall

be placed on the apparatus.

●No naked flame sources, such as lighted candles,

should be placed on the apparatus.

●The apparatus shall not be exposed to dripping

or splashing.

●Excessive sound pressure from earphones and

headphones can cause hearing loss.

●Battery shall not be exposed to excessive heat

such as sunshine, fire or the like.

Avoid condensation problem

●The lens may cloud over when the player is

suddenly moved from cold to warm

surroundings, making it impossible to play a disc.

Leave the player in the warm environment until

the moisture evaporates.

pg001-pg020_MCD299-98-Eng-A 2007.9.27, 13:049

English

Installation

IMPORTANT!

–The type plate is located at the rear of

the system.

–The voltage selector located at the

rear of this system is preset at

220V-240V from the factory. For

countries that operate at 110V-127V,

please adjust to 110V-127V before you

switch on the system.

– Before connecting the AC power cord

on the rear of the subwoofer to the wall

outlet, ensure that all other connections

have been made.

–Never make or change any

connections with the power switched on.

–High voltage! Do not open.You run the

risk of getting an electric shock.

–The machine does not contain any

user-serviceable parts.

–Modification of the product could

result in hazardous radiation of EMC or

other unsafe operation.

AC CORD

CONNECT TO SUB WOOFER

SPEAKERS 6 Ω

Y/Pb/Pr OUT

A/V OUT

AUDIO

S-VIDEO

VIDEOIN

TVIN

AUDIO

S-VIDEO

VIDEO IN

TV IN

AC power

cord

Speaker

(right)

Speaker

(left)

FM wire antenna MW loop antenna

To avoid overheating of the system, a safety

circuit has been built in.Therefore, your

system may switch to Standby mode

automatically under extreme conditions. If

this happens, let the system cool down

before reusing it (not available for all versions).

Note:

–Before installation is finished, it is not

recommended to remove the protective plastic film

attached to the surface of the front panel to avoid

any scratch caused during installation.

Subwoofer

A/V cord

pg001-pg020_MCD299-98-Eng-A 2007.9.27, 13:0410

Otros manuales para MCD299/98

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Micro sistema de música de Philips

Philips

Philips DCM2060/12/93/96/79 Manual de usuario

Philips

Philips MCD122/77 Manual de usuario

Philips

Philips MCM148/96 Manual de usuario

Philips

Philips MCM1055/96 Manual de usuario

Philips

Philips MCM204B/61 Manual de usuario

Philips

Philips BTM2325 Manual de usuario

Philips

Philips MCM148/77 Manual de usuario

Philips

Philips FWM185 Manual de usuario

Philips

Philips MCB2305 Manual de usuario

Philips

Philips BTM2355 Manual de usuario

Philips

Philips MCM2300/55 Manual de usuario

Philips

Philips MCD120/98 Manual de usuario

Philips

Philips MCM1150 Manual de usuario

Philips

Philips DCM3100 Manual de usuario

Philips

Philips MCM149/98 Manual de usuario

Philips

Philips DCM1170 Hoja de información del producto

Philips

Philips MCM1350/55 Manual de usuario

Philips

Philips BTM1560/12 Manual de usuario

Philips

Philips BTM2310/55 Manual de usuario

Philips

Philips MCM1055/96 Manual de usuario

Philips

Philips MCM302/05 Manual de usuario

Philips

Philips DCB2020 - Manual de usuario

Philips

Philips MCM169/96 Manual de usuario

Philips

Philips DCM378/12 Manual de usuario

Manuales populares de Micro sistema de música de otras marcas

Rautz

Rautz MC-5100DU Manual de usuario

Sanyo

Sanyo DC-D9 Manual de usuario

Curtis

Curtis RCD744 Manual de usuario

Samsung

Samsung MM-UC8 Manual de usuario

Akai

Akai AMP300UCI Manual de usuario

Hyundai

Hyundai MS 132 DU3BL Manual de usuario

JVC

JVC UX-GP5 Manual de usuario

Tiger Electronics

Tiger Electronics Hitclips Beat Bot 6000 Manual de usuario

Optimus

Optimus SYSTEM 731 Manual de usuario

Hitachi

Hitachi AXM209UK Manual de usuario

Sharp

Sharp XL-MP110DVD Manual de usuario

Tiger Electronics

Tiger Electronics Hitclips Micro Music Watch 59947 Manual de usuario

ProAudio

ProAudio MC 9010 iP Manual de usuario

Samsung

Samsung MM-ZJ9 Manual de usuario

Sharp

Sharp MD-X7 Manual de usuario

Sharp

Sharp DK-KP95P Manual de usuario

Akura

Akura APTCDC832PR Manual de usuario

iLive

iLive IHB248B Manual de usuario
